Electric Wire Cable
- FOB goods (1,000)
- $550
- Ocean freight + handling (3.0 CBM)
- $1,060
- US duty (2.7%)
- $15
- Section 301 tariff (25.0%)
- $138
- Customs fees (MPF/HMF)
- $33
Estimate in USD to a US port using category averages (HTS 8536/8504/8507), rates as of 2026-09. Other countries on request. A quote from our desk uses real carton sizes, freight and the exact tariff line.
- Service
- From $29 per supplier (Verify)
- You get
- Phone and video verification, a quote sheet and a written report
- Turnaround
- 3 business days
- Contact details
- Sent to you once your request is confirmed
If we can't reach the supplier within 3 business days, we refund the fee.
Electric Wire Cable
- FOB goods (1,000)
- $550
- Ocean freight + handling (3.0 CBM)
- $1,060
- US duty (2.7%)
- $15
- Section 301 tariff (25.0%)
- $138
- Customs fees (MPF/HMF)
- $33
Estimate in USD to a US port using category averages (HTS 8536/8504/8507), rates as of 2026-09. Other countries on request. A quote from our desk uses real carton sizes, freight and the exact tariff line.
- Service
- From $29 per supplier (Verify)
- You get
- Phone and video verification, a quote sheet and a written report
- Turnaround
- 3 business days
- Contact details
- Sent to you once your request is confirmed
If we can't reach the supplier within 3 business days, we refund the fee.
About this product
- Materials: CU PVC
- Size: 0.5mm2-500mm2
- Color: white black brown green red yellow blue
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Japan and South Korea, Hong Kong China, Macao China and Taiwan China, Others
- Made in: Jiangsu, China
About this product
- Materials: CU PVC
- Size: 0.5mm2-500mm2
- Color: white black brown green red yellow blue
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Japan and South Korea, Hong Kong China, Macao China and Taiwan China, Others
- Made in: Jiangsu, China
Product details
| Materials | CU PVC |
|---|---|
| Size | 0.5mm2-500mm2 |
| Color | white black brown green red yellow blue |
From the supplier
Applications: The product is designed for power equipment fixed wiring and flexible connection for electrical appliances with A.C. rated voltage 450/750V and below.
Standards: ASTM ICEA UL BS DIN IEC GB AS/NZS etc.

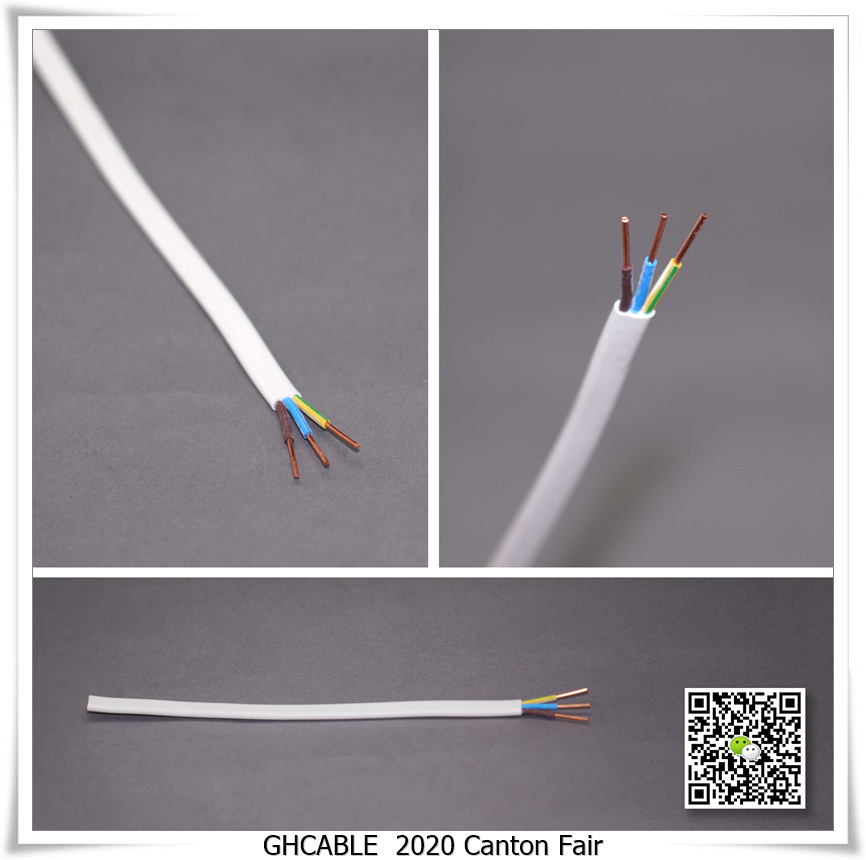

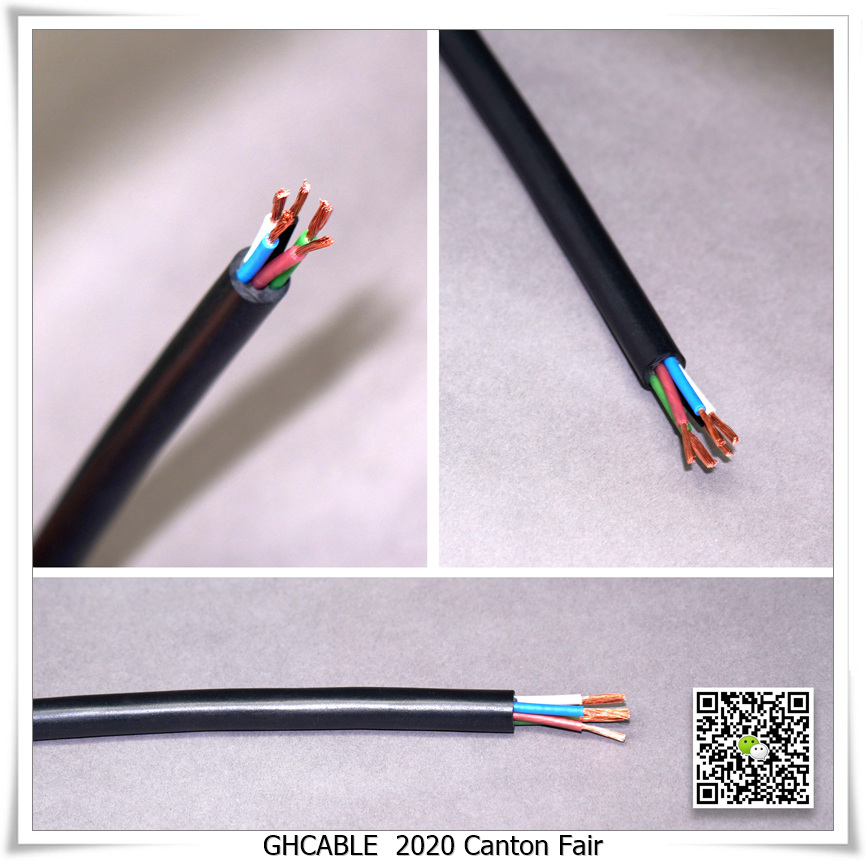

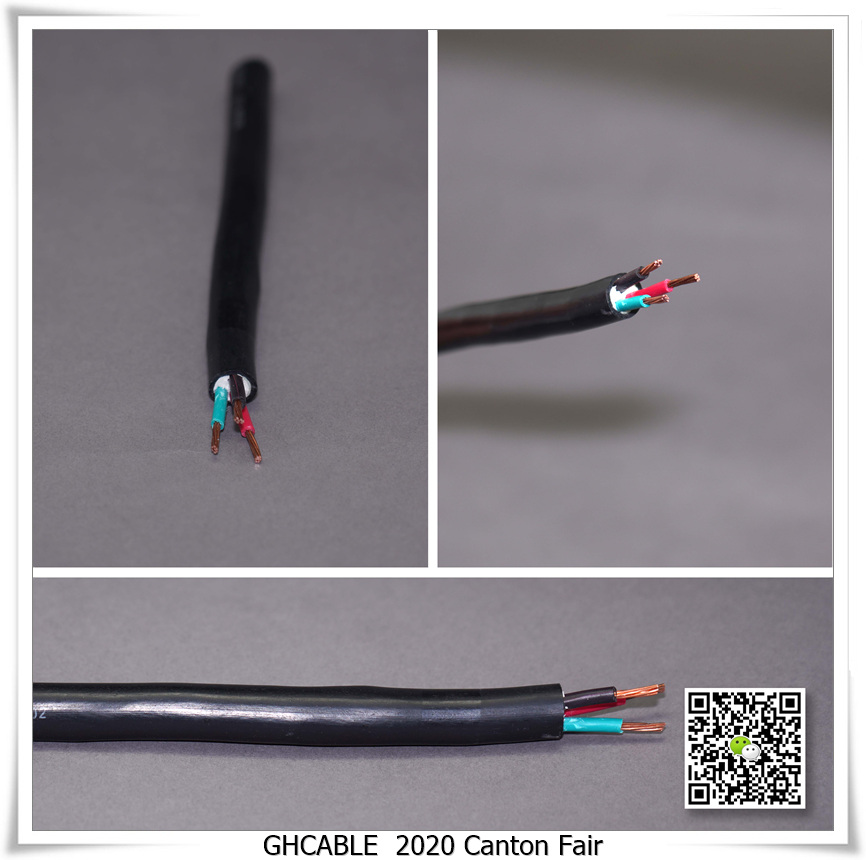

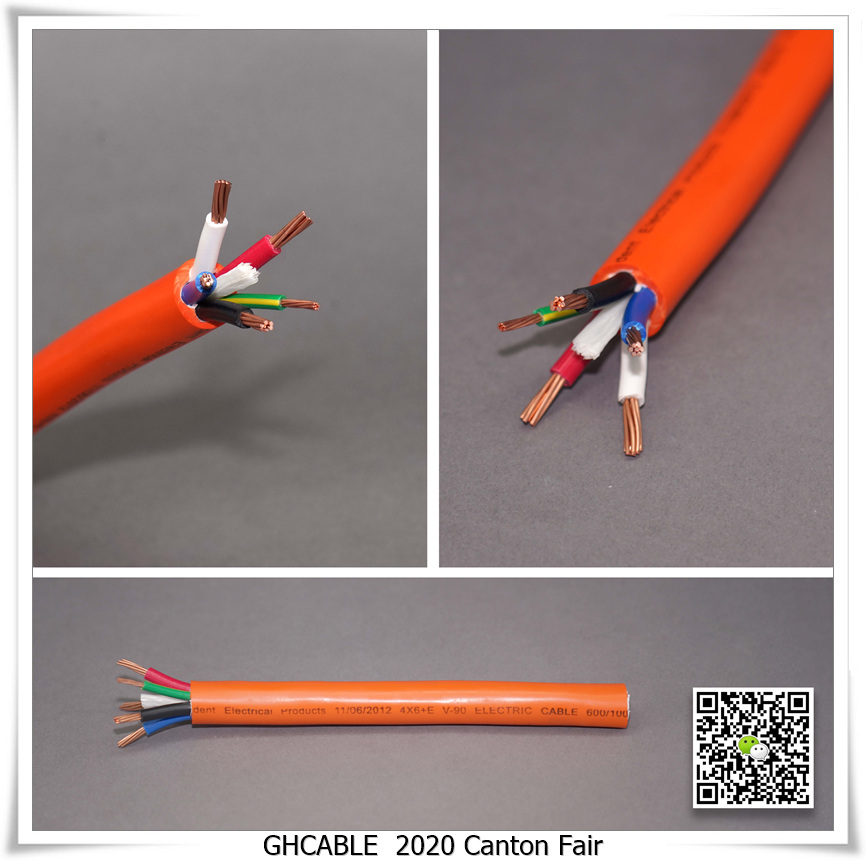

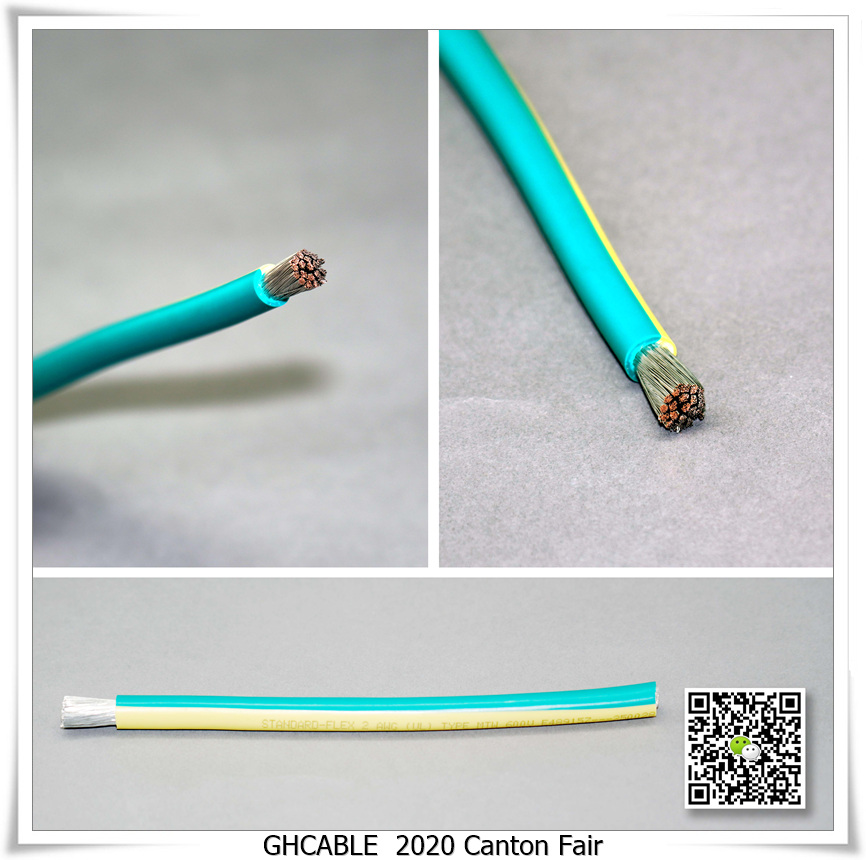

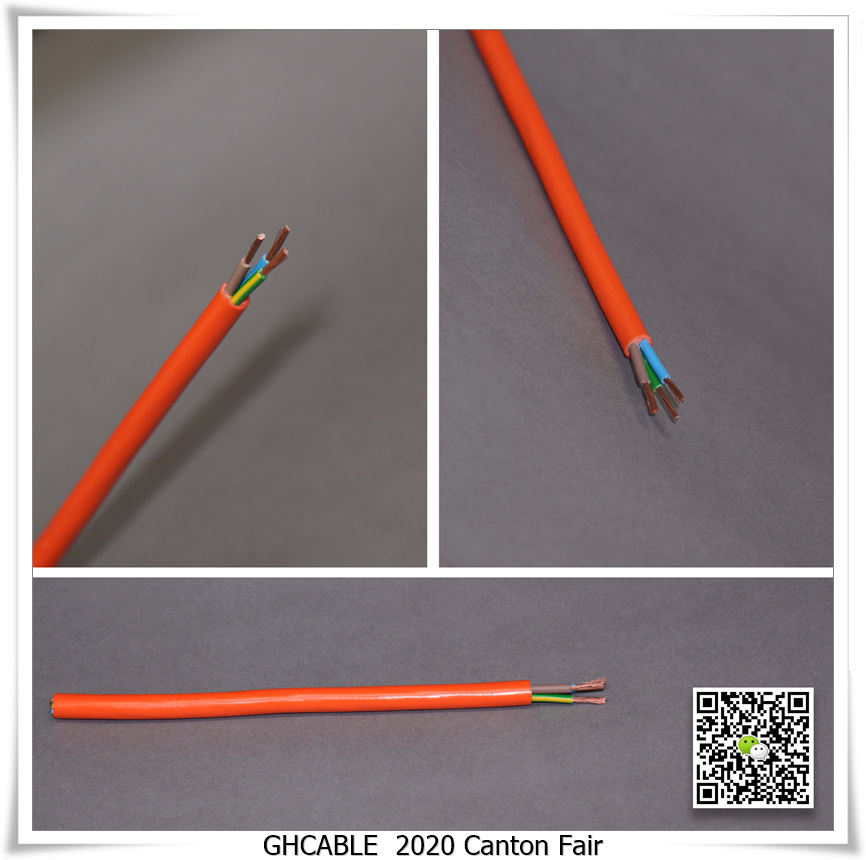

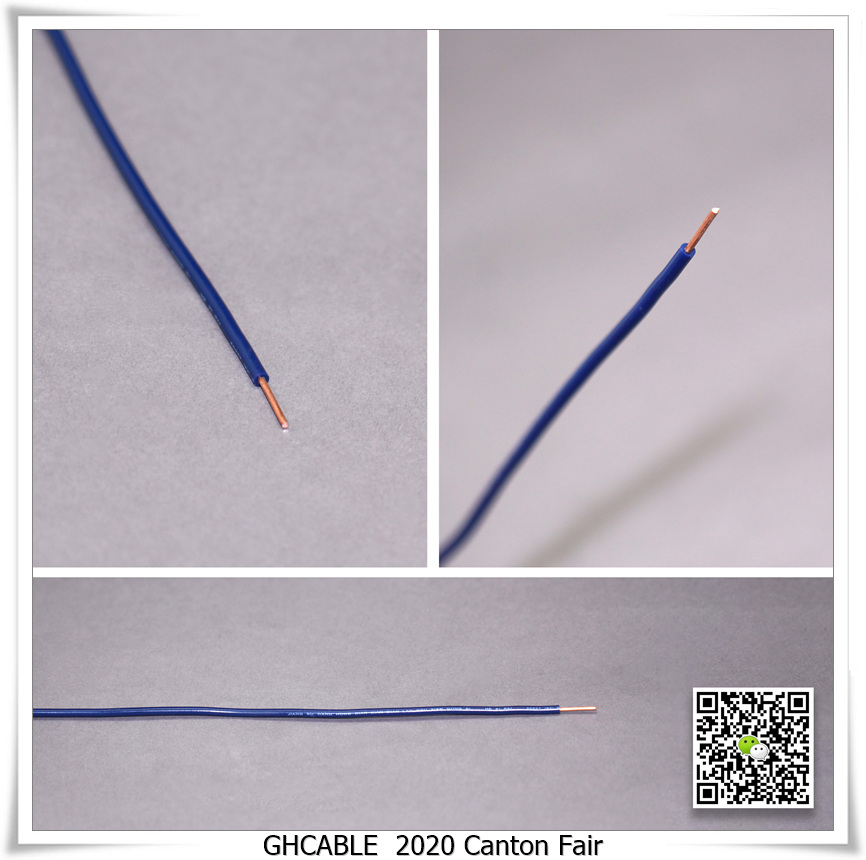

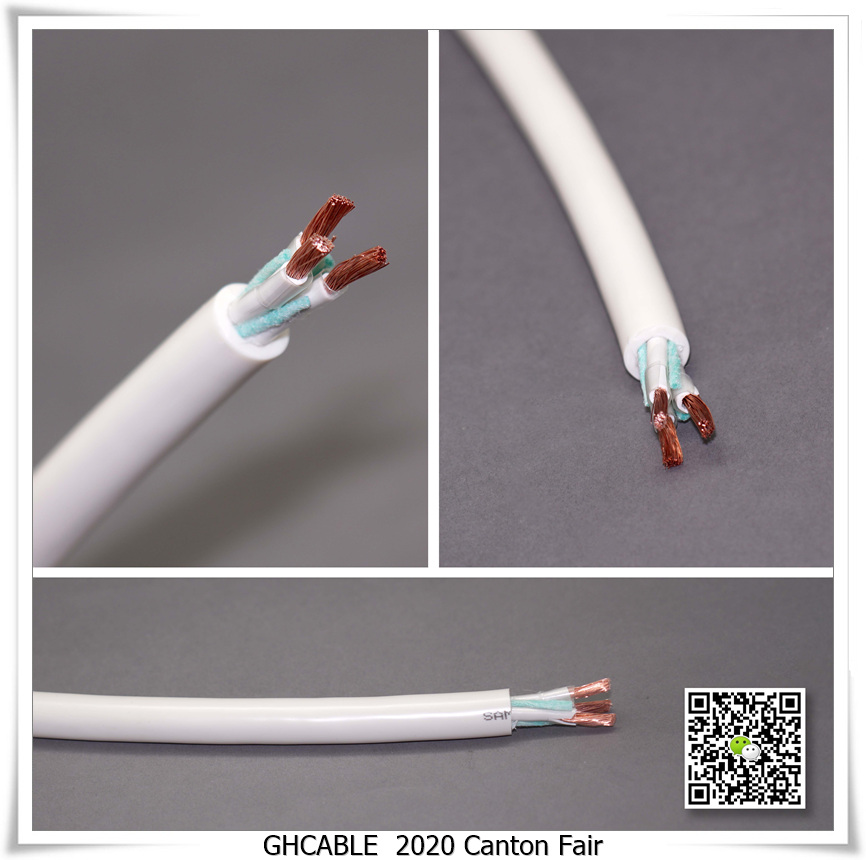

Construction:
Bare copper fine wire conductor
Stranded to DIN VDE 0295 cl. 5, BS 6360 cl. 5, IEC 60228 cl. 5 and HD 383
PVC core insulation T12 to VDE-0281 Part 1
Color coded to VDE-0293-308
Green-yellow grounding (3 conductors and above)
PVC outer jacket
Application: These are not suitable to be installed for laying in tubes, under and surface mounting of plaster and also
in closed installation conduits. These are not allowed to install for direct laying on cable trays, channel or
tanks. These types are permitted for the inner wiring of equipment, distributor and switchboards and also for
protective laying to the lightings with a nominal voltage up to 1000 V alternating current or up to 750 V direct
Features:
Working voltage: 450/750V
Test voltage: 2500 volts
Flexing bending radius: 12.5 x Ø
Static bending radius: 12.5 x Ø
Flexing temperature: -5º C to +70º C
Static temperature: -30º C to +80º C
Short circuit temperature: +160º C
Flame retardant: IEC 60332.1
