Product Application

Aerial cables (full name overhead insulated cables) are overhead conductors equipped with insulating layers and protective sheaths. They are produced by a production process similar to that of cross-linked cables. Way. Aerial cables are all single-core, and can be divided into hard aluminum wire structure, hard drawn copper wire structure, aluminum alloy wire structure, steel core or aluminum alloy core support structure and self-supporting three-core textured structure (wire structure) according to their different structures. The core can be hard aluminum or hard copper wire) and the like. It has the main characteristics of high power supply reliability, good power supply safety, convenient erection and maintenance, and reasonable economy. Its main technical parameters include weather resistance, insulation level, inner and outer semi-conductive shielding layers. Aerial cables are widely used in power transmission at home and abroad.

Product Type

Covered line wire

Covered line wire is used primarily for overhead secondary distribution lines.It is not an electrically insulated conductor and is treated as bare conductor when installed.

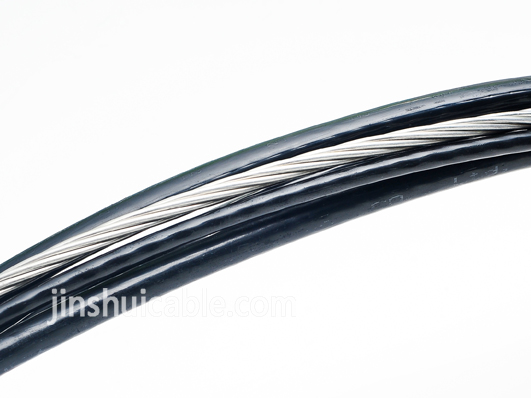

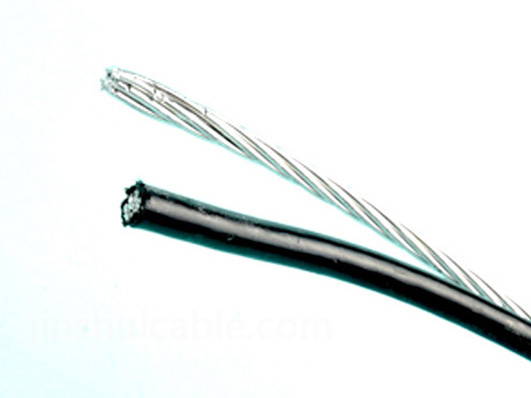

Duplex service drop

To supply 120 volt aerial service for temporary service at construction sites,outdoorr or street lighting.For service at 600 volts or lower ar a conductor temperature of 75 °Cmaximum.

Triplex service drop

To supply power from the utility’s lines to the consumer’s weatherhead.For service at 600 volts or less (pahse to phase) at a conductor temperature of 75°Cmaximum for polyethylene insulation or 90°C maximum for crosslinked insulation.

Quadruplex service drop

Used to supply 3 phase power,usually from a pole-mounted transformer,to the user’s service head where connection to the service entrance cable is made.To be used at voltage of 600 volts or less phase to phase and at conductor temperature no to exceed 75°C for polyethylene insulated conductor or 90°C for crosslinked polyethylene insulated conductors.

Product Structure

To determine current ampacity by conductor size,please consult The National Electric Code,latest edition.

Code Name

Size AWG or MCM

Strand

Insulation Thickness(mls)

Outside Diameter(inches)

Rated Strength(lbs)

Weight

Ampacity(Amps)

XLPE

Poly

ACSR

Walnut

6

6/1

30

.258

1131

49

47

105

Butternut

4

6/1

30

.303

1170

71.8

70.0

135

Hickory

4

7/1

30

.309

2240

81.6

79.8

135

Pignut

2

6/1

45

.397

2710

118.1

114.8

180

Beech

2

7/1

45

.405

3460

134.1

130.7

180

Chestnut

1

6/1

45

.434

3370

145.5

141.8

210

Almond

1/0

6/1

60

.506

4160

190.4

184.9

235

Pecan

2/0

6/1

60

.554

5040

234.2

227.9

270

Filbert

3/0

6/1

60

.607

6290

288.5

281.4

305

Buckeye

4/0

6/1

60

.666

7930

356.5

348.5

345

Hackberry

266.8

18/1

60

.711

6540

354.8

346.8

435

ALLOY 6201-T81

Hornbeam

4

7/w

30

.310

1480

62.1

60.1

145

Linden

2

7/w

45

.406

2520

96.1

93.3

190

Oilnut

1/0

7/w

60

.518

4010

166.1

160.0

250

Waterash

2/0

7/w

60

.567

4850

203.3

196.4

290

Shellbark

3/0

7/w

60

.622

6110

249.4

241.4

335

Planetree

4/0

7/w

60

.683

7700

307.3

298.1

385
