In-screed heating mat for floor warming
- FOB goods (1,000)
- $45,833
- Ocean freight + handling (3.0 CBM)
- $1,060
- US duty (2.7%)
- $1,237
- Section 301 tariff (25.0%)
- $11,458
- Customs fees (MPF/HMF)
- $216
Estimate in USD to a US port using category averages (HTS 8536/8504/8507), rates as of 2026-09. Other countries on request. A quote from our desk uses real carton sizes, freight and the exact tariff line.
- Service
- From $29 per supplier (Verify)
- You get
- Phone and video verification, a quote sheet and a written report
- Turnaround
- 3 business days
- Contact details
- Sent to you once your request is confirmed
If we can't reach the supplier within 3 business days, we refund the fee.
In-screed heating mat for floor warming
- FOB goods (1,000)
- $45,833
- Ocean freight + handling (3.0 CBM)
- $1,060
- US duty (2.7%)
- $1,237
- Section 301 tariff (25.0%)
- $11,458
- Customs fees (MPF/HMF)
- $216
Estimate in USD to a US port using category averages (HTS 8536/8504/8507), rates as of 2026-09. Other countries on request. A quote from our desk uses real carton sizes, freight and the exact tariff line.
- Service
- From $29 per supplier (Verify)
- You get
- Phone and video verification, a quote sheet and a written report
- Turnaround
- 3 business days
- Contact details
- Sent to you once your request is confirmed
If we can't reach the supplier within 3 business days, we refund the fee.
About this product
- Materials: pvc. alloya . aluminum foil
- Size: 500mm wide
- Color: white.blue.red
- Exports to: Mainland China, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Japan and South Korea, Others
- Made in: Anhui, China
About this product
- Materials: pvc. alloya . aluminum foil
- Size: 500mm wide
- Color: white.blue.red
- Exports to: Mainland China, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Japan and South Korea, Others
- Made in: Anhui, China
Product details
| Materials | pvc. alloya . aluminum foil |
|---|---|
| Size | 500mm wide |
| Color | white.blue.red |
From the supplier

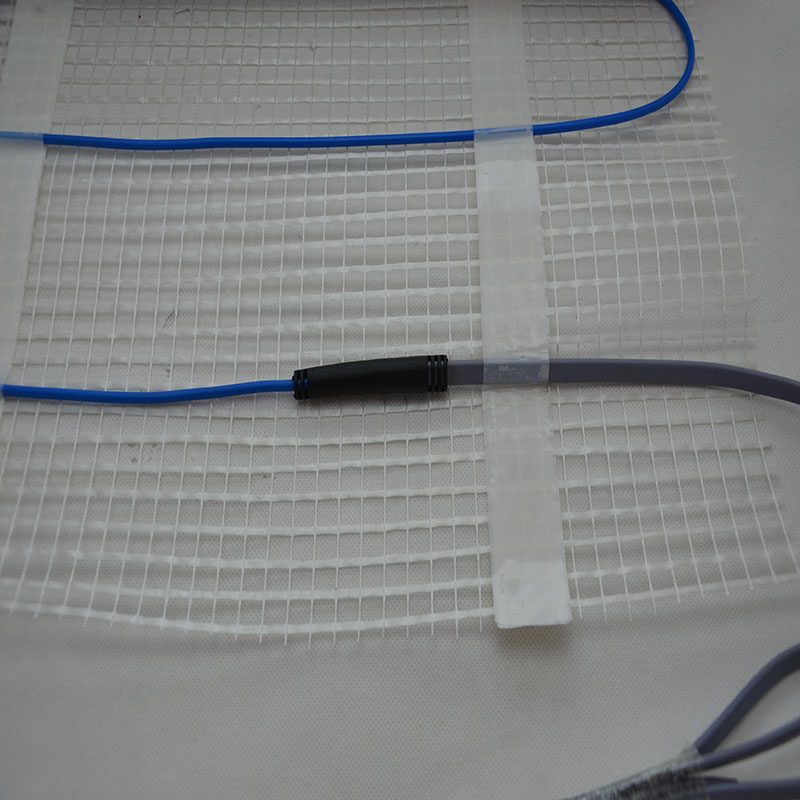

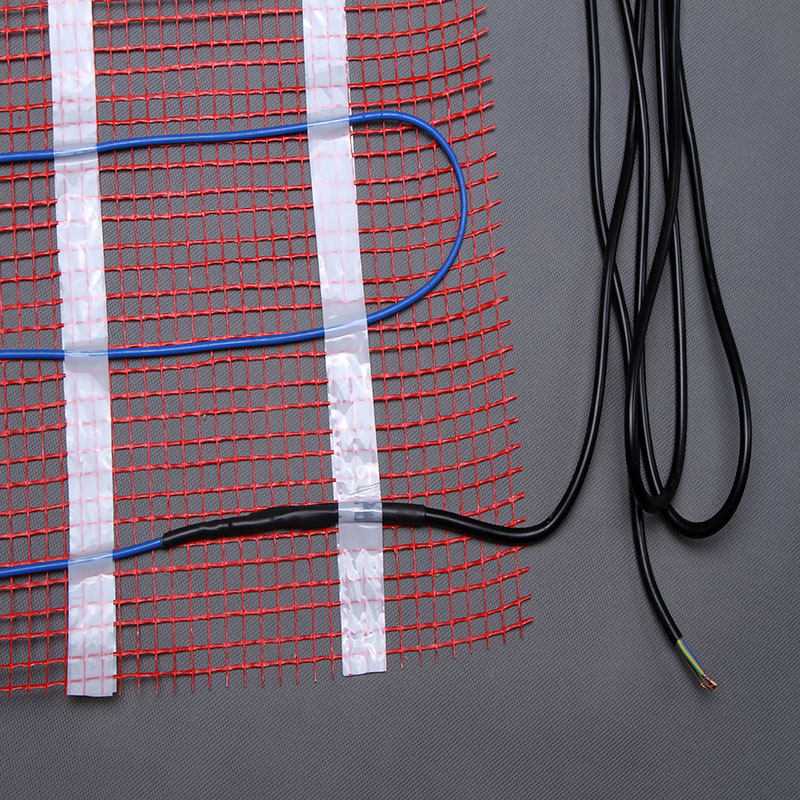

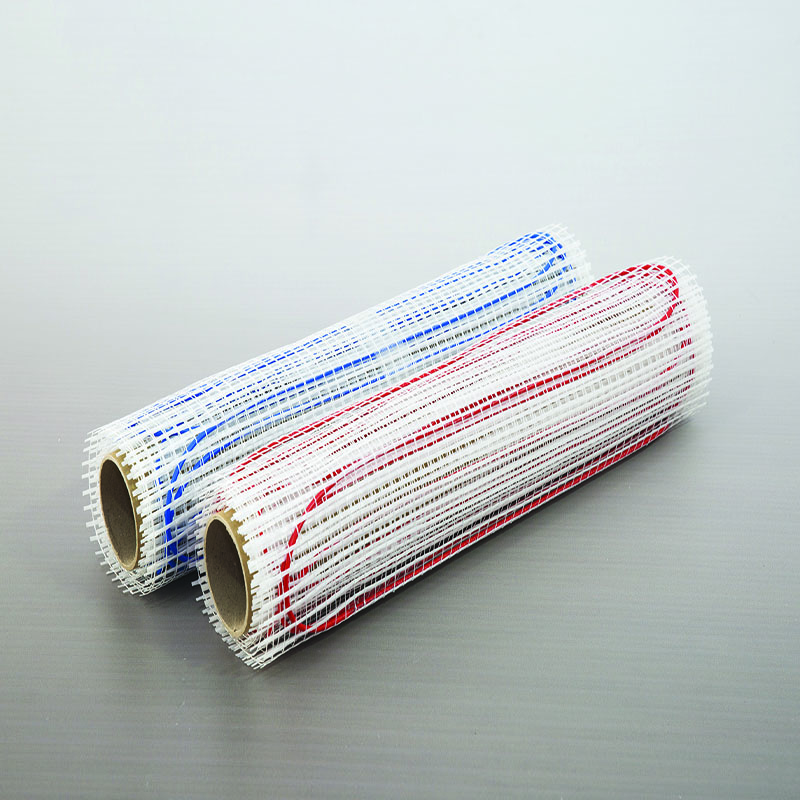

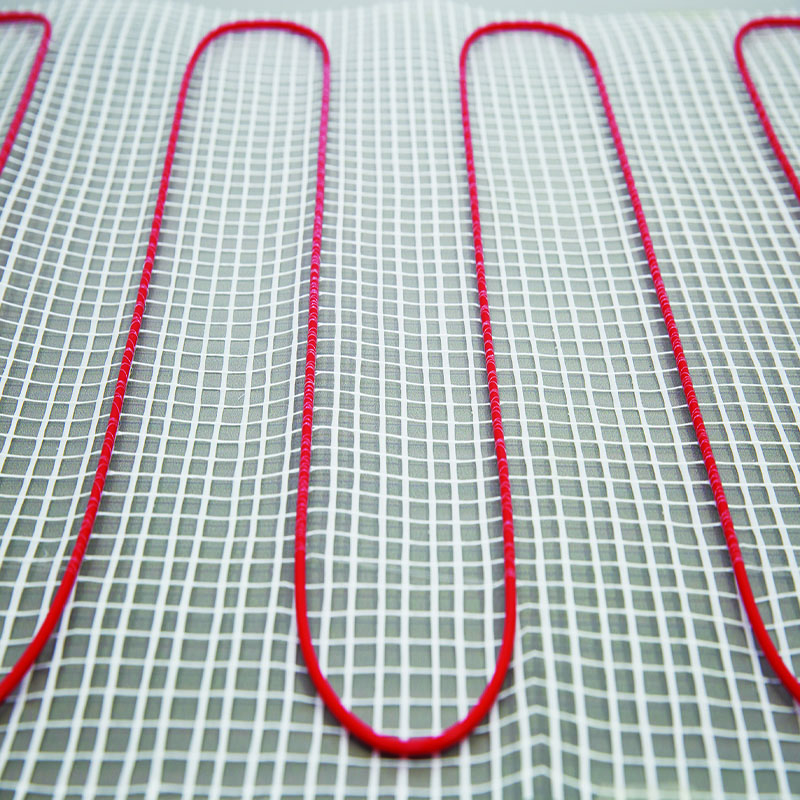

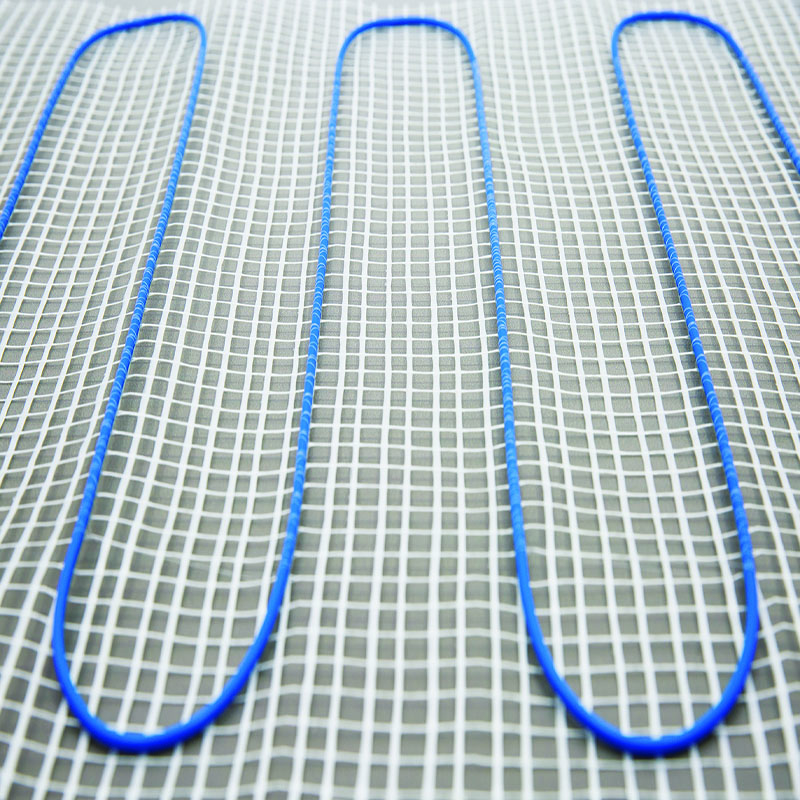

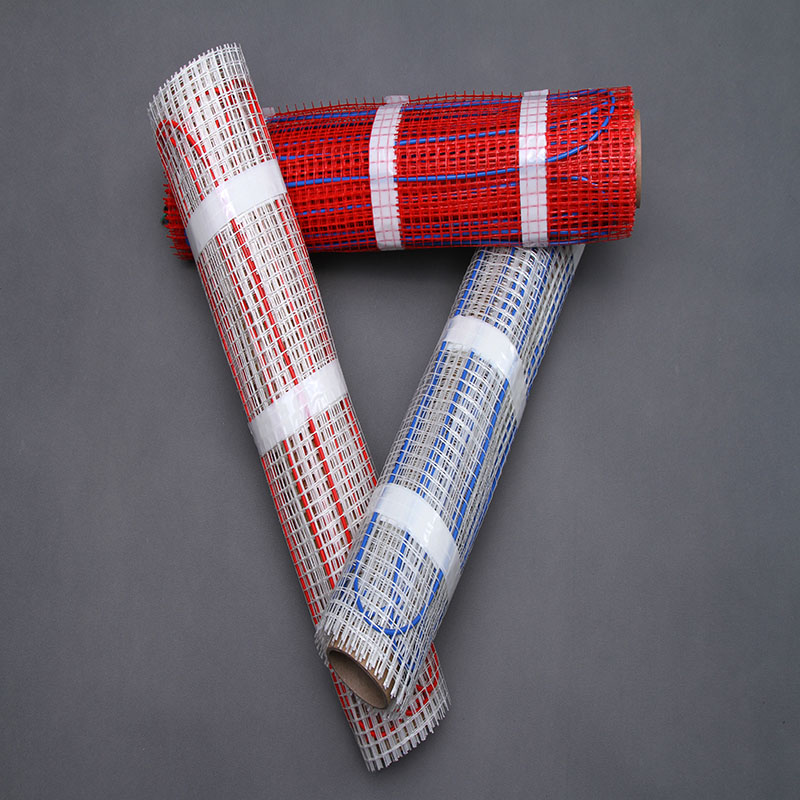

Ultra Thin Underfloor Heating Mat System T-mat
Commodity Introduction:
The StickyMat System is ideal for installations within regularly shaped areas, where 0.5m wide mats can be quickly rolled out across the floor in parallel runs. The pressure sensitive adhesive securely binds the mats to the floor, keeping them flat and ensuring the application of tile adhesive is snag free whilst allowing the mats to be easily repositioned as needed.
For floors using a vinyl, carpet, timber or other UFH compatible floor finishes including tiles, the system can be covered with a levelling compound to provide a flat and level floor surface. Alternatively, the Foil Heater System offers utilises a completely dry construction that does not require a levelling compound.
Cable structure Twin conductor
Conductor Solid heating core
Insulation material FEP
Insulation optional TPEE for T-mat(T), XLPE for T-mat(X)
Shield Aluminum-plastic tape or tinned copper wires
Protective jacket PVC/FEP
Connector Out splice
Outer diameter 3.6mm
Rated voltage 230V
Power output 150W/m² 200W/m²
Resistance tolerance +10%/-5%
Certifications CE/EAC/TUV/CSA
Features:
150W/m2 200W/m2
Twin conductor heating cable
Very low EMF
Only one cold tail for ease of installation
Thin, only 3.6mm
Self adhesive
Flexible
100% screened
MOQ: 20pcs
Applications:
T-mat is designed for installation into thin adhesive beds, leveling compounds or thin screed beds beneath tiled and wooden floor.
150w/m2 heating mats are suitable as a primary heating source providing you have adequate insulation. These are our most commonly used mats for kitchens, dining rooms, large bathrooms and most other areas with tiled floors.
200w/m2 underfloor heating mats are generally used in areas where high heat loss is a problem, such as conservatories. These mats are only suitable under tiled floors, giving a 25% faster warm up time.
230V
Heating Area
Mat Dimensions
Output Power / Watts (150W/m2)
Current/Amps
Resistance/Ω
Part Number
m2
sq.ft.
m*m
in.*ft.
T-mat150-150
1
10.8
0.5*2
20*6.5
150
0.7
352.7
T-mat150-225
1.5
16.1
0.5*3
20*9.7
225
1
235.1
T-mat150-300
2
21.5
0.5*4
20*12.9
300
1.3
176.3
T-mat150-375
2.5
26.9
0.5*5
20*16.1
375
1.6
141.1
T-mat150-450
3
32.3
0.5*6
20*19.4
450
2
117.6
T-mat150-525
3.5
37.7
0.5*7
20*22.6
525
2.3
100.8
T-mat150-600
4
43.1
0.5*8
20*25.8
600
2.6
88.2
T-mat150-675
4.5
48.4
0.5*9
20*29.1
675
2.9
78.4
T-mat150-750
5
53.8
0.5*10
20*32.3
750
3.3
70.5
T-mat150-900
6
64.6
0.5*12
20*38.8
900
3.9
58.8
T-mat150-1050
7
75.3
0.5*14
20*45.2
1050
4.6
50.4
T-mat150-1200
8
86.1
0.5*16
20*51.7
1200
5.2
44.1
T-mat150-1350
9
96.9
0.5*18
20*58.1
1350
5.9
39.2
T-mat150-1500
10
107.6
0.5*20
20*64.6
1500
6.5
35.3
T-mat150-1800
12
129.2
0.5*24
20*77.5
1800
7.8
29.4
230V
Heating Area
Mat Dimensions
Output Power / Watts (200W/m2)
Current/Amps
Resistance/Ω
Part Number
m2
sq.ft.
m*m
in.*ft.
T-mat200-200
1
10.8
0.5*2
20*6.5
200
0.9
264.5
T-mat200-300
1.5
16.1
0.5*3
20*9.7
300
1.3
176.3
T-mat200-400
2
21.5
0.5*4
20*12.9
400
1.7
132.3
T-mat200-500
2.5
26.9
0.5*5
20*16.1
500
2.2
105.8
T-mat200-600
3
32.3
0.5*6
20*19.4
600
2.6
88.2
T-mat200-700
3.5
37.7
0.5*7
20*22.6
700
3
75.6
T-mat200-800
4
43.1
0.5*8
20*25.8
800
3.5
66.1
T-mat200-900
4.5
48.4
0.5*9
20*29.1
900
3.9
58.8
T-mat200-1000
5
53.8
0.5*10
20*32.3
1000
4.3
52.9
T-mat200-1200
6
64.6
0.5*12
20*38.8
1200
5.2
44.1
T-mat200-1400
7
75.3
0.5*14
20*45.2
1400
6.1
37.8
T-mat200-1600
8
86.1
0.5*16
20*51.7
1600
7
33.1
T-mat200-1800
9
96.9
0.5*18
20*58.1
1800
7.8
29.4
T-mat200-2000
10
107.6
0.5*20
20*64.6
2000
8.7
26.5
T-mat200-2400
12
129.2
0.5*24
20*77.5
2400
10.4
22
contant : Mr.wang
email : wang@heatcablemat.com
tel/whatsapp: 0086 15656027387
