XLPE insulation underground power cable
The supplier hasn’t listed a price. We can get their current prices and MOQ.
- Service
- From $29 per supplier (Verify)
- You get
- Phone and video verification, a quote sheet and a written report
- Turnaround
- 3 business days
- Contact details
- Sent to you once your request is confirmed
If we can't reach the supplier within 3 business days, we refund the fee.
XLPE insulation underground power cable
The supplier hasn’t listed a price. We can get their current prices and MOQ.
- Service
- From $29 per supplier (Verify)
- You get
- Phone and video verification, a quote sheet and a written report
- Turnaround
- 3 business days
- Contact details
- Sent to you once your request is confirmed
If we can't reach the supplier within 3 business days, we refund the fee.
About this product

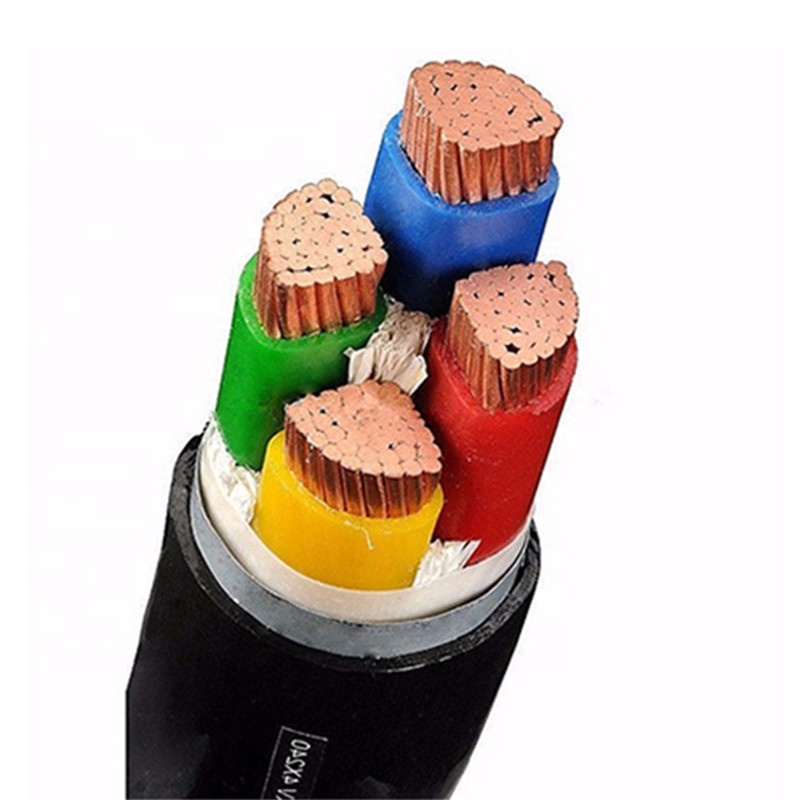

- Materials: PVC sheath + Galvanized steel wire armored + PVC inner sheath + steel tape armored + XLPE insulation + copper conductor
- Size: 80mm*80mm
- Color: black ，accept customized
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Japan and South Korea, Hong Kong China, Macao China and Taiwan China, Others
- Made in: Henan, China
About this product
- Materials: PVC sheath + Galvanized steel wire armored + PVC inner sheath + steel tape armored + XLPE insulation + copper conductor
- Size: 80mm*80mm
- Color: black ，accept customized
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Japan and South Korea, Hong Kong China, Macao China and Taiwan China, Others
- Made in: Henan, China
Product details
| Materials | PVC sheath + Galvanized steel wire armored + PVC inner sheath + steel tape armored + XLPE insulation + copper conductor |
|---|---|
| Size | 80mm*80mm |
| Color | black ，accept customized |
From the supplier
1. Purpose
This product is suitable for fixed-line laying of AC rated voltage 21/35, 26 / 35kV transmission and distribution.
2. Product standards
GB / T12706.3-2008 "Extruded insulated power cables and accessories with rated voltage of 1kV (UM = 1.2kV) to 35kV (UM = 40.5kV) Part 3: Cables with rated voltage of 35kV (UM = 40.5kV)"
3. Use characteristics
3.1 The maximum rated temperature of the cable conductor is 90 ℃.
3.2 The maximum temperature of the cable conductor during short-circuiting (maximum time does not exceed 5s) does not exceed 250 ℃.
3.3 The ambient temperature when laying cables should not be lower than 0 ℃.
3.4 The minimum bending radius of the cable should be: (D is the cable outer diameter)
(1) Single-core cable: unarmored 20D; armored 15D.
(2) Multi-core cable: armored 15D; armored 12D.
4. Model and name (see table 1)
Table 1 Model and name
ModelNameYJV YJLVZR- YJVZR-YJLVXLPE insulated and PVC sheathed power cable
XLPE insulated PVC sheathed flame-retardant power cable
YJV22 YJLV22ZR- YJV22ZR-YJLV22XLPE insulated steel tape armored PVC sheathed power cable
XLPE insulated steel tape armored PVC sheathed flame retardant power cable
YJV23 YJLV23ZR- YJV23ZR-YJLV23XLPE insulated steel tape armored PE sheathed power cable
XLPE insulated steel tape armored PE sheathed flame retardant
YJV32 YJLV32ZR- YJV32ZR-YJLV32XLPE insulated thin steel wire armored PVC sheathed power cable
XLPE insulated thin steel wire armored PVC sheathed flame retardant power cable
YJV33 YJLV33ZR- YJV33ZR-YJLV33XLPE insulated thin steel wire armored PE sheathed power cable
XLPE insulated thin steel wire armored PE sheathed flame retardant power cable
YJV42 YJLV42ZR- YJV42ZR-YJLV42XLPE insulated thick steel wire armored PVC sheathed power cable
XLPE insulated thick steel wire armored PVC sheathed flame retardant power cable
YJV43 YJLV43ZR- YJV43ZR-YJLV43XLPE insulated thick steel wire armored PE sheathed power cable
XLPE insulated thick steel wire armored PE sheathed flame retardant power cable
