About this product
- Materials: metal
- Size: 3000x2150x2450mm
- Color: black and grey
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Japan and South Korea, Hong Kong China, Macao China and Taiwan China
About this product
- Materials: metal
- Size: 3000x2150x2450mm
- Color: black and grey
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Japan and South Korea, Hong Kong China, Macao China and Taiwan China
Product details
| Materials | metal |
|---|---|
| Size | 3000x2150x2450mm |
| Color | black and grey |
From the supplier

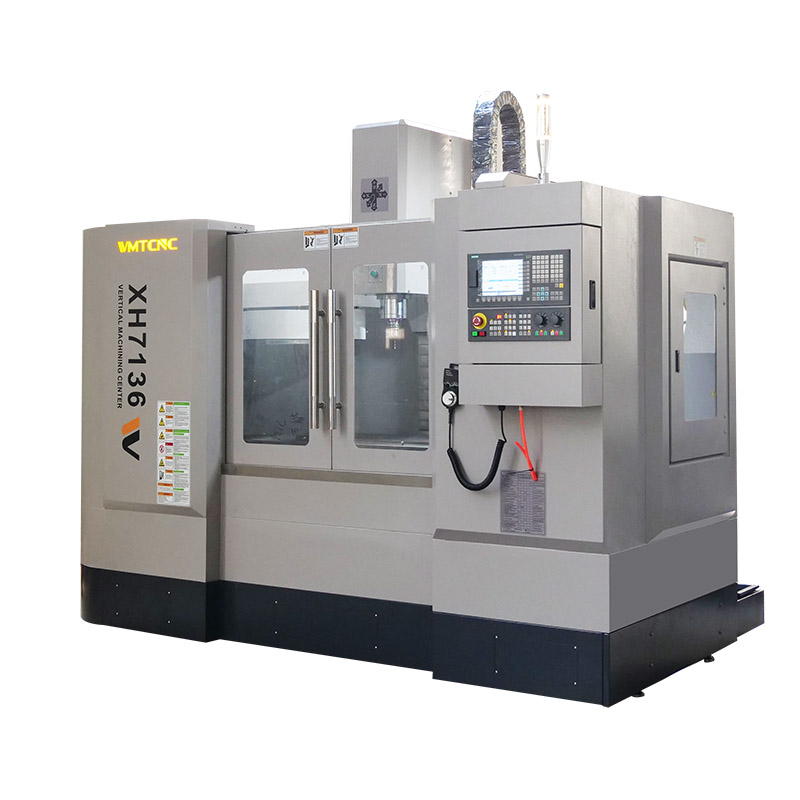

Introducing the WMTCNC BRAND cnc vertical milling machine XH7136, a reliable and high-performance solution for machining box parts, shell parts, disc-shaped parts, and more. Designed with a dovetail guideway featuring plastic sticking, this machine offers exceptional rigidity, stability, and robust support for precise and efficient operations.
Experience perfect service with the axis cnc milling machine XH7136, as it delivers excellent performance, long-term stability, and higher accuracy. Its advanced features ensure optimal results, while the high rigidity of the machine guarantees reliable and consistent performance.
Whether you’re engaged in industrial production or precision engineering, the WMTCNC BRAND XH7136 cnc mill machine is your ideal choice for achieving superior machining outcomes. Trust in its capabilities to meet your highest standards and deliver exceptional results with every project.
Elevate your machining operations with the WMTCNC BRAND XH7136 cnc mill machine and unlock a world of precision, reliability, and efficiency.
Specification
Specification XH7136 Worktable Worktable size（LxW） 1250x360mm T-slot (NxWxD) 3-18/80mm Travel X/Y/Z axis travel 900/350/500mm Machining range Distance from spindle center to column 460mm Distance from spindle nose to worktable surface 100-600mm Spindle Spindle taper BT40 Spindle power 5.5kw Max.spindle speed 8000rpm Feed Max.feed speed 10m/min Rapid feed speed（X/Y/Z) 10/10/8m/min Power AC servo motor torque(X/Y/Z) 7.7/7.7/15N.m X/Y/Z feed motor power 1.5/1.5/2kw Rated power 11kw Ball screw(diameter+lead) X/Y/Z axis ball screw X-3206,YZ-4006 Tool magazine Tool magazine capacity 16T Max.length of tool 200mm Tool change time(T-T) 7s Positioning accuracy(National standard) Positioning accuracy (X/Y/Z) ±.0.02mm Re-positioning accuracy(X/Y/Z) ±.0.01mm Machine dimension LxWxH 3000x2150x2450mm Machine weight Max.loading of worktable 350kg Machine weight 3500kg
Machine Details
