LUCHAR POR LA PERFECCIÓN,

PARA PRESENTAR UNA MEJOR SOLUCIÓN

 APPLICATION

La máquina automática termoformadora de alta calidad IP se aplica principalmente para la producción de embalajes de moldeado de pulpa para productos electrónicos de alta gama, tapas de vaso de bebida, artesanías de alto valor agregado, etc.

 MAIN FEATURES

With auto thermoforming high quality IP machine as the main system, our pulp molding production line has the following features:

- High accuracy and stability
- Energy saving and eco-friendly
- High reliability and uniform of production running
- All-in-one design with fully automatic

 OUR ADVANTAGES

Efficient

Small drafting angle to 0°, small round corner to R0.3;

Adjustable

Precise fine tuning for all aspects like distance, pressure and temerature;

Maturity

Successfully developed and put into use by customers as early as 2002;

Adeptness

Set of complex papermaking and mold supporting and efficient production in one.

 Main Specifications

Model.

ZJWD-9575 / ZJWD-14375

Structure

Forming Station x1,
Hot pressing Station x1,
with Product Discharge Station and Automatic Control System.

Platen Size

950 x 750 mm / 1430 x 750 mm

Forming Type

Reciprocating

Heating Type

Electricity or Thermal Oil

Max. Pressure

35 Ton / 55 Ton, by Hydraulic Cylinder

Max. Product Height

100 mm

Product Transfer TypeUpper Platen Move Back And Forth Along the Guide RailHeating Plate DivisionDepend on Products

Control By

PLC + Touchscreen

Designed Capacity

Depends on Products

Remarks

* The above specification is for reference only. As technology is developed continuously, data will be updated from time to time.
* Pulp molding equipments are non-standard equipments. We offer customized solution according to your specific requirements.
* Welcome to contact us at anytime. Our professional team will provide more effective help and supports for you.

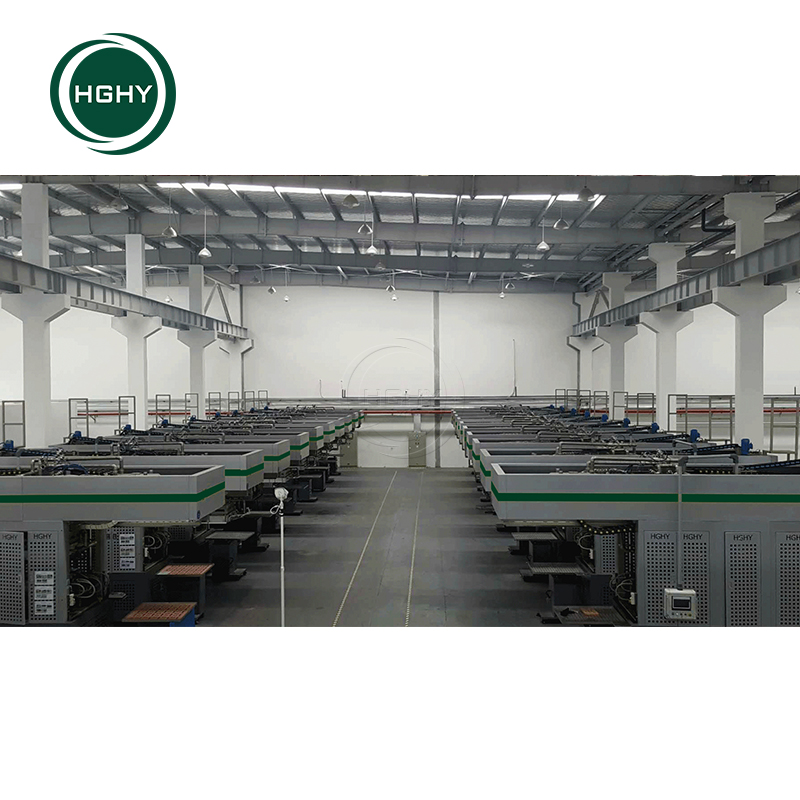

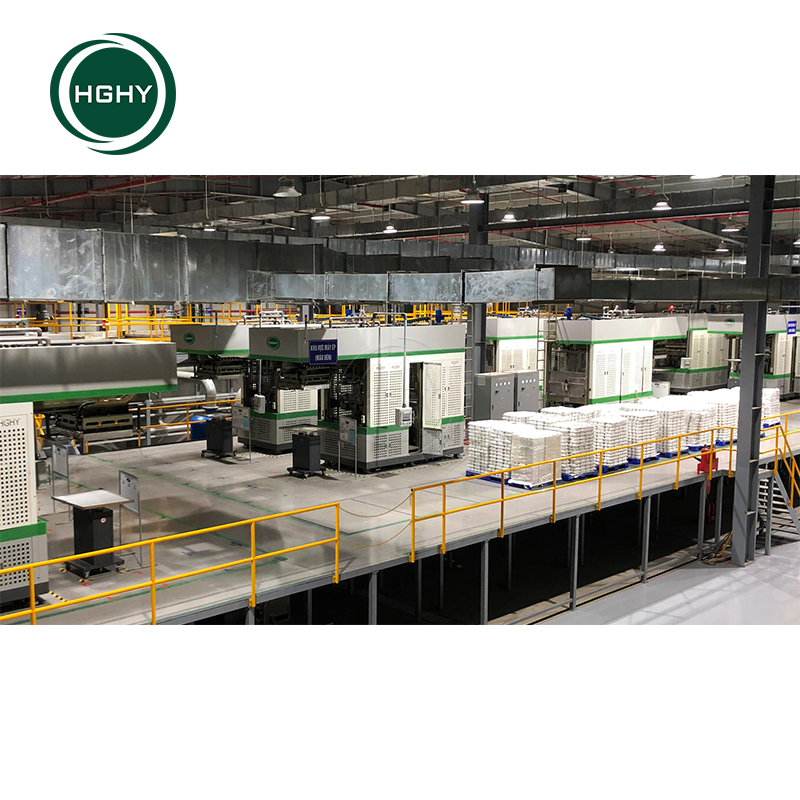

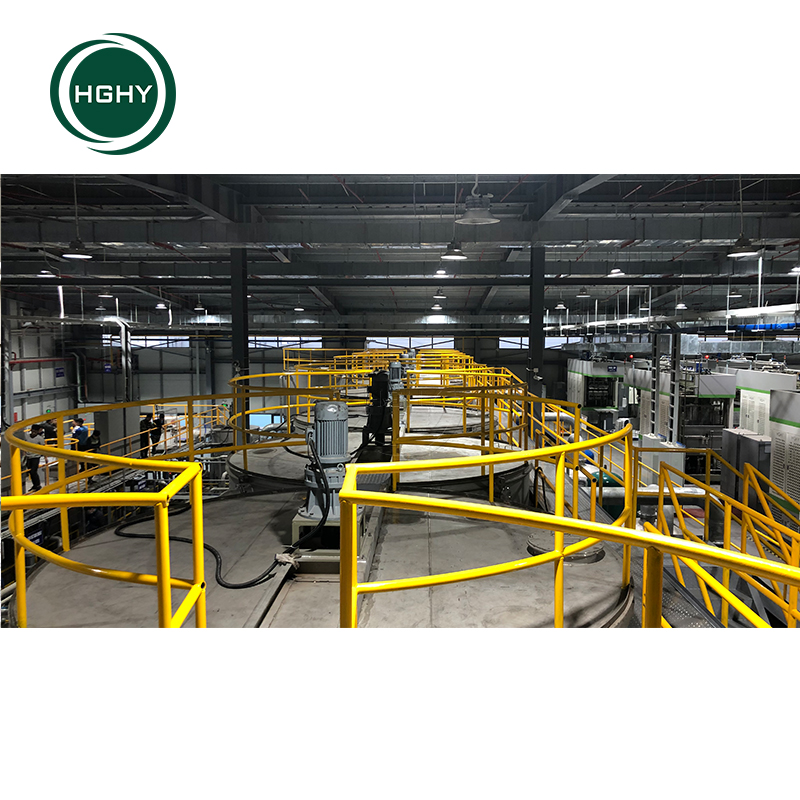

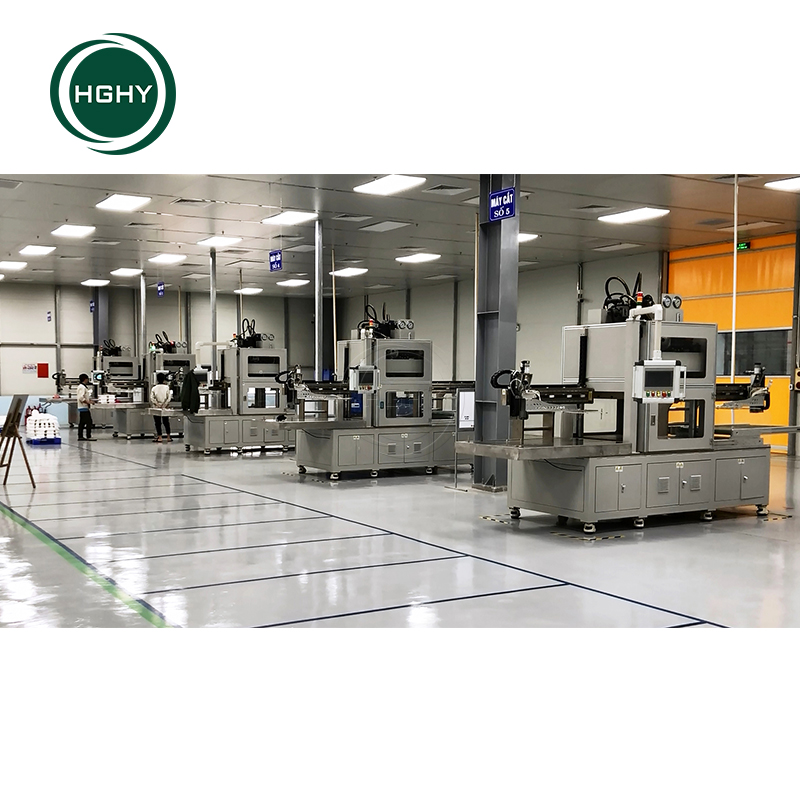

 COOPERATION CASE
