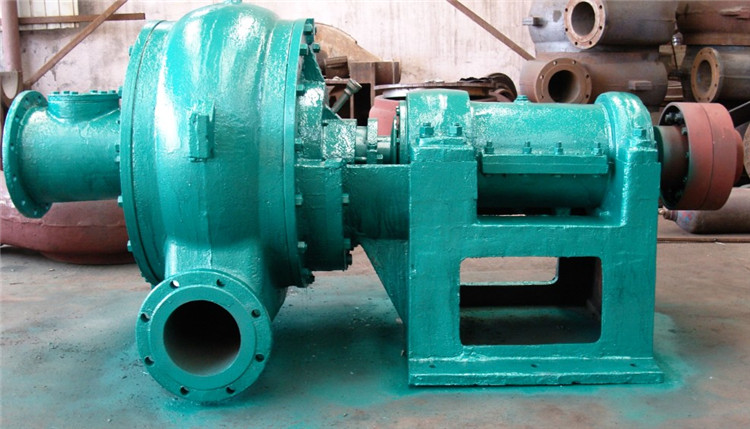

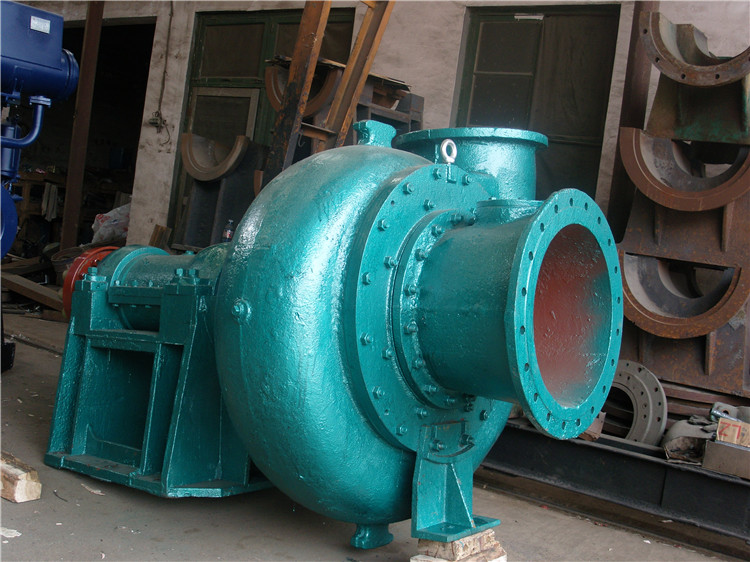

Big Capacity Wearble Sand Extraction PumpProduct Description

Big capacity sand pump can pump sand and gravel equipped on dredger ship or boat. Our Sand Extraction Pump is passed through the trial test and industrial operation test, it has the  characteristics of energy saving, high hydraulic efficiency, good wear resistance  and reliable operation in the delivery of solid particles. The ship Sand Extraction Pump is suitable for inland river dredging,  coastal embankment , coal mines, power plants and other enterprises to transport solid particles containing slurry, medium particles up to 50-80 mm. The dredger Sand Extraction Pump is also used to pump sand or slurry in the river, lake, sea and reservoir,  land reclamation, pumping iron ore, gold sand.

Application



Big capacity sand pump  can be installed on dredger, ship, boat for sand and gravel pumping. it has the  characteristics of energy saving, high hydraulic efficiency, good wear resistance, reliable operation in the delivery of solid particles.

Feathers



 1.Material : Using the cast iron ,cast steel or  high wear resistant and strong corrosion resistance chrome alloy to make the  over -flow part .

2.Long-term bearing life .The bearing assembly is composed of large diameter shaft and short overhang.

3.with distinctive innovation in hydraulic and structural design.

4.Large dredging depth, high density of dredging mud, good NPSH (net positive suction head)and strong suction lift ability.

5.Apply for sand suction and dredging, extracting mud for ship, marine reclamation land, wharf building electric power and metallurgical industry for conveying tailing, and in coal washing industry for filtering coal slime

6. the suction depth up to 35 meter under water, discharge head up to 60 meter and discharge distance up to 1000 meter-1500 meter without boost pump. The gravel size allow to pass through up to 80mm.

Parameter form



Type FlowHead Rotation



rate

Diesel



engine

 Impeller



diameter

  Diameter (inch)(m³/H)(m)(r/min) (hp)  (mm) Inletoutlet 200PNS-30 540 48 980 180550 8 6 410 28 73075  8 6250PNS-24  850 38 980 250 550   10 8 620 21 730 122 10 8 250ND-22 800 22 730 150-250 620 10 10 250PNS-30 1110 30 730 185-250 650 10 8 250PNS-35 1450 35 730 250 670 10 8 350PNS-24 1650 24 730 250-300 560 14 12 350PNS-35 1800 35 730 350-408 690 14 12Successful Cases



Sand Extraction Pump for Sand Reclamation

Zhejiang customers signed Yushan blowing sand reclamation project.They are pumping the dry sand in the sand transport vessel.The required distance is 800 -1500 meters, with sand output for 500m³/h.Our company designed the Sand Extraction Pump to complete the construction program.

First of all, the high-pressure water pump jetting dry sand in the sand transport ship. And the sand-water mixture is drawn through multiple vertical silt pumps.Then the amphibious slurry pump transport for long distance relay to complete the reclamation. After discussions with customers several times. Finally,customer signed three sets of procurement contracts for Sand Extraction Pumps.



Model

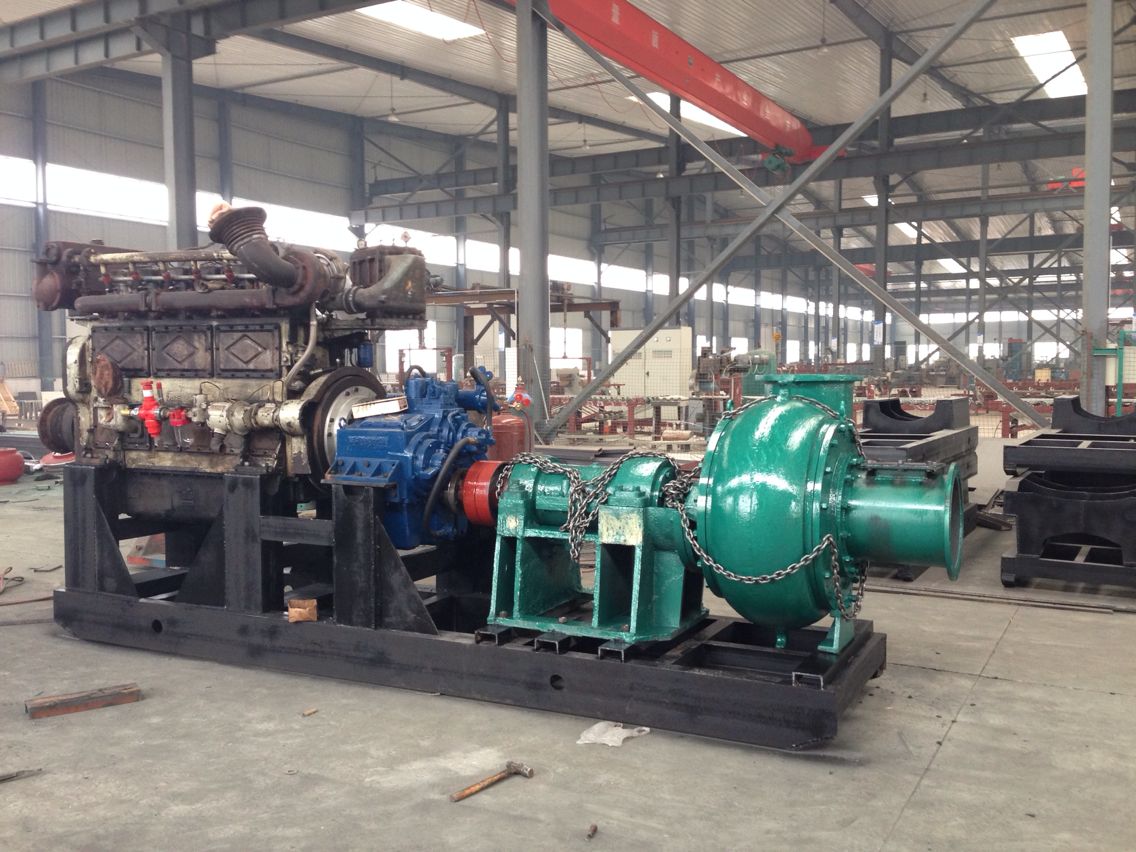

450PNS-50Capacity2600m³/hHead50mRotate Speed600 rpmDiesel engineWEICHAI8170,818HP,1350rpmGear BoxType600 with reduction ratio 2:1 Inner diameter450mmOut diameter400mm

We sent the Sand Extraction Pump units to the customer designated site. The customer actual use the Sand Extraction Pumps, with high efficiency.Also it is easy to operate, and high concentration of blowing.Customers are very satisfied with the amphibious slurry pumps.At present, the Sand Extraction Pump units have been constructed in Yushan for more than one year. After pumping 1.4 million square meters of sand, the impeller, guard plate and pump case can still be used continuously.And good wear-resisting makes the customer surprised, which reduce downtime and maintenance costs.
