BF-325 Commercial Analog Radio
Fujian BelFone Communications Technology Co. Ltd
The supplier hasn’t listed a price. We can get their current prices and MOQ.
Verify from $29 · written report in 3 business days · 100% refund if not satisfied
BF-325 Commercial Analog Radio
Fujian BelFone Communications Technology Co. LtdThe supplier hasn’t listed a price. We can get their current prices and MOQ.
Verify from $29 · written report in 3 business days · 100% refund if not satisfied
About this product
- Size: 53.1 (L)* 28.7 (W)* 100.7 (H)mm
- Color: Black
- Working distance: 1～5m
- Frequency band: Other
- Power source: Battery Powered
- Brand: Other
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Japan and South Korea, Hong Kong China, Macao China and Taiwan China
About this product
- Size: 53.1 (L)* 28.7 (W)* 100.7 (H)mm
- Color: Black
- Working distance: 1～5m
- Frequency band: Other
- Power source: Battery Powered
- Brand: Other
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Japan and South Korea, Hong Kong China, Macao China and Taiwan China
Product details
| Size | 53.1 (L)* 28.7 (W)* 100.7 (H)mm |
|---|---|
| Color | Black |
| Working distance | 1～5m |
| Frequency band | Other |
| Power source | Battery Powered |
| Brand | Other |
| Style | Handheld |
| Use | CivilianRadio |
| Weight | 160g |
Product details
| Size | 53.1 (L)* 28.7 (W)* 100.7 (H)mm |
|---|---|
| Color | Black |
| Working distance | 1～5m |
| Frequency band | Other |
| Power source | Battery Powered |
| Brand | Other |
| Style | Handheld |
| Use | CivilianRadio |
| Weight | 160g |
From the supplier

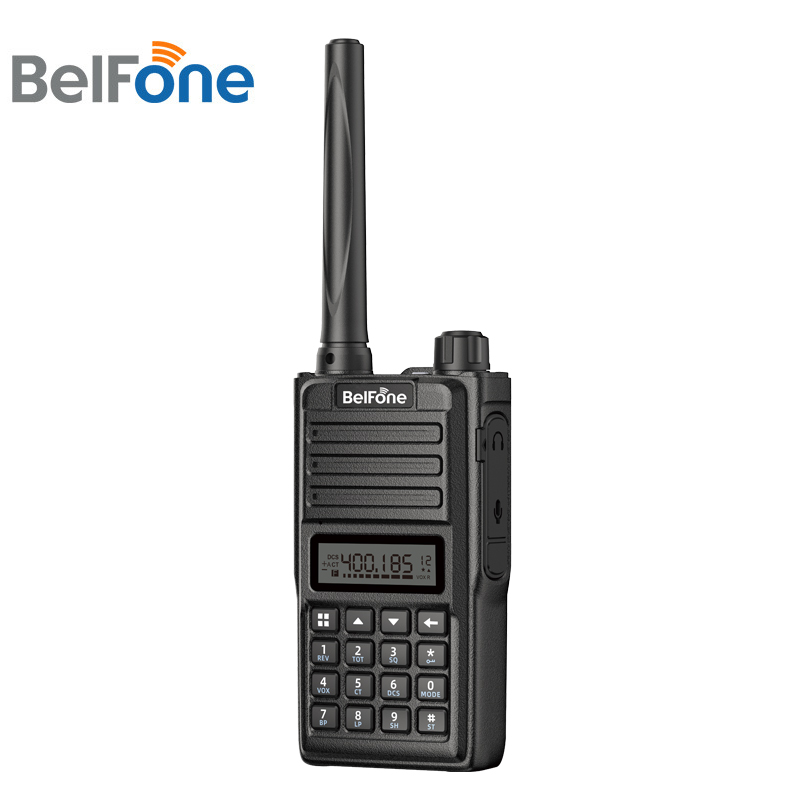

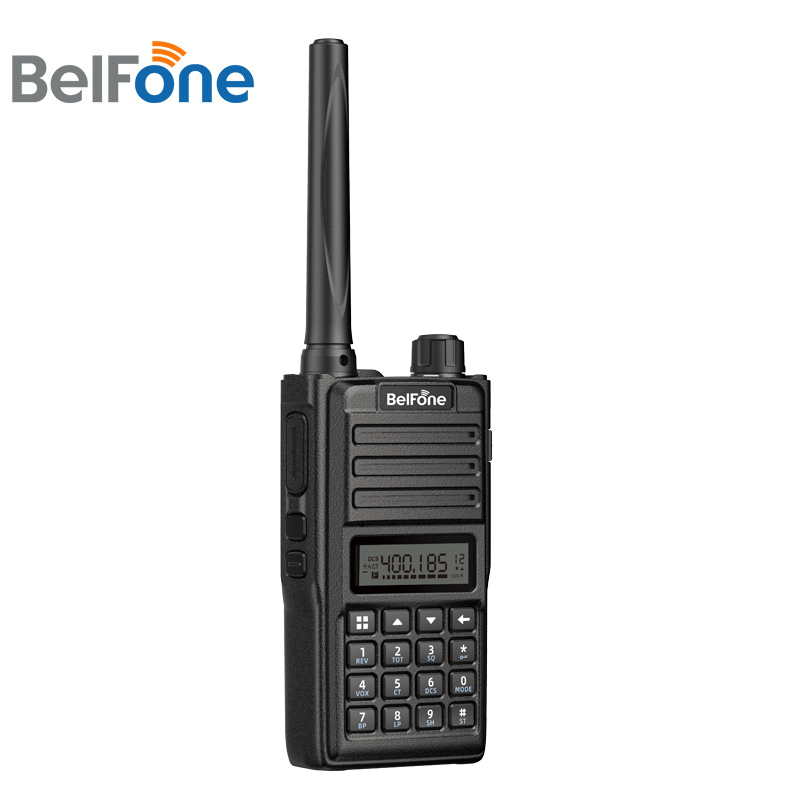

BF-325 is an analog FM transceiver that integrates analog technology perfectly to enhance communication efficiency. Designed with a multifunctional full keyboard, it brings more convenience for quick operation. Its robust structure and multiple charging modes make it ideal for a wide range of applications. Bringing commercial users with reliable and quick respond communications.
VOX Function
Squelch Levels
Signaling Encryption
Type-C Interface
BCL(Busy channel locking)
One-key Frequency Matching
General Frequency Range UHF: 400-480MHz Channel Capacity 99 Channel Spacing 25 KHz /12.5 KHz Operating Voltage DC 3.7V (±20%) Battery Capacity 1000mAh Frequency Stability ≤±2.5 ppm Antenna Impedance 50Ω Dimensions (L×W×H) 53.1 (L)* 28.7 (W)* 100.7 (H)mm Weight 160g (Including Battery) Transmitter RF Output Power ≤3W 4FSK Modulation 11KφF3E/16KφF3E FM Modulation ≤±2.5KHz /±5.0KHz Adjacent Channel Power 60dB Audio Distortion ＜5% Receiver Sensitivity ≤-122dBm (12dB SINAD) Intermodulation ≥60dB (Wide) / 55dB (Narrow) Adjacent Channel Selectivity ≥60dB (Wide) / 55dB (Narrow) Spurious Response Rejection ≥60dB (Wide) / 55dB (Narrow) Rated Audio Output Power 0.5W Audio Distortion ≤5% Environmental Specifications Operating Temperature -20℃～+60℃ Storage Temperature -30℃～+70℃
From the supplier
BF-325 is an analog FM transceiver that integrates analog technology perfectly to enhance communication efficiency. Designed with a multifunctional full keyboard, it brings more convenience for quick operation. Its robust structure and multiple charging modes make it ideal for a wide range of applications. Bringing commercial users with reliable and quick respond communications.
VOX Function
Squelch Levels
Signaling Encryption
Type-C Interface
BCL(Busy channel locking)
One-key Frequency Matching
General Frequency Range UHF: 400-480MHz Channel Capacity 99 Channel Spacing 25 KHz /12.5 KHz Operating Voltage DC 3.7V (±20%) Battery Capacity 1000mAh Frequency Stability ≤±2.5 ppm Antenna Impedance 50Ω Dimensions (L×W×H) 53.1 (L)* 28.7 (W)* 100.7 (H)mm Weight 160g (Including Battery) Transmitter RF Output Power ≤3W 4FSK Modulation 11KφF3E/16KφF3E FM Modulation ≤±2.5KHz /±5.0KHz Adjacent Channel Power 60dB Audio Distortion ＜5% Receiver Sensitivity ≤-122dBm (12dB SINAD) Intermodulation ≥60dB (Wide) / 55dB (Narrow) Adjacent Channel Selectivity ≥60dB (Wide) / 55dB (Narrow) Spurious Response Rejection ≥60dB (Wide) / 55dB (Narrow) Rated Audio Output Power 0.5W Audio Distortion ≤5% Environmental Specifications Operating Temperature -20℃～+60℃ Storage Temperature -30℃～+70℃
