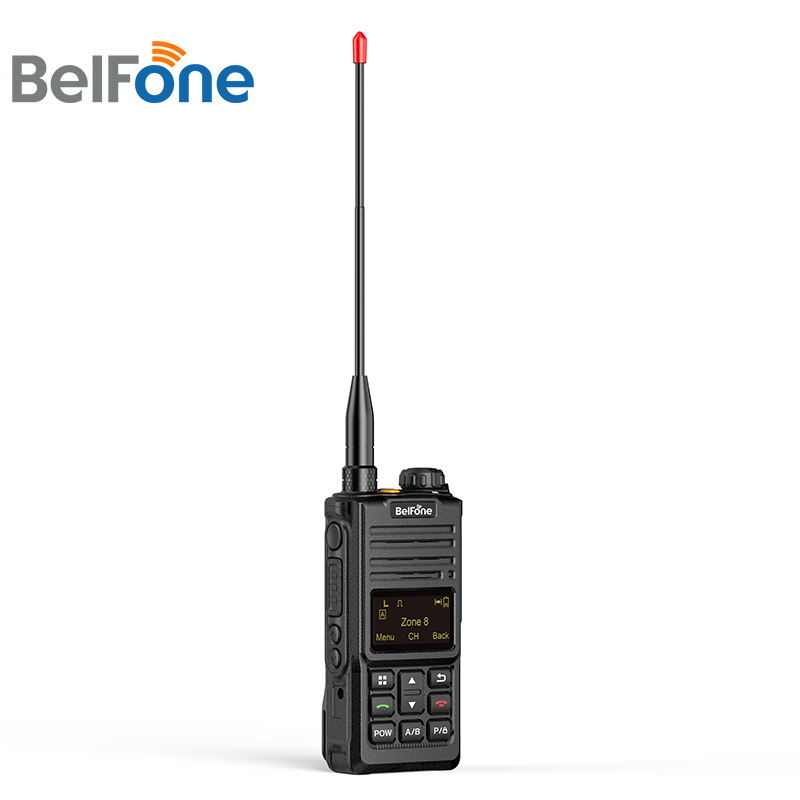

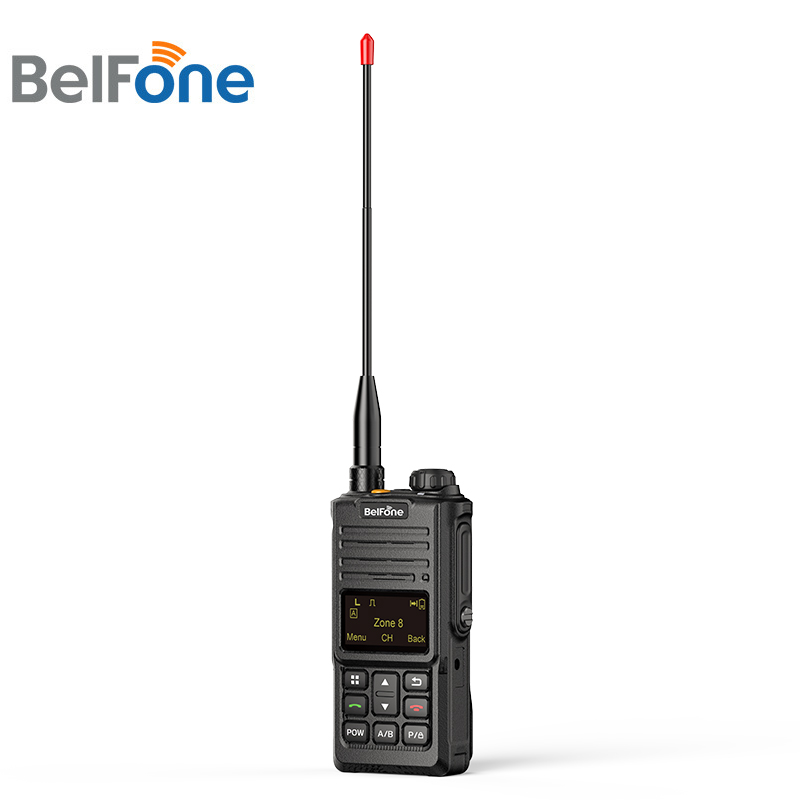

BF-TD910UV is a tough dual-band two-way radio capable of operating on both VHF band and UHF band, though not simultaneously. Its comprehensive feature kit includes but is not limited to versatile calls, emergency call, Lone Worker, scan/monitor, roaming, and transmission authentication. It caters to a great diversity of communication scenarios, indoor operations, outdoor operations, teamwork, emergency response, etc.

Dual-band Operation

BF-TD910UV is capable of cross-band operation, delivering more convenience and flexibility to your work and life.

IP68 Protection

Our tough BF-TD910UV is tightly sealed against dust, spills, sprays, and unexpected showers, ensuring outstanding performance in harsh environments.

Superior Audio Quality

BF-TD910UV incorporates AMBE3000 vocoder to deliver a loud and clear digital voice, giving you an enhanced audio experience.

A Long Battery Life

BF-TD910UV has a long battery life to power you through the day.

Automatic Roaming (in digital mode)

BF-TD910UV supports digital/analog dual modes. In digital mode, BF-TD910UV can automatically roam among all sites and stay connected in an IP multi-site network.

Emergency Call

In case of emergency, just press the orange button to trigger alarm and send for help. BF-TD910UV takes your safety into account.

Specifications

General Frequency Range VHF: 136-174MHZ; UHF: 350-390MHz/ 400-480MHz/ 450-520MHz Channels 1024 Zones 128 Channel Spacing 12.5KHz/ 25KHz Working Voltage DC7.4V (±20％) Frequency Stability ±0.5ppm Antenna Impedance 50Ω Battery Capacity 2300mAh (3350mAh optional) Battery Average Working 2300mAh battery: Digital 21 hours, Analog 16 hours; 3350mAh battery: Digital 30 hours, Analog 23 hours Dimension 56(L)* 33(W)* 129(H) mm Weight 315g (including battery) Transmitter Power Output High power: 4W/U band; 5W/V band; Low power: 1W 4FSK Modulation 12.5KHz data only: 7K60FXD; 12.5KHz data and voice: 7K60FXE FM Modulation 12.5KHz: 8K50F3E; 25KHz: 16KφF3E Modulation Limitation ±2.5KHz FM Noise 40dB Spurious Emission -36 dBm≤1GHz; -30 dBm≥1GHz Adjacent Channel Power ≤-60dB Frequency Response +1/-3dB Vocoder AMBE++ Audio Distortion ≤5% Receiver Digital Sensitivity 5% BER: 0.25μV Analog Sensitivity 0.25uV (12 dB SINAD) Intermodulation 65dB Adjacent Channel Selectivity 60dB @ 12.5kHz; 70dB @ 25kHz Spurious Suppression 70dB FM Noise 40dB @ 12.5kHz; 45dB @ 25kHz Frequency Response +1/-3 dB Audio Power 0.5W (8Ω load) Audio Distortion ≤5% Conduction Radiation -57dBm GPS Precision Horizontal Accuracy ≤10m (with good signal) TTFF (first location) Cold Boot ＜1 minutes (with good signal) TTFF (first location) Hot Boot ＜10 seconds (with good signal) Environmental Specifications Operating Temperature -30℃~+60℃ Storage Temperature -40℃~+85℃ Water Proof IP68 Shock & Vibration MIL-STD-810C/D/E/F
