Automatic Slitting Machine
Yingkou Sanxing Roll Forming Machine Co.,Ltd
See what’s includedHide breakdown
- FOB goods (100)
- $3,650,000
- Ocean freight + handling (5.0 CBM, volume guessed from price)
- $1,300
- US duty (3.5%)
- $127,750
- Section 301 tariff (25.0%)
- $912,500
- Customs fees (MPF/HMF)
- $5,197
Estimate in USD to a US port using category averages, rates as of 2026-09. Other countries on request. A quote from your agent uses real carton sizes, freight and the exact tariff line.
- FOB goods (100)
- $3,650,000
- Ocean freight + handling (5.0 CBM, volume guessed from price)
- $1,300
- US duty (3.5%)
- $127,750
- Section 301 tariff (25.0%)
- $912,500
- Customs fees (MPF/HMF)
- $5,197
Estimate in USD to a US port using category averages, rates as of 2026-09. Other countries on request. A quote from your agent uses real carton sizes, freight and the exact tariff line.
Verify from $29 · written report in 3 business days · 100% refund if not satisfied
Automatic Slitting Machine
Yingkou Sanxing Roll Forming Machine Co.,LtdSee what’s includedHide breakdown
- FOB goods (100)
- $3,650,000
- Ocean freight + handling (5.0 CBM, volume guessed from price)
- $1,300
- US duty (3.5%)
- $127,750
- Section 301 tariff (25.0%)
- $912,500
- Customs fees (MPF/HMF)
- $5,197
Estimate in USD to a US port using category averages, rates as of 2026-09. Other countries on request. A quote from your agent uses real carton sizes, freight and the exact tariff line.
- FOB goods (100)
- $3,650,000
- Ocean freight + handling (5.0 CBM, volume guessed from price)
- $1,300
- US duty (3.5%)
- $127,750
- Section 301 tariff (25.0%)
- $912,500
- Customs fees (MPF/HMF)
- $5,197
Estimate in USD to a US port using category averages, rates as of 2026-09. Other countries on request. A quote from your agent uses real carton sizes, freight and the exact tariff line.
Verify from $29 · written report in 3 business days · 100% refund if not satisfied
About this product
- Materials: steel
- Size: 1200-15000
- Color: blue
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Japan and South Korea, Hong Kong China, Macao China and Taiwan China, Others
- Made in: Liaoning, China
About this product
- Materials: steel
- Size: 1200-15000
- Color: blue
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Japan and South Korea, Hong Kong China, Macao China and Taiwan China, Others
- Made in: Liaoning, China
Product details
| Materials | steel |
|---|---|
| Size | 1200-15000 |
| Color | blue |
Product details
| Materials | steel |
|---|---|
| Size | 1200-15000 |
| Color | blue |
From the supplier

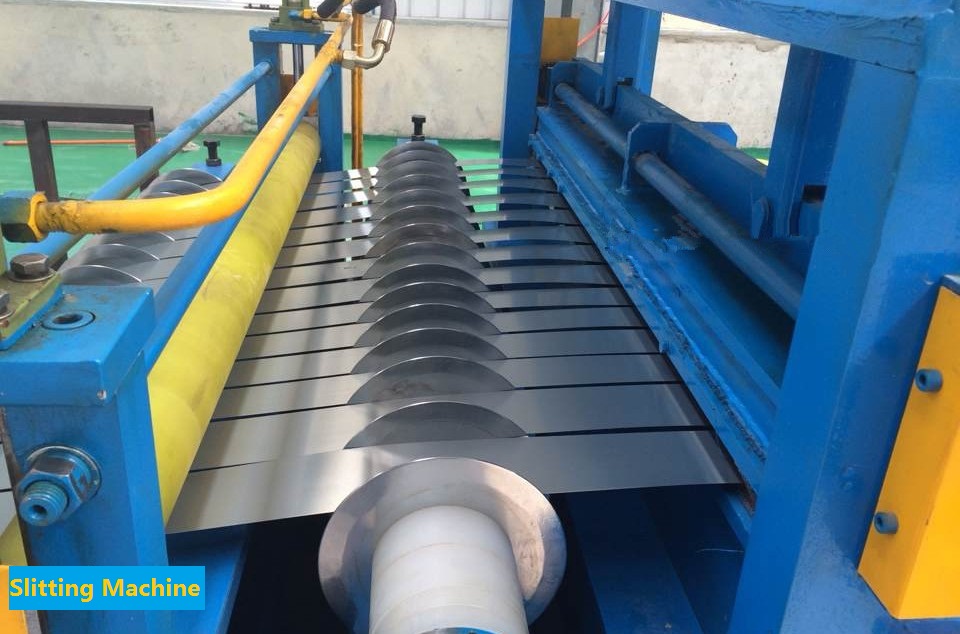

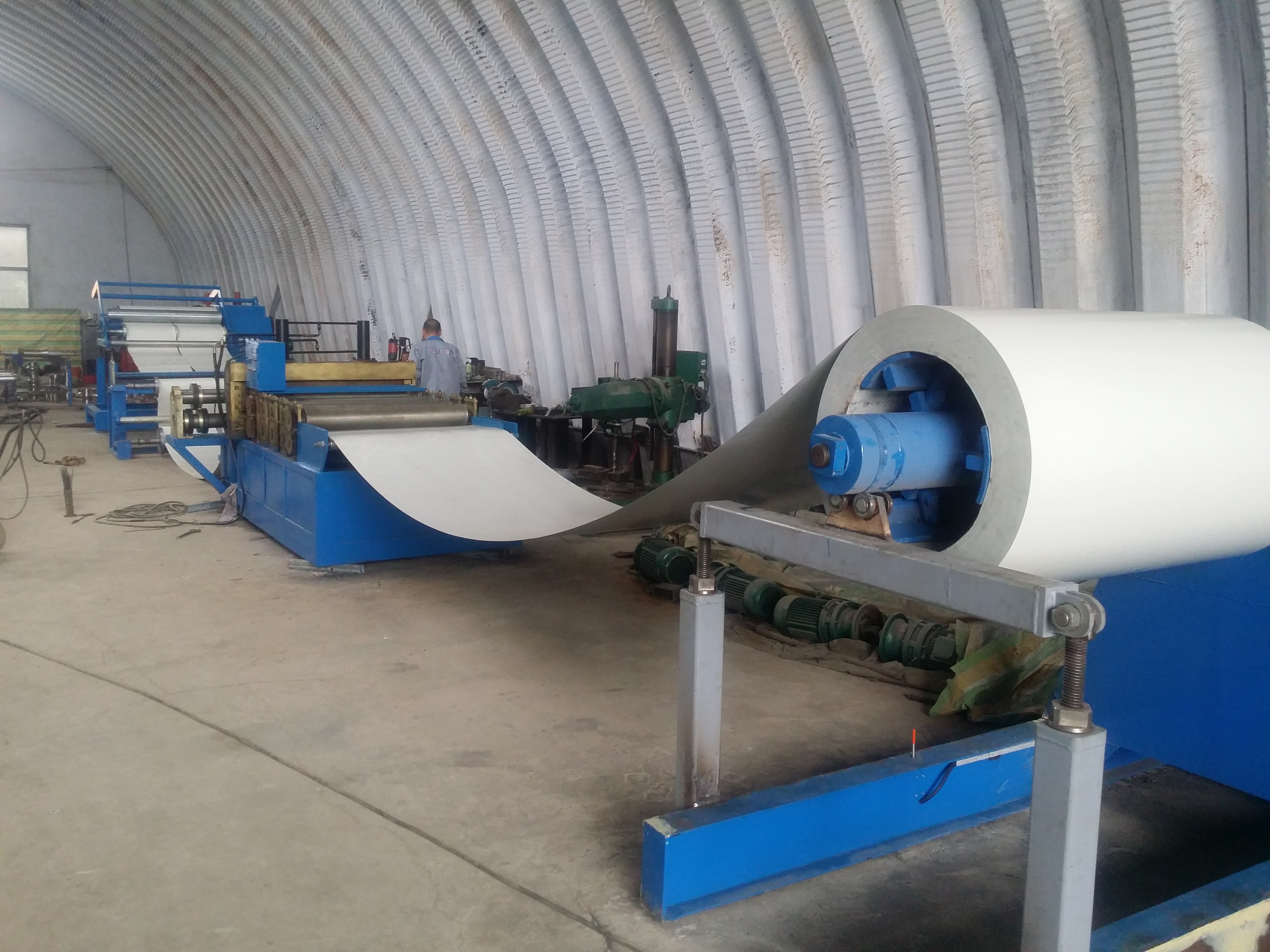

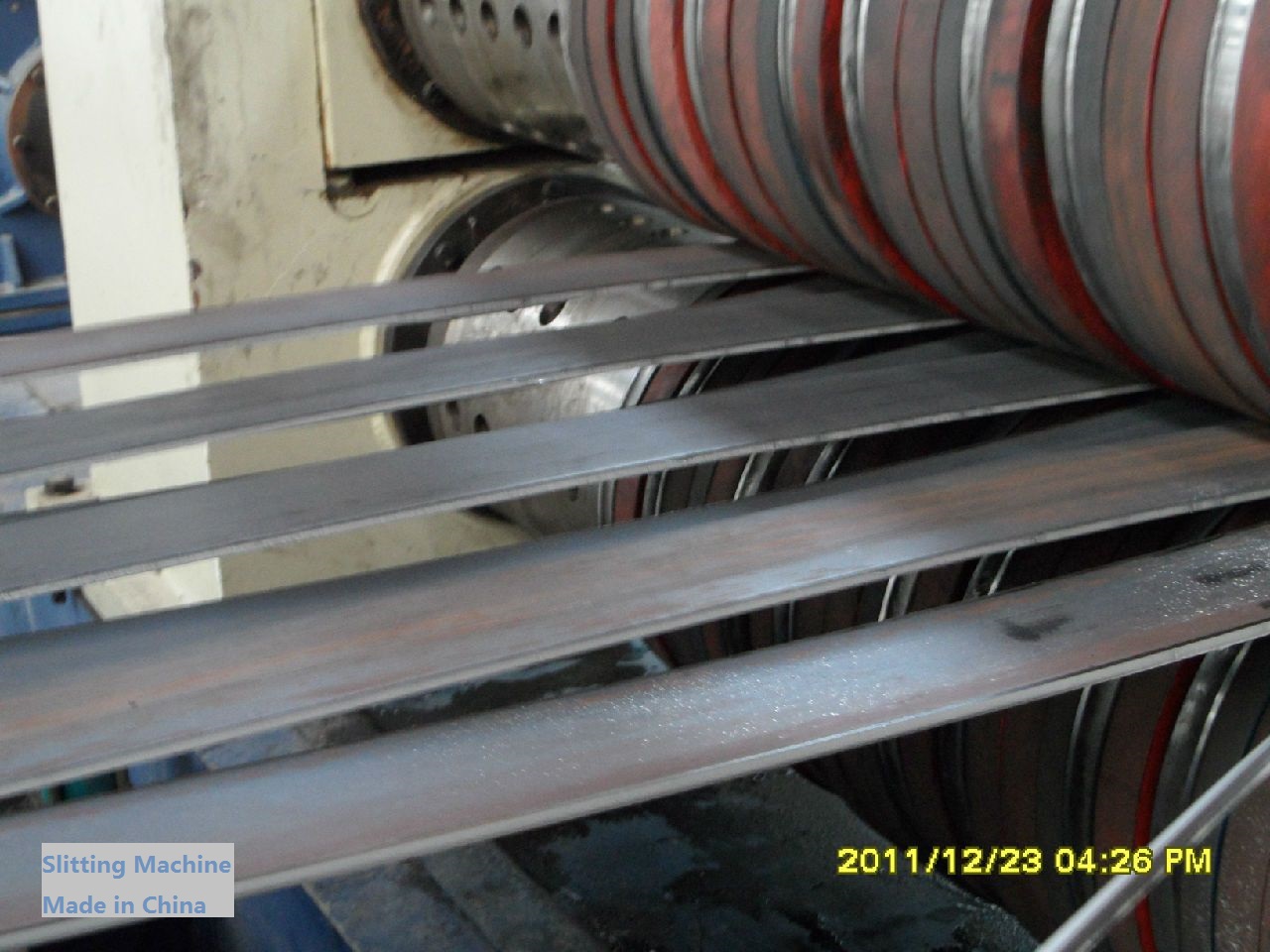

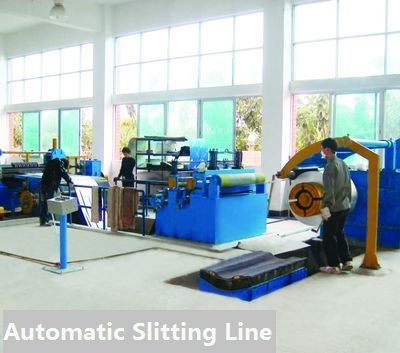

Automatic Slitting Line
Slitting machine is used to cut silicon steel sheet, aluminum coil, galvanized coil, stainless steel, common carbon steel and other coil sheet into several small strips along the length direction.
Components of slitting machine
1. hydraulic feeding trolley
2. hydraulic internal decoiler
3. Transition Bridge
4. longitudinal shearing machine
5. hemming machine
6. Transition Bridge
7. hydraulic surge stations
8. hydraulic clamp rewinder
9. discharge hydraulic trolley
10. Hydraulic systems
11. Electrical control systems
Technical properties and parameters of longitudinal shear strip machine
Strip material: colour coated sheet
Material thickness :0.2-1.5 mm
Material width :1000 mm
weight of material: 5 T max
speed:0-60m/min
Number of bars :12strip /1 mm thick ;20strip /0.5 mm thick;
Unilateral non-straightness :≤0.05 mm/m
width error :±0.03 mm
Shear burrs: thickness 1.0 mm≤0.03 mm (Max)
Production area: about 20 m× wide 7.5 m× high 2 m
From the supplier
Automatic Slitting Line
Slitting machine is used to cut silicon steel sheet, aluminum coil, galvanized coil, stainless steel, common carbon steel and other coil sheet into several small strips along the length direction.
Components of slitting machine
1. hydraulic feeding trolley
2. hydraulic internal decoiler
3. Transition Bridge
4. longitudinal shearing machine
5. hemming machine
6. Transition Bridge
7. hydraulic surge stations
8. hydraulic clamp rewinder
9. discharge hydraulic trolley
10. Hydraulic systems
11. Electrical control systems
Technical properties and parameters of longitudinal shear strip machine
Strip material: colour coated sheet
Material thickness :0.2-1.5 mm
Material width :1000 mm
weight of material: 5 T max
speed:0-60m/min
Number of bars :12strip /1 mm thick ;20strip /0.5 mm thick;
Unilateral non-straightness :≤0.05 mm/m
width error :±0.03 mm
Shear burrs: thickness 1.0 mm≤0.03 mm (Max)
Production area: about 20 m× wide 7.5 m× high 2 m
