Zhongtuo ZTRFM Metal Slitting Combined Cut to Length Producing Line
CANGZHOU ZHONGTUO INTERNATIONAL TRADE CO.,LTD
The supplier hasn’t listed a price. We can get their current prices and MOQ.
Verify from $29 · written report in 3 business days · 100% refund if not satisfied
Zhongtuo ZTRFM Metal Slitting Combined Cut to Length Producing Line
CANGZHOU ZHONGTUO INTERNATIONAL TRADE CO.,LTDThe supplier hasn’t listed a price. We can get their current prices and MOQ.
Verify from $29 · written report in 3 business days · 100% refund if not satisfied
About this product
- Materials: High hardness quenched and chromed steel
- Size: 11*1.5*1.3m
- Color: Blue（can be customized)
- Customized: Customized
- Power: Other
- Voltage: 380V220VOther
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Japan and South Korea, Hong Kong China, Macao China and Taiwan China, Others
- Made in: Hebei, China
About this product
- Materials: High hardness quenched and chromed steel
- Size: 11*1.5*1.3m
- Color: Blue（can be customized)
- Customized: Customized
- Power: Other
- Voltage: 380V220VOther
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Japan and South Korea, Hong Kong China, Macao China and Taiwan China, Others
- Made in: Hebei, China
Product details
| Materials | High hardness quenched and chromed steel |
|---|---|
| Size | 11*1.5*1.3m |
| Color | Blue（can be customized) |
| Customized | Customized |
| Power | Other |
| Voltage | 380V220VOther |
Product details
| Materials | High hardness quenched and chromed steel |
|---|---|
| Size | 11*1.5*1.3m |
| Color | Blue（can be customized) |
| Customized | Customized |
| Power | Other |
| Voltage | 380V220VOther |
From the supplier

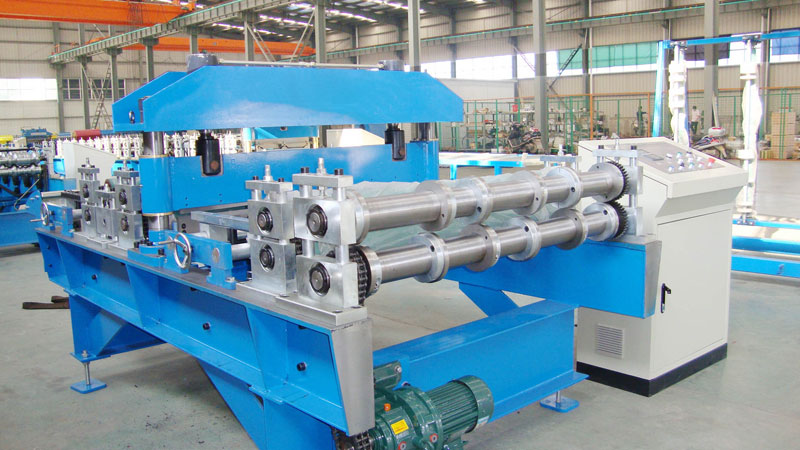

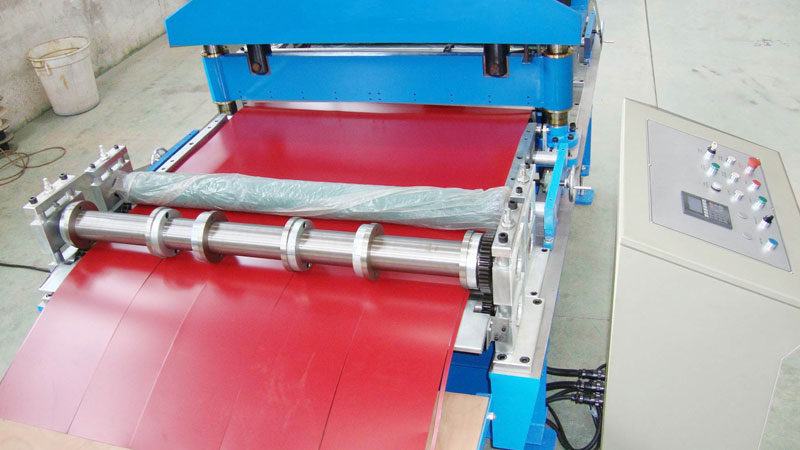

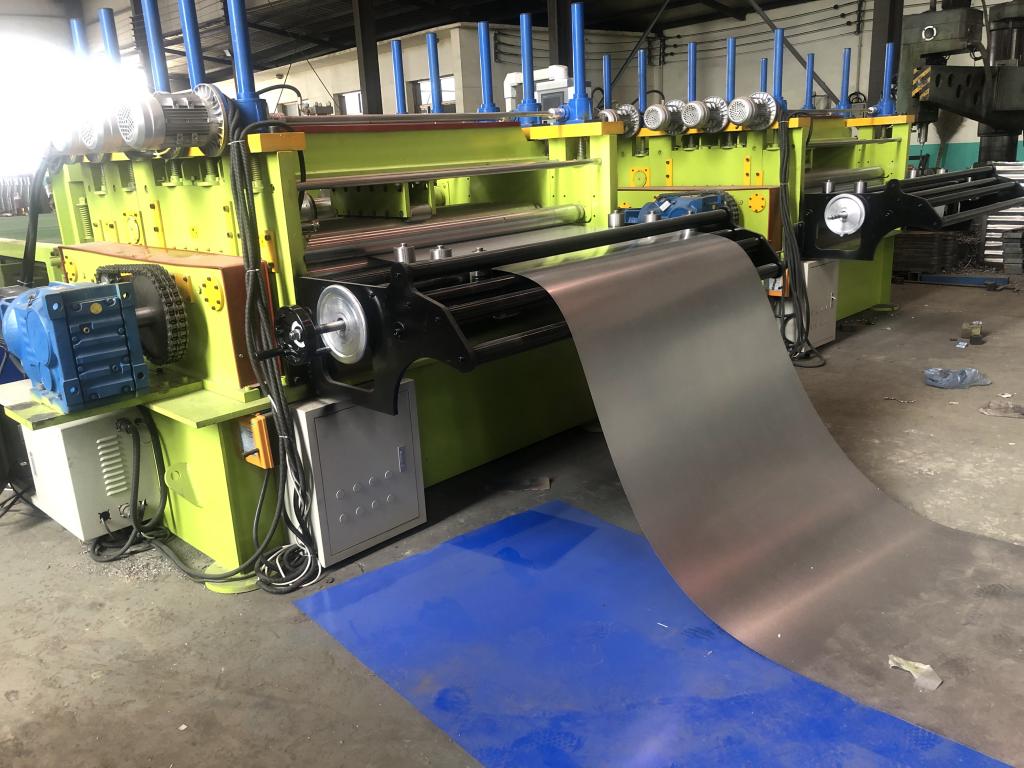

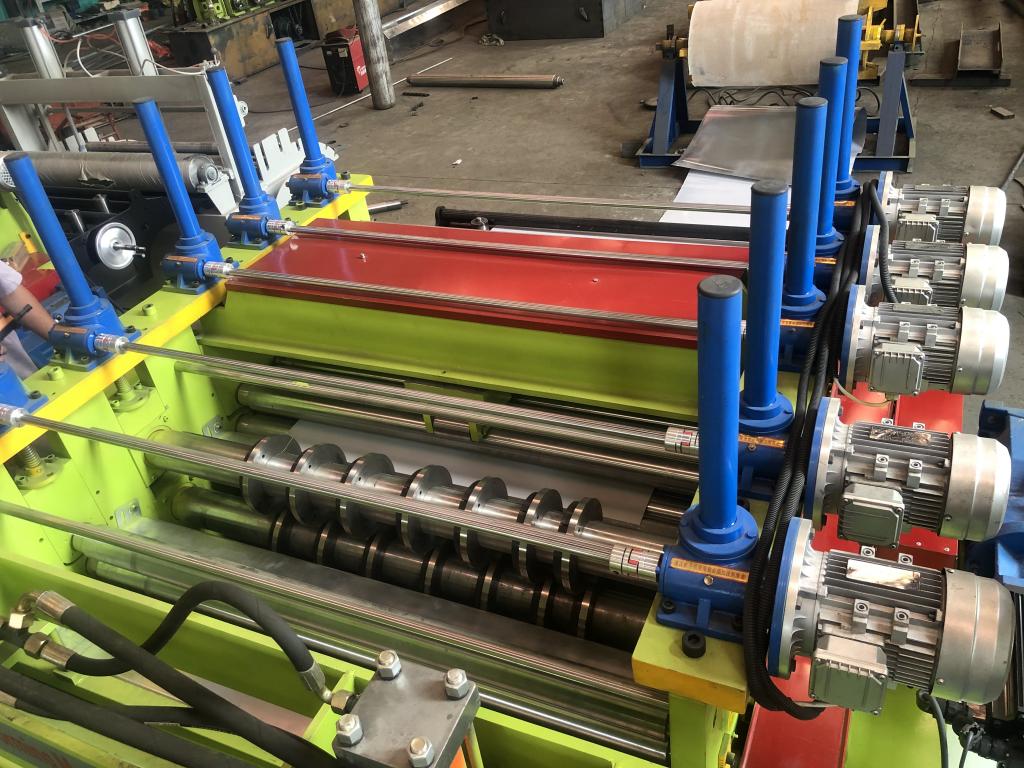

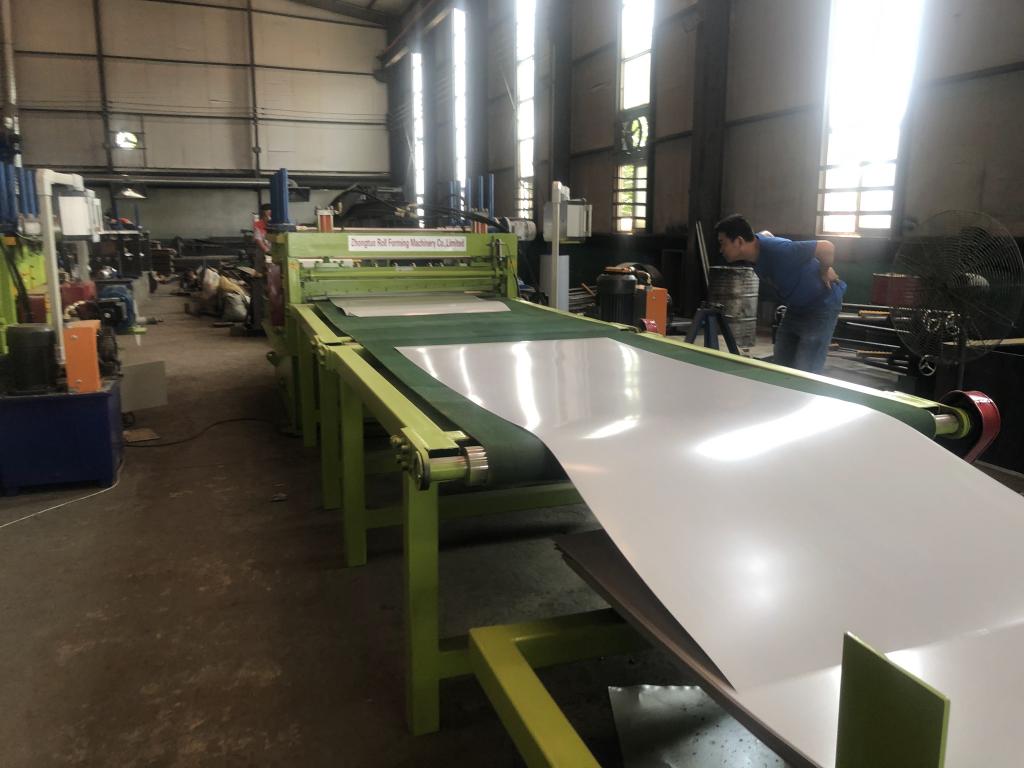

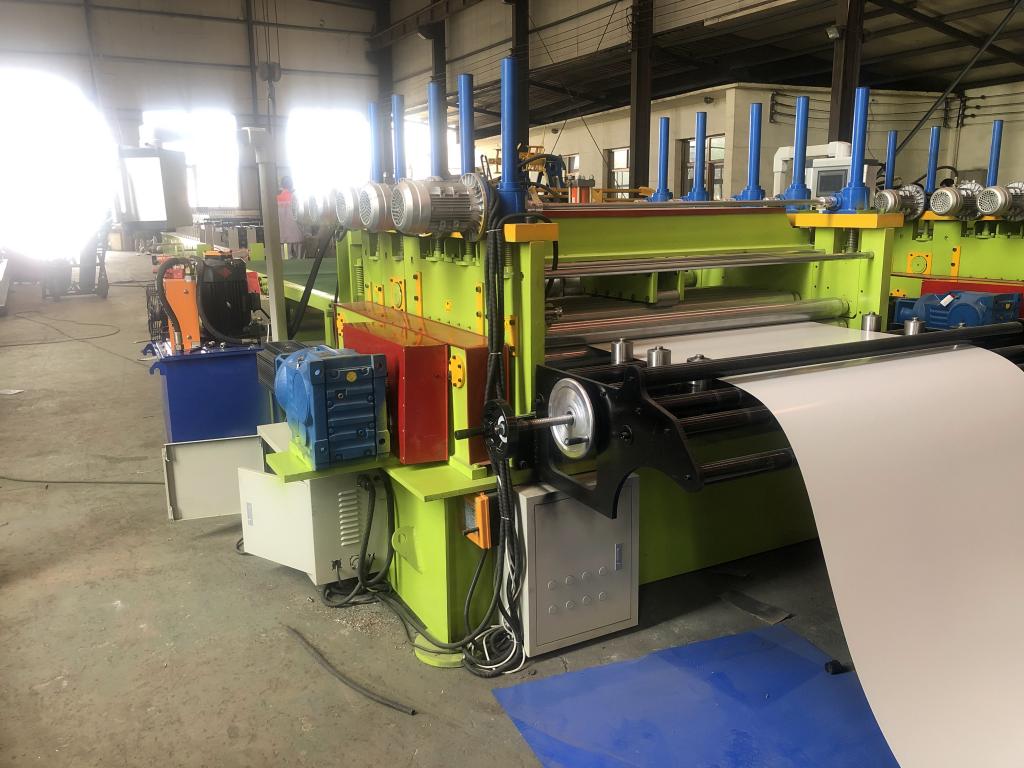

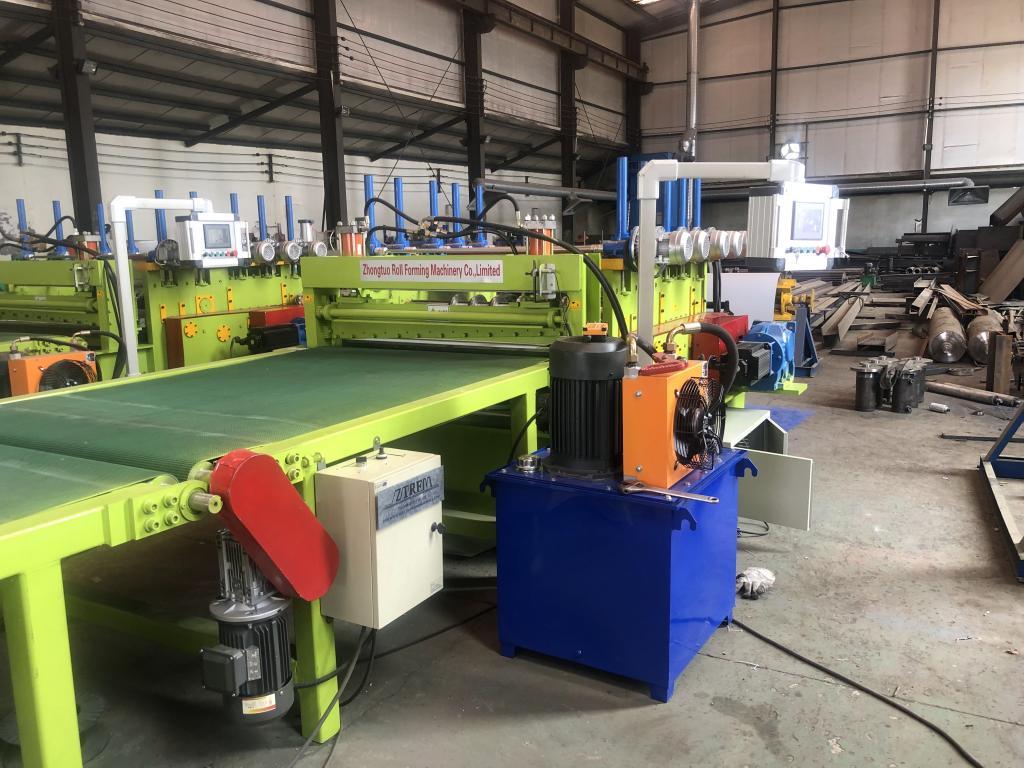

Zhongtuo ZTRFM Metal Slitting Combined Cut to Length Producing Line
Description
This machine is used to make the metal coil for strips or pieces,to obtain some non-standard width and length plates. It is usually a supporting equipment for a roll forming machine or a bending machine. It has the advantages of low noise, stable operation, simple operation and beautiful appearance.
Machine Advantages
This machine combines slitting and cutting, whether slitting or cutting work can be controlled, and the slitting blades are easy to adjust, so it can to slit thin rolls of different widths. Realize the multi-function use of a machine. The following specifically introduces the operations that can be achieved by this machine.
Usage 1: Only slitting work-make the metal coil into thin coils. Usually use with decoiler and recoiler.
Usage 2: Only cut to length cutting work-make the metal coil into sheet of the same width (the length of the plate can be set), and usually use together stacking.
Usage 3: slit and cut to length cutting work together -cut the metal coil into thin width sheet you need (the width and length of the sheet can be adjusted), and usually use with stacking.
Machine working flow
cut to length combined slitting machine working flow for your reference
coil bearing car(optional)-decoiler(manual or hydraulic automatic)-feeding-film(optional)-slit-cut to length-receiving
Machine parameters
Suitable coil width 1000-1250mm(or others customized) Material strength 230-300Mpa sheet coil Max. weight: 5T(or others customized) Decoiler suitable coil I.D. Inner diameter: φ508 or 610(or others customized) slit blades upper and down-8 sets(Or can be customized) slitted strip width Min 60mm (adjustable.) Suitable coil thickness 0.4~1.2mm Length tolerance +/- 2mm in 3M in length speed 10 M/min Motor power slitter power: 3 KWHydraulic motor power: 3 KW Cutting cut to length automatically Certificates Certified with Multi-Patents; CE Certified , EUROPEAN quality standard Power source 380V/3phase/50/60 Hz (can meet your demand 220V/380V/415V/460V) Machine Condition New, A Grade quality Operator 1 person Equipment Color According to customer's requirements; normally Blue/White

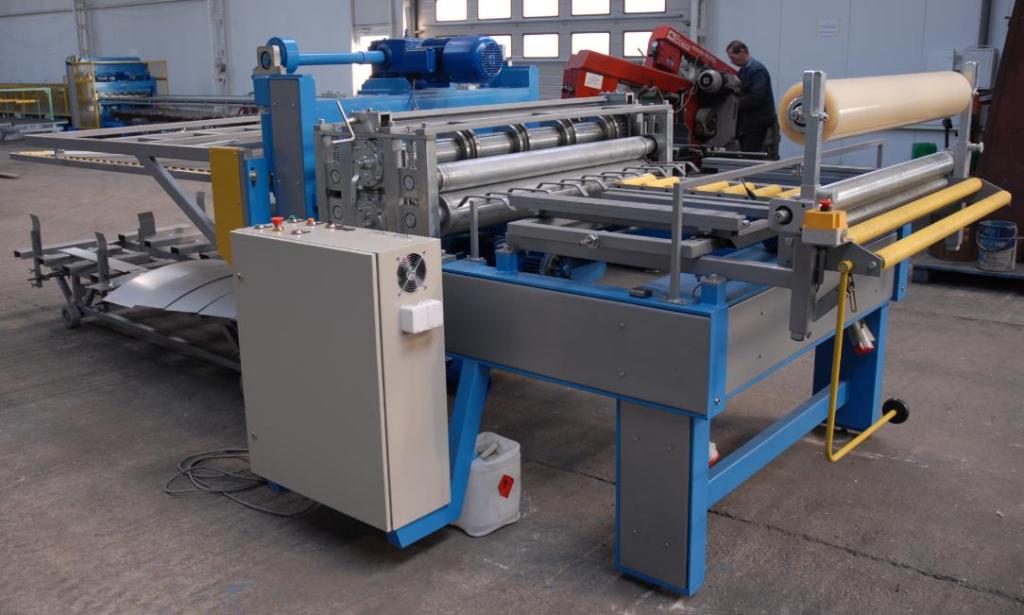

（Can Add film device）Film-slit-cut to length combined machine for your reference
From the supplier
Zhongtuo ZTRFM Metal Slitting Combined Cut to Length Producing Line
Description
This machine is used to make the metal coil for strips or pieces,to obtain some non-standard width and length plates. It is usually a supporting equipment for a roll forming machine or a bending machine. It has the advantages of low noise, stable operation, simple operation and beautiful appearance.
Machine Advantages
This machine combines slitting and cutting, whether slitting or cutting work can be controlled, and the slitting blades are easy to adjust, so it can to slit thin rolls of different widths. Realize the multi-function use of a machine. The following specifically introduces the operations that can be achieved by this machine.
Usage 1: Only slitting work-make the metal coil into thin coils. Usually use with decoiler and recoiler.
Usage 2: Only cut to length cutting work-make the metal coil into sheet of the same width (the length of the plate can be set), and usually use together stacking.
Usage 3: slit and cut to length cutting work together -cut the metal coil into thin width sheet you need (the width and length of the sheet can be adjusted), and usually use with stacking.
Machine working flow
cut to length combined slitting machine working flow for your reference
coil bearing car(optional)-decoiler(manual or hydraulic automatic)-feeding-film(optional)-slit-cut to length-receiving
Machine parameters
Suitable coil width 1000-1250mm(or others customized) Material strength 230-300Mpa sheet coil Max. weight: 5T(or others customized) Decoiler suitable coil I.D. Inner diameter: φ508 or 610(or others customized) slit blades upper and down-8 sets(Or can be customized) slitted strip width Min 60mm (adjustable.) Suitable coil thickness 0.4~1.2mm Length tolerance +/- 2mm in 3M in length speed 10 M/min Motor power slitter power: 3 KWHydraulic motor power: 3 KW Cutting cut to length automatically Certificates Certified with Multi-Patents; CE Certified , EUROPEAN quality standard Power source 380V/3phase/50/60 Hz (can meet your demand 220V/380V/415V/460V) Machine Condition New, A Grade quality Operator 1 person Equipment Color According to customer's requirements; normally Blue/White
（Can Add film device）Film-slit-cut to length combined machine for your reference
