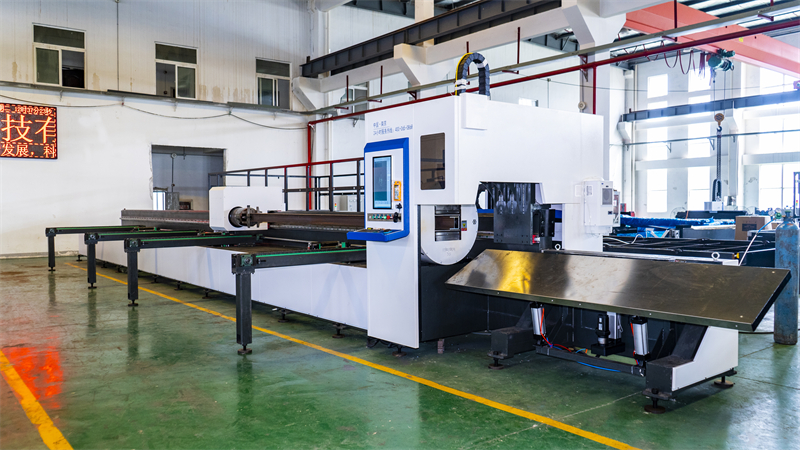

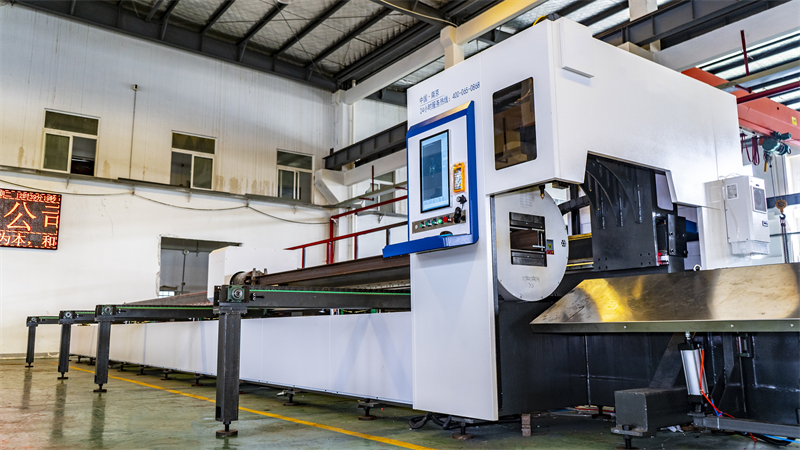

Automatic Loading and Unloading Pipe Fiber Laser Cutting Machine

The laser tube cutting machine is a high-precision and high-efficiency tube processing equipment. It is capable of cutting various shapes of tubes, such as round tubes, square tubes, and oval tubes, and is suitable for processing a wide range of materials including carbon steel, stainless steel, aluminum and its alloys, as well as copper and its alloys. The laser tube cutting machine allows burr-free cutting without damaging the material, offering high cutting precision. It also has a small heat-affected zone during cutting, minimal deformation, and no oxidation on the cut surface, making it ideal for batch processing of tubes. The tube laser cutting machine features excellent stability and is equipped with a MAX laser source. Its compact structure and small size reduce energy loss, ensuring stable cutting quality. The machine uses an advanced chuck clamping system that automatically adjusts the clamping force based on the tube profile, ensuring safe clamping without damage, even for thin-walled tubes. With high cutting precision and excellent cost-performance, the laser tube cutting machine is a reliable choice for tube processing.

Features

1. The laser tube cutting machine uses a chuck and push-type cutting method, offering high centering and machining accuracy.
2. With fiber laser flexible transmission, the cutting head is compact in structure and free from mirrors, making it virtually maintenance-free with no loss.
3. Its powerful cutting capabilities include a four-jaw self-centering chuck, allowing it to cut square tubes, round tubes, rectangular tubes, and various custom-shaped tubes.
4. The machine supports customizable processing ranges for tube diameter and length (standard round tube diameter: Φ30~160mm, length: 6000mm).
5. Featuring an easy-to-operate processing system, it provides real-time feedback on the machining status to ensure a smooth process.
6. The dedicated tube cutting software seamlessly recognizes tube part shapes created in 3D design software, and it also supports automatic generation of commonly used tube parts.

Detail Images

1. Machine Body

Precision deep processing, quenching treatment, stress relief, ensure the stability of the bed, extend the service life of the bed, and prevent deformation for 20 years. The precision machining of the gantry five sided milling ensures assembly and installation accuracy.

2. Transmission System
The combination of GERMAN ROR racks and TAIWAN HIWIN linear guides improves cutting speed
Optional linear guides brand: JAPAN SMG/ GERMAN HEREN


3. Fiber Laser Generator

Featuring lasers from renowned brands like MAX, IPG, or RAYCUS, these fiber lasers are highly integrated, user-friendly, compact, and lightweight. They are easy to install and require minimal maintenance. With a long lifespan, they can operate continuously for up to 100,000 hours.

4. Control System

The BOCHU intelligent visual laser control system allows for intuitive adjustments of laser power, gas type, and pressure. It features intelligent edge detection and automatic positioning. The system supports multiple file formats, intelligent layout, automatic sequence generation, and process visualization, making it easy and convenient to operate.

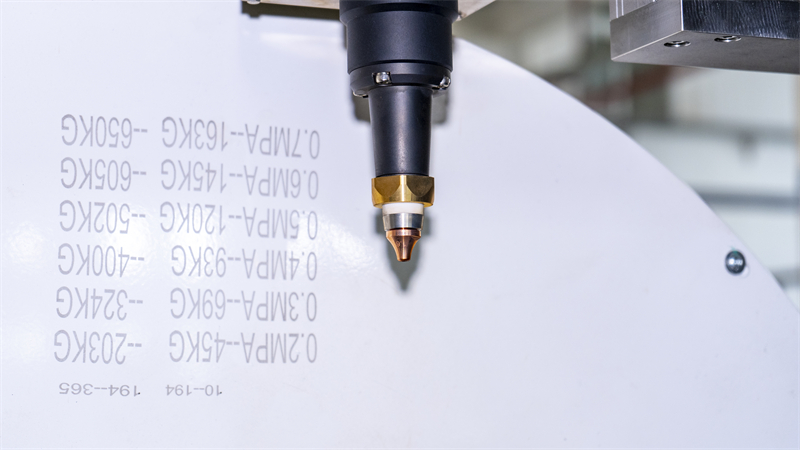

5. Imported Capacitive Laser Cutting Head

The laser cutting head has optimized optical configuration and smooth and efficient airflow design, which can achieve rapid cutting; Equipped with multiple fiber interfaces, it can be adapted to various fiber lasers; Knob style focus adjustment, precise and flexible cutting, adjustable range of 15mm, accuracy of 0.05mm

Optional brand: Raytools/BOCI

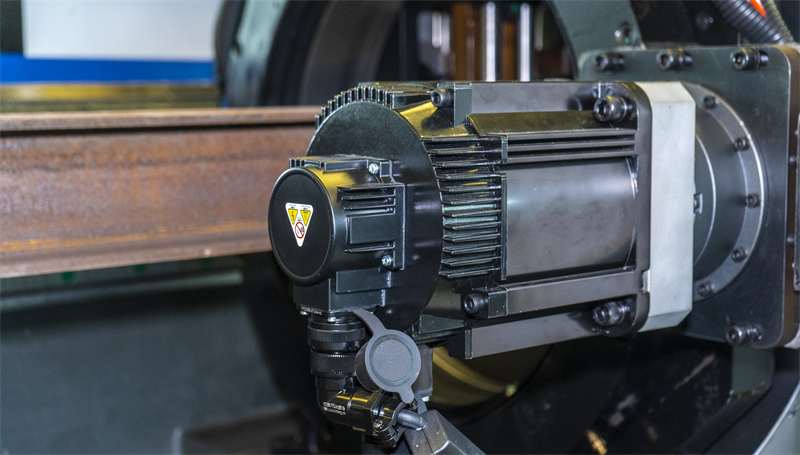

6. Servo Motor

The fiber laser cutter utilizes high-performance GERMAN Lead-motion or JAPAN FUJI servo motors, known for their long service life and reliability. Paired with GERMAN Lead-motion or JAPAN FUJI servo drives, this ensures exceptional stability, precision, and accuracy during operation, delivering consistent and efficient performance for a wide range of tasks.
Optional brand: Yaskawa, Panasonic, Fuji in Japan

7. Cooling System
Adopting WuHan HanLi brand laser specific chiller
*Equipped with dual control of high and low temperature water to meet the constant temperature requirements of the laser cavity and output port
*Ensure the safe and stable operation of the laser
*It has functions such as over temperature, flow rate, water level, real-time monitoring of water quality, sound and light alarm


8. Reducer
France brand MOTOVARIO reducer. High tensile rigidity, high precision, low noise, ip65 protection level, to ensure the sustainable operation of 90 degrees.


9. Automatic Lubrication System
The mechanical core transmission parts of the laser cutting machine, such as the guide rails and racks, are equipped with a fast lubrication system without blind spot. The control method of using equipment operation before refueling avoids the unevenness of static refueling, greatly improving lubrication efficiency and quality.

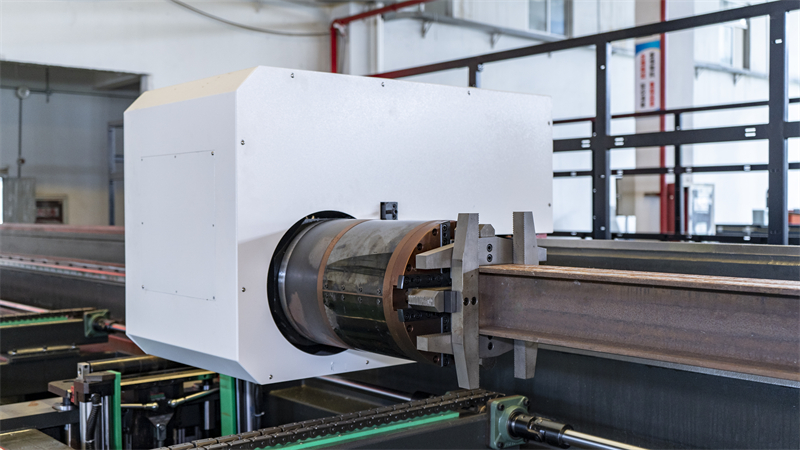

10. Self-centering Chuck
Gear transmission mode, higher transmission efficiency, long working life and high work reliability.
