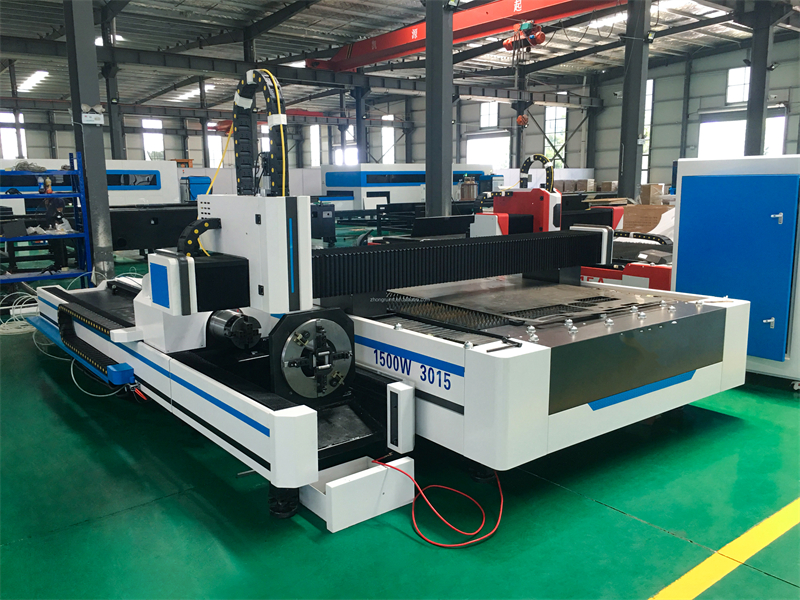

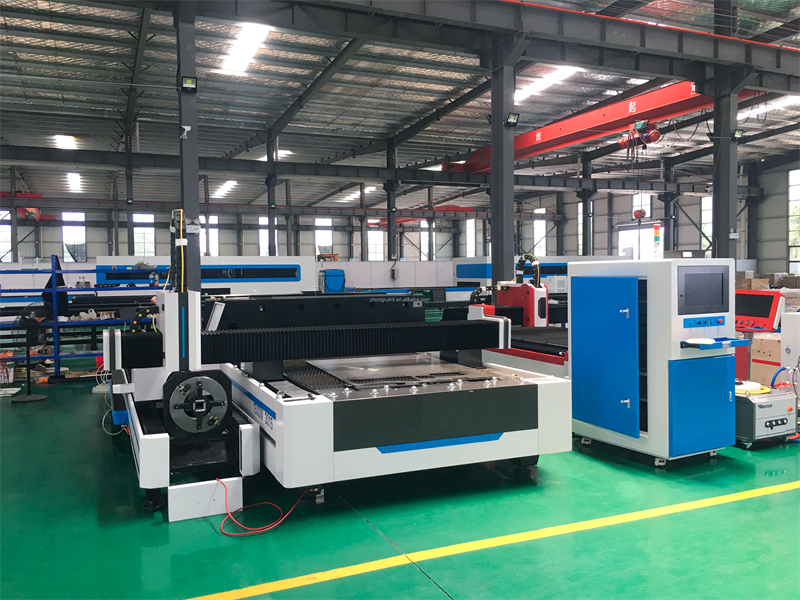

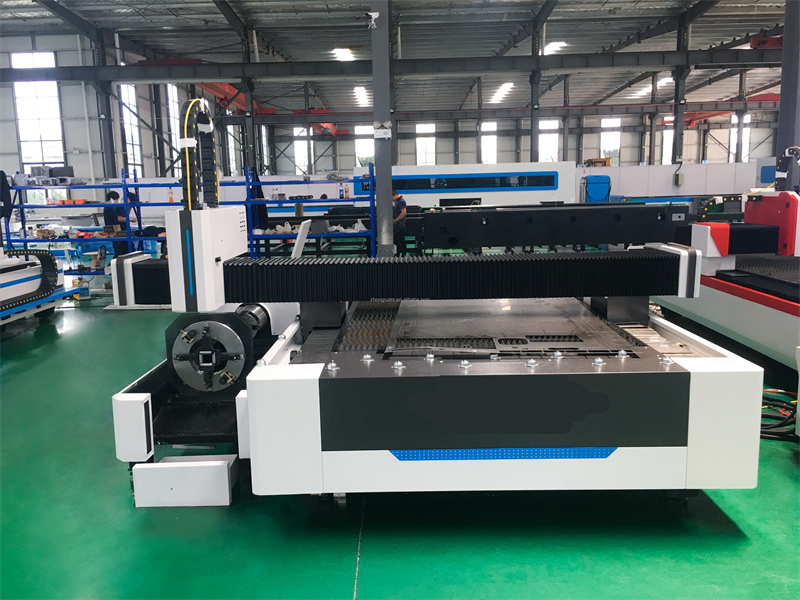

Open Type Fiber Laser Cutting for Plate and Tube 3015

The plate tube integrated laser cutting machine integrates the cutting functions of plates and pipes, and can process pipes such as round pipes, square pipes, rectangular pipes, channel steel, angle steel, etc.
It can meet the diverse needs of sheet metal and pipe processing, with one machine for two purposes and multiple benefits at once.
The plate tube integrated laser cutting machine saves 50% of procurement costs and floor space, reduces investment costs, has dual platform intelligent exchange, reduces loading and unloading time, and improves processing efficiency.
Intelligent pneumatic clamping, with greater clamping force, prevents heavy pipes from loosening or slipping, ensures more stable feeding, and more precise cutting.
The plate tube integrated laser cutting machine comes standard with cutting pipes and a flat CNC system, supporting the function of importing 3D or 2D software drawings. The graphics are dynamically displayed directly on the computer, making it convenient and intuitive.

Features

1. Able to seamlessly cut pipes and steel plates with a diameter exceeding 200mm.
2. Ensure high-precision cutting and reduce waste.
3. Provide faster cutting speeds than traditional methods.
4. It can easily cut complex shapes.
5. The settings can be easily adjusted to accommodate various materials and thicknesses.
6. Low maintenance costs and long machine lifespan.
7. It has a user-friendly interface and smooth operation.

Detail Images

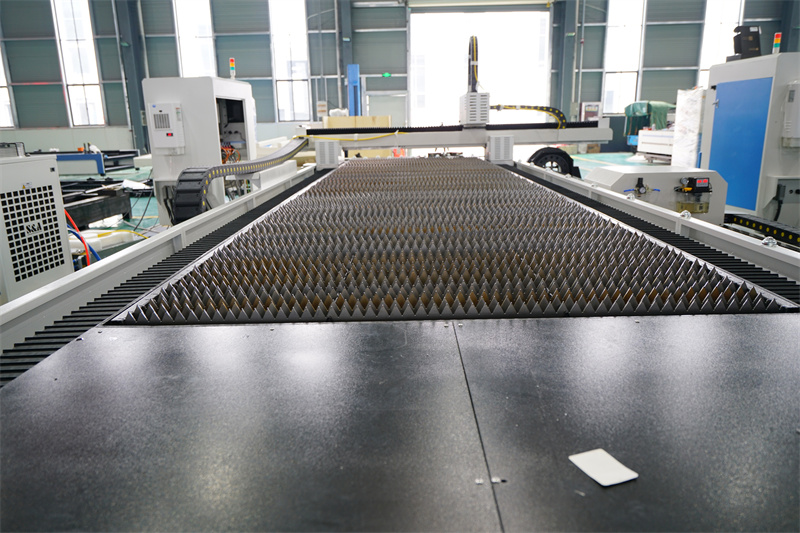

1. Stable and Solid Bed
Adopting plate tube welding high-strength bed body, 600 ° C high-temperature quenching to relieve stress, ensuring long-term use without deformation


2. Transmission System
The combination of GERMAN ROR racks and TAIWAN HIWIN linear guides improves cutting speed
Optional linear guides brand: JAPAN SMG/ GERMAN HEREN

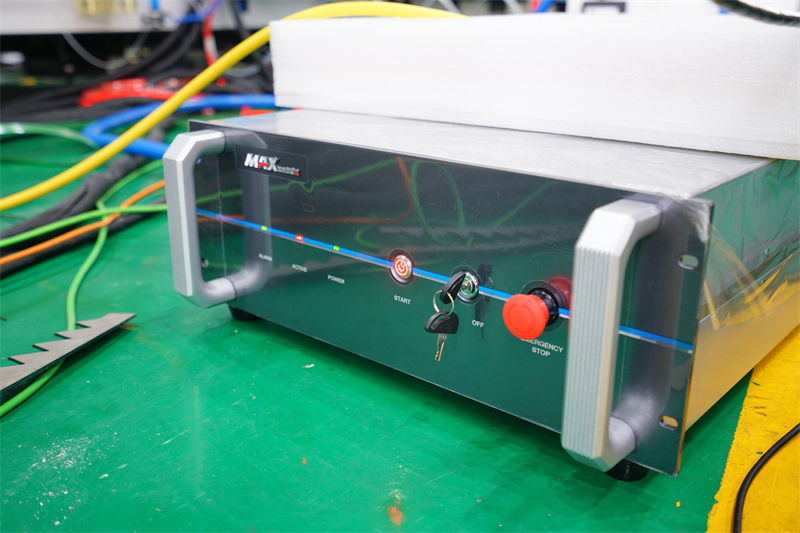

3. Fiber Laser Generator
The fiber laser generator adopts MAX fiber source, which has stable performance and is suitable for 24-hour continuous operation, meeting the uninterrupted requirements of laser industrial production.
Optional : IPG fiber source, Raycus fiber source

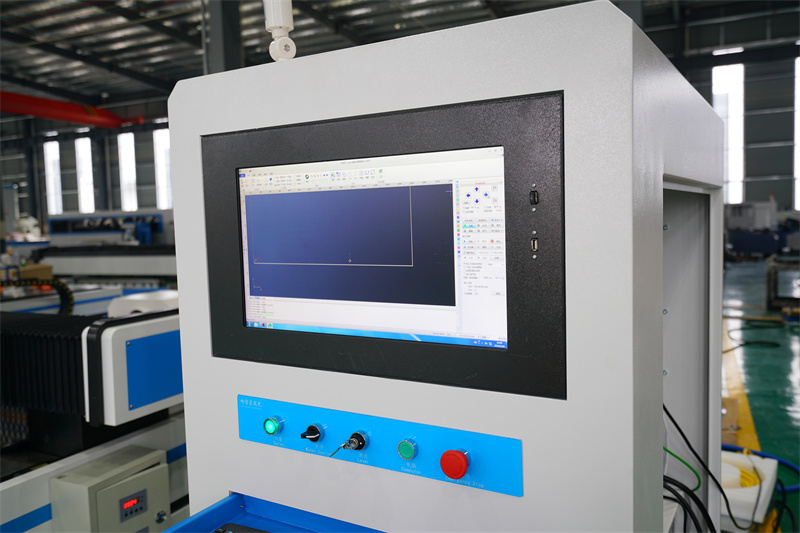

4. Control System
FSCUT Series 1000-8000 CNC Control System : FSCUT 1000-8000 series CNC system: simple system upgrade. The system functions can be extended through the software itself, unlike ordinary CNC systems that rely on developers. Easy to operate and easy to learn.

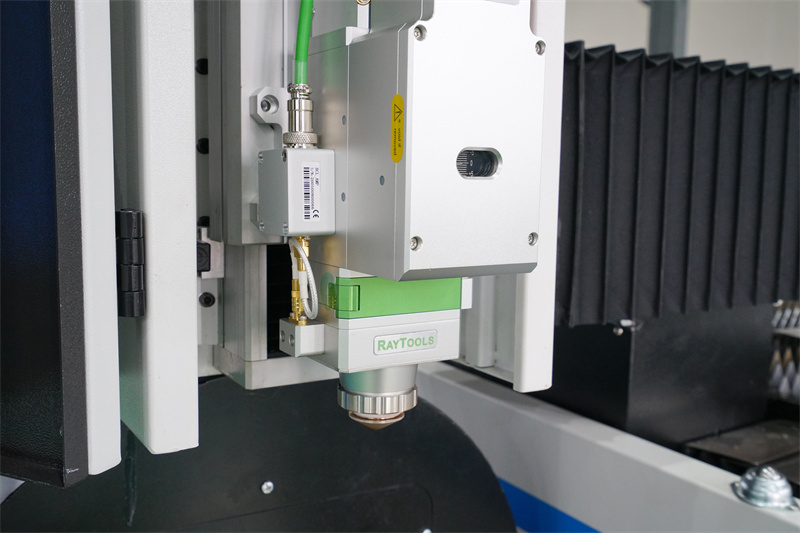

5. Cutting Head
Equipped with a raytool laser cutting head imported from Switzerland with autofocus.
It can automatically adjust the optimal focal length to ensure the best cutting effect of the entire board, avoiding material scrap caused by focal length changes when the material is uneven.
Optional : BOCI Brand


6. Servo Motor and Drive
Adopt GERMAN Lead-motion or JAPAN FUJI servo motor and servo drive with high performance and long service life to ensure the stability and accuracy of work.


7. Cooling System
Adopting WuHan HanLi brand laser specific chiller
*Equipped with dual control of high and low temperature water to meet the constant temperature requirements of the laser cavity and output port
*Ensure the safe and stable operation of the laser
*It has functions such as over temperature, flow rate, water level, real-time monitoring of water quality, sound and light alarm


8. Reducer
France brand MOTOVARIO reducer. High tensile rigidity, high precision, low noise, ip65 protection level, to ensure the sustainable operation of 90 degrees.


9. Automatic Lubrication System
The mechanical core transmission parts of the laser cutting machine, such as the guide rails and racks, are equipped with a fast lubrication system without blind spot. The control method of using equipment operation before refueling avoids the unevenness of static refueling, greatly improving lubrication efficiency and quality.


10. Self-centering Chuck
Gear transmission mode, higher transmission efficiency, long working life and high work reliability.
