Product Application

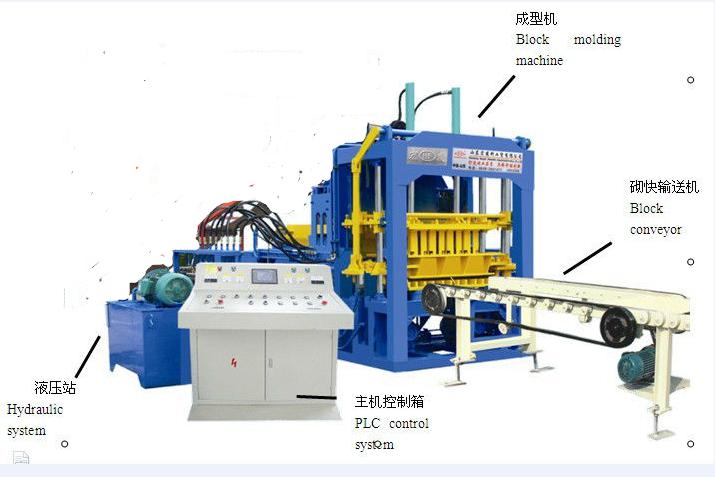

QT4-15C Hongfa brand concrete interlocking brick making machine production line is our newly developed automatic programmable block making equipment, with the following characteristics:

1. multi-purpose machine, It can be widely use of fly ash, slag, coal gangue, or other industrial waste and sand, stone, cement and other materials, by changing molds produce all kinds of hollow blocks and a variety of pavement brick, grass brick, Curb, standard bricks etc.

2. The machine production process using PLC automatic control, hydraulic system driven, non-contact proximity switch monitoring, mechanical, electrical, optical, liquid, high-frequency vibration technology, and carry plate, cloth, pressure vibration, stripping out brick automation, continuous and reliable operation, high production efficiency, low labor intensity operation. Durable and easy maintenance.

3. The main electrical equipment, hydraulic components are made of imported original parts or domestic brands, less failure, reliable performance

4. Block machine is based on hydraulic, supplemented by mechanical ,vibration pressurization is complete. Equipment fitted with patented vibration box, exciting force, high frequency vibration.

5. Vibration and pressure combine to make products more durable. The production of block products tensile strength up to 15Mpa (MPa) above, high density, frost resistance, impermeability, sound insulation, thermal insulation, thermal insulation performance, dimensions accurately.

6. Forced moulding synchronous lifting structure to ensure consistency of product thickness, stripping stable, high yield

SPECIFICATION OF QT4-15C Hongfa brand concrete interlocking brick making machine production line1,available molding square meter1025mm×640mm2,molding cycle15-20 s3,rated pressure16 Mpa4,main vibration formplatform vibration5,vibration frequency50-70 Hz6,Acceleration of vibration15-20 g7,exciting power380kN8,Height of blocks50-200 mm9,pallets size1020×570×30 mm10,Overall dimension7310×2500×2810 mm11,power28Kw12,weight4500Kg

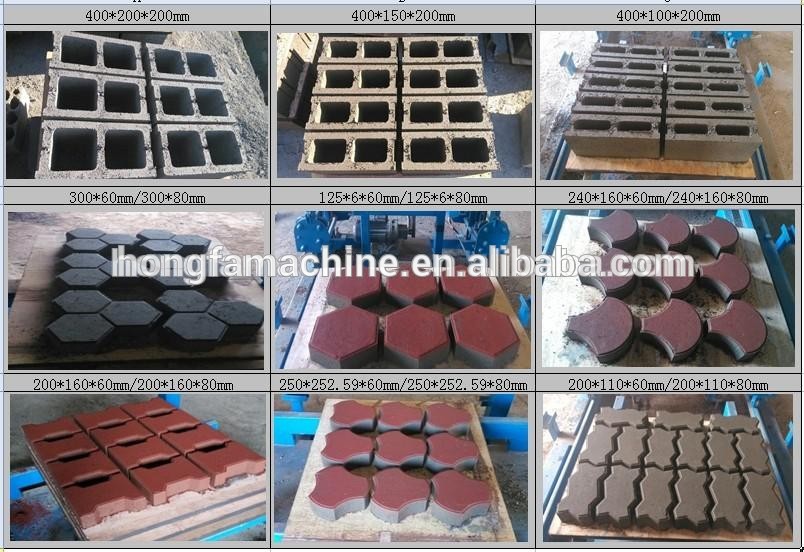

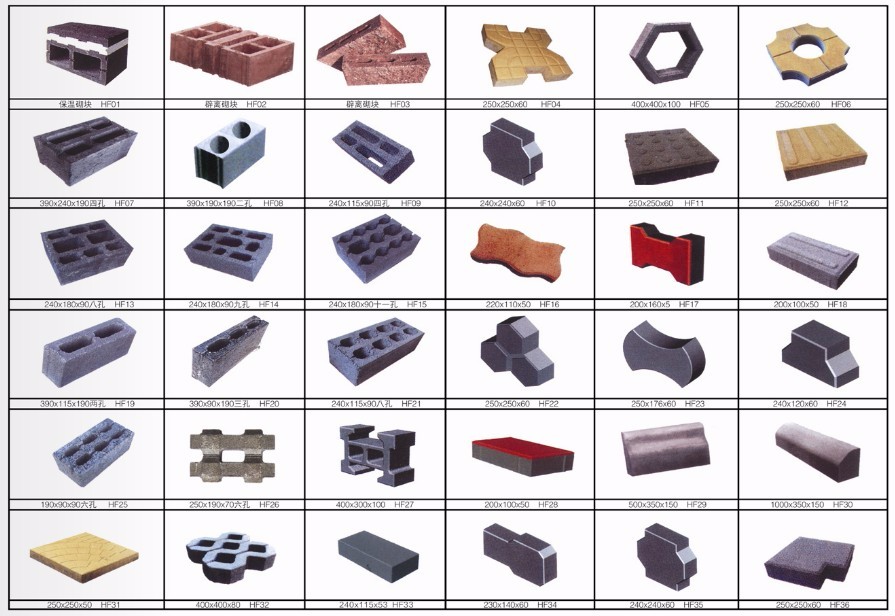

Main block types:

All kinds of hollow blocks and a variety of pavement brick, grass brick, Curb, standard bricks etc.

Production capacity as follow:

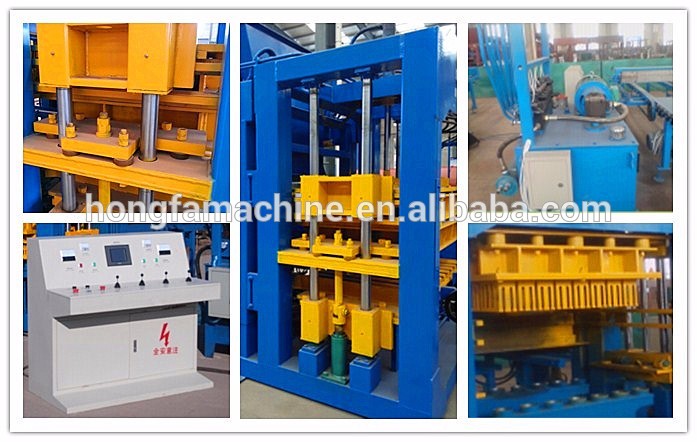

Production capacity of QT4-15C Hongfa brand concrete interlocking brick making machine production lineBlock type:Size:Pcs /one mold:Hollow block390×190×190mm 4pcs/mould4pcs/mouldSolid block240×115×53mm 28pcs/mould28pcs/mouldPorous block240×115×90mm 14pcs/mould14pcs/mouldDetailed ImagePLC

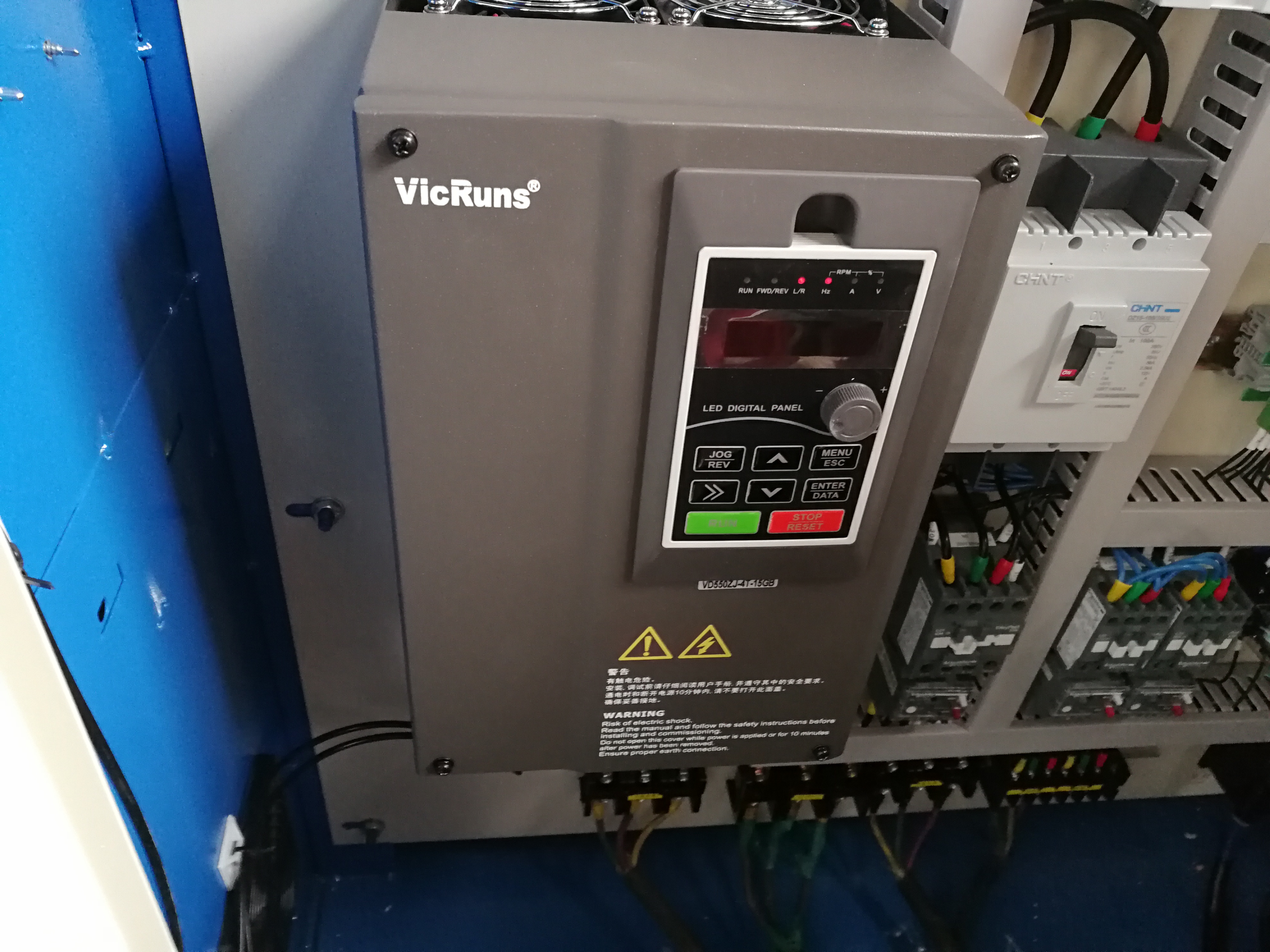

The control system is equipped with complete logic control, production

program, malfunction diagnosis

system and remote control function. So it only needs a trained person for operation rather than a professional one.

Hydraulic station

It is a compact oil hydraulic machine according to the international

standards.Many components from

abroad ensure the quality of machine and long service life.

Vibration system

The vibration system contains

platform and mould vibration so the

productions is very close-grained and produced quickly.

Mould

Applied to produce varies sizes and

typs of comcrete blocks and bricks

by replacing mould with

corresponding specifications.

Feeding system

Particular storage and discerption

material system icsure thefeeding

accuracy and avooding the effect of

exterior material.

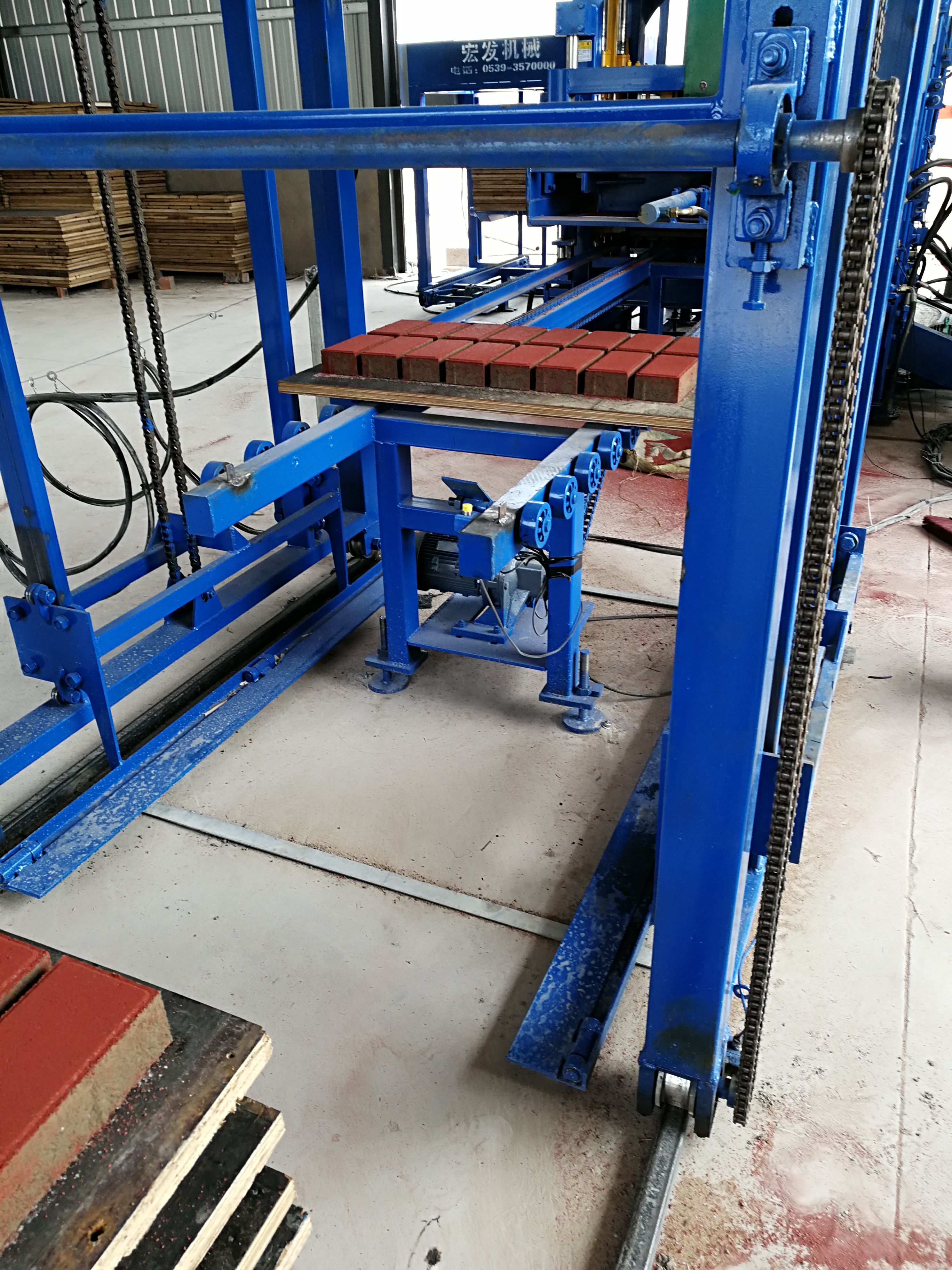

Forwanrd transfer

Simple operation saves time and

effort.

Nine reasons to choose Hongfa:

1.Famous band in shangdong
2.Famous trademark of China
3.National key high-tech enterprise
4.National enterprise abiding by contract and keeping good faith
5.Top ten influential brand of China brick and the tile industry
6.First place in productionand sales of brick machine and the tile making machine in China
7After-sale services throughout the country
8.ISO quality system certificate enterprise
9.Supporting institution of Shandong machinery institute

CertificationsOur Service

Pre-Sales Service

According to each customer's demand and budget, we offer you the professional solution, process flow design and production equipment. More importantly, we welcome every customer to visit our factory and working machine in the site before placing the order. We will arrange cars, hotels and translators for the visiting customers.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.

* Send foundation drawing and working video to customers.

Packing & DeliveryPackagingSize2423*1850*2250mmWeight4.5T


Packaging DetailsAll the main machine will be covered by plastic film to prevent the dust into machine.PackagingSizepackage as the machineWeightTotal is 14


Packaging DetailsAll the main machine will be covered by plastic film to prevent the dust into machine.Contact information
