AAC brick and ALP production line

AAC brick and ALP production line ， gaz block

machine

 (My whatsapp and wechat :+86-18315759901)

1.introduction of  Autoclaved Aerated Concrete fly ash block production line ,  AAC light wall panel making machine :

    Autoclaved aerated concrete brick (light brick ) is the light and porous buidling material. It has light weight keeping temperature cant burn and other advantages.it can be made into many kinds of bricks(for example:600×200×100,80×80×180,240×115×53,600×200×125),they could be used industry building and common building.they are more and more popular in the world.in the future,they will replace the Clay brick completely.

 2. Autoclaved aerated concrete common  conception of  Autoclaved Aerated Concrete fly ash block production line ,  AAC light wall panel making machine :

     Common concrete density is usually 1600-2400kg/m3,but Areated concrete are 500kg/m3,600kg/m3,700kg/m3.It has not the big grain,main use silicon material (for example:coal ash,sand,stone dust and others ),through making the material small for example sand,they can be used directly if has enough degree of small (for example coal ash.Mixing  calcium material lime cement water to a special slop,then add the aluminum dust and the additive.Make the aluminum dust and the special slop have a Chemical reflect.then produce Hydrogen to make the concrete slop to expanding or swell,foam.Next,put them into the curing room to concreting cutting steaming curing,last,there will bacome the light brick,the porous rate is 70-80%.

3.Advantages of Autoclaved Aerated Concrete fly ash block production line ,  AAC light wall panel making machine :

(My whatsapp and wechat :+86-18315759901)

     light weight

     Autoclaved aerated concrete density is usually 400-700kg/m3,(according the market in produce ),same as 1/3 of clay brick and  1/5 common concrete.So use the Light brick can reduce the weight of the build more,and also reduce the  beam of roof and pillar press best.then you can see,it can save the material and cost,it also fighting shaking.

     keeping temperature

     It has many  porous,the delivery hearting coefficient is 0.9-0.22W/(mk),the same as  1/4 or 1/5 of clay brick,so it is best  materials now in the world. Also many kinds raw material,have lowest wasteMain Material:coal ash sand waste mine material coal stone,stone dust and other silicon materials.

Detailed Product Description of  Autoclaved Aerated Concrete fly ash block production line ,  AAC light wall panel making machine :

foam block machine,

 autoclaved aerated concrete plant, AAC block,aac production line,aac plant,AAC brick,autoclave aerated concrete block,concrete block machine,light weight block

AAC block machine, AAC block producing line, light weight block producing line

best offer with most competitive price ,quality guarantee machine, any size block widely used for high buildings,walls, etc many many infrastructure projects.

AAC Production Line/Autoclaved Aerated Concrete Production Line

We are the top leader in China on manufacturing the Autoclaved Aerated Concrete Line(AAC) with 65% market share. We have exported our lines to different countries -- Russia, Thailand, Ukraine, Middle East and so on.

We can supply our customer for designning, production, installation, commissioning, training and good after-sale service.

Capacity: from 50000 cubic meter to 300,000 cubic meters per year.

Equipments: stocking raw materials, mixing, molding, forming, cutting, evaporating and curing, crane cramp, transporting etc.,

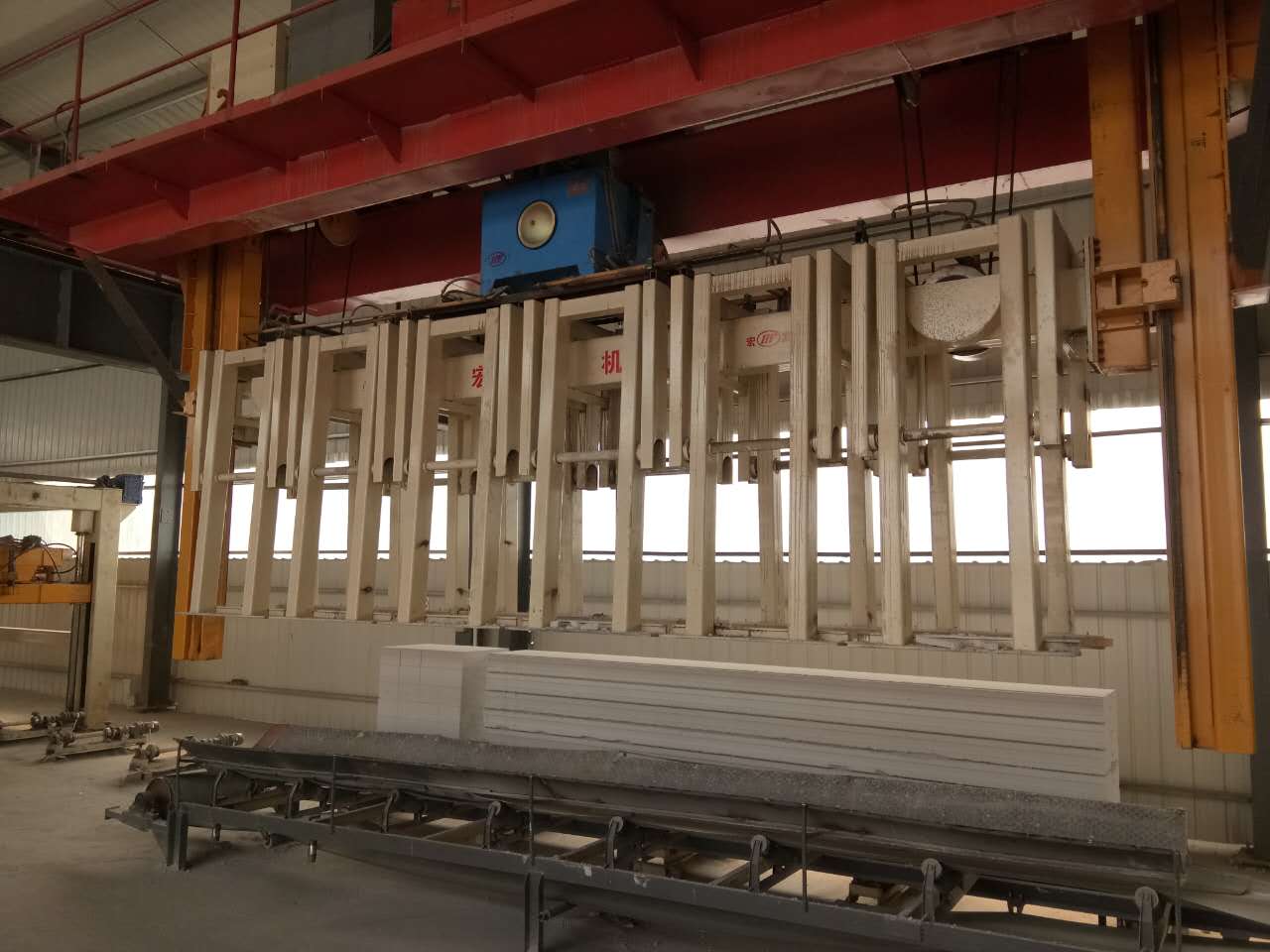

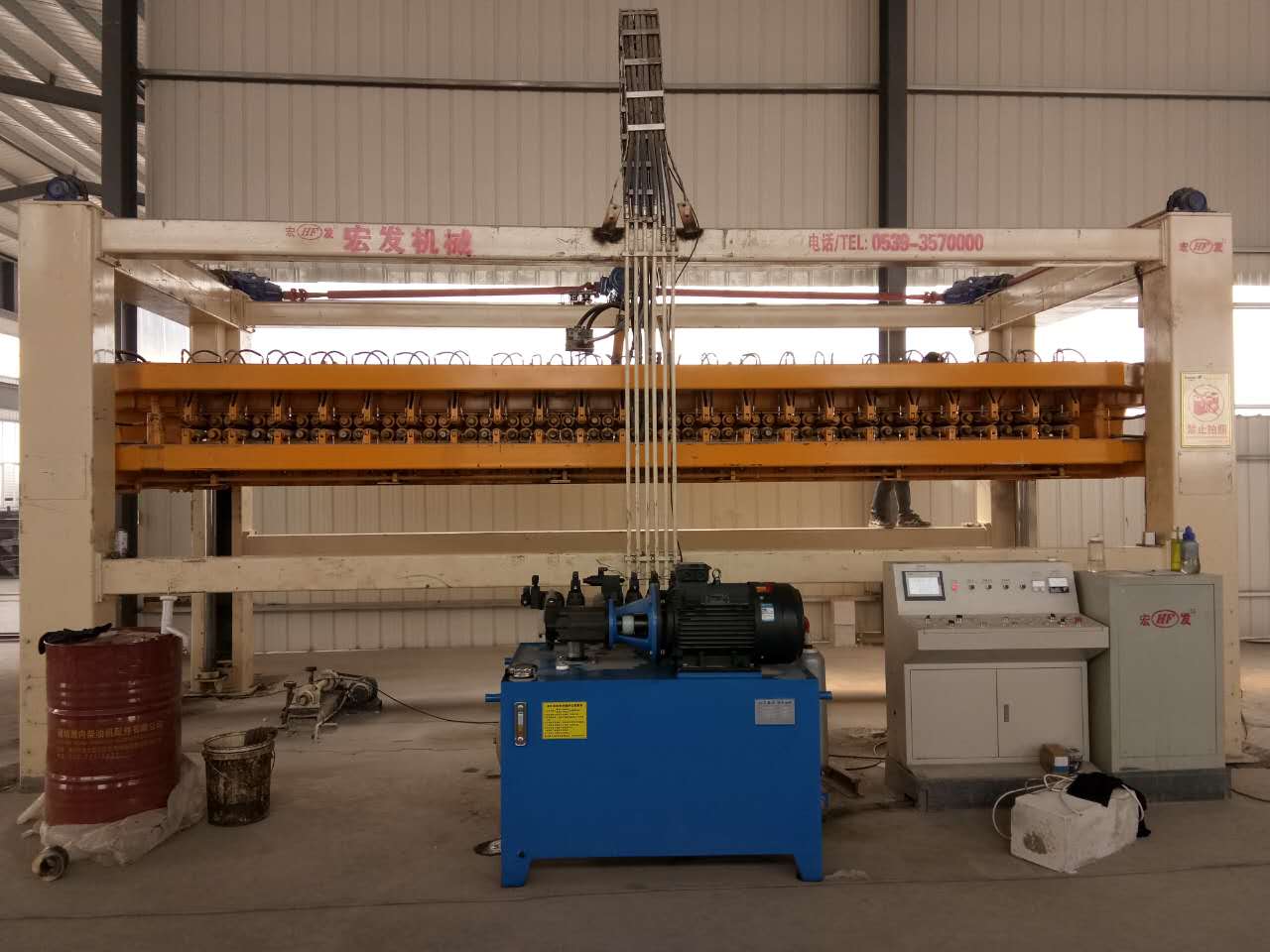

Cutting machine of Autoclaved Aerated Concrete fly ash block production line ,  AAC light wall panel making machine

     The tilting hanger turns the mould 90 degrees in the air, demould the blank and puts it on the cutting table together with the side plate .The blank on the cutting table is cut by the longitudinal cutting device through the motor and its own running .After completion and running at the pause position ,the blank is cut horizontally by the cross cutting device when it is driven by the motor to the center of the blank .The cross cutting holder drops and cuts vertically from up to down until it is reset upward.

Autoclave of Autoclaved Aerated Concrete fly ash block production line ,  AAC light wall panel making machine

AAC block green body will be steamed in autoclave kettle and get high strength.

The finished AAC block and ALC panel:

If  you want this production line , please contact me : wechat and whatsapp : +86-18315759901
