PRE-ASSEMBLED ALUMINUM CABLES

AAC + AAAC & AAC + ACSR 600V 1000V PRE-ASSEMBLED ALUMINUM CABLES

XLPE AAC ACSR Cable Manufacturer in China

duplex, triplex or cuadruplex cable for sale

Description

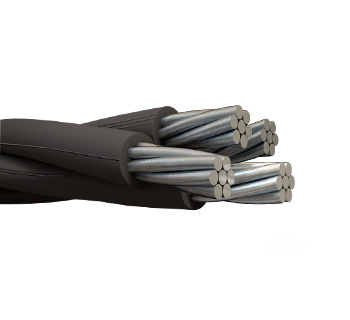

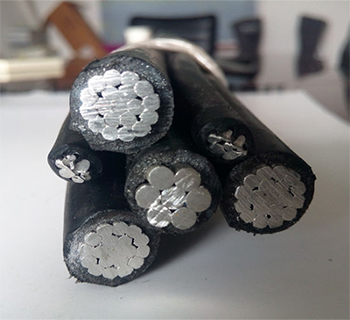

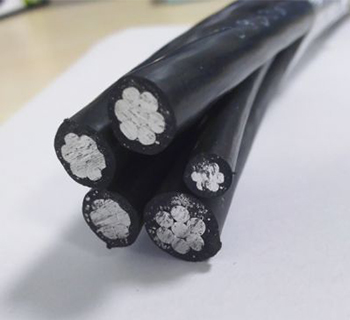

6201-T81 alloy aluminum cable in the neutral section and 1350-H19 aluminum phases. They are all 90ºC cross-linked polyethylene (XLPE) covered. They have a highly outdoor resistance and are protected from UV radiation. In normal conditions, it works at an operating temperature of up to 90ºC. It comes in a duplex, triplex, or cuadruplex presentation. It's XLPE insulated, humidity and sun light resistant, and of outdoor use. Ideal to work in the open.

Isolation:

90°C insulated cross-linked polyethylene (XLPE)

Segment:

Cables for secondary distribution or power feeding service

Norms:

ICEA S-76-474

Aplication

Cables for secondary distribution or power feeding service. They are used in aerial or underground facilities. Concentrically wired. The 1350 H19 aluminum type works for the phases and the 6201 T81 aluminum type works for the neutral section. They are 90ºC cross-linked polyethylene (XLPE) insulated. They can be used in dry or humid places at a 90ºC operating temperature and at a 600 V operating voltage. They come in a duplex, triplex or cuadruplex presentation

Parameter

AAC + AAAC 600V PRE-ASSEMBLED ALUMINUM CABLES

Caliber

Conductor

Weight

Amperage

Amperage

Thickness

Formation

Formation

AWG o Kcmil

--

Kg / Km

Buried

Duct

--

Normal 6201

Normal 1350

2 x 6

Neutral-Phase

120.81

95

70

1,14

7 x 1.56

7 x 1.56

2 x 4

Neutral-Phase

175.35

125

90

1,14

7 x 1.96

7 x 1,96

2 x 2

Neutral-Phase

260.08

165

120

1,14

7 x 2.47

7 x 2.47

3 x 6

Neutral-Duplex/Phase

181.28

95

70

1,14

7 x 1.56

7 x 1.56

3 x 4

Neutral-Duplex/Phase

263.14

125

90

1,14

7 x 1.96

7 x 1,96

3 x 2

Neutral-Duplex/Phase

390.29

165

120

1,14

7 x 2.47

7 x 2.64

3 x 1/0

Neutral-Duplex/Phase

631.91

215

160

1,52

7 x 3.12

7 x 3.12

3 x 2/0

Neutral-Duplex/Phase

775.4

245

180

1,52

7 x 3.51

7 x 3.51

3 x 3/0

Neutral-Duplex/Phase

946.63

250

195

1,52

7 x 3.93

7 x 3.93

3 x 4/0

Neutral-Duplex/Phase

1.17

315

240

1,52

7 x 4.42

7 x 4.42

2 x 2 + 4

Neutral-Duplex/Phase

347.99

165

120

1,14

7 x 1.96

7 x 2.47

2 x 2 + 1/0

Neutral-Duplex/Phase

470.69

165

120

1,52

7 x 3.12

7 x 2.47

2 x 2/0 +1/0

Neutral-Duplex/Phase

727.67

245

180

1,52

7 x 3.12

7 x 3.51

2 x 3/0 +1/0

Neutral-Duplex/Phase

841.94

280

205

1,52

7 x 3.12

7 x 3.93

2 x 3/0 +2/0

Neutral-Duplex/Phase

889.67

280

205

1,52

7 x 3.51

7 x 3.93

4 x 6

Neutral-Triplex/Phase

241.75

95

70

1,14

7 x 1.56

7 x 1.56

4 X 4

Neutral-Triplex/Phase

350.92

125

90

1,14

7 x 1.96

7 x 1.96

4 x 2

Neutral-Triplex/Phase

520.5

155

115

1,14

7 x 2.47

7 x 2.47

4 x 1/0

Neutral-Triplex/Phase

842.73

200

150

1,52

7 x 3.12

7 x 3.12

4 x 2/0

Neutral-Triplex/Phase

1.03

225

170

1,52

7 x 3.51

7 x 3.51

4 x 3/0

Neutral-Triplex/Phase

1.26

250

195

1,52

7 x 3.93

7 x 3.93

4 x 4/0

Neutral-Duplex/Phase

1.52

315

240

1,52

7 x 4.42

19 x 2.68

3 x 2/0 +1/0

Neutral-Triplex/Phase

986.37

225

170

1,52

7 x 3.12

7 x 3.51

3 x 3/0 +1/0

Neutral-Triplex/Phase

1.16

250

195

1,52

7 x 3.12

7 x 3.93

1 x 4 + 48.69

Neutral-Phase

187.71

-

-

1,14

7 x 2.12

7 x 1,96

2 x 2+77.47

Neutral-Duplex/Phase

410.17

-

-

1,14

7 x 2.68

7 x 2.47

2 x 1/0+123.3

Neutral-Duplex/Phase

661.94

-

-

1,52

7 x 3.37

7 x 3.12

2 x 2/0+155.4

Neutral-Duplex/Phase

811.36

-

-

1,52

7 x 3.78

7 x 3.51

AAC + AAAC 1000V PRE-ASSEMBLED ALUMINUM CABLES

Caliber

Conductor

Weight

Amperage

Amperage

Thickness

Formation

Formation

AWG o Kcmil

--

Kg / Km

Buried

Duct

--

Normal 6201

Normal 1350

2 x 6

Neutral-Phase

142.14

95

70

1,6

7 x 1.56

7 x 1,56

2 x 4

Neutral-Phase

200.2

125

90

1,6

7 x 1.96

7 x 1,96

2 x 2

Neutral-Phase

289.42

165

120

1,6

7 x 2.47

7 x 2.47

3 x 6

Neutral-Duplex/Phase

213.22

95

70

1,6

7 x 1.56

7 x 1.56

3 x 4

Neutral-Duplex/Phase

300.3

125

90

1,6

7 x 1.96

7 x 1,96

3 x 2

Neutral-Duplex/Phase

434.13

165

120

2,1

7 x 2.47

7 x 2.47

3 x 1/0

Neutral-Duplex/Phase

702.6

215

160

2,1

7 x 3.12

7 x 3.12

2 x 2 +1/0

Neutral-Duplex/Phase

523.62

165

120

2,1

7 x 3.12

7 x 2.47

2 x 2/0 +1/0

Neutral-Duplex/Phase

802.58

245

180

2,1

7 x 3.12

7 x 3.51

2 x 3/0 +1/0

Neutral-Duplex/Phase

921.38

280

205

1,6

7 x 3.12

7 x 3.93

4 x 6

Neutral-Triplex/Phase

284.29

95

70

1,6

7 x 1.56

7 x 1.56

4 X 4

Neutral-Triplex/Phase

400.39

125

90

1,6

7 x 1.96

7 x 1,96

4 x 2

Neutral-Triplex/Phase

578.84

165

120

2,1

7 x 2.47

7 x 2.47

4 x 1/0

Neutral-Triplex/Phase

936.8

215

160

2,1

7 x 3.12

7 x 3.12

3 x 1/0 +2

Neutral-Triplex/Phase

847.31

215

160

1,60 - 2,10

7 x 2.47

7 x 3.12

3 x 1/0 +2/0

Neutral-Triplex/Phase

986.79

215

160

2,1

7 x 3.51

7 x 3.12

3 x 2/0 +1/0

Neutral-Triplex/Phase

1.09

245

180

2,1

7 x 3.12

7 x 3.51

3 x 3/0 +1/0

Neutral-Triplex/Phase

1.26

280

205

2,1

7 x 3.12

7 x 3.93

3 x 3/0 +2/0

Neutral-Triplex/Phase

1.31

280

205

2,1

7 x 3.51

7 x 3.93

AAC + ACSR 600V PRE -ASSEMBLED ALUMINUM CABLES

Caliber

Conductor

Weight

Amperage

Amperage

Thickness

Formation

Formation

Formation

AWG o Kcmil

--

Kg / Km

Buried

Duct

--

Normal 1

Aluminum Wire

Steel Wire

2 x 6

Neutral-Phase

136.82

95

70

1.14

7 x 1,56

6-7

1

2 x 4

Neutral-Phase

201.11

125

90

1.14

7 x 1,96

6-7

1

2 x 2

Neutral-Phase

301.44

165

120

1.14

7 x 2,47

6-7

1

1x2 + 1x1/0

Neutral-Phase

409.12

165

120

1.52 - 1.14

7 x 2,47

6-7

1

2 x 3/0

Neutral-Duplex/Phase

731.93

250

195

1.52 - 1.52

7 x 3,93

6-7

1

3 x 6

Neutral-Duplex/Phase

194.09

95

70

1.14

7 x 1,56

6-7

1

3 x 4

Neutral-Duplex/Phase

283.85

125

90

1.14

7 x 1,96

6-7

1

3 x 2

Neutral-Duplex/Phase

423.63

165

120

1.14

7 x 2,47

6-7

1

3 x 1/0

Neutral-Duplex/Phase

682.99

215

160

1.52

7 x 3,12

6-7

1

3 x 2/0

Neutral-Duplex/Phase

837.65

245

180

1.52

7 x 3,51

6-7

1

3 x 3/0

Neutral-Triplex/Phase

1.03

250

195

1.52

7 x 3,93

6-7

1

3 x 4/0

Neutral-Duplex/Phase

1.27

315

240

1.52

7 x 4,42

6-7

1

2 x 2 + 4

Neutral-Duplex/Phase

362.76

165

120

1.14 - 1.14

7 x 2.47

6-7

1

2 x 1/0 + 2

Neutral-Duplex/Phase

575.3

215

160

1.14 -1.52

7 x 3.12

6-7

1

2 x 2/0 +1/0

Neutral-Duplex/Phase

771.95

245

180

1.52

7 x 3.51

6-7

1

2 x 3/0 +1/0

Neutral-Duplex/Phase

878.01

250

195

1.52

7 x 3.93

6-7

1

4 x 6

Neutral-Triplex/Phase

251.36

95

70

1.14

7 x 1,56

6-7

1

4 X 4

Neutral-Triplex/Phase

366.58

125

90

1.14

7 x 1,96

6-7

1

4 x 2

Neutral-Triplex/Phase

545.82

165

120

1.14

7 x 2,47

6-7

1

4 x 1/0

Neutral-Triplex/Phase

881.02

215

160

1.52

7 x 3,12

6-7

1

4 x 2/0

Neutral-Triplex/Phase

1.08

245

180

1.52

7 x 3,51

6-7

1

4 x 3/0

Neutral-Triplex/Phase

1.32

250

195

1.52

7 x 3,93

6-7

1

3 x 1/0 + 2

Neutral-Triplex/Phase

773.33

215

160

1.14 - 1.52

7 x 3.12

6-7

1

3 x 2/0 +1/0

Neutral-Triplex/Phase

1.01

245

180

1.52

7 x 3.51

6-7

1

3 x 3/0 +1/0

Neutral-Triplex/Phase

1.17

250

195

1.52

7 x 3.93

6-7

1

3 x 4/0 + 1/0

Neutral-Triplex/Phase

1.3

315

240

1.52

19 x 2.68

6-7

1

3 x 4/0 + 2/0

Neutral-Triplex/Phase

1.45

315

240

1.52

7 x 4.42

6-7

1

3 x 1/0 + 4

Neutro-Duplex/Fase/Piloto

765.72

200

150

1.52 - 1.52- 1.14

7 x 3.12 - 7 x 1.96

6-7-7

1

2 x 2 +1/0 + 4

Neutro-Duplex/Fase/Piloto

643.84

165

1200

1.52 - 1.14- 1.14

7 x 2.64 - 7 x 1.96

6-7-7

1

2 x 2/0 +1/0 + 4

Neutro-Duplex/Fase/Piloto

854.69

245

180

1.52 - 1.52- 1.14

7 x 3.51 - 7 x 1.96

6-7-7

1

3 x 2 +1/0 + 4

Neutro-Duplex/Fase/Piloto

736.25

155

115

1.52 - 1.14- 1.14

7 x 2.64 - 7 x 1.96

6-7-7

1

2 x 2 +1/0 + 4

Neutro-Duplex/Fase/Piloto

614.05

155

115

1.52 - 1.14- 1.14

7 x 2.64 - 7 x 1.96

6-7-7

1

3 x 1/0 + 6

Neutro-Duplex/Fase/Piloto

740.26

200

150

1.52 - 1.52- 1.14

7 x 3.12 - 7 x 1.56

6-7-7

1

2 x 2 +1/0 + 6

Neutro-Duplex/Fase/Piloto

588.59

155

115

1.52 - 1.14- 1.14

7 x 2.64 - 7 x 1.56

6-7-7

1
