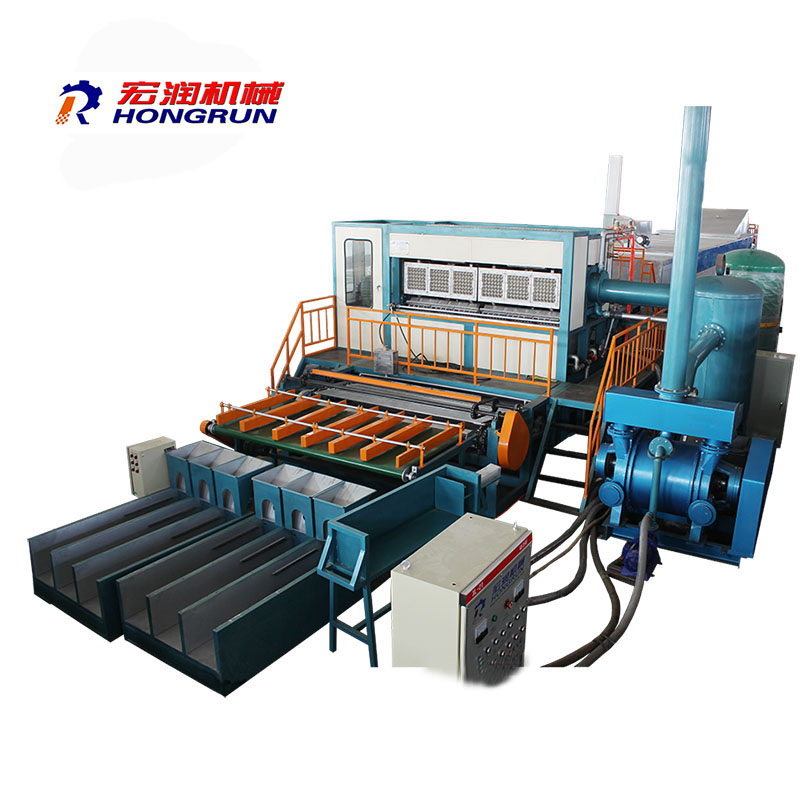

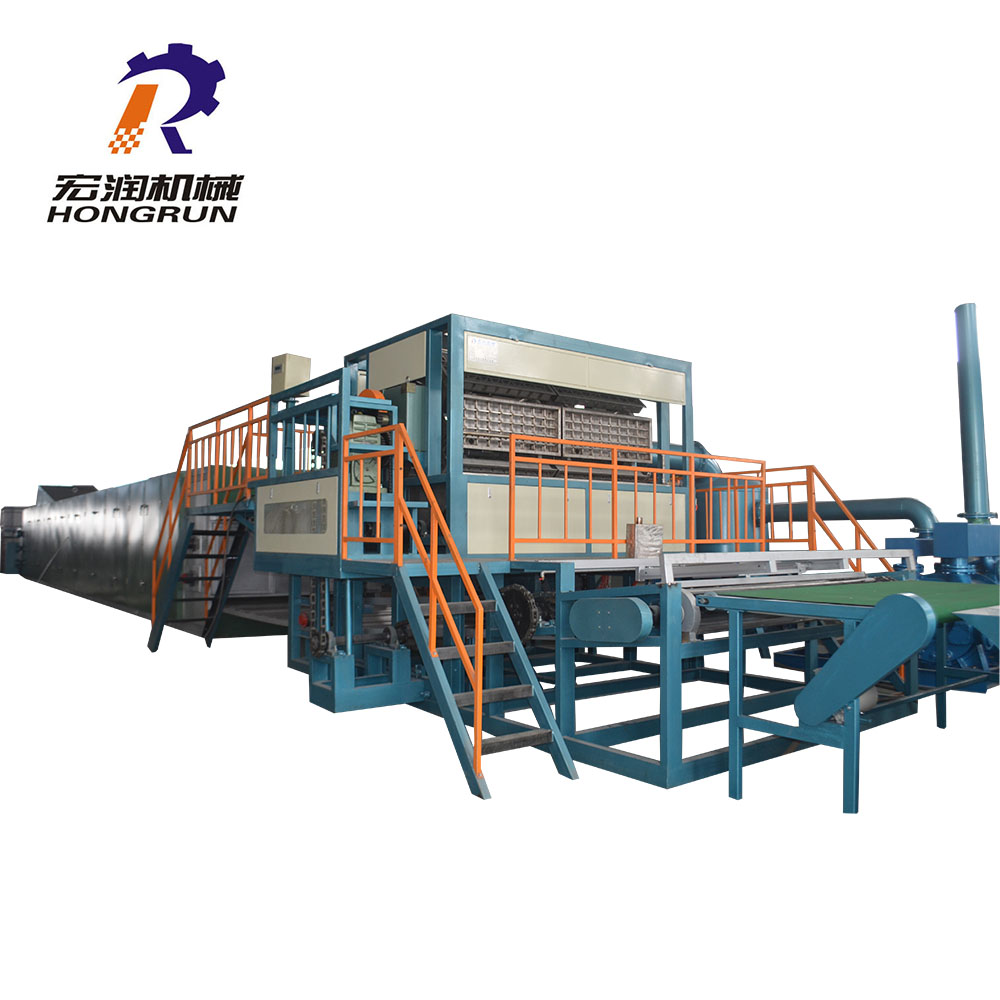

6000pcs/h Egg Tray Production Line

The pulp molding system can use all kinds of waste paper to produce high quality molded fiber products. Such as egg trays,  egg cartons, egg boxes, apple trays, fruit trays, industrial trays, seeding trays, etc. it is a satisfyingly high return investment for the entrepreneurs or investors who wants a stable and consistent business.

A complete pulp molded production line consists of pulp making system, molding system, drying system and automatic stacking system, and packing system, etc.

 FEATURES AT A GLANCE

1.Pulping system:

•Pulping system is mainly comprised of auto feeder, hydrapulpter, pulp pump, multi-function refiner, blender, vibrating screen, control cabinet, etc.

•It can make the pulp by the waste paper. And it is the first step in making process.

•The customer should build the tanks according to the drawing we provide.

2. Molding system

•This system includes a rotary type molding machine, mold, vacuum pump, air compressor, vacuum tank, centrifugal pump, moisture separation pump and control cabinet, etc.

•We could produce the forming mould and transferring mould based on the customer’s request. The material of the mould could be Aluminum, Resin, Plastic.

MOLD DESIGN

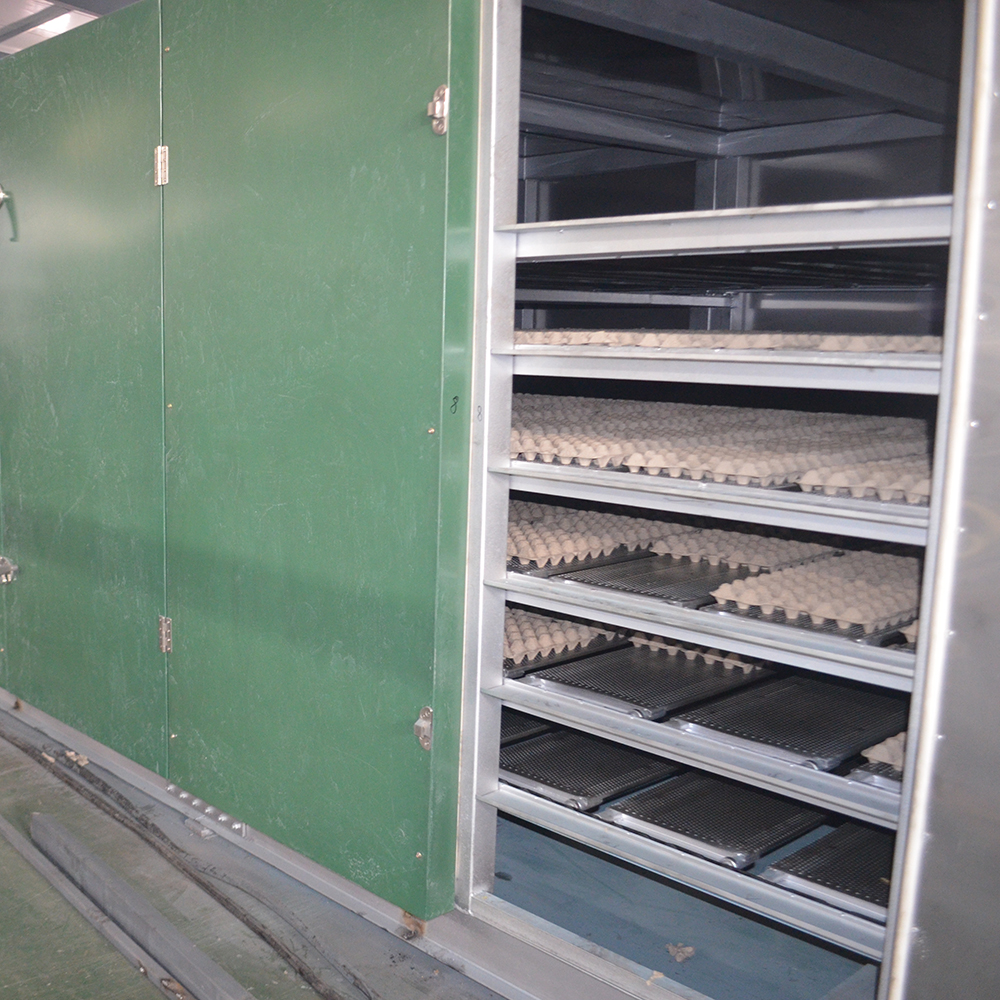

3. Drying system

•This system includes a conveyor belt, recycled blower, induced fan, burner, bellows, etc.

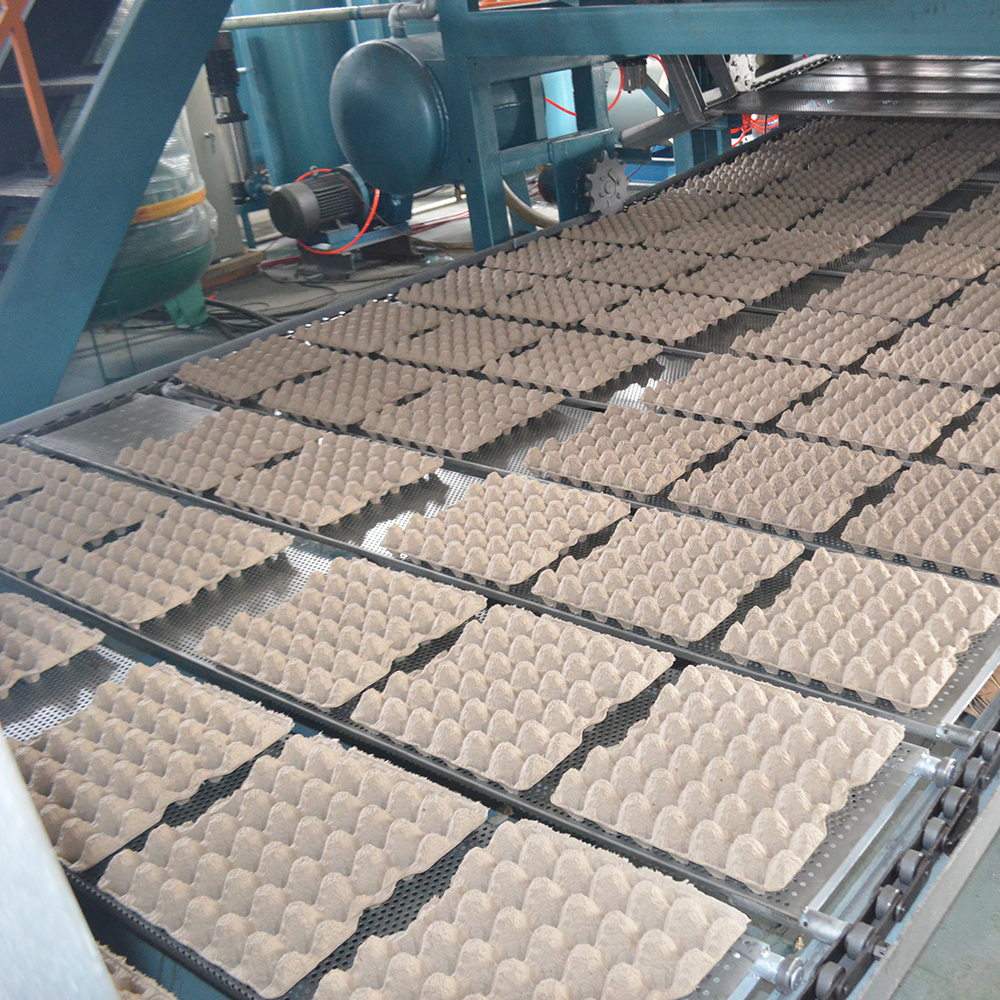

•This is very important in the all of the lines. When the egg tray is made over by the forming machine, the egg tray will be put on the drying line, they will across the drying channel, then you can get the dry tray!

4. Auto stacking system

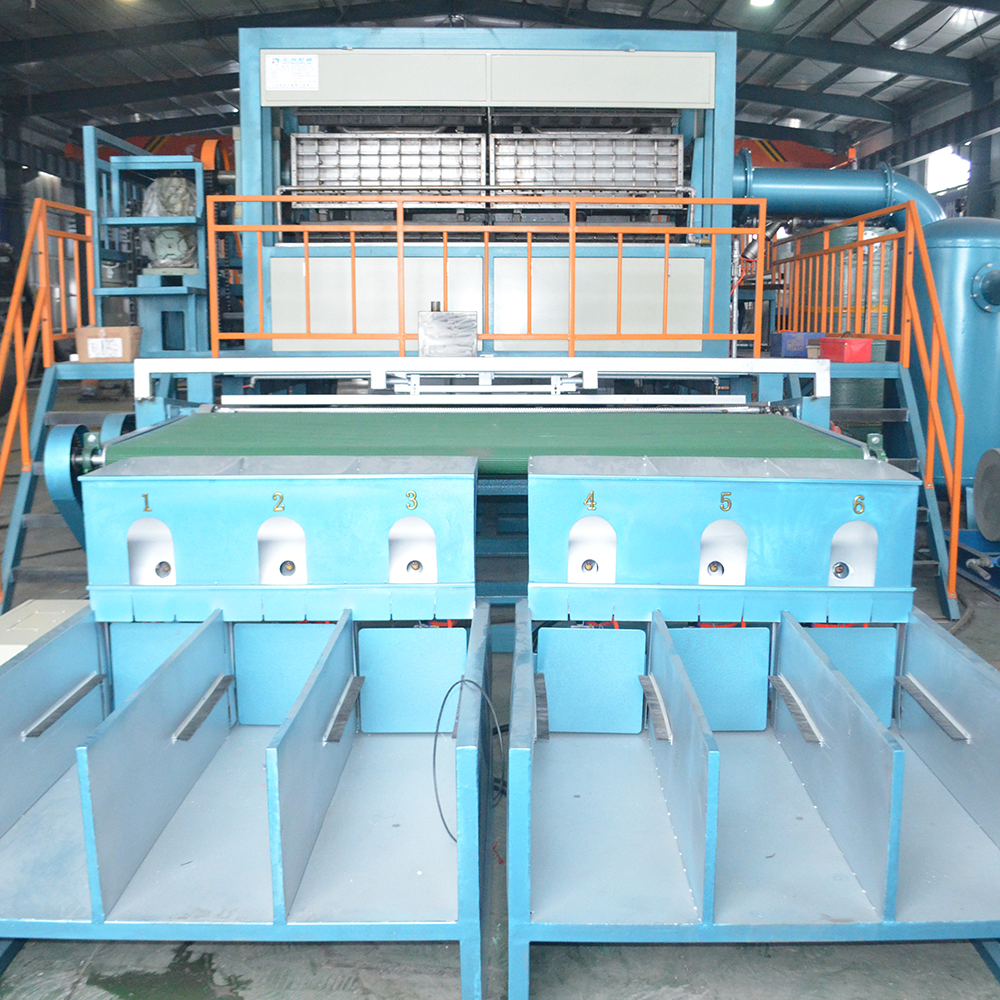

•This system includes automatic stacking and counting unit, when you set the required quantity, it will auto push the egg trays out for collecting.

5. Packing system

•This is the last step, you can compress the required quantity of egg trays firmly for packing.

Raw Materials

The raw materials of molded pulp products are waste paper, corrugated paper, waste newspapers, magazines, waste materials from color printing plants and paper boxes. The raw materials are pollution-free and can be recycled. Products are easy to find. The chemical material of the product is the same as that of paper. The mold material can use plastic or aluminum depending on the buyer's requirements and the equipment has stable performance.

The production equipment can also be equipped with an automatic shaping system, automatic printing and automatic labeling system. (For specific requirements, please consult us)

SUCCESSFUL PROJECT

TECHNICAL PARAMETERS

Item

Information

Affirmatory Throughput

Each hour output: normally is 6000 pieces of standard 30 packed egg trays. If buy all hot-press machines and egg carton molds could for 6000 pieces of bringing lid eggs carton (10, 12, 15, 18, 6+6, 9+9 type), or 4500 pieces 400X300 fruit tray.

(Note: 6+6, 9+9 eggs carton mean 6, 9 eggs carton 2 pieces in one mold)

Workshop recommendation

Total≥576m2: Length≥48m; Width≥12m; Height≥6m;

(It could be adjusted according to the user's existing workshop)

Type of Material

Waste paper: newspaper, carton paper, cardboard, corrugated paper, books, etc.

Material consumption

360~480kg/h: Including impurities

30 packed egg tray(60~80g)

Water consumption

800~1100kg/h: Vaporized in the drying process

30 packed egg tray(60~80g)

Electricity consumption

110~150kWh/h: 24 hours none-stop

(Full throttle operation)

Fuel consumption

LPG 80~115 kg/h or Natural gas 110~150 m3/h or LNG 80~115 kg/h

Diesel 80~115 kg/h (Choose one from the above types of fuel)

Voltage

3 Phase 380V / 50Hz

Operator Required

4~6 people/shift: 1~2 for pulp making, 1~2 for operation, and 2 for collection (24hours, 3shift)

Transport requirement

7 of 40’HC: Standard ocean shipping container

(Whole production line overall equipment and components)

The flowing items must be prepared by the buyers before installation：

Workshop, installation foundation of the machine(if necessary), drain ditch in the workshop, hot air circulation ditch etc.

Pulp making system：Including pools or tanks for pulp making system, all the connection pipes、valves and faucet, the platform or pit of hydrapulper (if necessary)

Power supply system: Transformer, cables, junction box and air switch etc.

Water supply and storage, raw material supply and storage, enough labors (at least 4 workers) for installation and test running.

Fuel supply (Natural gas, LPG etc.). Including storage and supply system(including store tank, pressurization & gasification equipment, supply pipe & valves before connect to the burners)

FEATURES OF OUR MACHINE

1. Automated equipment reduces labor costs.

2. Environmental protection, low production cost.

3. Energy saving and water saving.

4. The final product has stable quality, same weight, same size, strong and beautiful.

5. The same equipment, changing molds, can produce all kinds of carton products, one machine with multiple functions, can meet the needs of different markets.

MACHINE PROCESSING

COMPANY PROFILE

Our company was founded in 1986 and is located in Longkou, Shandong. The company currently covers an area of more than 6,000 square meters. Our company has passed the ISO9001 international quality system certification, the European Union CE certification.
We mainly manufacture pulp molding machine and plastic foam machine, including egg tray production line which the waste paper can be recycled, disposable pulp tableware production line, and PS foam food container line, PE foam machine etc. Products are widely used in eggs, fruit, industrial components, and food, catering packaging. etc. Our machine mainly exported to South America, Middle East, Africa, Central Asia, Europe, Southeast Asia, etc.

THE COMPANY DEVELOPMENT HISTORY

CERTIFICATIONS

COMPANY EXHIBITION SITE

CUSTOMERS VISIT

LOADING PICTURES

Our service

Pre-sales service: 1. Help you design the layout of the equipment. 2. Take you to visit our factory. 3. Answer all your questions.

In-sale service: Ensure quality and delivery time.

After-sales service: We provide videos and installation instructions to teach how to install the equipment.

FAQ

Q: How to choose a model?
A: Tell me your capacity requirement and product size, we will help you to choose one accordingly.
Q: Why I choose your company?
A: a. We are China Leading machine Manufacturer.
b. Our company have made machine for many years with strong
experience and advanced techniques
c. Best Quality & Best Service with Competitive price.
d. 100% inspection Before Shipment. And we have got CE certificate
e. We have a professional technical team, will supply 24 hours service
f. Our machine has good quality, 1-year guarantee, and lifetime maintenance
Q: What is the material of the egg tray machine?
 A: Waste paper, e.g. old newspaper, carton, A4 paper, books, etc.

Q: What should we prepare except material?
 A: a. Workshop, foundation of the machine, etc.

       b. Raw Material supply system：Include Pools or tanks for pulp making system.

       c. Special pipe and cable etc.

       d. Power supply, water supply, raw material supply, labor.

       e. Fuel supply (Diesel oil，gas etc). Include storage and supply system(including store tank, supply pipe & valves before connecting to the burners)
Q: Can you make a machine upon our requirement?
 A: of course, it is no problem, we can make machines according to your requirement, such as part brand, machine color, labels, molds, etc.
