NEGATIVE ANGLE BUCKLE, TO SECURE BETTER ELEGANCE AND NO-LEAK

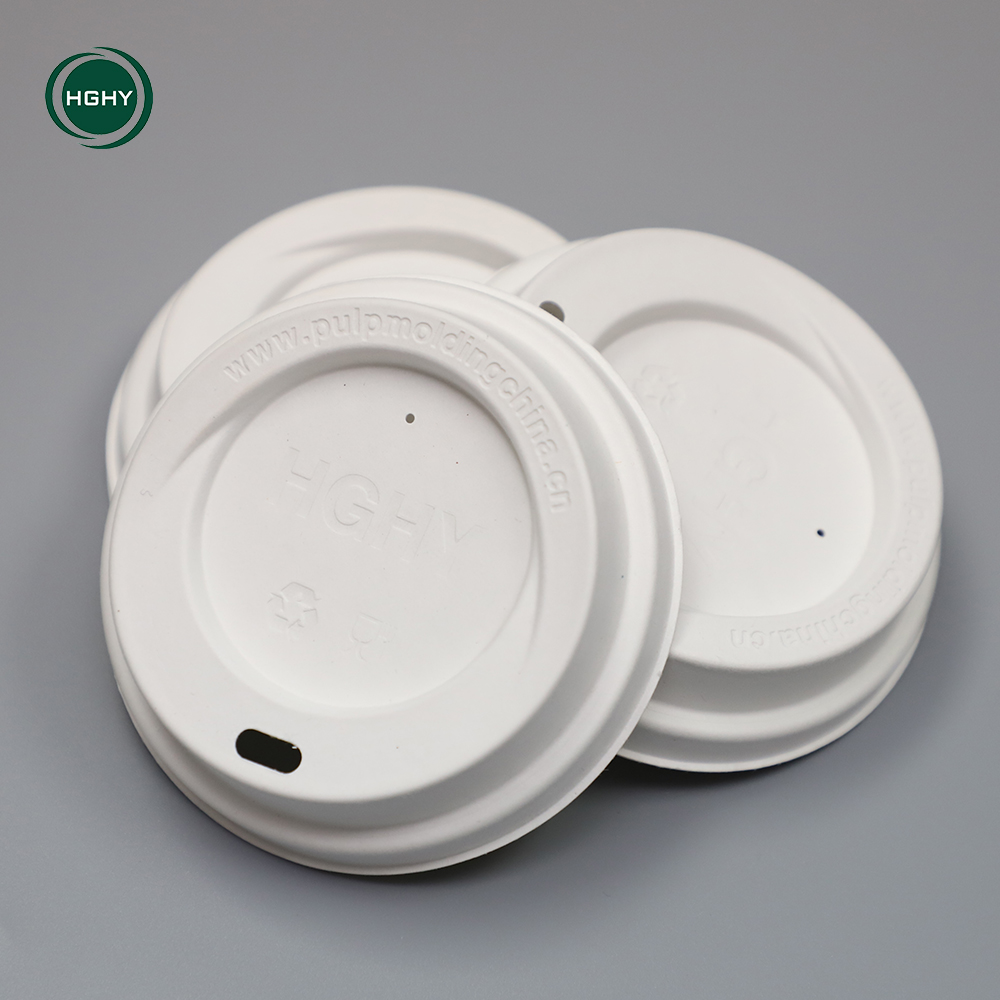

Small draft angle production for high quality eco-friendly molded fiber packaging. Suitable for the production of pulp molded cup lid, mobile phones, daily necessities, digital products and other exquisite high-grade lining or outer packaging products.

Efficient

Small drafting angle to 0°, small round corner to R0.3;

Adjustable

Precise fine tuning for all aspects like distance, pressure and temerature;

Maturity

Successfully developed and put into use by customers as early as 2002;

Adeptness

Set of complex papermaking and mold supporting and efficient production in one.

Main Specifications

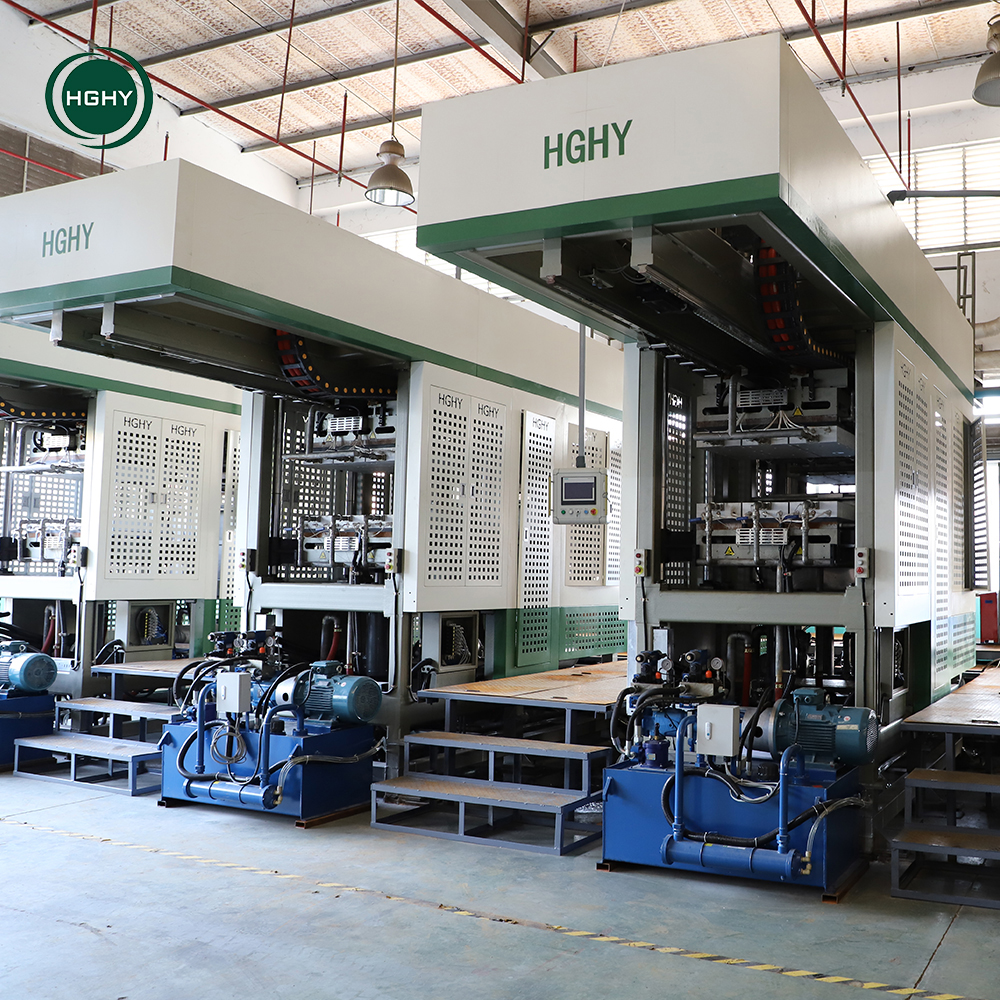

Model ZJWD-14375 Forming Machine Machine Structure 1 of forming staget; 1 of cold extrution stage; 1 of hotpressing stage; Automatic control system of Siemens. Platen size 1430 x 750 mm Forming method Reciprocating Heating method Thermal oil or electrical Pressure Max 55Ton by hydraulic Product height range ≤ 100mm Transfer method The upper mold moves parallet to the guide rail
