Advantage of CPD25,2.5ton electric forklift

As one of the most famous material handling manufactures in China,we specialize in this field for over 10 years, with the strengthof diesel forklift , Electric forklift , LPG forklift , reach truck, pullet truck and stacker.

Now VMAX dealers has been wide spread in many countries like Russia, Australia,Turkey, Brazil, Mexico etc. Also We company had obtained the following certificates in this industry with the development of over 10 years:
1. CE certificate
2. ISO 9001:2008 Standard approved
3. BV&SGS Factory Audit Pass Report
4. Alibaba golden supplier for 7 years

Besides, we are always trying to be innovative and have won several patent certificate on forklift in China.
Currently the factory's capacity per year is 5000 sets(including all sorts of forklift) and averagely the leading production time is 20-30 days. While standing to expand our brand, we also gladly accept OEM based model in which you can pick Japan Engine/CurtisController/different forklift attachment and any you like.

VMAX do more than just selling product, but also provide material handling solution for customer. We're sure that it can satisfy your demand if needed.

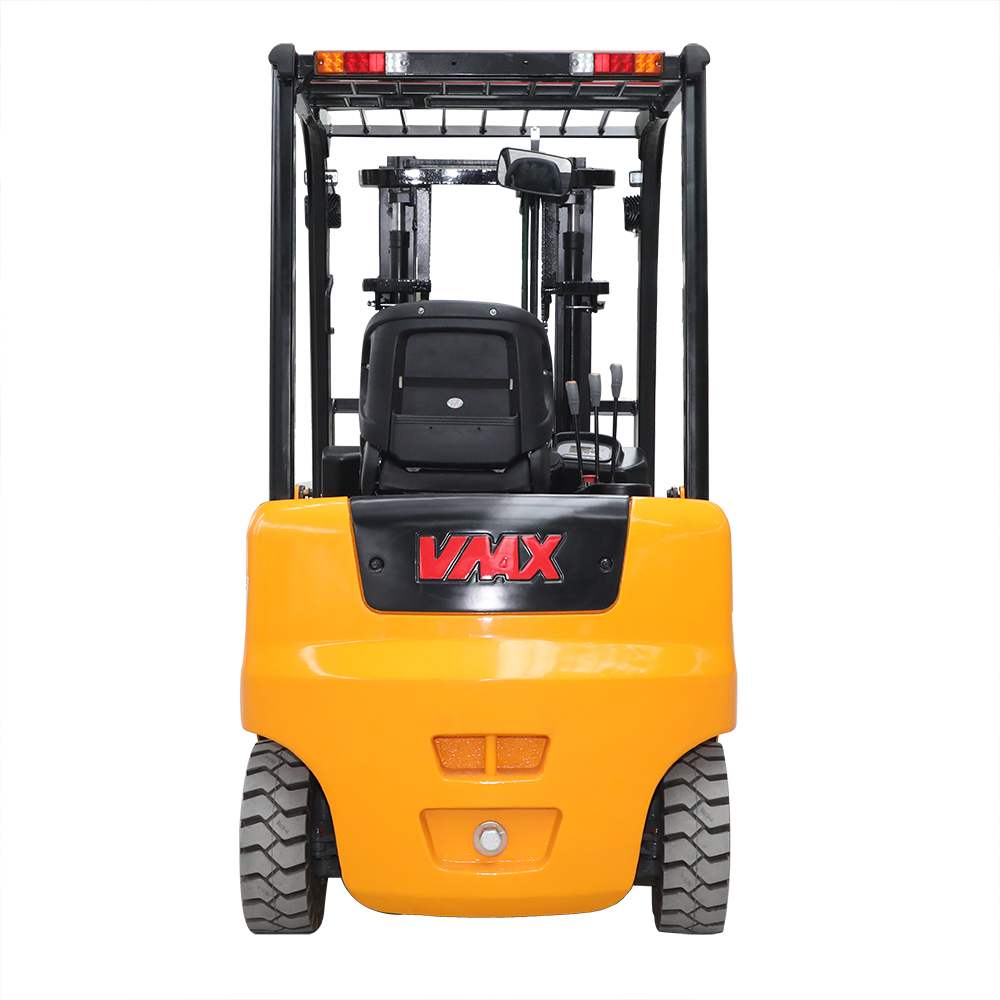

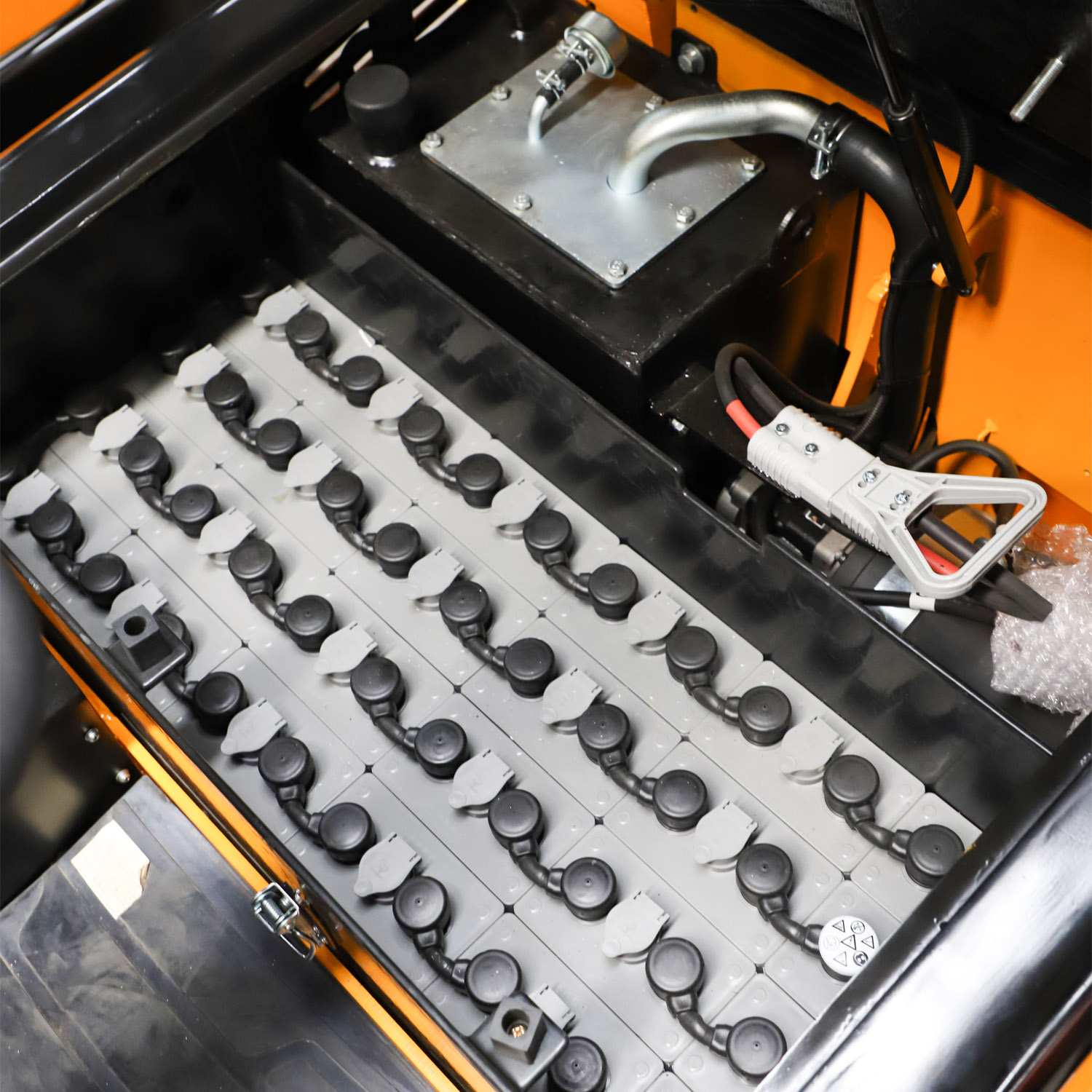

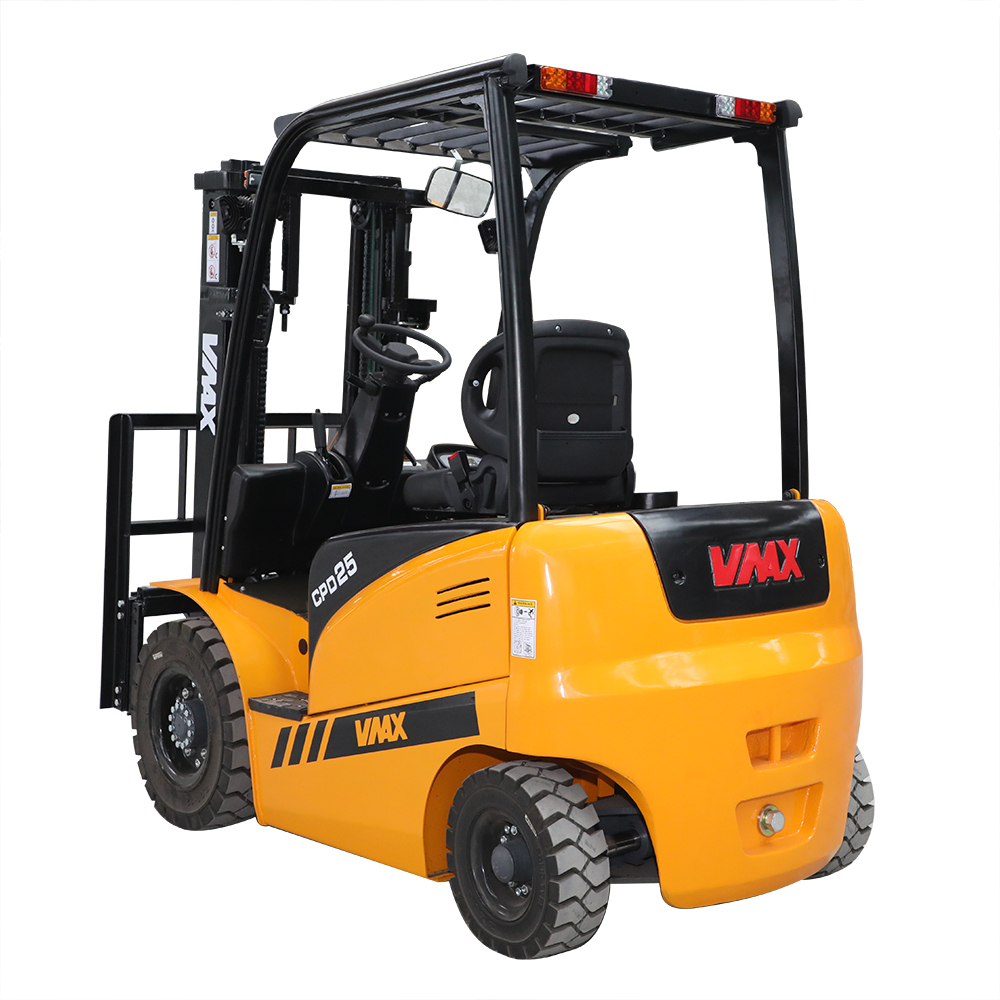

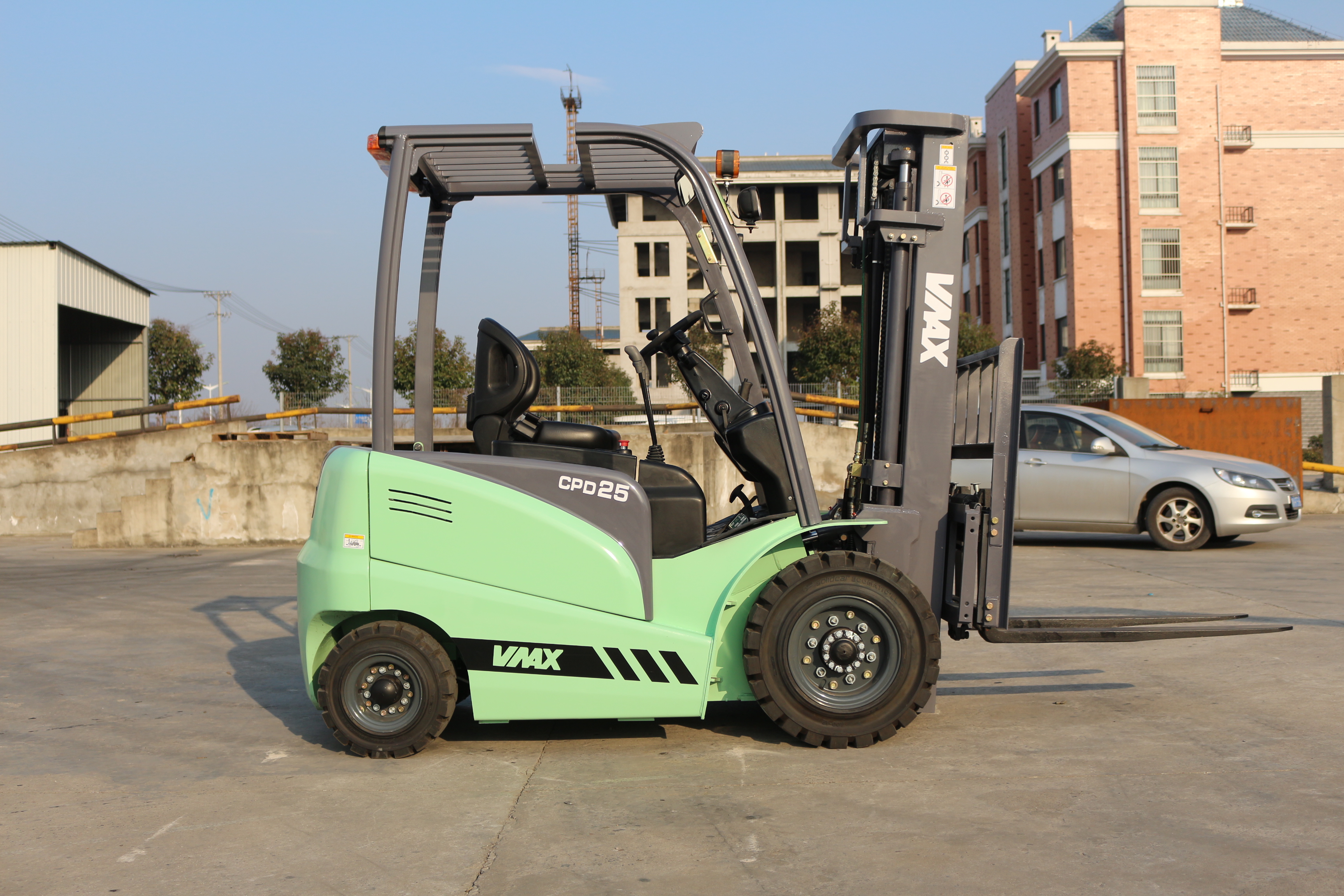

Brand new 2.5 ton battery forklift , adopt USA CURTIS controller , can do Full AC or Half AC , According to your request .

 Main Information1.1Manufacturer
VMAX1.2Model
CPD251.4Power type
Electric1.5Rated capacity
25001.6Load center
5002.1Operator typeDrive in seatTire,chassis3.1Tire Type
Pneumatic tyre3.2Quantity of wheels (front/rear)
2x/23.3Tires size(front/rear)
7.00-12-12PR/
18x7-8PR3.4Driving Brake
Hydraumatic pedal3.5Parking Brake
Mechanical manualsize4.1Mast tilt angleα/β（°）6/124.2Height of mast (standard)mm19954.3Max. lift height of mast with Load-backrestmm40454.4Free lift height(standard)mm1504.7Max.lift  height of fork(standard)mm30004.8Front wheel overhead mm21004.9Length without forkmm23854.10Front overhangmm468.54.11Rear overhangmm3844.12Wheel basemm15004.13Min. ground clearancemm1104.14Tread(front /rear)mm970/9504.15Overall widthmm11704.16Fork sizemm1070X125X454.17Min. Intersecting aislemm40404.18Min. Turning radiusmm2172Performance5.1Max.Drive speeds(with/without full load)km/h12~145.2Lifting speeds (with /without full load)m/s320~4505.3Lowering speeds(with /without full load)m/s476~4265.6Max. tractive force(with/without full load)N180005.8Max.grade ability (with/without full load)%13~15drive6.1 Drive motor power kw116.2Lifting motor power kw126.4Level voltage/CapacitanceV/Ah48/630Others7.1Drive systemDC/AC7.2Electric control systemCurtis7.3Self weightKG4270

Electric Warehouse Forklift detail:
As a professional manufacturer of forklift, we also can offer you customized service,
The following items are optional:
Container mast, for example, 2-stage full free mast of 3m, 3-stage full free mast of 4.5m/ 4.8m/ 5m/6m Side shifter, fork
positioner, longer forks, fork extension


Our forklift truck has the following features:

1.security

The whole system upgrades the intelligent starting system, prevents the vehicle from starting the transmission, improves the safety and improves the service life of the transmission;

Standard with hydraulic power braking system, equipped with excellent large capacity accumulator, improve the reliability of driving and emergency braking;

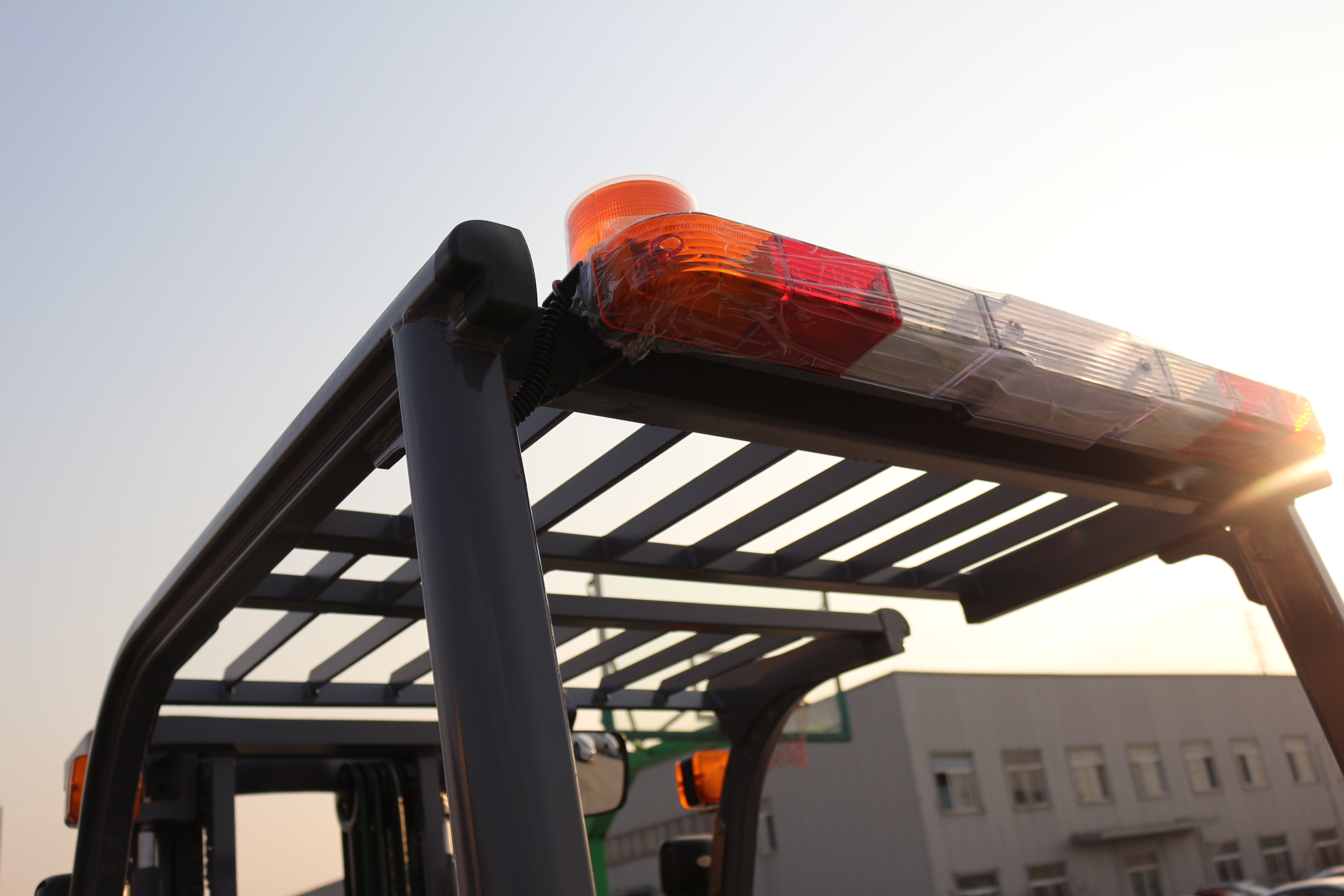

The roof protection frame adopts high strength steel plate as one body to press and shape, which provides a more thorough safety guarantee for the driver.

Standard button parking brake can prevent accidental release of handbrake.

 2.comfort

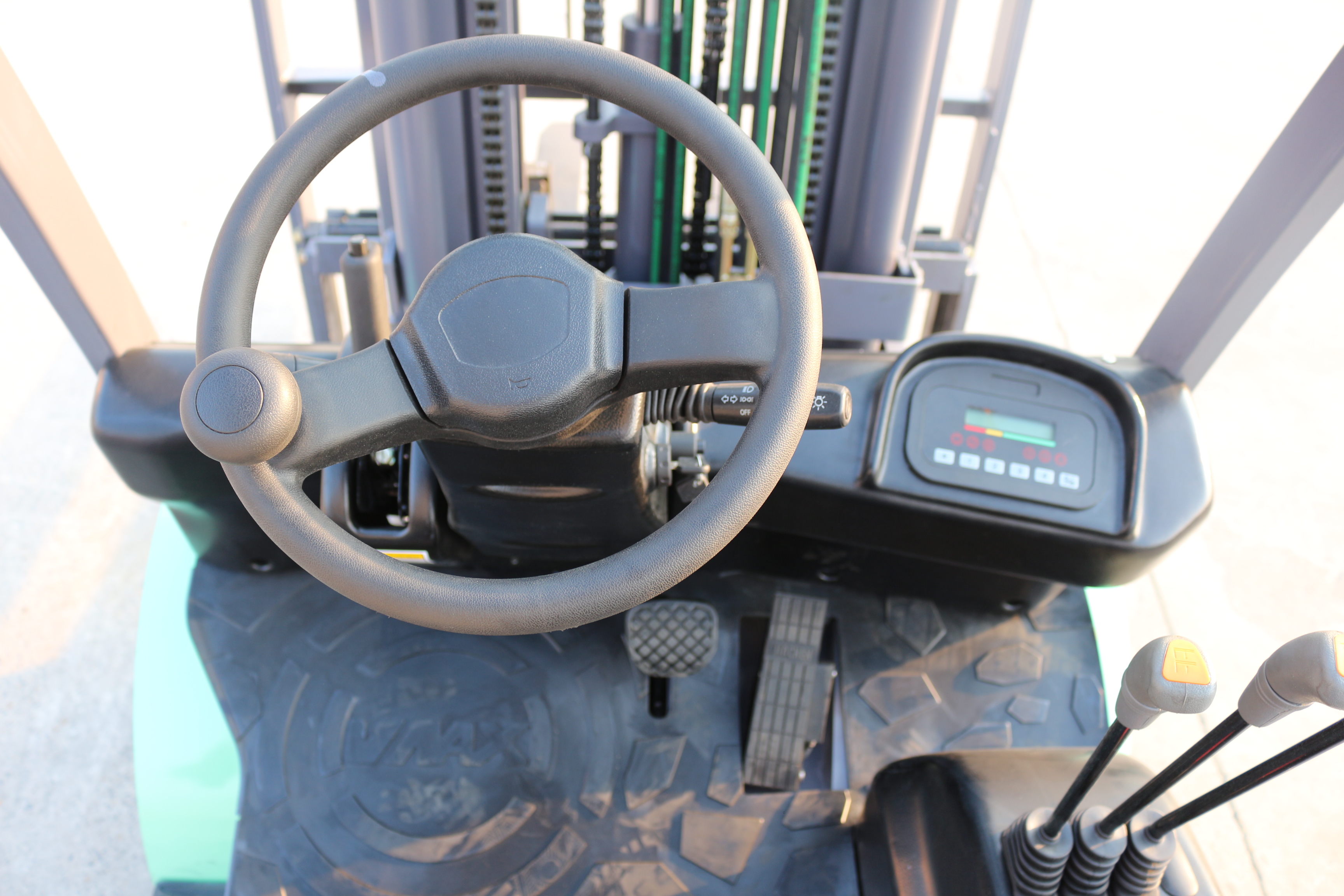

Cockpit ergonomic design, reasonable layout of each control device, equipped with front and rear adjustable envelop seats (up to 150mm) and steering wheel full series of model standard distribution fluid reversing system, easy to operate and comfortable.

 3.The advanced nature

High emission imported diesel and gas engines, Japanese original TCM transmission and other advanced core components can be selected.Intelligent liquid crystal instrument,CAN bus communication,CAN real-time display the engine and the car's various work information.

 4.reliability

According to the requirements of the engine cooling system optimization design, cold, oil and water separate layout, increase the reliability of the engine, such as box - speed core parts. Hydraulic system with large capacity of oil absorption and oil return filter, guarantee sustained efficient hydraulic system working engine air intake with two-stage filter design (whirlwind prefilter + dry type air filter).

 5.Reliable steering system

The use of new technology in steering system not only ensures stable steering, rapid positioning and steering, but also guarantees the safety of drivers.

6.Reliable lifting system

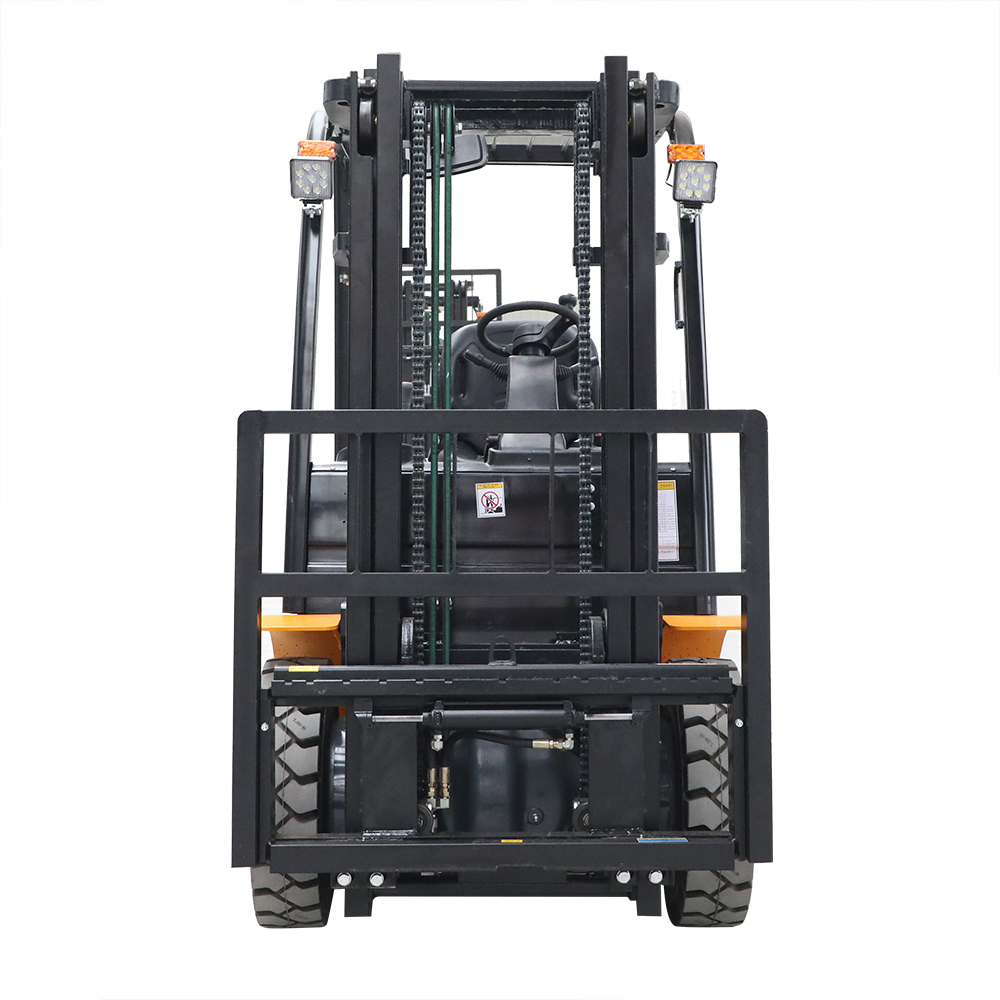

Pay attention to the internal quality of the solid door frame, for the operator to provide a reliable security.Wide view frame is standard for clearer view.Adopt high strength alloy channel steel, the quality is the best in the world.The portal frame channel section is enlarged to make the structure stronger.

7. New transmission and control system

The international leading electronic transmission device is adopted to make the vehicle more stable and the output power more powerful.The new electronic flameout device improves the operation comfort and safety.

 8.Superior performance of hydraulic system

Load sensor type priority steering hydraulic system design, to ensure flexible steering, while the speed of gantry lifting increased by 20%.

Oil seals are standard for inclined oil cylinder, lifting oil cylinder and steering oil cylinder.The lifting oil cylinder is equipped with drop buffer function.

9.Comfortable driving space

Wide leg mobile space, reasonable functional layout, to ensure the operator long time operation of comfort and safety.

For the details of customized configurations and options, please contact with us.
VMAX professional service will be impressed on you.
