Heavy Duty Diesel Forklift
The supplier hasn’t listed a price. We can get their current prices and MOQ.
- Service
- From $29 per supplier (Verify)
- You get
- Phone and video verification, a quote sheet and a written report
- Turnaround
- 3 business days
- Contact details
- Sent to you once your request is confirmed
If we can't reach the supplier within 3 business days, we refund the fee.
Heavy Duty Diesel Forklift
The supplier hasn’t listed a price. We can get their current prices and MOQ.
- Service
- From $29 per supplier (Verify)
- You get
- Phone and video verification, a quote sheet and a written report
- Turnaround
- 3 business days
- Contact details
- Sent to you once your request is confirmed
If we can't reach the supplier within 3 business days, we refund the fee.
About this product
- Materials: Steel
- Size: 6855*3050*4000mm
- Color: Yellow
- Engine capacity: Other
- Horsepower: Other
- Drive wheel: Other
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Japan and South Korea, Hong Kong China, Macao China and Taiwan China, Others
- Made in: Anhui, China
About this product
- Materials: Steel
- Size: 6855*3050*4000mm
- Color: Yellow
- Engine capacity: Other
- Horsepower: Other
- Drive wheel: Other
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Japan and South Korea, Hong Kong China, Macao China and Taiwan China, Others
- Made in: Anhui, China
Product details
| Materials | Steel |
|---|---|
| Size | 6855*3050*4000mm |
| Color | Yellow |
| Engine capacity | Other |
| Horsepower | Other |
| Drive wheel | Other |
| Tire certification | ISO |
| Power source | Other |
| Load capacity | 21-30t |
From the supplier

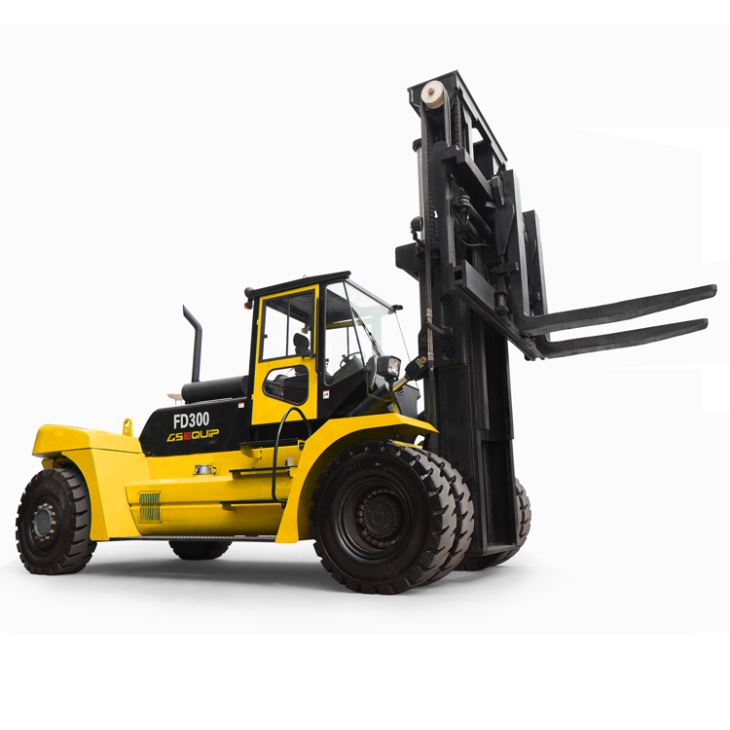

GS 30.0 Ton diesel forklift for storage yard advantages:
● The stability and the structure strength of the whole car conform to the European design standard.
● Hydro static power steering with load sensing provide flexible and handy steering.
● The radius of turning is low and the maneuverability is great.
● The design principle of automobile electric system is adopted for the truck which better satisfies the special and harsh usage environment requirements for the construction machinery for road use. And also the principle facilitates the later maintenance for better popularity of the automobile electric accessories and lower purchase cost.
● After optimization design and test, the power transmission system can make the engine work with minimum fuel consumption on the premise that the performance of the whole truck under different working conditions is ensured; Analyzing the structural parts with the finite element analysis that can reduce the service weight, optimize the outline dimension and lower the engine fuel consumption; The pressure loose is reduced through the highly integrated hydraulic functional valve blocks and optimized pipeline.
● With the modular design, the size of the modular parts are small, so that they can be transported convenient.
● The operation conforms to the requirements of Ergonomics.
● Wide view lifting system is adopted.
● Sliding type bonnet facilitates the maintenance and repair.
1
Model
FD300
2
Power Type
Diesel
3
Rated Capacity
kg
30000
4
Load Centre
mm
1200
Characteristic & Dimension
5
Lift Height
mm
4000
6
Fork Size
L*W*T
mm
2440*250*110
7
Mast Tilt Angle
F/R
Deg
5°/10°
8
Front Overhang (Wheel centre to fork face)
mm
1240
9
Ground Clearance (Bottom of mast)
mm
250
10
Overall Dimension
Length to face of fork (without fork)
mm
6855
11
Overall Width
mm
3050
12
Mast Lowered Height
mm
4000
13
Mast Extended Height (With backrest)
mm
6000
14
Overhead Guard Height
mm
3500
15
Turning Radius (outside)
mm
6500
16
Min.insecting aisle
mm
8800
Performance
17
Speed
Travel (Empty load)
km/h
25
18
Lifting (Full load)
mm/s
300
19
Max.Gradeability
%
20
Chassis
20
Tire
Front
14.00-24
21
Rear
14.00-24
22
Wheelbase
mm
4650
23
Service weight
kg
39600
Power & Transmission
24
Battery
Voltage/Capacity
V/Ah
24/180
25
Engine
Model
TAD750VE
26
Manufacture
VOLVO
27
Rated output/r.p.m.
kw
181/2300
28
Rated torque/r.p.m.
N·m
1050/1500
29
No.of Cylinder
6
30
Bore*Stroke
mm
130*108
31
Displacement
cc
7150
32
Fuel Tank Capacity
L
420
33
Transmission
Type
Hydraulic
34
Stage (FWD/RVS)
3/3
35
Operating Pressure for Attachment
Mpa
19
