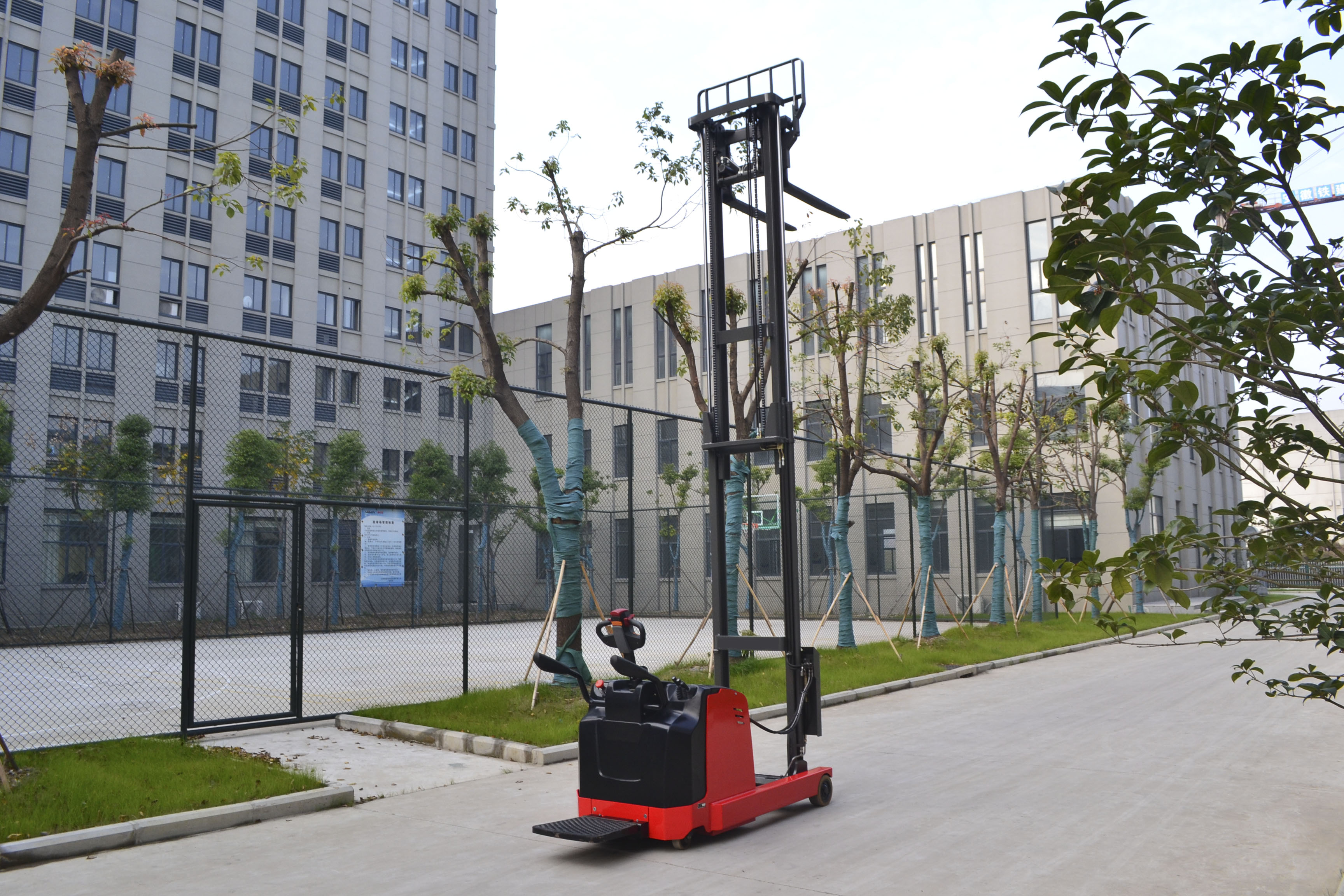

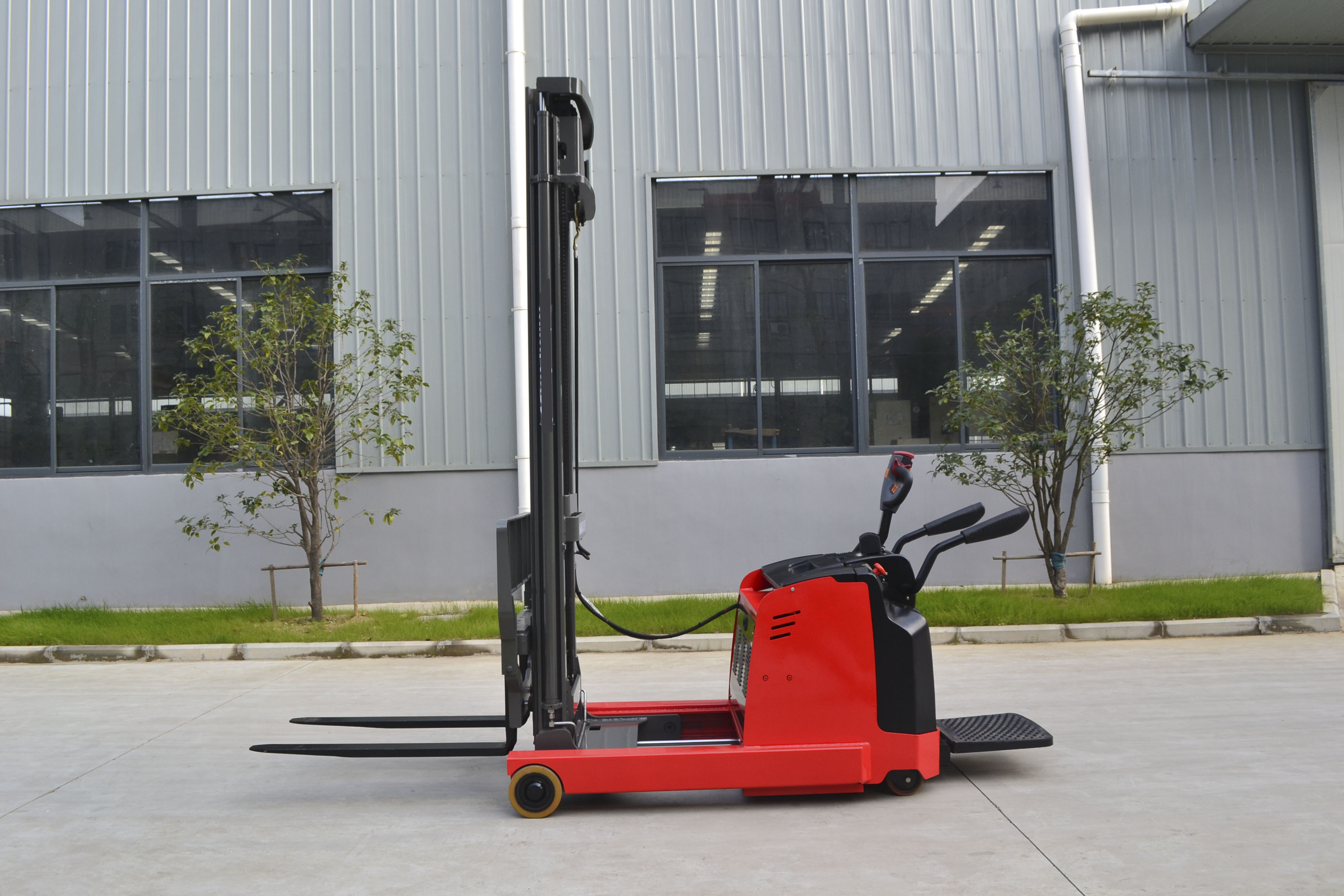

1.5T ELECTRIC REACH FORKLIFT



Manufacturer　VMAXVMAXVMAXModel　MFA1516 (Single Cylinder Single Frame)
MFA15F01 (Single Cylinder Two-Stage Mast)
MFA1516(Single cylinder, single mast）
MFA15F01（Single cylinder, duplex mast）
MFA15F05
(Dual Cylinder, Two-Stage Mast)
MFA15F05
 (Double cylinders, duplex mast)MFA15SF01
Three-Level Standard Gate Frame
MFA15SF01
 (Triplex mast)Power type　BatteryBatteryBatteryOpertion type　Stand-on TypeStand-on TypeStand-on TypeRated capacityQ(kg)150015001500Load centerC(mm)500500500Front overhangx(mm)120130130Wheelbasey(mm)148014801480　　　　　Service weight(incl. battery)kg185021002150Bridge load at no load, drive side / load sidekg///Bridge load at full load, fork moving forward, drive side /load sidekg///Bridge load at full load, fork retracted, drive side / load  sidekg///　　　　　Wheel type　Polyurethane (PU)Polyurethane (PU)Polyurethane (PU)Loading wheel mmφ210×85φ210×85φ210×85Driving wheelmm
 φ230×75
 φ230×75
 φ230×75Steady wheelmmφ150×50φ150×50φ150×50Tyres,front/rear(X=drive wheel)　2/1x+22/1x+22/1x+2Tread, driving wheelb10(mm)678678678Tread, loading wheelb11(mm)///　　　　　Tilt of fork, Forward/Backwardα/β(°)///Height of mast closedh1(mm)///Free lift heighth2(mm)///Lifting heighth3(mm)///Height of mast extended(incl. Load-Backrest)h4(mm)///Pedal heighth7(mm)170170170Handle height when workingh14(mm)　　　Support leg heighth8(mm)245245245Overall length(pedal off/on)L1(mm)2430/28302430/28302480/2880Overall widthb1/b2(mm)900/≤1120*900/≤1120*900/1105Fork dimensionl/e/s(mm)1070/100/351070/100/351070/100/35Installation class　2A2A2AFork carriage widthb3(mm)　　　Forks outside widthb5(mm)220-610220-610220-710Fork legs inner widthb4(mm)　　　Reach strokel4(mm)620620620Mast ground clearancem1(mm)505050Aisle width for pallet 1000*1200 crosswayAst(mm)2800/32452800/32452800/3245Aisle width for pallet 800*1200 crosswayAst(mm)2850/32952850/32952850/3295Turning radius(pedal off)Wa(mm)180018001800　　　　　Driving speed(load/unload)km/h4.0/5.84.0/5.84.0/5.8Lifting speed(load/unload)mm/s80/130120/150120/150Lowering speed(load/unload)mm/s100/130140/130100/95Max. climbing ability, load/unload(S2-5min)%(tanθ )6/86/86/8Brake type　ElectromagneticElectromagneticElectromagnetic　　　　　Driving motor, (S2-60min)kw1.51.51.5Lifting motor, (S3-10%)kw*2/333Battery, Voltage/CapacityV/Ah24/210 (Optional 270)
 (270AH optional)24/210 (Optional 270)
 (270AH optional)24/210 (Optional 270)
 (270AH optional)Battery weightkg200200200Steering type　Electric Steering (EPS)Electric Steering (EPS)Electric Steering (EPS)

Power system

Equipped with Chinese powerful and reliable battery  with excellent enviromental performance

Security system

Equipped with OPS or ORS seat and brake switch to prevent incorrect operation and secure the driver and the forklift from all
sides.

Lighting system

Equipped with full set of LED lamps,which are brighter and energy saving.

Reliable lifting system

Wide-view mast design,providing superior vision,making the operation more security.

High performance hydraulic system

Equipped with load sensing priority hydraulic system,flxible steering,mast lifting speed increased by 20%.

Comfortable driving space

Lengthened wheelbase design,reasonable functional layout,super comfortable and larger driving space.
Standard export packing, triangular wood, strapping, foam bags.

Our factoryGate

Reception area

Office

Workshop

Certificate

BV

CE

SGS

ISO

Our team

Exhibision

In india Exhibition

Poland Exhibition

South Africa Exhibition

China Canton Fair

Our forklifts advantages

Safety

Intelligent starting system , forklift hanging gear start prevent function , it improves the operation safety and longer gearbox service life.

Hydraulic power brake system , large capacity accumulator , reliabledriving and emergency brakinge.

Overhead guard with high-strength steel plate one stamping , pro -vide driver more sophisticated security.

Standard equipped button parking brake , effectively prevent the hand brake from accidentally release.



Comfort

Ergonomic design, rational operating device layout, equipped with adiustable seat (adjustment up to 150 mm )and steering wheel.

All forklift models standard with hydraulic steering system, easy and comfort to operate.



Advancement

Word famous imported diesel and gasoline engine, Japan TCM gearbox for options,intelligent LCD instrument, CAN, Controller Area Network, real-timedisplay of engine and forklift’s Working information



Reliability

Cooling system meet the requirements of the China standard. Theinter-cooling, scattered water, oil scattered are independent lay-out, which gratly increase the engine, gearbox and other core components quality.Hydraulic system gives large-capacity oil absorption and oil returnfilter to ensure efficient work.Engine standard with two-stage filter design(cyclone type filter+air dry filter).



Reliable steering system

The steering system adopying new technology not only ensure steady steering, quick positioningand steering, but also ensure the driver' s safety.



A reliable mast

Emphasis on the inherent quality of the mast has provided operator a reliable security . Wide view mast makes vision more clearly.We adopted the mast channel which has the world-class quality .The corss-section of mast channel has been in -creased and the structure become more strong.



New drive and control system

Adop the international electric actuators and makes the truck steering more stable , and output power stronger .New electronic blanker improves the comfort and safety of the operation



High performance hydraulic system

Load sensing priority steering hydraulic system design , flexible steering , mast lift speed increased by 20%.

Tilt cylinder, lifting cylinder and steering cylinder are equipped with oil seal as standard; lifting cylinder is equipped with lowering buffer function as standard.



Comfortable driving space

All accessories like engine , gear boxare support by domestic and worldfamous brand , high quality , reliable after-sales.
