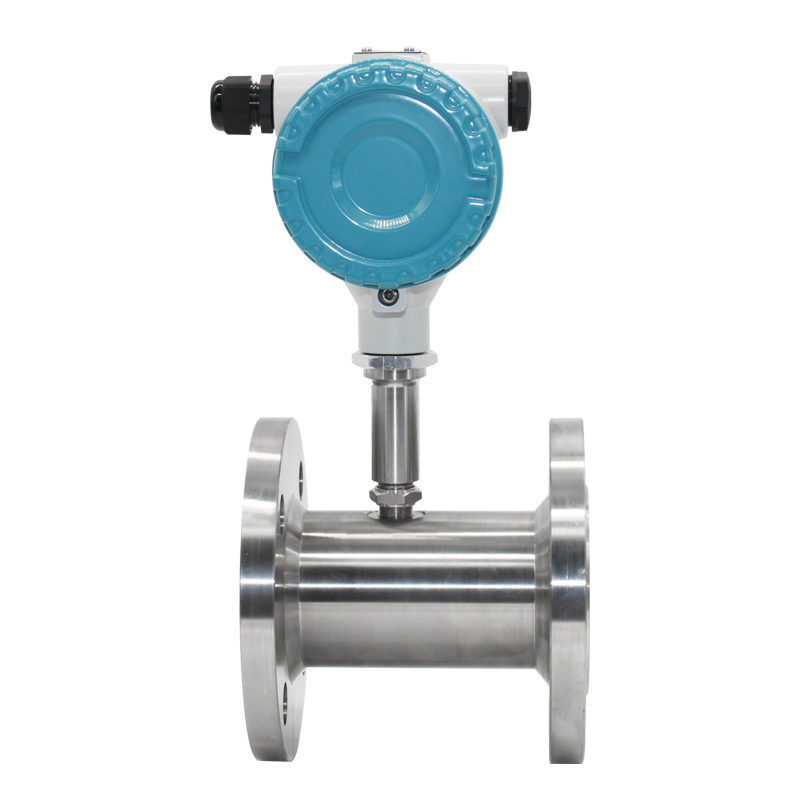

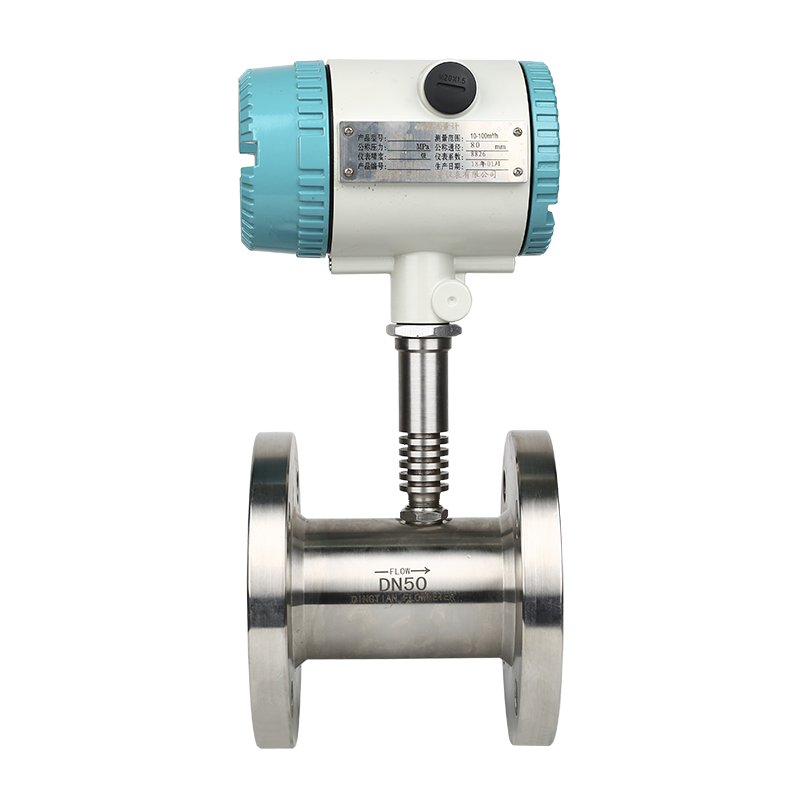

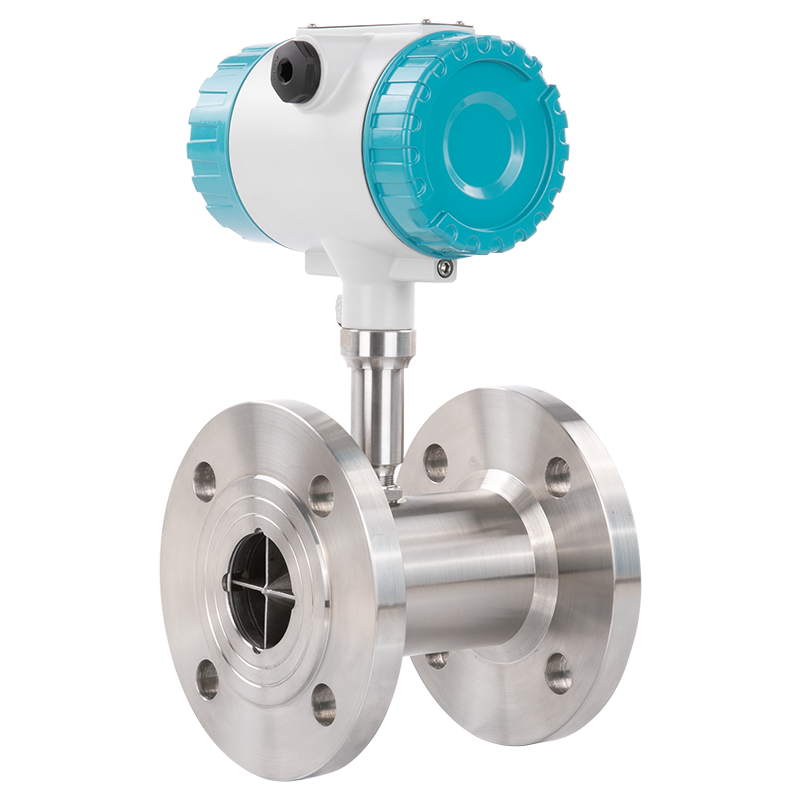

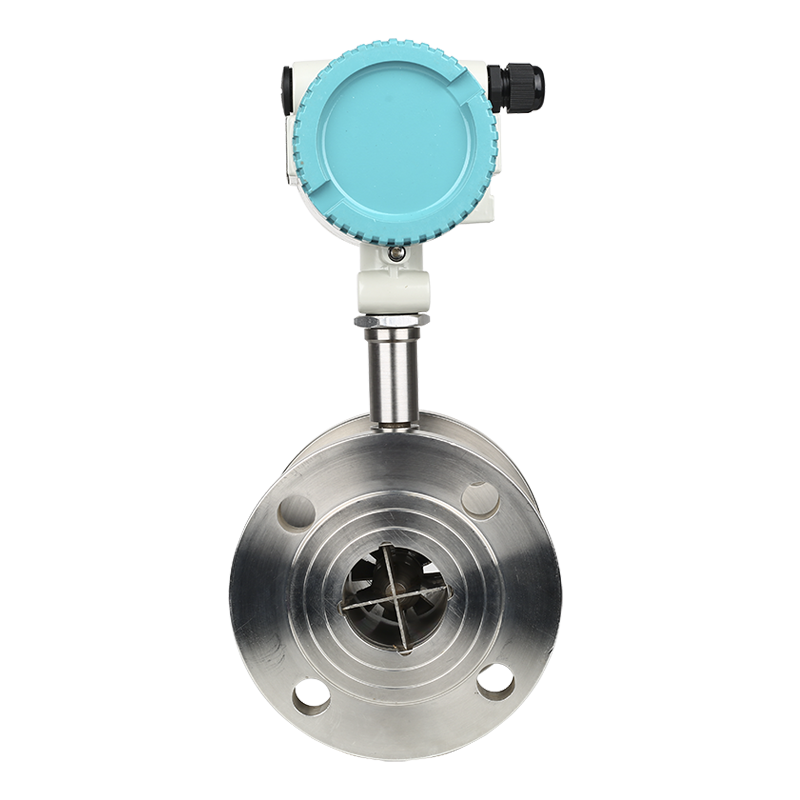

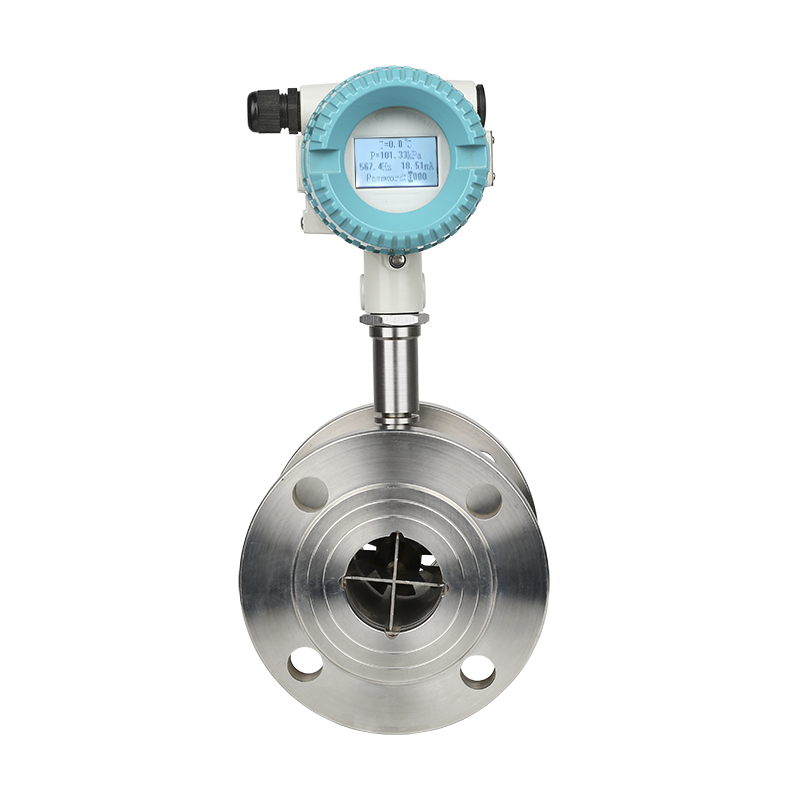

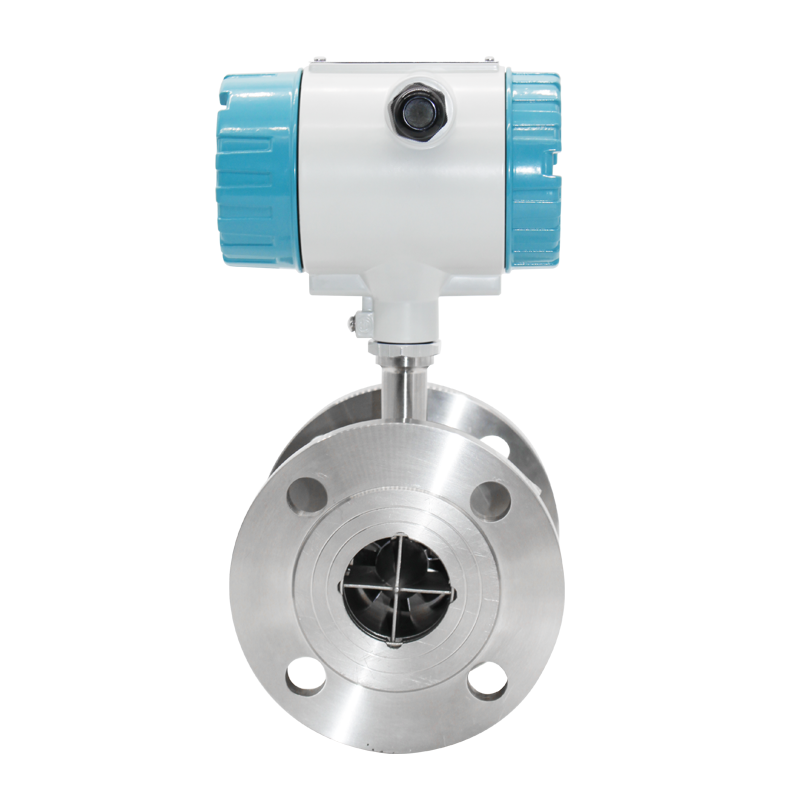

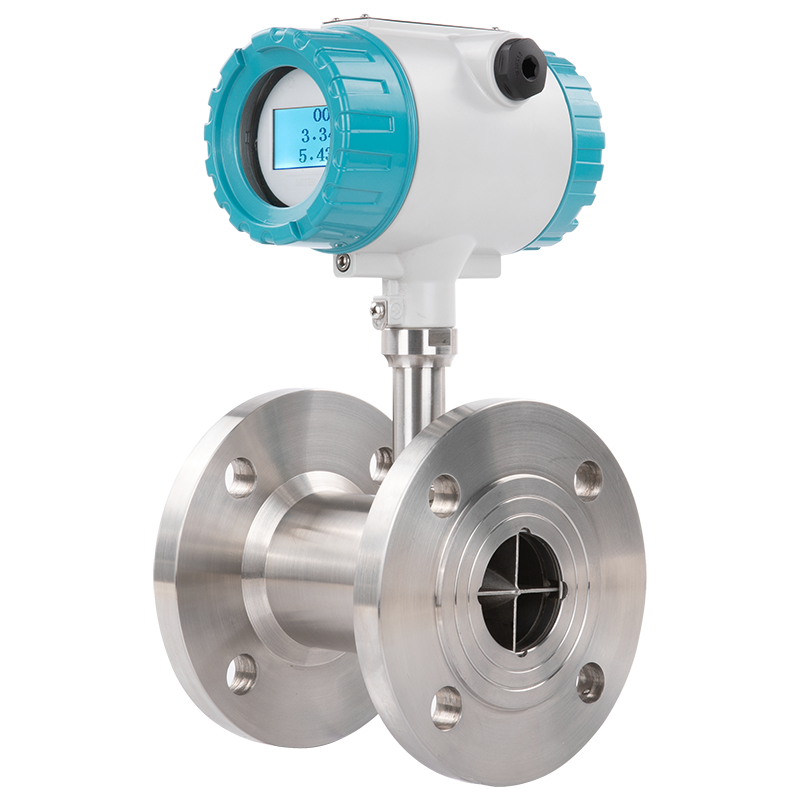

0.2% High Accuracy 304SS 4-20Ma Explosion-Proof Turbine Oil Flowmeter
Q&T INSTRUMENT CO.,LTD.
The supplier hasn’t listed a price. We can get their current prices and MOQ.
Verify from $29 · written report in 3 business days · 100% refund if not satisfied
0.2% High Accuracy 304SS 4-20Ma Explosion-Proof Turbine Oil Flowmeter
Q&T INSTRUMENT CO.,LTD.The supplier hasn’t listed a price. We can get their current prices and MOQ.
Verify from $29 · written report in 3 business days · 100% refund if not satisfied
About this product
- Materials: SS304
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Japan and South Korea, Hong Kong China, Macao China and Taiwan China, Others
About this product
- Materials: SS304
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Japan and South Korea, Hong Kong China, Macao China and Taiwan China, Others
Product details
| Materials | SS304 |
|---|
Product details
| Materials | SS304 |
|---|
From the supplier
- Flow measurement of tap water, demineralised water and chemicals.
- Fuels, marine engine fuel monitoring, vegetable oil, thermal oil and solvents.
- Special models for refrigerants, pharmaceutical fluids, cryogenic fluids, liquefied gases and high-pressure applications.
A turbine flow meter is used for volumetric total flow and/or flow rate measurement and has a relatively simple working principle.

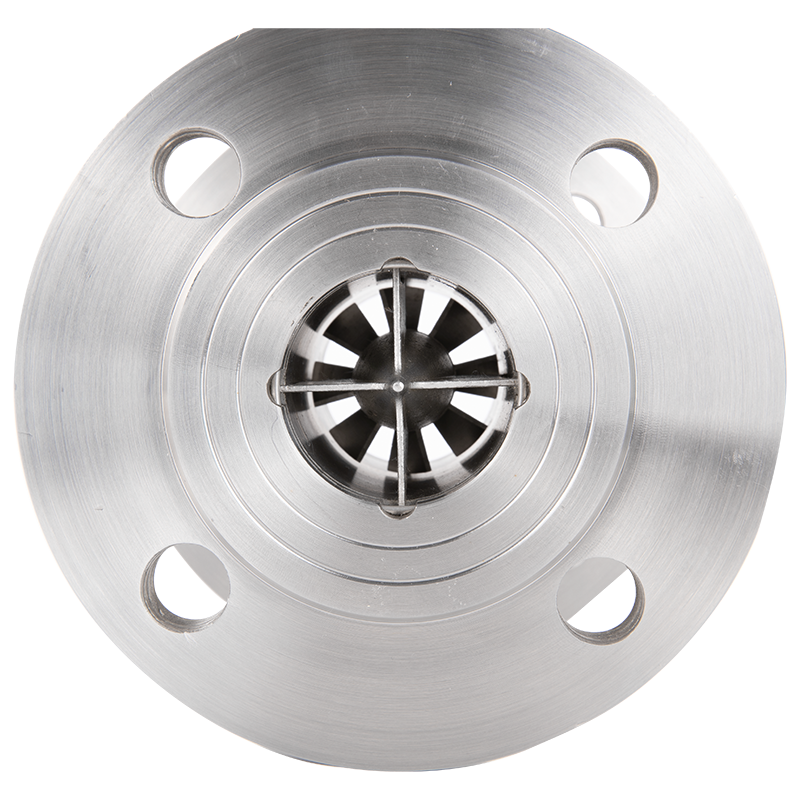

As fluid flows through the turbine meter, it impinges upon turbine blades that are free to rotate about an axis along the center line of the turbine housing.
The angular (rotational) velocity of the turbine rotor is directly proportional to the fluid velocity flowing through the turbine.
The resulting output is taken by an electrical pickoff(s) mounted on the flow meter body.
Technical Performance Parameters
Size & Process Connection
Thread connection:DN4,6,10,15,20,32,40,50,65,80,100
Flange connection:DN15,20,32,40,50,65,80,100,125,200
Clamp connection:DN4,6,10,15,20,32,40,50,65,80,100
Accuracy ±0.5%, ±0.2% Optional Sensor Material SS304, SS316L Optional Ambient ConditionsMedium temperature:-20℃~+150℃
Atmospheric pressure:86Kpa~106Kpa
Ambient temperature:-20℃~+60℃
Relative humidity:5%~90%
Signal OutputPulse, 4-20mA, Alarm(optional)
Digital Communication RS485, MODBUS; HART Power Supply24V DC/3.6V Lithium Battery
Cable Entry M20*1.5; 1/2"NPT Explosion-proof class Ex d IIC T6 Gb Protection class IP65; IP67 Optional
Flow Range
Diameter
(mm)
Standard Range
(m3/h)
Extended Range
(m3/h)
Connection Standard(Optional)
Standard Pressure
(Mpa)
Customized Pressure Rating(Mpa)
DN4 0.04~0.25 0.04~0.4 Thread 6.3 12,16,25...42 DN6 0.1~0.6 0.06~0.6 Thread 6.3 12,16,25...42 DN10 0.2~1.2 0.15~1.5 Thread 6.3 12,16,25...42 DN15 0.6~6 0.4~8 Thread(Flange) 6.3,2.5(Flange) 4.0,6.3,12,16,25...42 DN20 0.8~8 0.45~9 Thread(Flange) 6.3,2.5(Flange) 4.0,6.3,12,16,25...42 DN25 1~10 0.5~10 Thread(Flange) 6.3,2.5(Flange) 4.0,6.3,12,16,25...42 DN32 1.5~15 0.8~15 Thread(Flange) 6.3,2.5(Flange) 4.0,6.3,12,16,25...42 DN40 2~20 1~20 Thread(Flange) 6.3,2.5(Flange) 4.0,6.3,12,16,25...42 DN50 4~40 2~40 Thread(Flange) 2.5 4.0,6.3,12,16,25...42 DN65 7~70 4~70 Flange 2.5 4.0,6.3,12,16,25...42 DN80 10~100 5~100 Flange 2.5 4.0,6.3,12,16,25...42 DN100 20~200 10~200 Flange 1.6 4.0,6.3,12,16,25...42 DN125 25~2500 13~250 Flange 1.6 2.5,4.0,6.3,12,16...42 DN150 30~300 15~300 Flange 1.6 2.5,4.0,6.3,12,16...42 DN200 80~800 40~800 Flange 1.6 2.5,4.0,6.3,12,16...42
From the supplier
- Flow measurement of tap water, demineralised water and chemicals.
- Fuels, marine engine fuel monitoring, vegetable oil, thermal oil and solvents.
- Special models for refrigerants, pharmaceutical fluids, cryogenic fluids, liquefied gases and high-pressure applications.
A turbine flow meter is used for volumetric total flow and/or flow rate measurement and has a relatively simple working principle.
As fluid flows through the turbine meter, it impinges upon turbine blades that are free to rotate about an axis along the center line of the turbine housing.
The angular (rotational) velocity of the turbine rotor is directly proportional to the fluid velocity flowing through the turbine.
The resulting output is taken by an electrical pickoff(s) mounted on the flow meter body.
Technical Performance Parameters
Size & Process Connection
Thread connection:DN4,6,10,15,20,32,40,50,65,80,100
Flange connection:DN15,20,32,40,50,65,80,100,125,200
Clamp connection:DN4,6,10,15,20,32,40,50,65,80,100
Accuracy ±0.5%, ±0.2% Optional Sensor Material SS304, SS316L Optional Ambient ConditionsMedium temperature:-20℃~+150℃
Atmospheric pressure:86Kpa~106Kpa
Ambient temperature:-20℃~+60℃
Relative humidity:5%~90%
Signal OutputPulse, 4-20mA, Alarm(optional)
Digital Communication RS485, MODBUS; HART Power Supply24V DC/3.6V Lithium Battery
Cable Entry M20*1.5; 1/2"NPT Explosion-proof class Ex d IIC T6 Gb Protection class IP65; IP67 Optional
Flow Range
Diameter
(mm)
Standard Range
(m3/h)
Extended Range
(m3/h)
Connection Standard(Optional)
Standard Pressure
(Mpa)
Customized Pressure Rating(Mpa)
DN4 0.04~0.25 0.04~0.4 Thread 6.3 12,16,25...42 DN6 0.1~0.6 0.06~0.6 Thread 6.3 12,16,25...42 DN10 0.2~1.2 0.15~1.5 Thread 6.3 12,16,25...42 DN15 0.6~6 0.4~8 Thread(Flange) 6.3,2.5(Flange) 4.0,6.3,12,16,25...42 DN20 0.8~8 0.45~9 Thread(Flange) 6.3,2.5(Flange) 4.0,6.3,12,16,25...42 DN25 1~10 0.5~10 Thread(Flange) 6.3,2.5(Flange) 4.0,6.3,12,16,25...42 DN32 1.5~15 0.8~15 Thread(Flange) 6.3,2.5(Flange) 4.0,6.3,12,16,25...42 DN40 2~20 1~20 Thread(Flange) 6.3,2.5(Flange) 4.0,6.3,12,16,25...42 DN50 4~40 2~40 Thread(Flange) 2.5 4.0,6.3,12,16,25...42 DN65 7~70 4~70 Flange 2.5 4.0,6.3,12,16,25...42 DN80 10~100 5~100 Flange 2.5 4.0,6.3,12,16,25...42 DN100 20~200 10~200 Flange 1.6 4.0,6.3,12,16,25...42 DN125 25~2500 13~250 Flange 1.6 2.5,4.0,6.3,12,16...42 DN150 30~300 15~300 Flange 1.6 2.5,4.0,6.3,12,16...42 DN200 80~800 40~800 Flange 1.6 2.5,4.0,6.3,12,16...42
