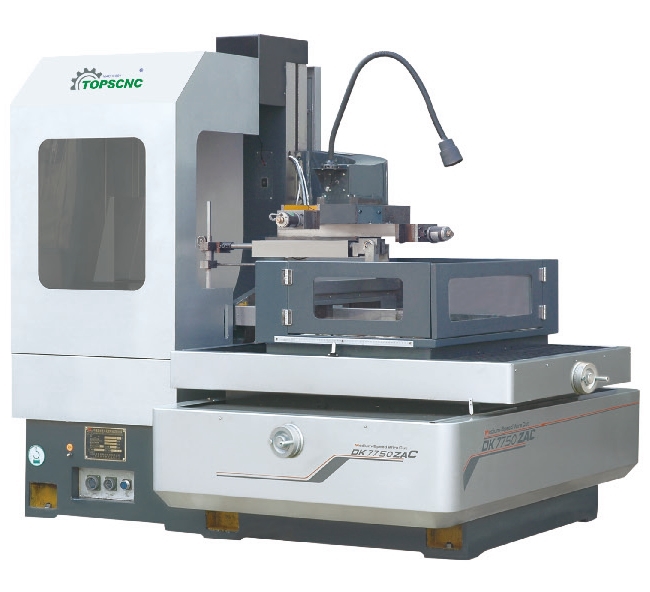

ZAC±30°Wire Cut EDM（multi-cutting,C-type,4axis stepper motor drive)
- FOB goods (100)
- $2,505,000
- Ocean freight + handling (1.0 CBM)
- $820
- US duty (3.5%)
- $87,675
- Section 301 tariff (25.0%)
- $626,250
- Customs fees (MPF/HMF)
- $3,766
Estimate in USD to a US port using category averages, rates as of 2026-09. Other countries on request. A quote from our desk uses real carton sizes, freight and the exact tariff line.
- Service
- From $29 per supplier (Verify)
- You get
- Phone and video verification, a quote sheet and a written report
- Turnaround
- 3 business days
- Contact details
- Sent to you once your request is confirmed
If we can't reach the supplier within 3 business days, we refund the fee.
ZAC±30°Wire Cut EDM（multi-cutting,C-type,4axis stepper motor drive)
- FOB goods (100)
- $2,505,000
- Ocean freight + handling (1.0 CBM)
- $820
- US duty (3.5%)
- $87,675
- Section 301 tariff (25.0%)
- $626,250
- Customs fees (MPF/HMF)
- $3,766
Estimate in USD to a US port using category averages, rates as of 2026-09. Other countries on request. A quote from our desk uses real carton sizes, freight and the exact tariff line.
- Service
- From $29 per supplier (Verify)
- You get
- Phone and video verification, a quote sheet and a written report
- Turnaround
- 3 business days
- Contact details
- Sent to you once your request is confirmed
If we can't reach the supplier within 3 business days, we refund the fee.
About this product
- Materials: resin sand
- Size: 1800*1400*1950
- Color: silver and grey
- Cutting type: Other
- Cutting thickness: Other
- Cutting speed: Other
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, Latin America, Russia, Japan and South Korea, Hong Kong China, Macao China and Taiwan China
- Made in: Jiangsu, China
About this product
- Materials: resin sand
- Size: 1800*1400*1950
- Color: silver and grey
- Cutting type: Other
- Cutting thickness: Other
- Cutting speed: Other
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, Latin America, Russia, Japan and South Korea, Hong Kong China, Macao China and Taiwan China
- Made in: Jiangsu, China
Product details
| Materials | resin sand |
|---|---|
| Size | 1800*1400*1950 |
| Color | silver and grey |
| Cutting type | Other |
| Cutting thickness | Other |
| Cutting speed | Other |
| Cutting width | Other |
| Cutting mode | Other |
| Voltage | AC380VAC220V |
From the supplier
Technique parameters:
ZAB±15°Wire Cut EDM（multi-cutting,C-type,4axis stepper motor drive)
Technical parameter/Model
Unit
DK7732ZAB
Table size (W*D)
mm
440×680
Table travel (X*Y)
mm
320×400
Max.workpiece dimension
mm
500*720
Table size(U*V)
mm
70×70
Max. workpiece weight
kg
300
Max. thickness of workpiece
mm
350
Max. taper angle/workpiece thickness
±15°/80mm
Molybdenum Dia.
mm
φ0.15~φ0.2mm(recommend φ0.18mm)
Max. wire feed rate
m/sec
1~11.4m/sec frequency adjustable
Machining precision
mm
≤0.012
Max. machining speed
mm2/min
100--180
Surface roughness
μm
one time Ra≤2.5，three times Ra≤1.3 five times Ra≤1.1
Motor type
X,Y,U,V-axis stepper motor drive
axis controlled
4 axis simultaneous
Min.control pace
mm
0.001
Power supply
3N-380V/50Hz
Max. working current
A
10
Power consumption
Kw
≤2.2
Work liquid
JR3A
Water tank
L
90
Filtering mode
Paper filter/Italy pump
Closed protective cover
standard
Machine weight
kg
1800
Machine dimension
mm
1800×1400×1850
Product advantage:
- 1.Large Taper CNC Multiple Wire-cutting EDM
- 2.Enclosed environmental protection shield
- 3.Four-axis driven by AC Panasonic servo or hybrid or step motor
- 4.Swing type guide pulley
- 5.High Grade Linear guide from PMI/HIWIN Taiwan
- 6.All Bearings from NSK Japan.
- 7.Complete Machine Automatic Lubrication System.
- 8.High Pressure Water Tank with Filter system
Cutting samples:
Our Service 1) Quality & Service : We take care of the product quality in order to provide good service to our customers. 2) Price : In order to serve more better to our customer we are always finding the way to reduce the price. 3 )Warranty: One year after shipment, consumables are not included.
Contact us
Company:Jiangsu Dongqing CNC Machine Tool Co.Ltd
Address:East Suburb Development Zone,Taizhou city,Jiangsu Province,China
Tel:0086-523-86290115
Mobile & Whatsapp:+86-18860892195 QQ : 3242420873
Web:www.topscnc.cn
About the supplier
Main products: CNC wire cutting machine,Other Machine Tools,Small hole drilling EDM machine
