About this product
- Materials: resin sand
- Size: 1420*1040*1700
- Color: Gray, silver
- Voltage: AC380VAC220V
- Cutting type: Other
- Cutting thickness: Other
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, Russia, Japan and South Korea, Hong Kong China, Macao China and Taiwan China
- Made in: Jiangsu, China
About this product
- Materials: resin sand
- Size: 1420*1040*1700
- Color: Gray, silver
- Voltage: AC380VAC220V
- Cutting type: Other
- Cutting thickness: Other
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, Russia, Japan and South Korea, Hong Kong China, Macao China and Taiwan China
- Made in: Jiangsu, China
Product details
| Materials | resin sand |
|---|---|
| Size | 1420*1040*1700 |
| Color | Gray, silver |
| Voltage | AC380VAC220V |
| Cutting type | Other |
| Cutting thickness | Other |
| Cutting mode | Other |
| Cutting width | Other |
| Cutting speed | Other |
Product details
| Materials | resin sand |
|---|---|
| Size | 1420*1040*1700 |
| Color | Gray, silver |
| Voltage | AC380VAC220V |
| Cutting type | Other |
| Cutting thickness | Other |
| Cutting mode | Other |
| Cutting width | Other |
| Cutting speed | Other |
From the supplier
- Production details

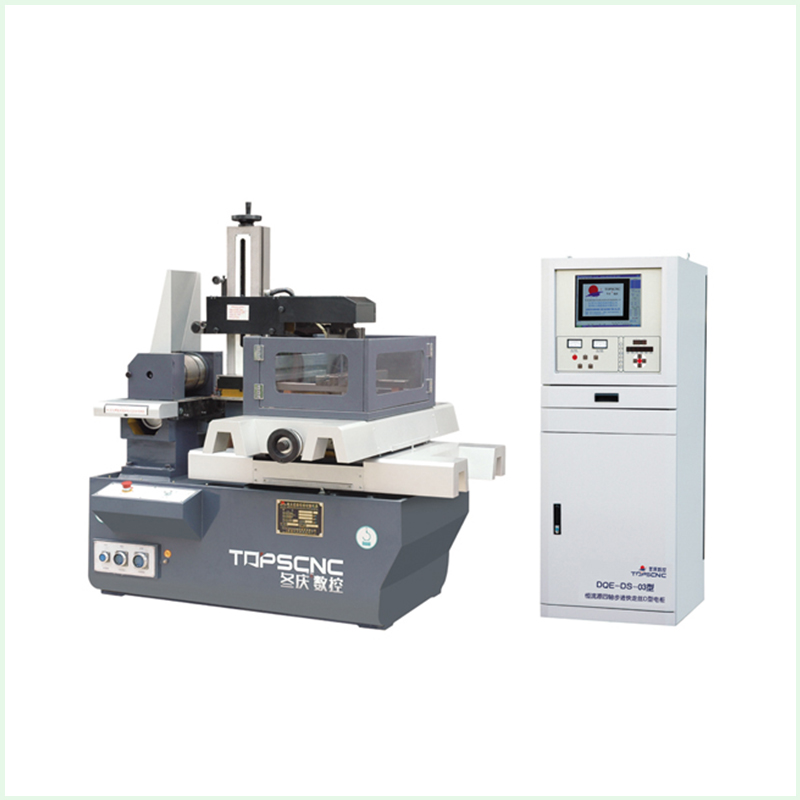

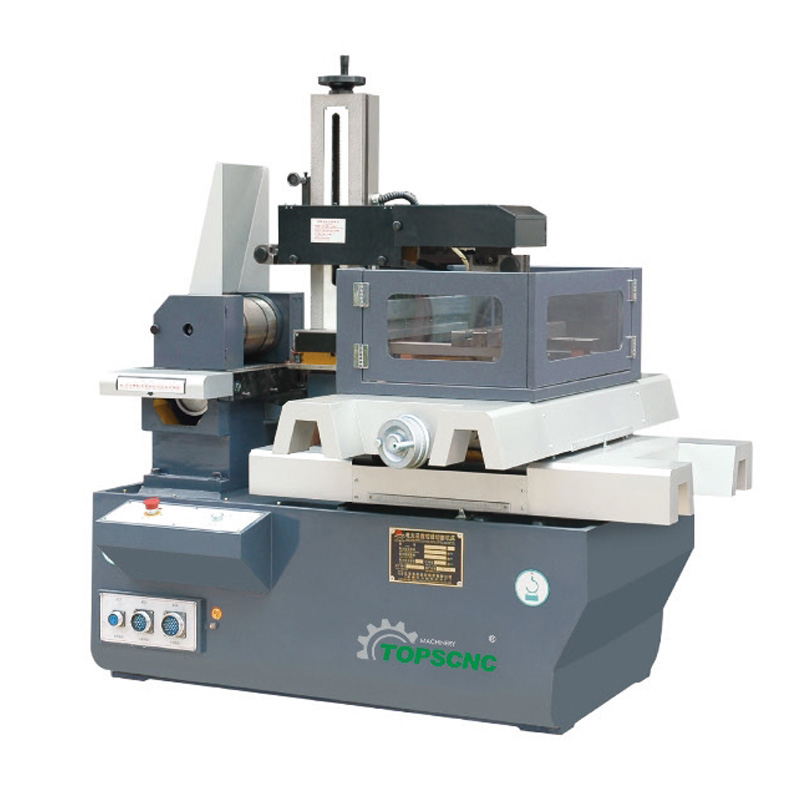

- 1. Tuning fork type CNC Single Wire-cutting EDM
- 2. Four-axis driven by step motor
- 3.V type worktable guide
- 4.Long stroke
- 5. SINO Brand DRO
- 6.Complete Machine Automatic Lubrication System.
7.Maximum cutting height up to 1.5m
Technique parameters
DK77 Series Four-axis Of stepper Motor Single Wire Cutting Type
Technique parameters
Unit
DK7725Z
DK7732Z
DK7740Z
DK7750Z
DK7763Z
Table size (WxD)
mm
400×580
440×680
540×760
640×1020
750×1140
Table travel (XxY)
mm
250×320
320×400
400×500
500×630
630×800
Table travel (UxV)
mm
70×70
Z-axis control
manual control
Z-axis guideway
slide guides
Max. workpiece weight
kg
200
300
500
800
1200
Thickness of workpiece
mm
400
400
450
550
Max.taper angle
±6°/80mm
Diameter of cutting wire
mm
φ0.15～φ0.20mm（recommendφ0.18mm)
Feeding speed
m/sec
1～11.4m/sec adjustable
Machining Precision
mm
≤0.015
Machining speed
mm²/min
100-180
Surface roughness
μm
Ra≤2.5
Motor type
X、Y、U、V stepper motor
Control axis
4 axis simultaneous
Min. control pace
mm
0.001
Power supply
3N-380V/50Hz
Max. working current
A
10
Power consumption
Kw
2.2
Working liquid
JA-1
Water tank
L
55
Filtering mode
filter screen

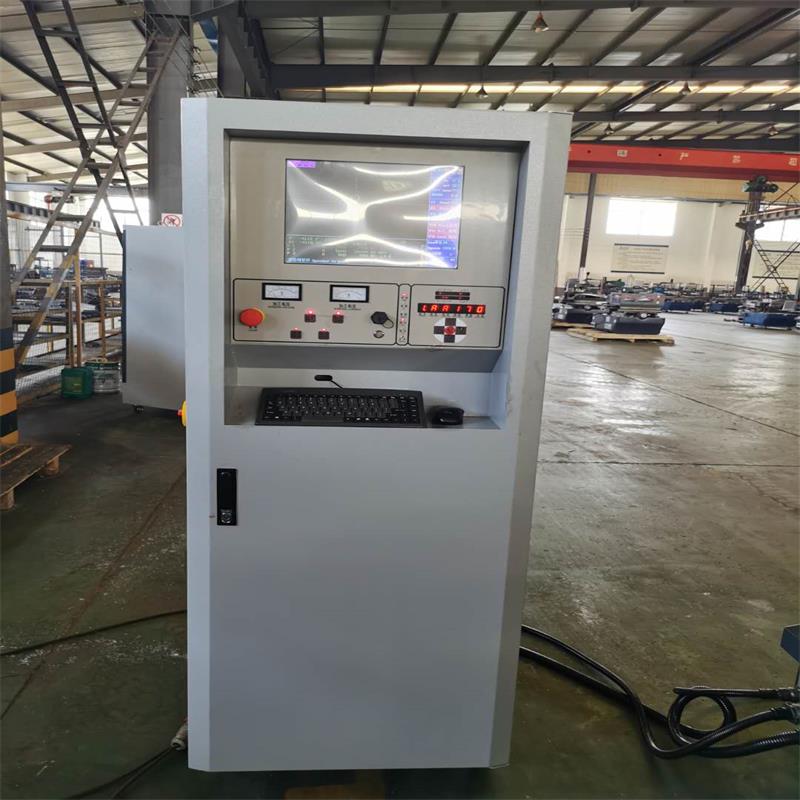

Controller
DQE-DS-03
Machine weight
kg
1100
1300
1600
2300
2700
Machine dimensions
mm
1420×1040×1600
1550×1170×1700
1800×1380×1700
2060×1760×1850
2250×2250×1950
Our service
1) Quality : We take care of the product quality in order to provide good service to our customers.
2) Warranty: One year after shipment,consumables are not included.
3) The quotation do not include installation and education training fee.
4) Field maintenance and repair service, Field installation, commissioning and training,Video technical support, Online support,
5) Payment Method: T/T or L/C at sight
6) Delivery time : 18--25 days
7) Packing : Standard export wooden cases
8) Port: Shanghai.
