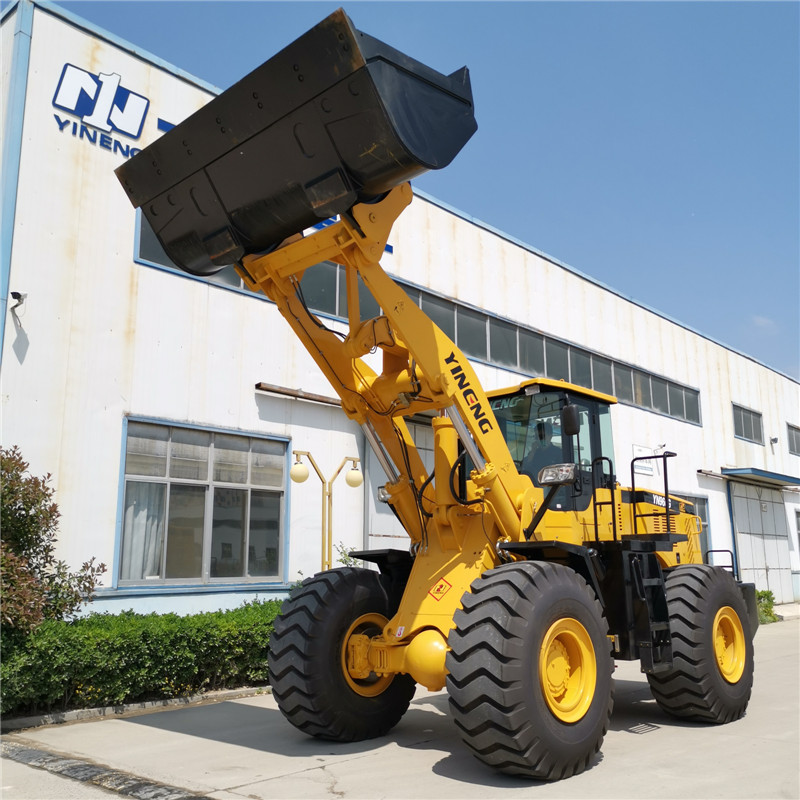

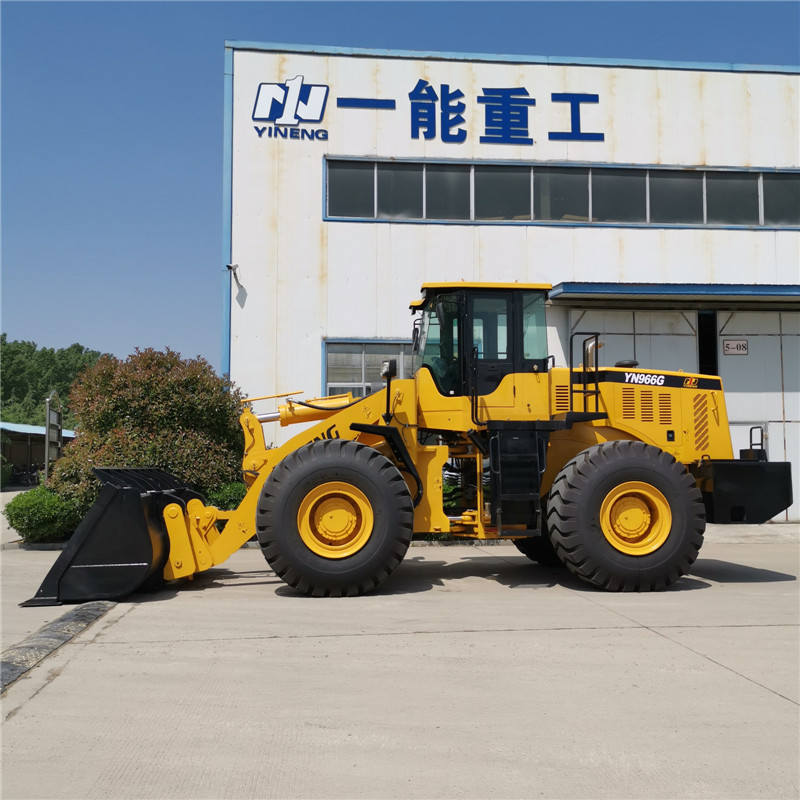

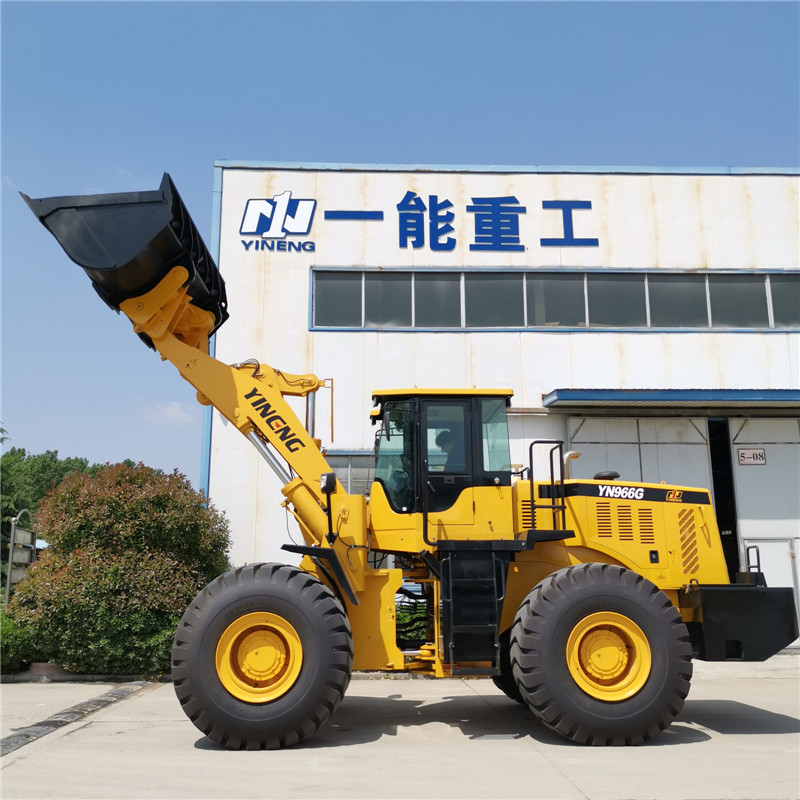

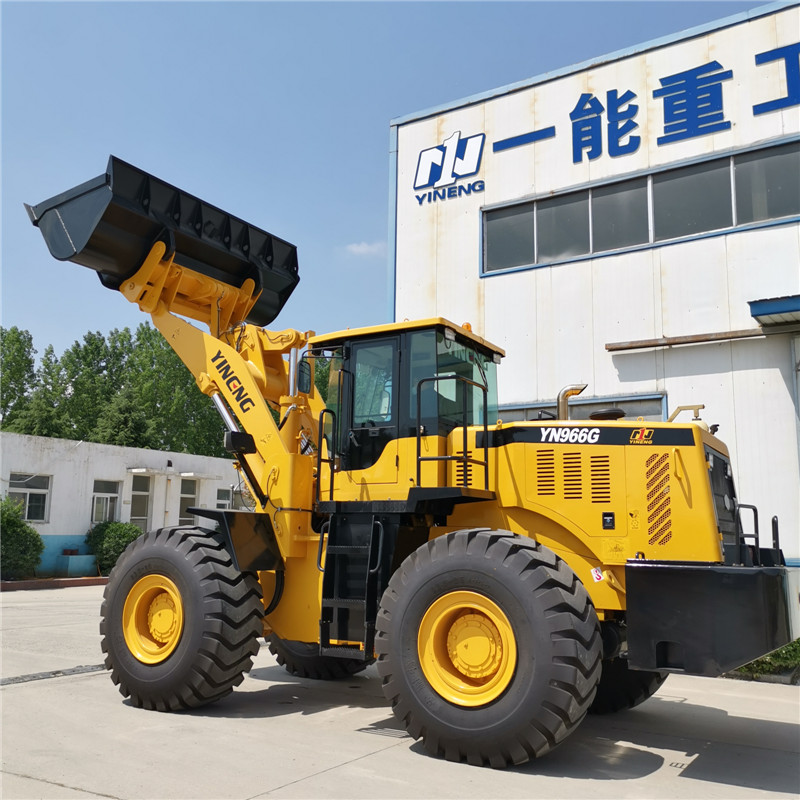

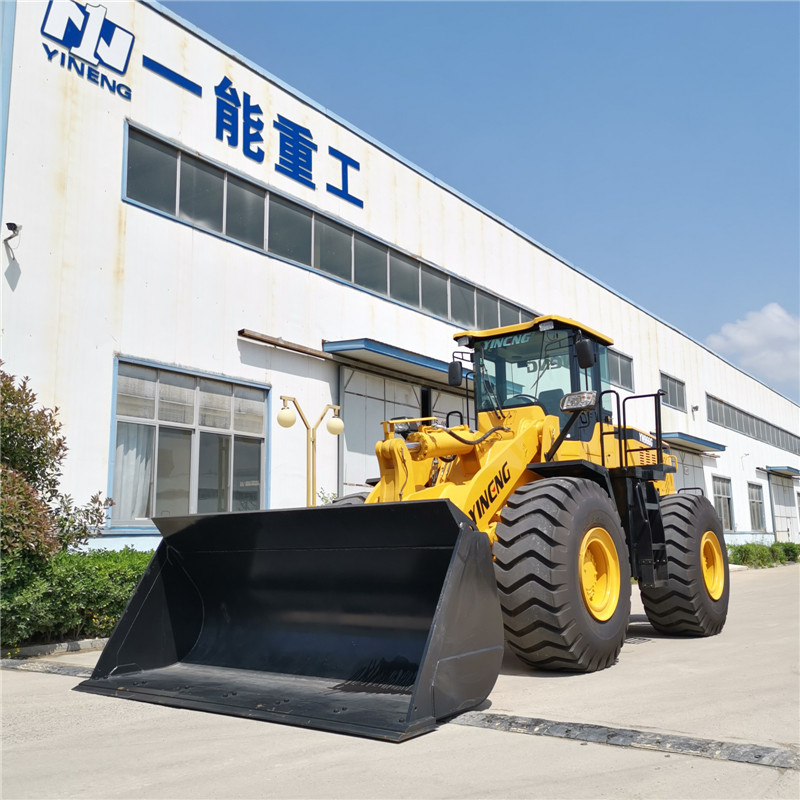

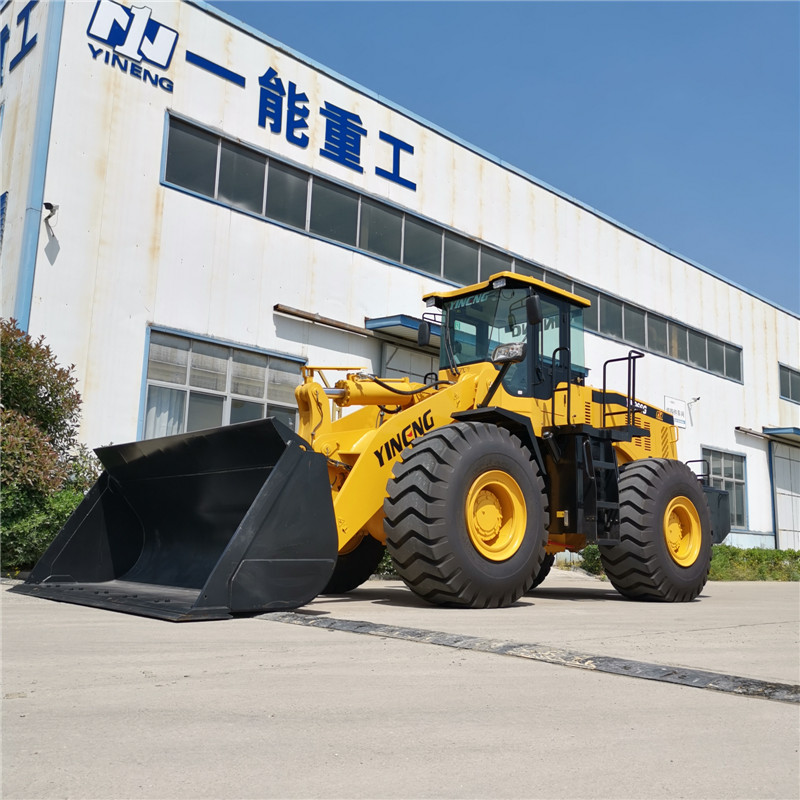

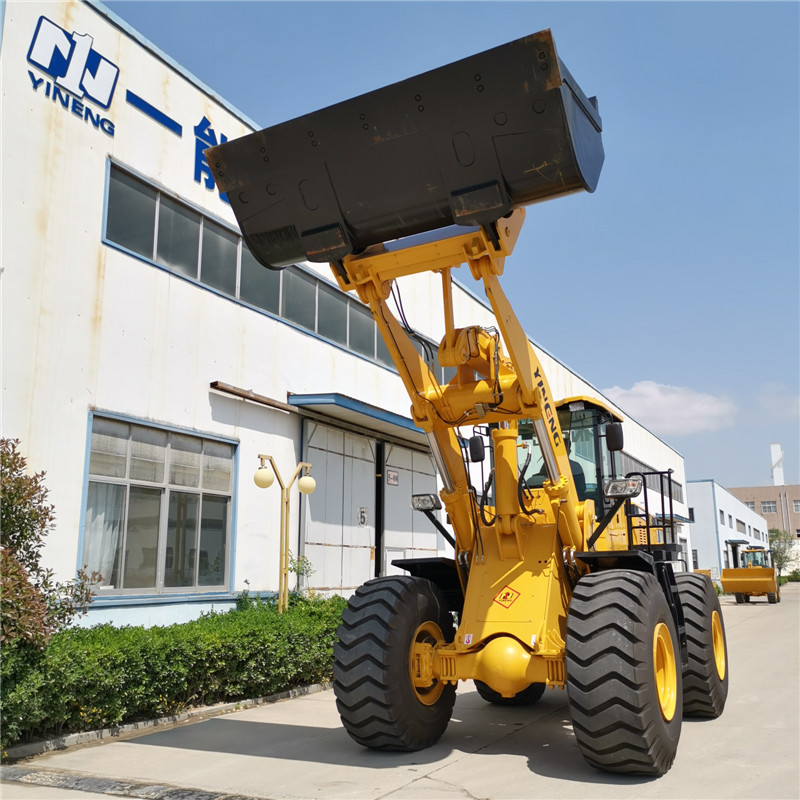

YN966G Wheel Loader
Taian Luneng Import& Export Co.,Ltd.
See what’s includedHide breakdown
- FOB goods (100)
- $5,965,000
- Ocean freight + handling (5.0 CBM, volume guessed from price)
- $1,300
- US duty (3.5%)
- $208,775
- Section 301 tariff (25.0%)
- $1,491,250
- Customs fees (MPF/HMF)
- $8,091
Estimate in USD to a US port using category averages, rates as of 2026-09. Other countries on request. A quote from our desk uses real carton sizes, freight and the exact tariff line.
- FOB goods (100)
- $5,965,000
- Ocean freight + handling (5.0 CBM, volume guessed from price)
- $1,300
- US duty (3.5%)
- $208,775
- Section 301 tariff (25.0%)
- $1,491,250
- Customs fees (MPF/HMF)
- $8,091
Estimate in USD to a US port using category averages, rates as of 2026-09. Other countries on request. A quote from our desk uses real carton sizes, freight and the exact tariff line.
Verify from $29 · written report in 3 business days · 100% refund if not satisfied
YN966G Wheel Loader
Taian Luneng Import& Export Co.,Ltd.See what’s includedHide breakdown
- FOB goods (100)
- $5,965,000
- Ocean freight + handling (5.0 CBM, volume guessed from price)
- $1,300
- US duty (3.5%)
- $208,775
- Section 301 tariff (25.0%)
- $1,491,250
- Customs fees (MPF/HMF)
- $8,091
Estimate in USD to a US port using category averages, rates as of 2026-09. Other countries on request. A quote from our desk uses real carton sizes, freight and the exact tariff line.
- FOB goods (100)
- $5,965,000
- Ocean freight + handling (5.0 CBM, volume guessed from price)
- $1,300
- US duty (3.5%)
- $208,775
- Section 301 tariff (25.0%)
- $1,491,250
- Customs fees (MPF/HMF)
- $8,091
Estimate in USD to a US port using category averages, rates as of 2026-09. Other countries on request. A quote from our desk uses real carton sizes, freight and the exact tariff line.
Verify from $29 · written report in 3 business days · 100% refund if not satisfied
About this product
- Materials: Q345 Steel Plate
- Size: 8160x3070x3400mm
- Color: Yellow
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Japan and South Korea, Hong Kong China, Macao China and Taiwan China, Others
- Made in: Shandong, China
About this product
- Materials: Q345 Steel Plate
- Size: 8160x3070x3400mm
- Color: Yellow
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Japan and South Korea, Hong Kong China, Macao China and Taiwan China, Others
- Made in: Shandong, China
Product details
| Materials | Q345 Steel Plate |
|---|---|
| Size | 8160x3070x3400mm |
| Color | Yellow |
Product details
| Materials | Q345 Steel Plate |
|---|---|
| Size | 8160x3070x3400mm |
| Color | Yellow |
From the supplier
Features:
*Shangchai Caterpillar tech SC11CB240.1G2B1 engine is adopted, large torque backup and strong power.
*Liuzhou Advance Gear Group 4W200 torque converter and fix-shaft gearbox, with ZF technology.
*Electro-hydraulic control, 4 forward and 3 reverse.
*Single lever pilot control system makes operation easy and comfortable.
*Strengthened axles own large bearing capacities and high reliability.
*Twin pump merging hydraulic system makes lower consumption and excellent performance.
*With load relief valve, the flow-amplified hydraulic steering system makes operation easy and performance reliable.
*Both travel system and working hydraulic system are forced-cooled, improving the efficiency obviously.
*Air over hydraulic brake system; eight caliper disc brakes.

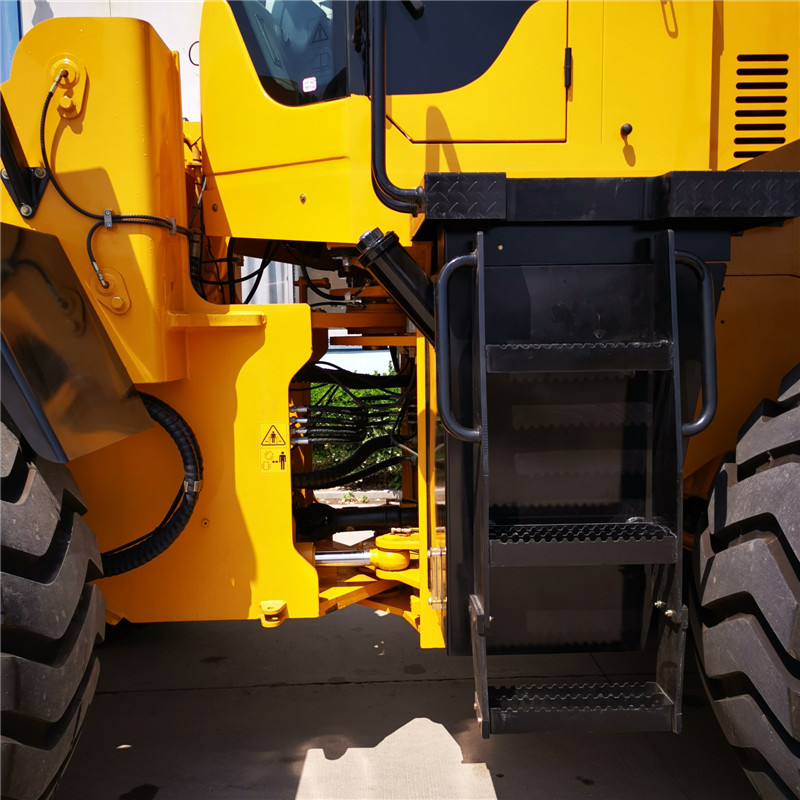

*Large space articulated frame makes operation and traveling stable.
*Working device with automatically leveling ability at high position.
*Main articulated points take sealed, lubricated, dust-proof layers, which owns good durability.
* Integral, luxury instrument board.
* New, luxury cabin
Technical Specifications:
Specifications
YN966
Bucket capacity
3.5（m3）
Rated load
6000（kg）
Max. travel speed
38（Km/h）
Max. Grade ability
28°
Max. Dumping height
3100（mm）
Max. Dumping reach
1216（mm）
Lifting Time
6.8（≤S）
Total Time
11.8（s)
Max. Breakout force
200（kN）
Max. tractive force
180（kN）
Min Turning Radius
6593（mm）
Steering Angle
35°
Min Ground Clearance
544（mm）
Engine Model
Shangchai CAT tech engine
Engine Power
175/2200
Wheel base
3200（mm）
Wheel tread
2264（mm）
Tyre
26.5-25
Overall dimension
8250*3200*3560
Overall weight
20000（kg）
From the supplier
Features:
*Shangchai Caterpillar tech SC11CB240.1G2B1 engine is adopted, large torque backup and strong power.
*Liuzhou Advance Gear Group 4W200 torque converter and fix-shaft gearbox, with ZF technology.
*Electro-hydraulic control, 4 forward and 3 reverse.
*Single lever pilot control system makes operation easy and comfortable.
*Strengthened axles own large bearing capacities and high reliability.
*Twin pump merging hydraulic system makes lower consumption and excellent performance.
*With load relief valve, the flow-amplified hydraulic steering system makes operation easy and performance reliable.
*Both travel system and working hydraulic system are forced-cooled, improving the efficiency obviously.
*Air over hydraulic brake system; eight caliper disc brakes.
*Large space articulated frame makes operation and traveling stable.
*Working device with automatically leveling ability at high position.
*Main articulated points take sealed, lubricated, dust-proof layers, which owns good durability.
* Integral, luxury instrument board.
* New, luxury cabin
Technical Specifications:
Specifications
YN966
Bucket capacity
3.5（m3）
Rated load
6000（kg）
Max. travel speed
38（Km/h）
Max. Grade ability
28°
Max. Dumping height
3100（mm）
Max. Dumping reach
1216（mm）
Lifting Time
6.8（≤S）
Total Time
11.8（s)
Max. Breakout force
200（kN）
Max. tractive force
180（kN）
Min Turning Radius
6593（mm）
Steering Angle
35°
Min Ground Clearance
544（mm）
Engine Model
Shangchai CAT tech engine
Engine Power
175/2200
Wheel base
3200（mm）
Wheel tread
2264（mm）
Tyre
26.5-25
Overall dimension
8250*3200*3560
Overall weight
20000（kg）
