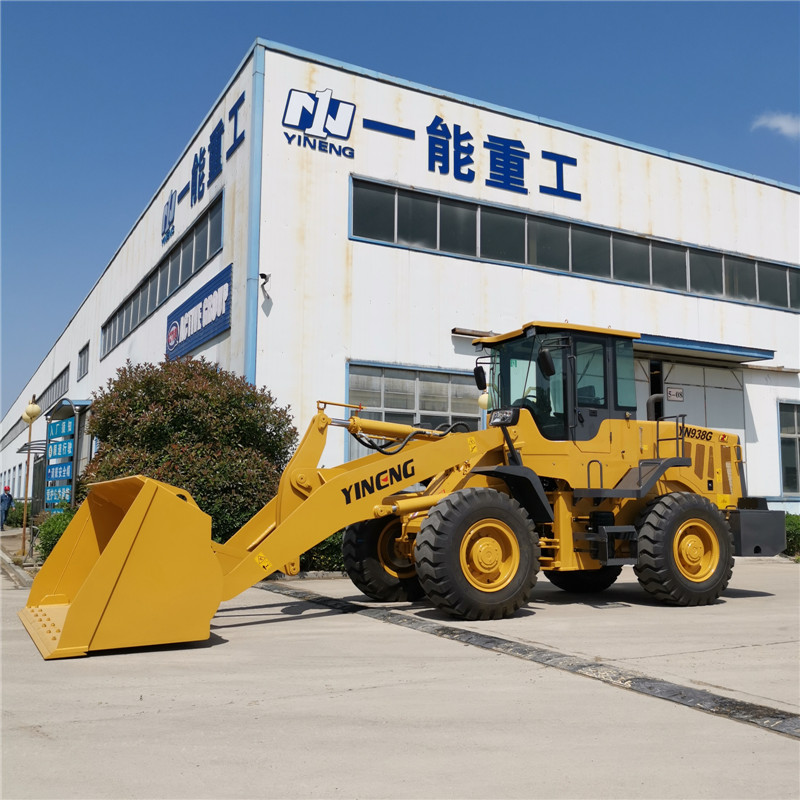

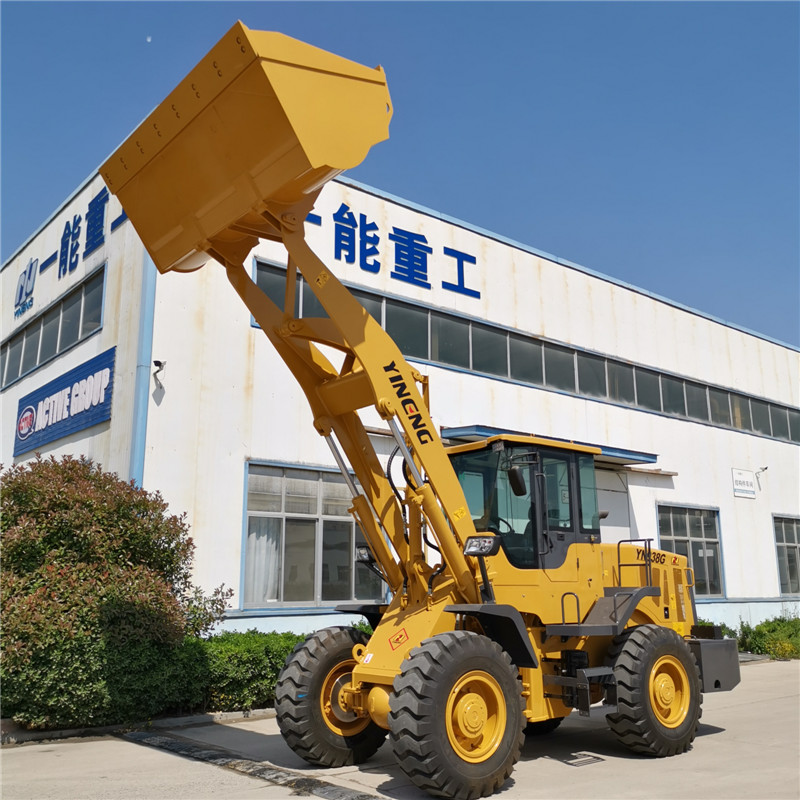

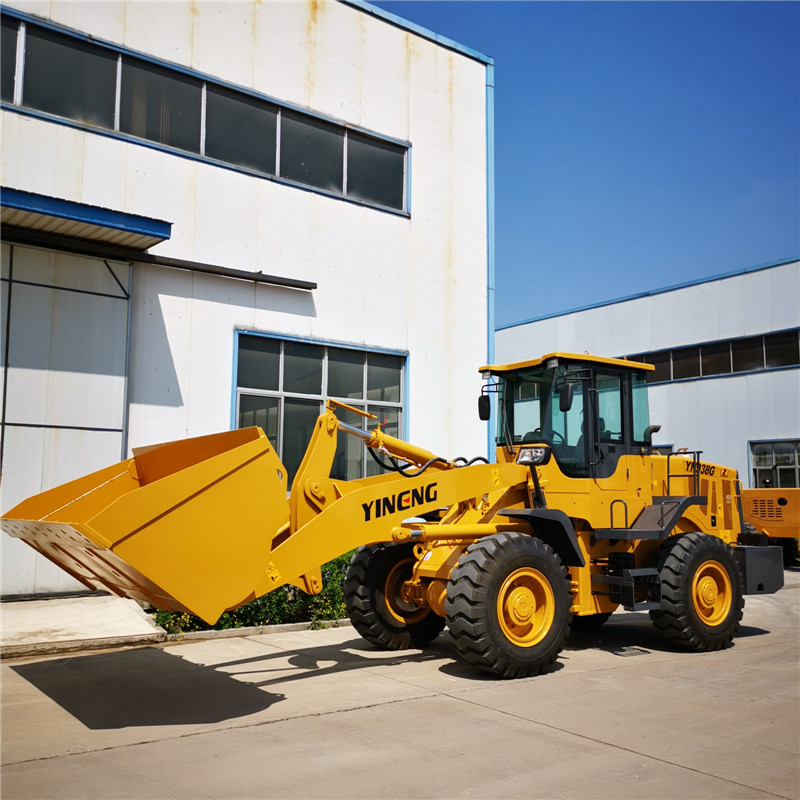

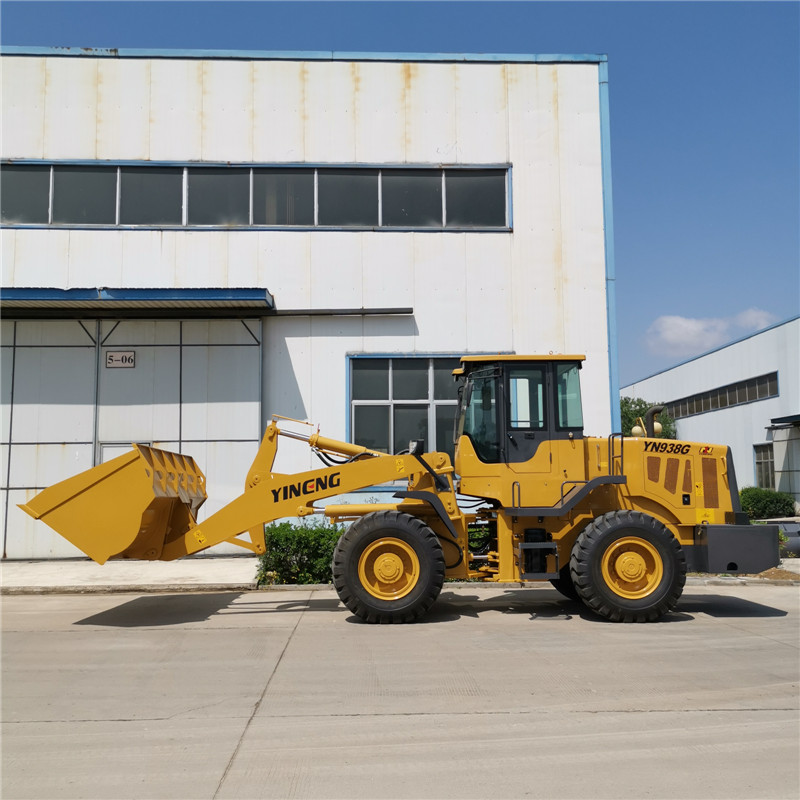

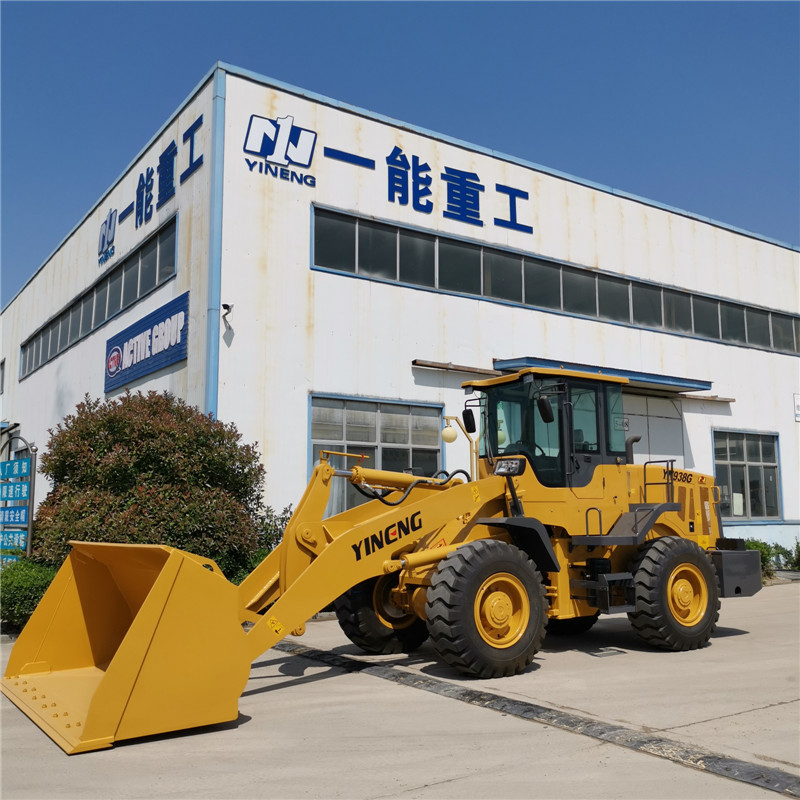

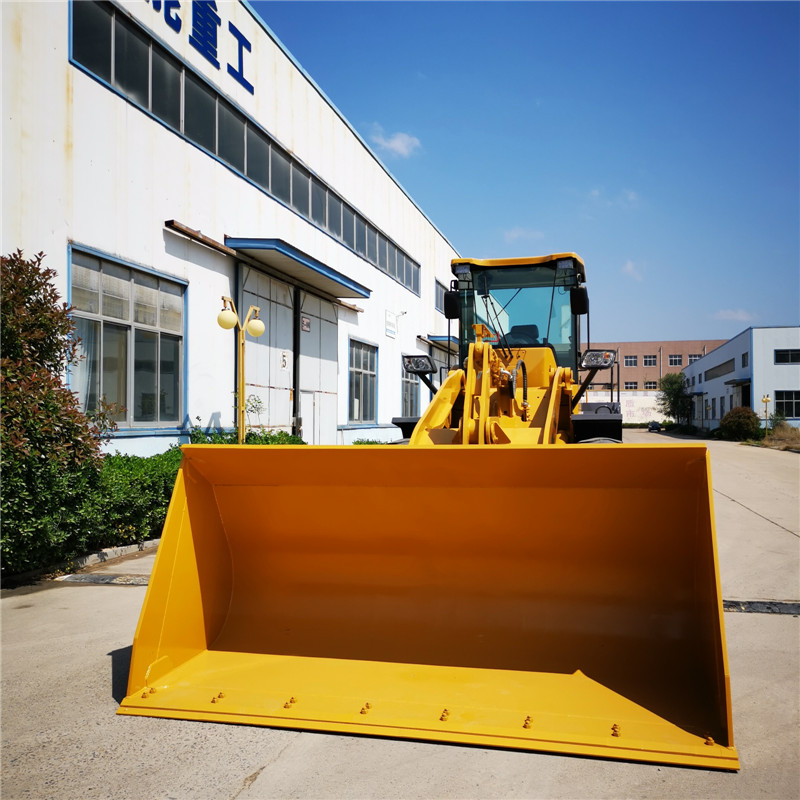

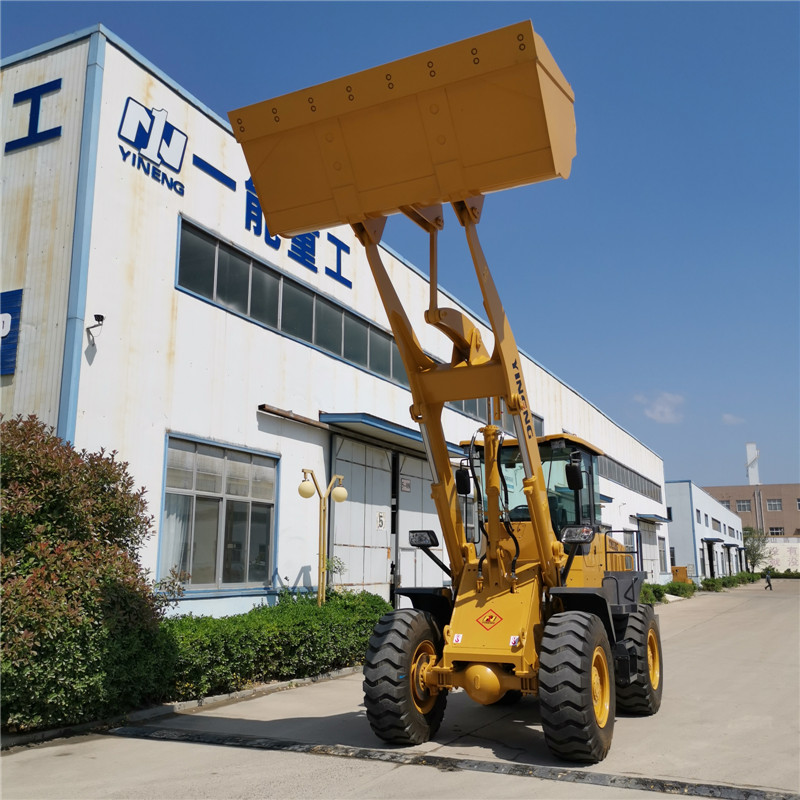

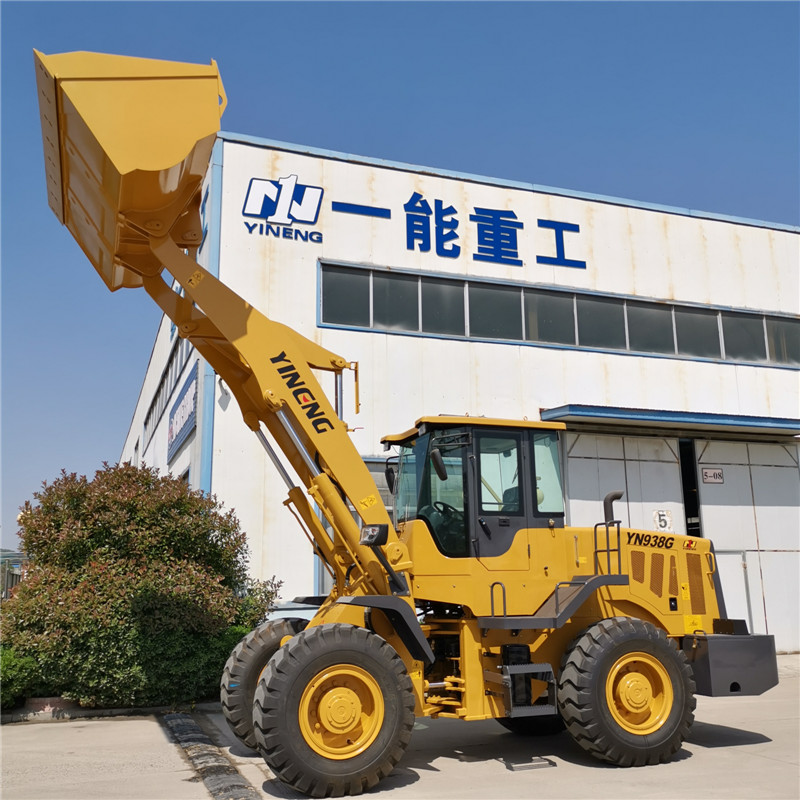

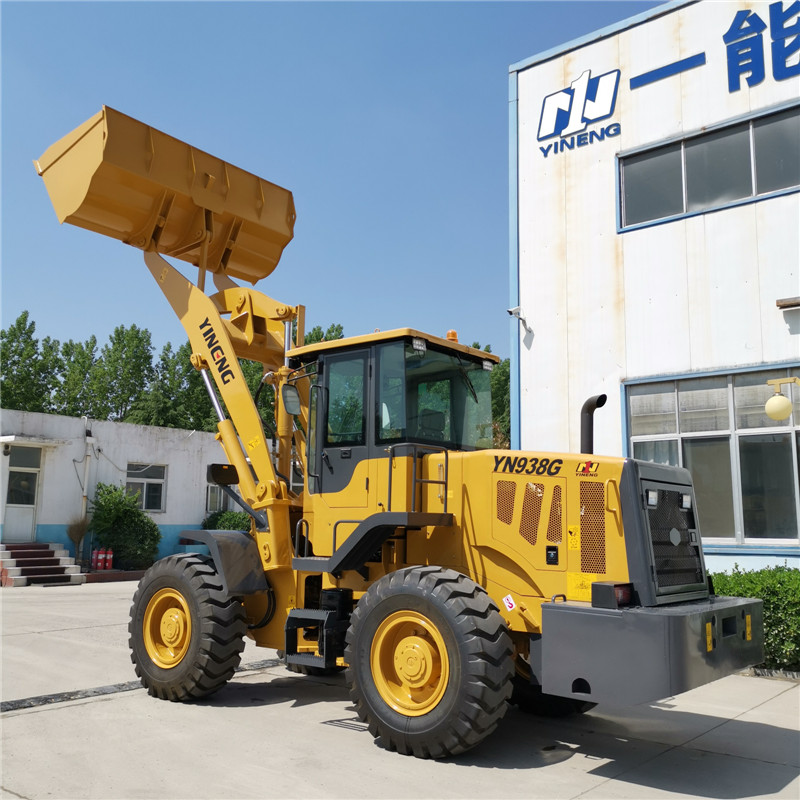

YN938G Wheel Loader
- FOB goods (100)
- $2,675,000
- Ocean freight + handling (1.0 CBM)
- $820
- US duty (3.5%)
- $93,625
- Section 301 tariff (25.0%)
- $668,750
- Customs fees (MPF/HMF)
- $3,978
Estimate in USD to a US port using category averages, rates as of 2026-09. Other countries on request. A quote from our desk uses real carton sizes, freight and the exact tariff line.
- Service
- From $29 per supplier (Verify)
- You get
- Phone and video verification, a quote sheet and a written report
- Turnaround
- 3 business days
- Contact details
- Sent to you once your request is confirmed
If we can't reach the supplier within 3 business days, we refund the fee.
YN938G Wheel Loader
- FOB goods (100)
- $2,675,000
- Ocean freight + handling (1.0 CBM)
- $820
- US duty (3.5%)
- $93,625
- Section 301 tariff (25.0%)
- $668,750
- Customs fees (MPF/HMF)
- $3,978
Estimate in USD to a US port using category averages, rates as of 2026-09. Other countries on request. A quote from our desk uses real carton sizes, freight and the exact tariff line.
- Service
- From $29 per supplier (Verify)
- You get
- Phone and video verification, a quote sheet and a written report
- Turnaround
- 3 business days
- Contact details
- Sent to you once your request is confirmed
If we can't reach the supplier within 3 business days, we refund the fee.
About this product
- Materials: Q345 Steel Plate
- Size: 7020*2510*3230mm
- Color: Yellow
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Japan and South Korea, Hong Kong China, Macao China and Taiwan China, Others
- Made in: Shandong, China
About this product
- Materials: Q345 Steel Plate
- Size: 7020*2510*3230mm
- Color: Yellow
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Japan and South Korea, Hong Kong China, Macao China and Taiwan China, Others
- Made in: Shandong, China
Product details
| Materials | Q345 Steel Plate |
|---|---|
| Size | 7020*2510*3230mm |
| Color | Yellow |
From the supplier
- FEATURESAND OPTIONALS:
*Weichai DEUTZ diesel engine, higher power and reliability.
*Hydrodynamic transmission, three-element and single stage torque converter, high reliability, easy maintenance.
*Hangzhou Advance Gearbox Group BS428 powershift transmission, high efficiency and easy maintenance.
*Gear-shift controlled by flexible shaft makes operation more flexible and reliable.
*Double sealed hydraulic pipeline joints with 24°awl and O ring of international standard, avoids oil leakage obviously;
* Air over hydraulic disks on four wheel brakes.
*Large space articulated frame makes operation and traveling stable.
*Working device with automatically leveling ability at high position.
*Bucket articulated points take sealed, lubricated, dust-proof layers, which owns good durability.
*Integral, luxury instrument board.
*New, luxury cabin.
- STANDARD SPECIFICATIONS:
Item
Specifications
Item
Specifications
Bucket capacity
1.8 m3
Min. turning radius
(outside of rear wheels)
5160mm
Rated load
3000 kg
Steering angle
36º
Dumping height
3000 mm
Min. ground clearance
375mm
Dumping distance
1100 mm
Wheel base
2845mm
Boom lifting time
5.5 S
Tread
1800mm
Total cycling time
10 S
Engine model
WP6G125E23
Max. speed
36 km/h
Rated power
92kW/2300rpm
Max. breakout
Force
120 kN
Tyre specifications
17.5-25
Max.drawing force
90 kN
Overall dimensions
7020*2510*3300mm
Max. Gradeability
30°
Operating weight
10600kg
