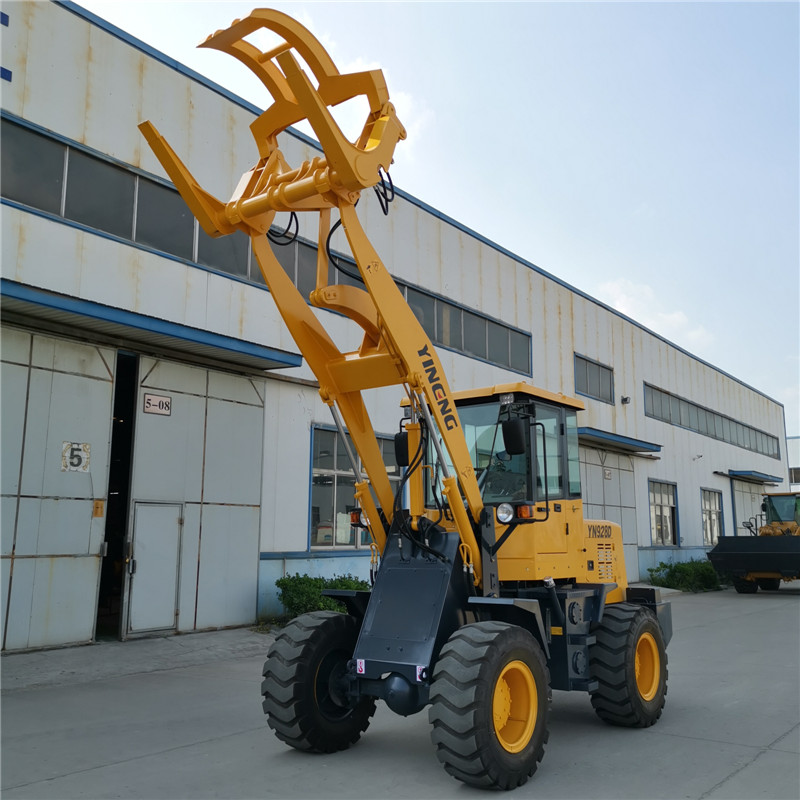

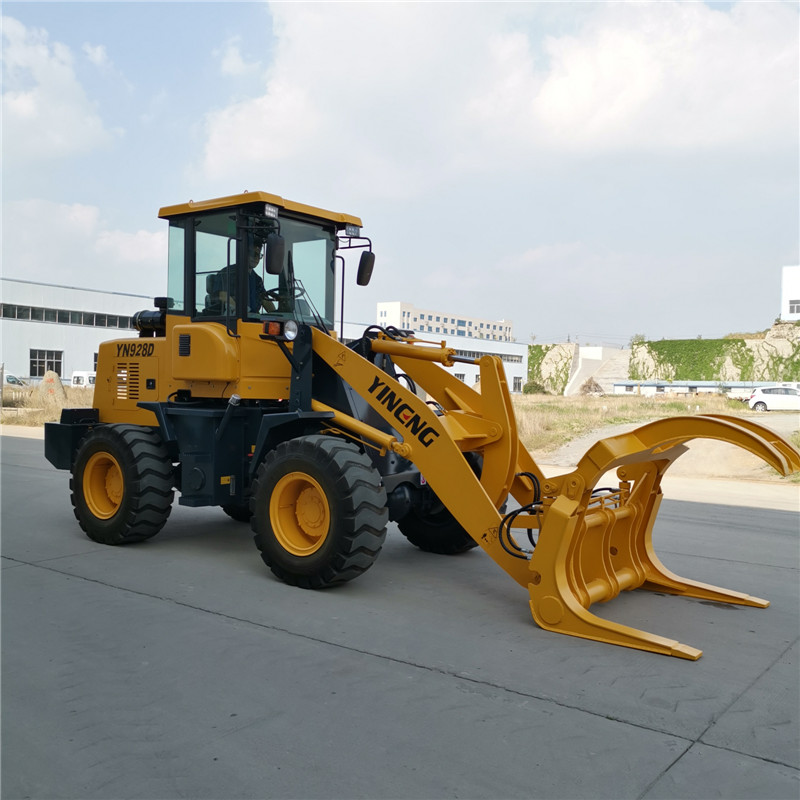

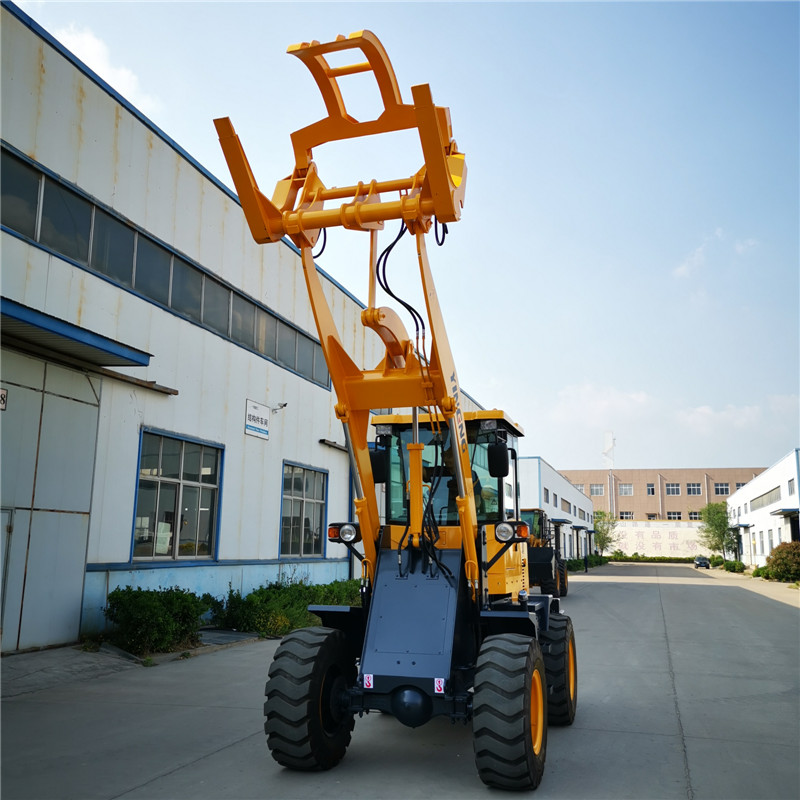

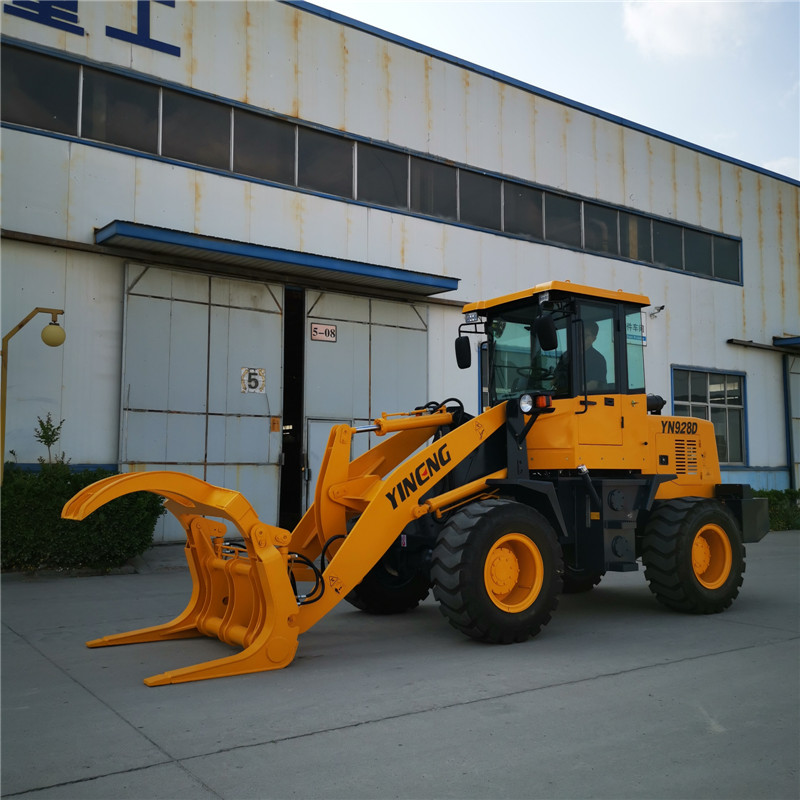

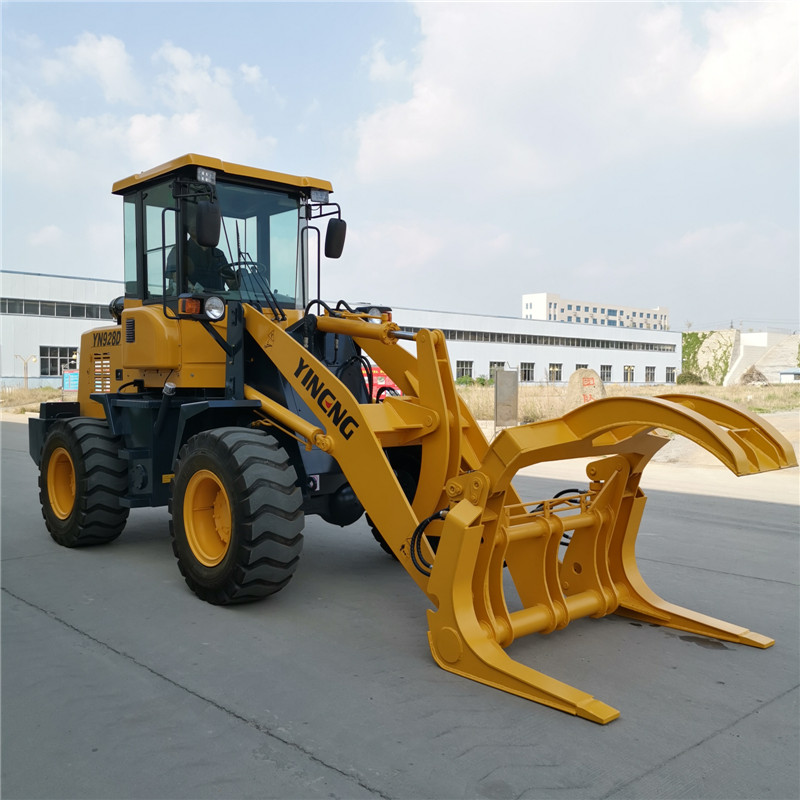

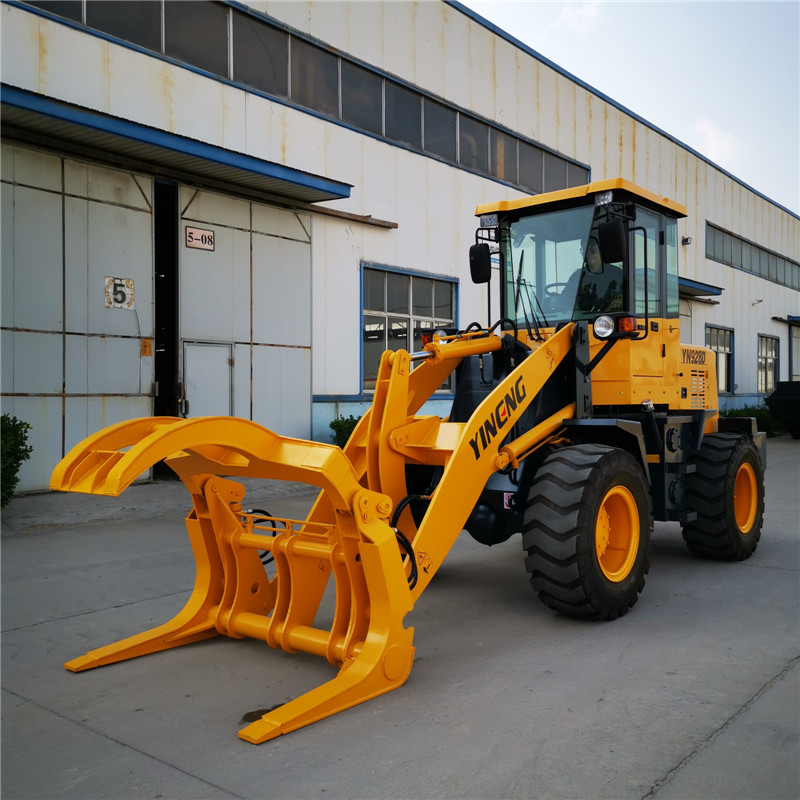

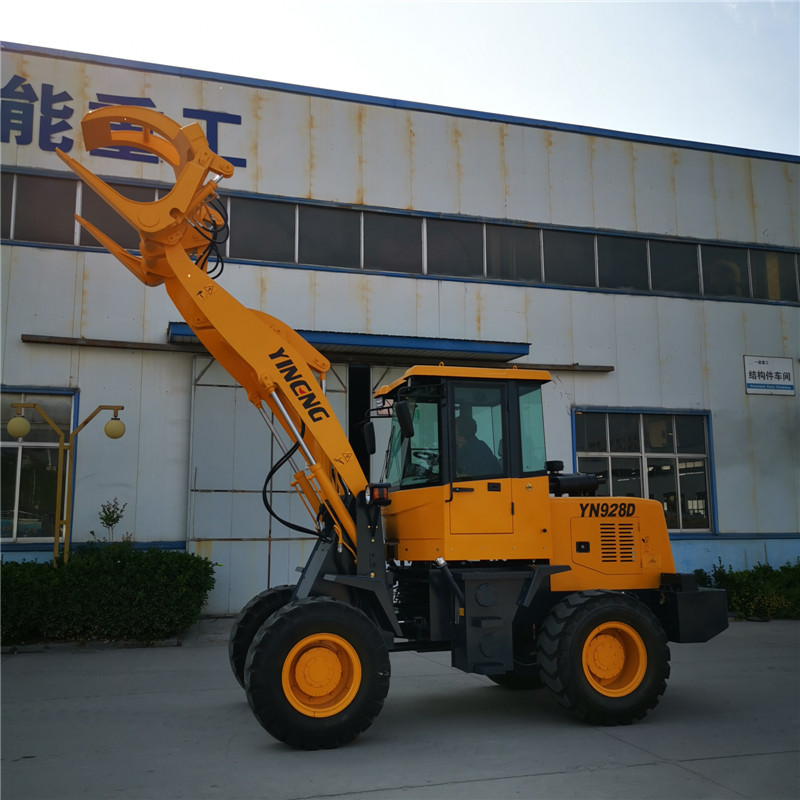

YN928D Log Grapple

- FOB goods (100)
- $1,105,000
- Ocean freight + handling (1.0 CBM)
- $820
- US duty (3.5%)
- $38,675
- Section 301 tariff (25.0%)
- $276,250
- Customs fees (MPF/HMF)
- $2,016
Estimate in USD to a US port using category averages, rates as of 2026-09. Other countries on request. A quote from our desk uses real carton sizes, freight and the exact tariff line.
- Service
- From $29 per supplier (Verify)
- You get
- Phone and video verification, a quote sheet and a written report
- Turnaround
- 3 business days
- Contact details
- Sent to you once your request is confirmed
If we can't reach the supplier within 3 business days, we refund the fee.

YN928D Log Grapple
- FOB goods (100)
- $1,105,000
- Ocean freight + handling (1.0 CBM)
- $820
- US duty (3.5%)
- $38,675
- Section 301 tariff (25.0%)
- $276,250
- Customs fees (MPF/HMF)
- $2,016
Estimate in USD to a US port using category averages, rates as of 2026-09. Other countries on request. A quote from our desk uses real carton sizes, freight and the exact tariff line.
- Service
- From $29 per supplier (Verify)
- You get
- Phone and video verification, a quote sheet and a written report
- Turnaround
- 3 business days
- Contact details
- Sent to you once your request is confirmed
If we can't reach the supplier within 3 business days, we refund the fee.
About this product
- Materials: Q345 Steel Plate
- Size: 5700x2100x2870mm
- Color: Yellow
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Japan and South Korea, Hong Kong China, Macao China and Taiwan China, Others
- Made in: Shandong, China
About this product
- Materials: Q345 Steel Plate
- Size: 5700x2100x2870mm
- Color: Yellow
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Japan and South Korea, Hong Kong China, Macao China and Taiwan China, Others
- Made in: Shandong, China
Product details
| Materials | Q345 Steel Plate |
|---|---|
| Size | 5700x2100x2870mm |
| Color | Yellow |
From the supplier
II-Features:
★Adopt Xichai 4DX21 four cylinder Diesel Engine.
★Hydrodynamic transmission and torque converter,
★Controlled by flexible shaft, hydraulic power shift gearbox with 2 forward and 2 reverse se gears makes operate easy.
★Single pump, split flow working hydraulic system makes lower consumption and excellent performance.
★Double sealed hydraulic pipeline joints with 24°awl and O ring of international standard, avoiding oil leakage
★Load sensing fully hydraulic steering system, easy and flexible operation
★Air over hydraulic brake system; Caliper disc brakes
★Working device with automatically leveling ability at high position
★Bucket articulated points take sealed, lubricated, dust-proof layers, which owns good durability
★Integral, luxury instrument board.
★New, luxury cabin
III-Technical Specifications:
Item
Specification
Item
Specification
Bucket capacity
0.8m3
Rated power
53kW/2400rpm
Rated load
1800kg
Tyre
16/70-20
Dumping height
3080 mm
Overall dimensions
5740*1980*2880
Wheel thread
1470mm
Operating weight
5000kg
Wheel base
2340mm
Min. ground clearance
320mm
Max. Dumping reach
840mm
Max. speed
22km/h
