About this product
- Materials: Q345 Steel Plate
- Size: 7549*2060*2820mm
- Color: Yellow
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Japan and South Korea, Hong Kong China, Macao China and Taiwan China, Others
- Made in: Shandong, China
About this product
- Materials: Q345 Steel Plate
- Size: 7549*2060*2820mm
- Color: Yellow
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Japan and South Korea, Hong Kong China, Macao China and Taiwan China, Others
- Made in: Shandong, China
Product details
| Materials | Q345 Steel Plate |
|---|---|
| Size | 7549*2060*2820mm |
| Color | Yellow |
Product details
| Materials | Q345 Steel Plate |
|---|---|
| Size | 7549*2060*2820mm |
| Color | Yellow |
From the supplier

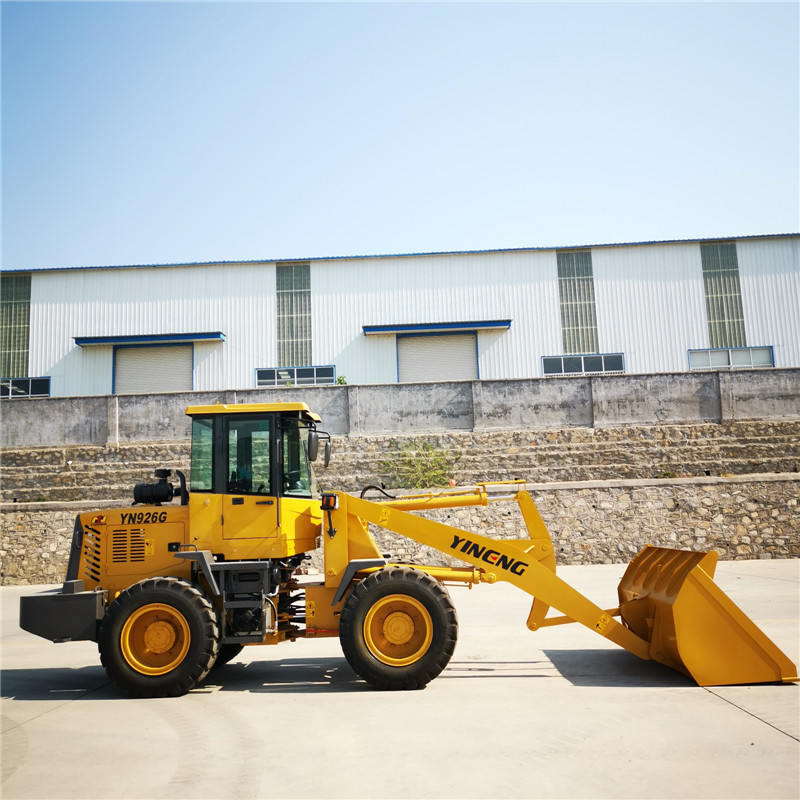

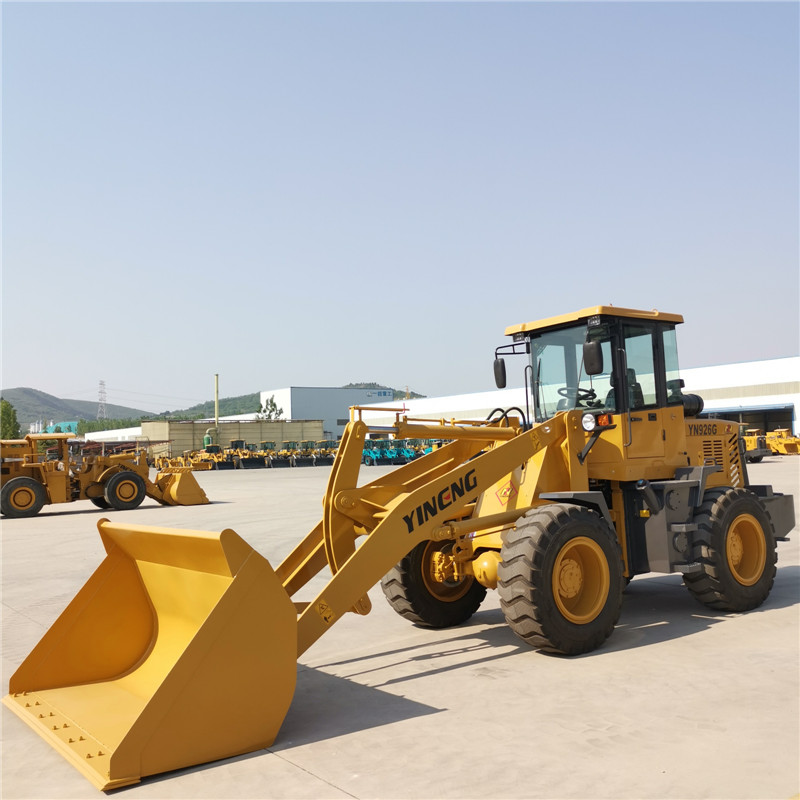

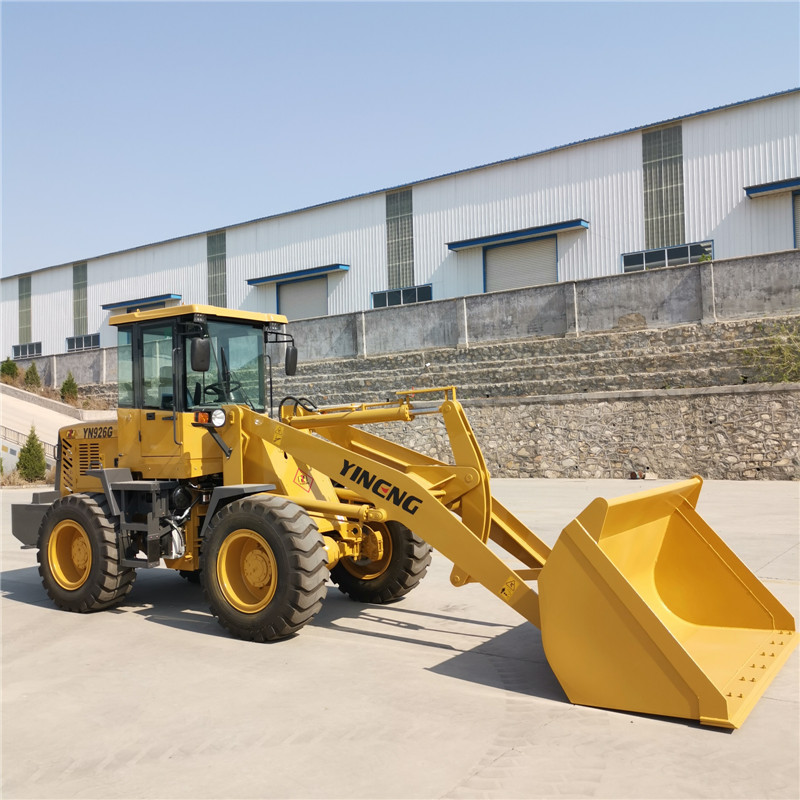

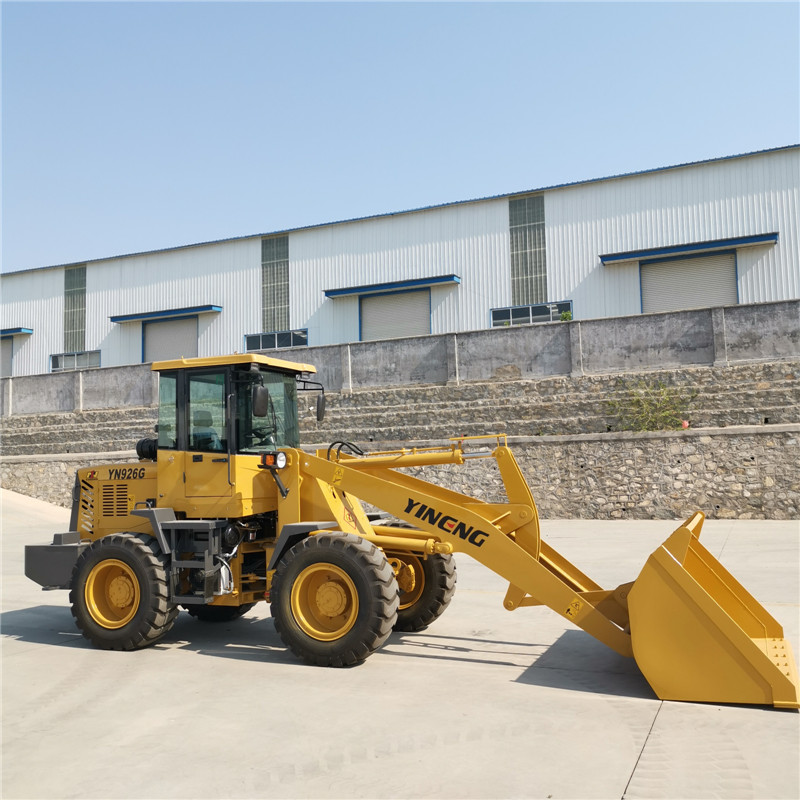

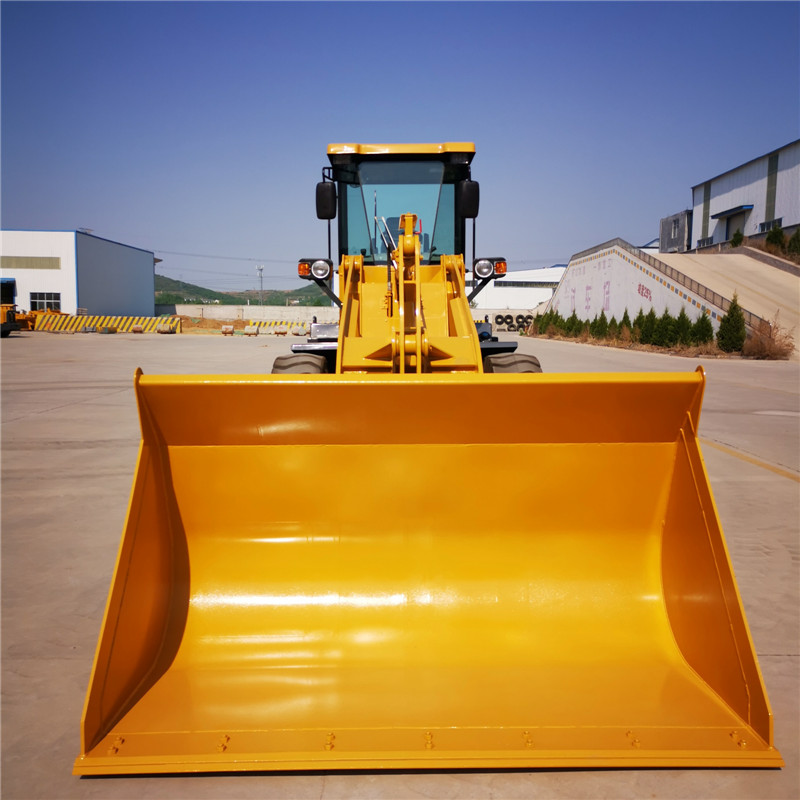

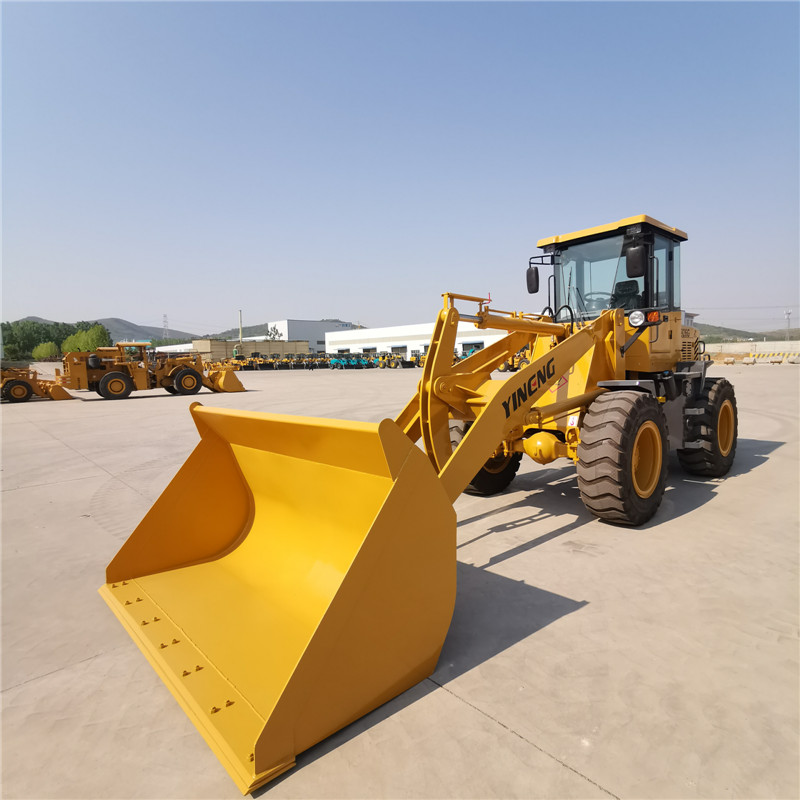

YN926H High Dump Loader
1. Equipped with Dongfeng Cummins 4BTA3.9-C100 engine, with strong power.
2. Reinforced axle is reliable in heavy duty carrying.
3. Single lever joystick control system, comfortable and flexible operation.
4. The cabin with all-new interiors is spacious.
5. Side-opening hood maximizes space and access for maintenance.
6. It use larger radiator with big hole, which is more suitable for high temperature areas.
7. 16/70-24 tires make the chassis elevated and improves handling stability.
8. Controlled by flexible shaft, hydraulic power shift gearbox with 2 forward and 2 reverse gears is portable and flexible
9. Adopt solenoid valve, simple structure makes shifting simple

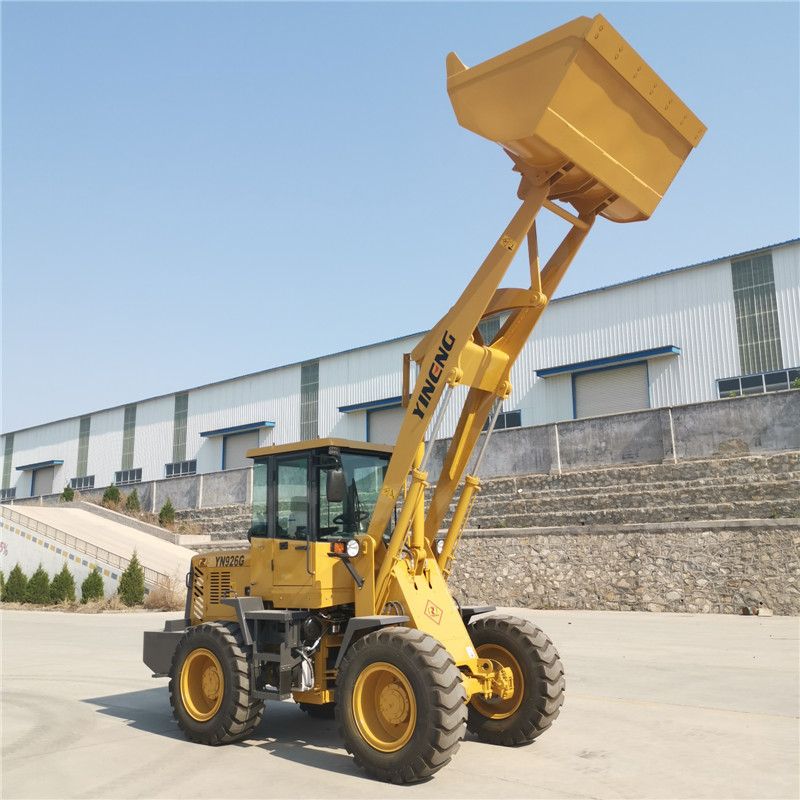

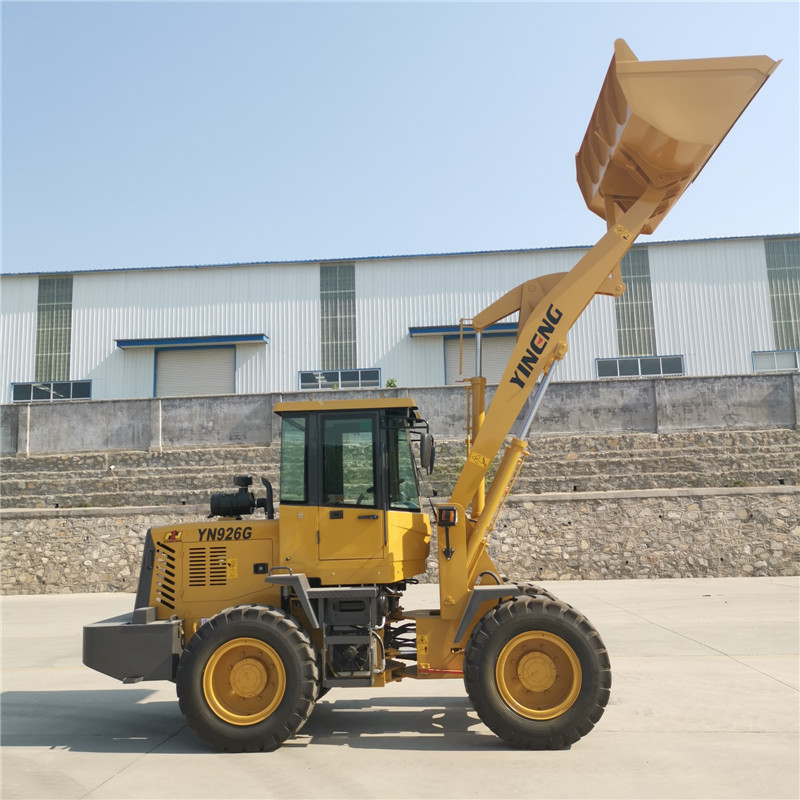

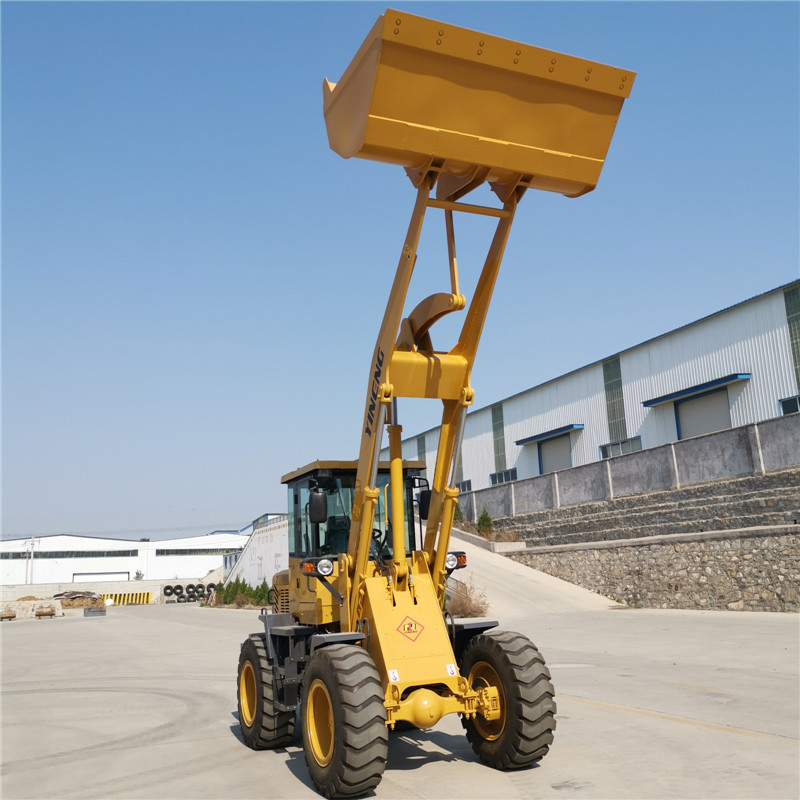

10. The dumping height is 4.1m, which is suitable for rice mills, etc.
Main specifications
*
Rated load
1600kg
*
Overall weight
6300kg
*
Rated capacity
2.0m3 (Food Bucket)
*
Max. Tractive force
62KN
*
Max. Breakout force
≥65KN
*
Max. Grade ability
30°
*
Top Lifting
4700mm
*
Max. Dumping height
4100mm
*
Max. Dumping reach
1400mm
*
Overall dimension L x W x H
7549*2060*2820mm
*
Min. Turning radius
4814mm
Engine
*
Model
Dongfeng Cummins 4BTA3.9-C100
*
Type
In line, water cooled, four stroke, direct injection/Turbo charged
*
No. of cylinder-bore/stoke
4-102x120mm
*
Rated power
74kW/2200r/min
*
Max. torque
410N.m/1500rpm
*
Min. Fuel-consume ratio
≤242g/kW·h
From the supplier
YN926H High Dump Loader
1. Equipped with Dongfeng Cummins 4BTA3.9-C100 engine, with strong power.
2. Reinforced axle is reliable in heavy duty carrying.
3. Single lever joystick control system, comfortable and flexible operation.
4. The cabin with all-new interiors is spacious.
5. Side-opening hood maximizes space and access for maintenance.
6. It use larger radiator with big hole, which is more suitable for high temperature areas.
7. 16/70-24 tires make the chassis elevated and improves handling stability.
8. Controlled by flexible shaft, hydraulic power shift gearbox with 2 forward and 2 reverse gears is portable and flexible
9. Adopt solenoid valve, simple structure makes shifting simple
10. The dumping height is 4.1m, which is suitable for rice mills, etc.
Main specifications
*
Rated load
1600kg
*
Overall weight
6300kg
*
Rated capacity
2.0m3 (Food Bucket)
*
Max. Tractive force
62KN
*
Max. Breakout force
≥65KN
*
Max. Grade ability
30°
*
Top Lifting
4700mm
*
Max. Dumping height
4100mm
*
Max. Dumping reach
1400mm
*
Overall dimension L x W x H
7549*2060*2820mm
*
Min. Turning radius
4814mm
Engine
*
Model
Dongfeng Cummins 4BTA3.9-C100
*
Type
In line, water cooled, four stroke, direct injection/Turbo charged
*
No. of cylinder-bore/stoke
4-102x120mm
*
Rated power
74kW/2200r/min
*
Max. torque
410N.m/1500rpm
*
Min. Fuel-consume ratio
≤242g/kW·h
