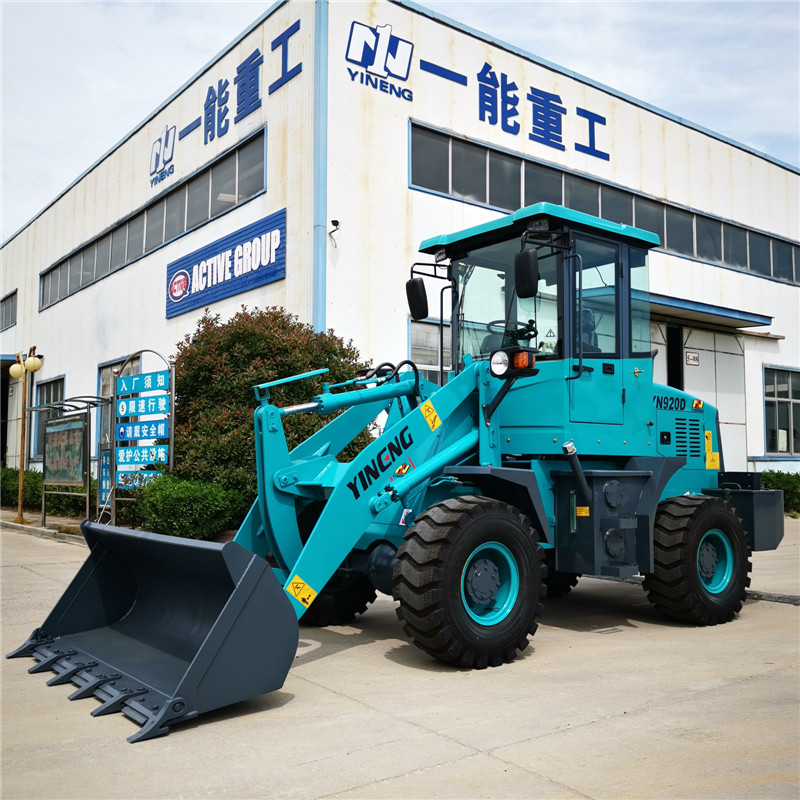

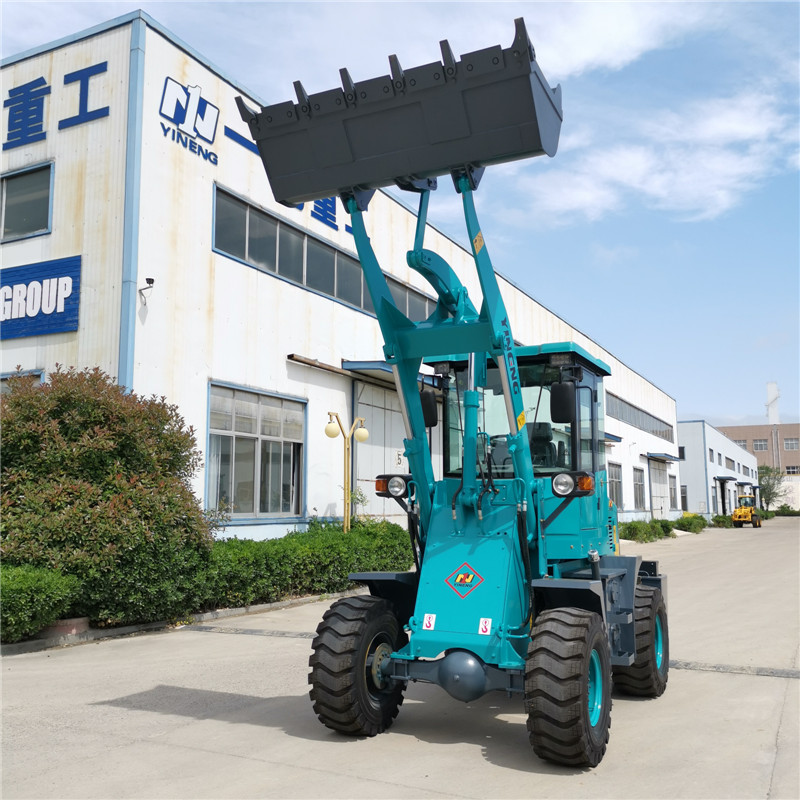

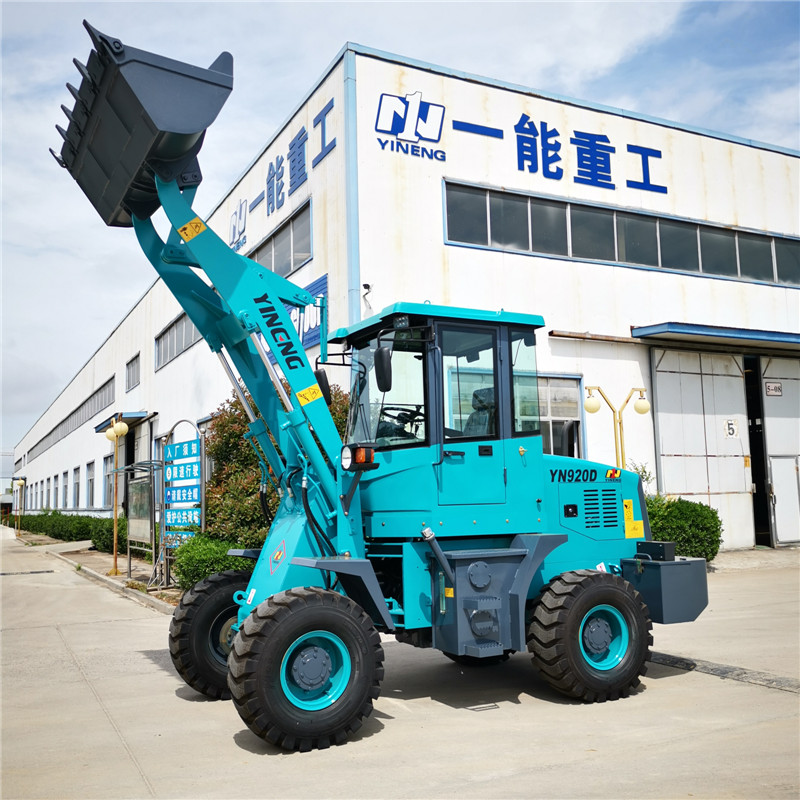

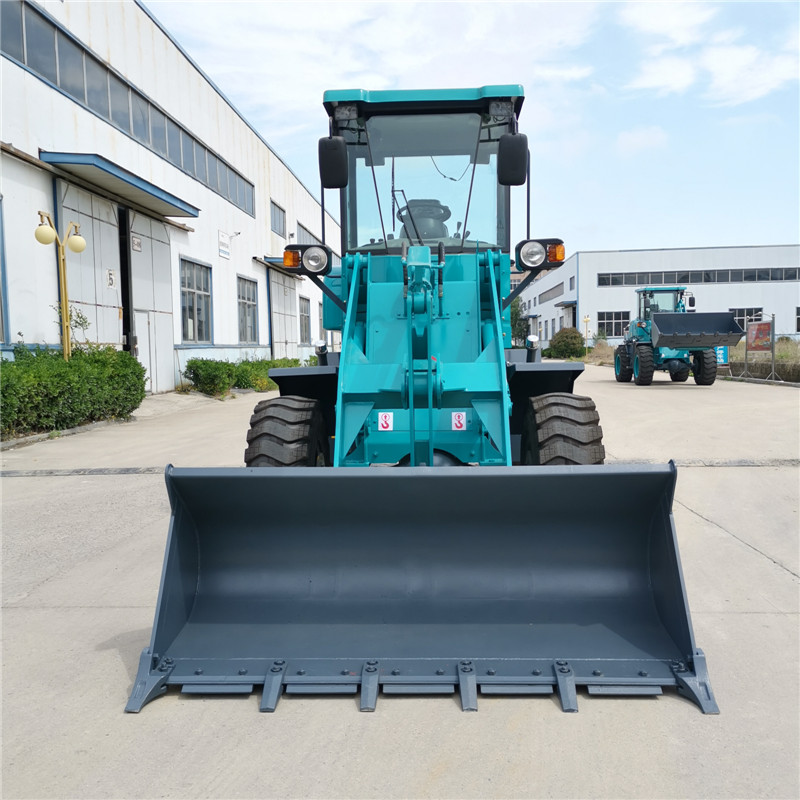

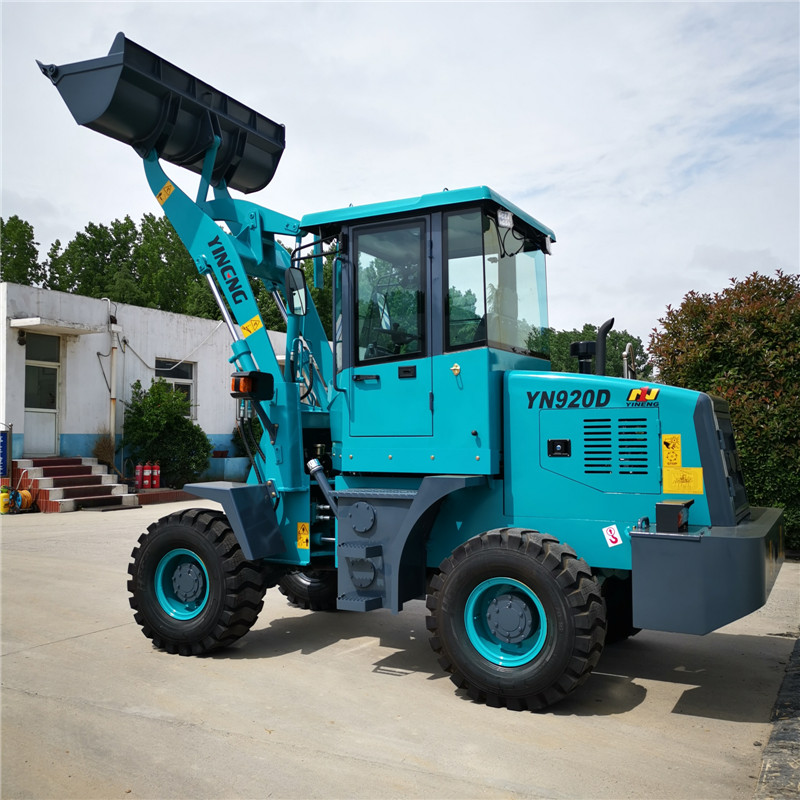

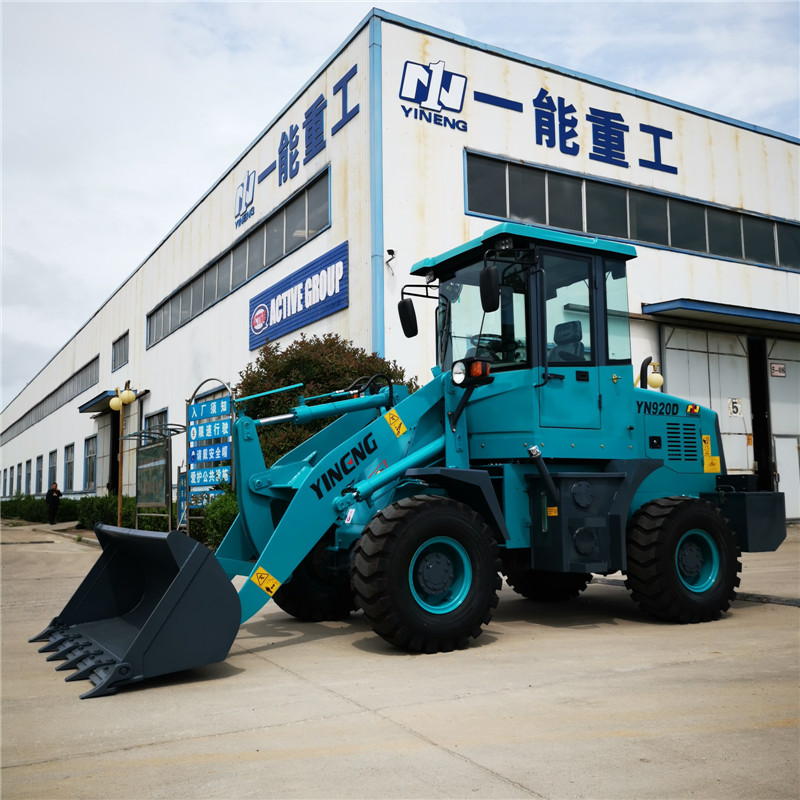

YN920D Wheel Loader
- FOB goods (100)
- $790,000
- Ocean freight + handling (1.0 CBM)
- $820
- US duty (3.5%)
- $27,650
- Section 301 tariff (25.0%)
- $197,500
- Customs fees (MPF/HMF)
- $1,622
Estimate in USD to a US port using category averages, rates as of 2026-09. Other countries on request. A quote from our desk uses real carton sizes, freight and the exact tariff line.
- Service
- From $29 per supplier (Verify)
- You get
- Phone and video verification, a quote sheet and a written report
- Turnaround
- 3 business days
- Contact details
- Sent to you once your request is confirmed
If we can't reach the supplier within 3 business days, we refund the fee.
YN920D Wheel Loader
- FOB goods (100)
- $790,000
- Ocean freight + handling (1.0 CBM)
- $820
- US duty (3.5%)
- $27,650
- Section 301 tariff (25.0%)
- $197,500
- Customs fees (MPF/HMF)
- $1,622
Estimate in USD to a US port using category averages, rates as of 2026-09. Other countries on request. A quote from our desk uses real carton sizes, freight and the exact tariff line.
- Service
- From $29 per supplier (Verify)
- You get
- Phone and video verification, a quote sheet and a written report
- Turnaround
- 3 business days
- Contact details
- Sent to you once your request is confirmed
If we can't reach the supplier within 3 business days, we refund the fee.
About this product
- Materials: Q345 manganese steel
- Size: 5050*1860*2600
- Color: blue
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Japan and South Korea, Hong Kong China, Macao China and Taiwan China, Others
- Made in: Shandong, China
About this product
- Materials: Q345 manganese steel
- Size: 5050*1860*2600
- Color: blue
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Japan and South Korea, Hong Kong China, Macao China and Taiwan China, Others
- Made in: Shandong, China
Product details
| Materials | Q345 manganese steel |
|---|---|
| Size | 5050*1860*2600 |
| Color | blue |
From the supplier
- Features:
* Adopt Xinchai A4K41G diesel engine;
* Hydrodynamic transmission technology and separated structure，make high reliability and easy maintenance;
* Controlled by flexible shaft, hydraulic power shift gearbox with 2 forward and 2 reverse gears makes operate easy;
* Single pump, split flow working hydraulic system makes lower consumption and excellent performance;
* Double sealed hydraulic pipeline joints with 24° awl and 〇 ring of international standard，avoids oil leakage obviously;
* Load sensing fully hydraulic steering system makes opera tion easy;
* Air over hydraulic brake system; Caliper disc brakes;
* Working device with automatically leveling ability at high position;
* Bucket articulated points take sealed, lubricated, dust-proof layers, which owns good durability;

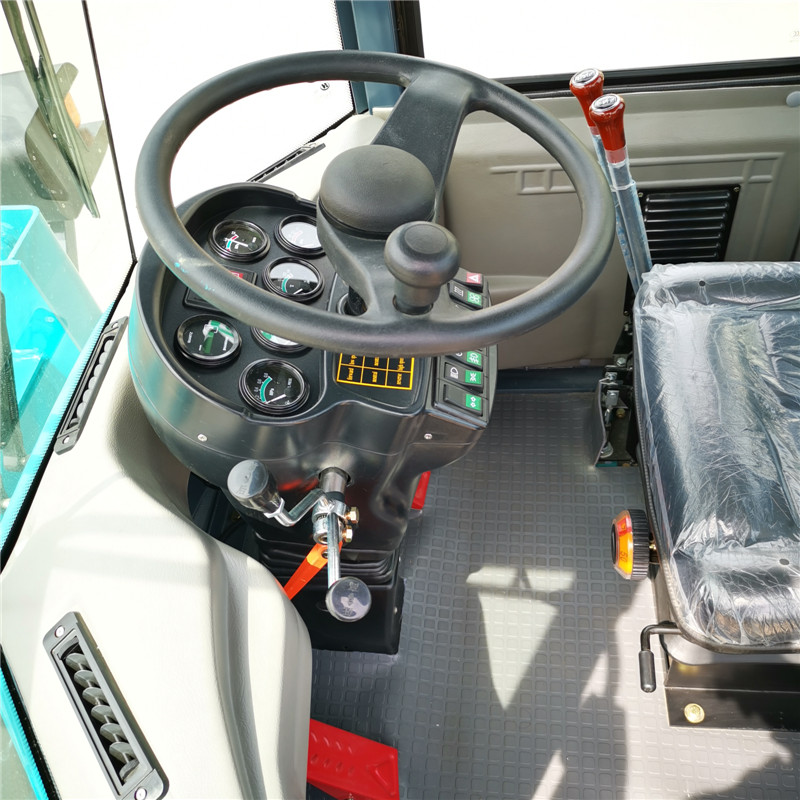

* Integral, luxury instrument board.

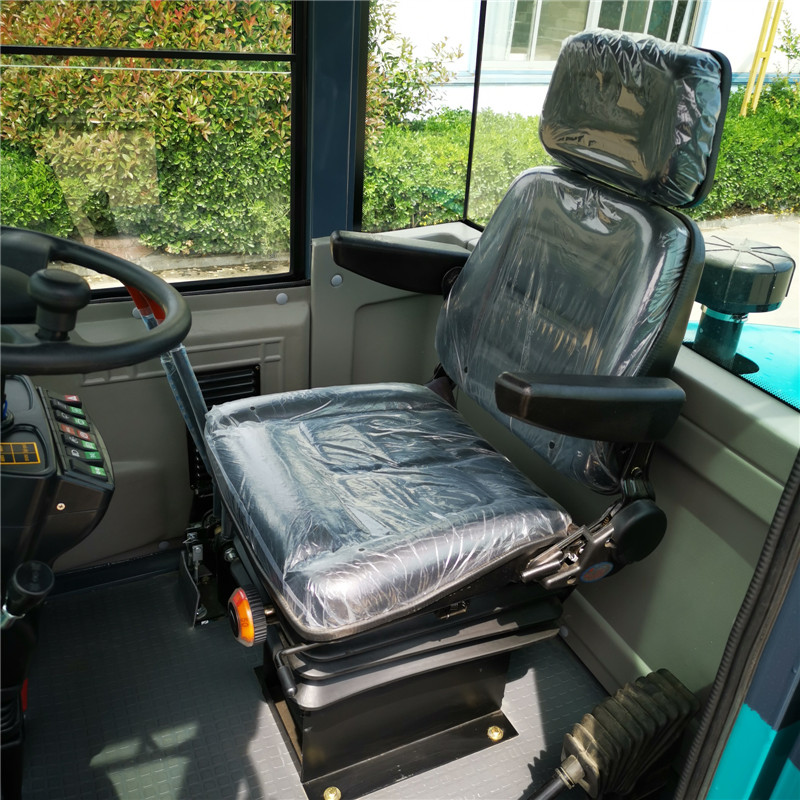

* New, luxury cabin.
II-Technical Specifications:
Item
Specification
Item
Specification
Bucket capacity
0.5 m3
Rated power
33kW/2300rpm
Rated load
1200kg
Tyre
20.5/70-16
Dumping height
3010mm
Overall dimensions
5160 mm*1860mm*2750mm
Wheel thread
1430mm
Operating weight
3500kg
Wheel base
2210mm
Min ground clearance
260mm
Engine
Xichai 4DW91-45G2
Max. speed
20km/h
About the supplier
Main products: Other Construction Machinery,Excavators,Forklifts,Mining Machinery,Other Civil Construction Engineering Machinery
- ✓Exhibited at 10 of the last 10 Canton Fairs
- ✓Foreign Trade Company
- ✓Founded 2008
- Exhibited at 10 of the last 10 Canton Fairs
- Foreign Trade Company
- Founded 2008
