YN917G Wheel Loader
Taian Luneng Import& Export Co.,Ltd.
See what’s includedHide breakdown
- FOB goods (100)
- $1,415,000
- Ocean freight + handling (5.0 CBM, volume guessed from price)
- $1,300
- US duty (3.5%)
- $49,525
- Section 301 tariff (25.0%)
- $353,750
- Customs fees (MPF/HMF)
- $2,403
Estimate in USD to a US port using category averages, rates as of 2026-09. Other countries on request. A quote from our desk uses real carton sizes, freight and the exact tariff line.
- FOB goods (100)
- $1,415,000
- Ocean freight + handling (5.0 CBM, volume guessed from price)
- $1,300
- US duty (3.5%)
- $49,525
- Section 301 tariff (25.0%)
- $353,750
- Customs fees (MPF/HMF)
- $2,403
Estimate in USD to a US port using category averages, rates as of 2026-09. Other countries on request. A quote from our desk uses real carton sizes, freight and the exact tariff line.
Verify from $29 · written report in 3 business days · 100% refund if not satisfied
YN917G Wheel Loader
Taian Luneng Import& Export Co.,Ltd.See what’s includedHide breakdown
- FOB goods (100)
- $1,415,000
- Ocean freight + handling (5.0 CBM, volume guessed from price)
- $1,300
- US duty (3.5%)
- $49,525
- Section 301 tariff (25.0%)
- $353,750
- Customs fees (MPF/HMF)
- $2,403
Estimate in USD to a US port using category averages, rates as of 2026-09. Other countries on request. A quote from our desk uses real carton sizes, freight and the exact tariff line.
- FOB goods (100)
- $1,415,000
- Ocean freight + handling (5.0 CBM, volume guessed from price)
- $1,300
- US duty (3.5%)
- $49,525
- Section 301 tariff (25.0%)
- $353,750
- Customs fees (MPF/HMF)
- $2,403
Estimate in USD to a US port using category averages, rates as of 2026-09. Other countries on request. A quote from our desk uses real carton sizes, freight and the exact tariff line.
Verify from $29 · written report in 3 business days · 100% refund if not satisfied
About this product
- Materials: Q345 Steel Plate
- Size: 5260*1680*2680
- Color: Yellow
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Japan and South Korea, Hong Kong China, Macao China and Taiwan China, Others
- Made in: Shandong, China
About this product
- Materials: Q345 Steel Plate
- Size: 5260*1680*2680
- Color: Yellow
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Japan and South Korea, Hong Kong China, Macao China and Taiwan China, Others
- Made in: Shandong, China
Product details
| Materials | Q345 Steel Plate |
|---|---|
| Size | 5260*1680*2680 |
| Color | Yellow |
Product details
| Materials | Q345 Steel Plate |
|---|---|
| Size | 5260*1680*2680 |
| Color | Yellow |
From the supplier

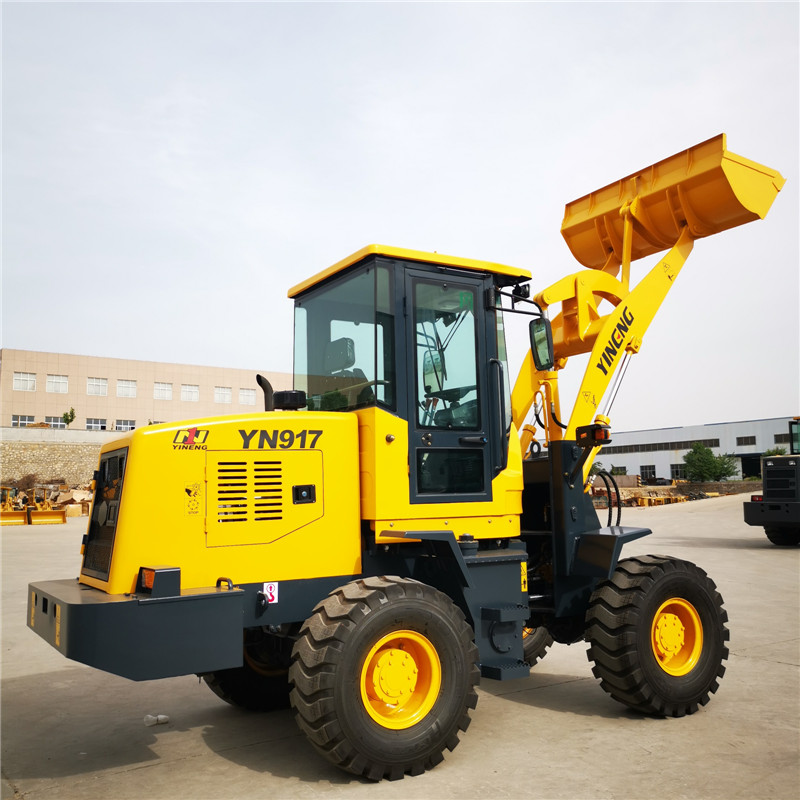

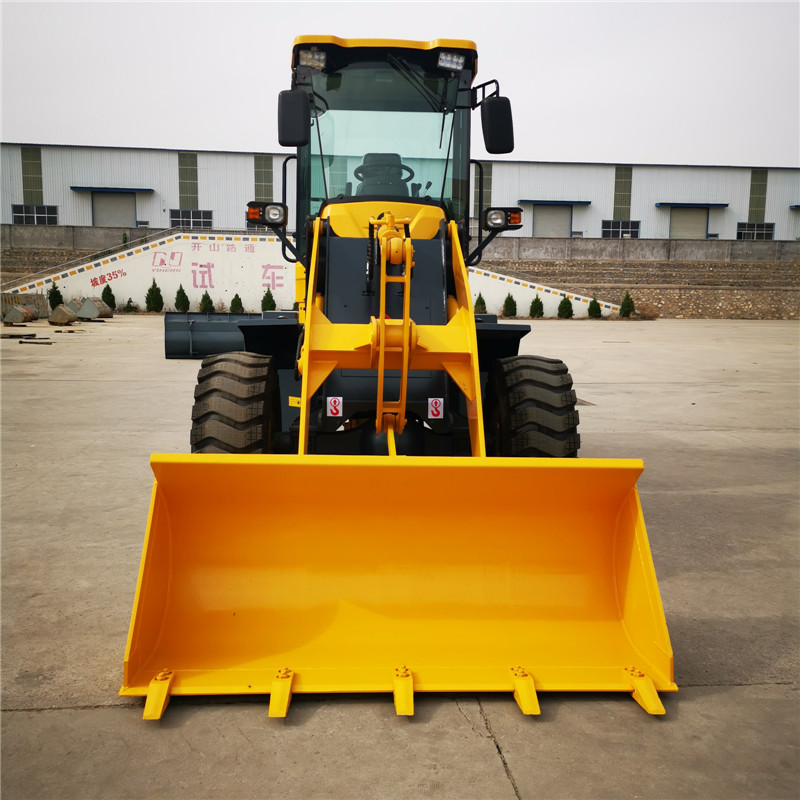

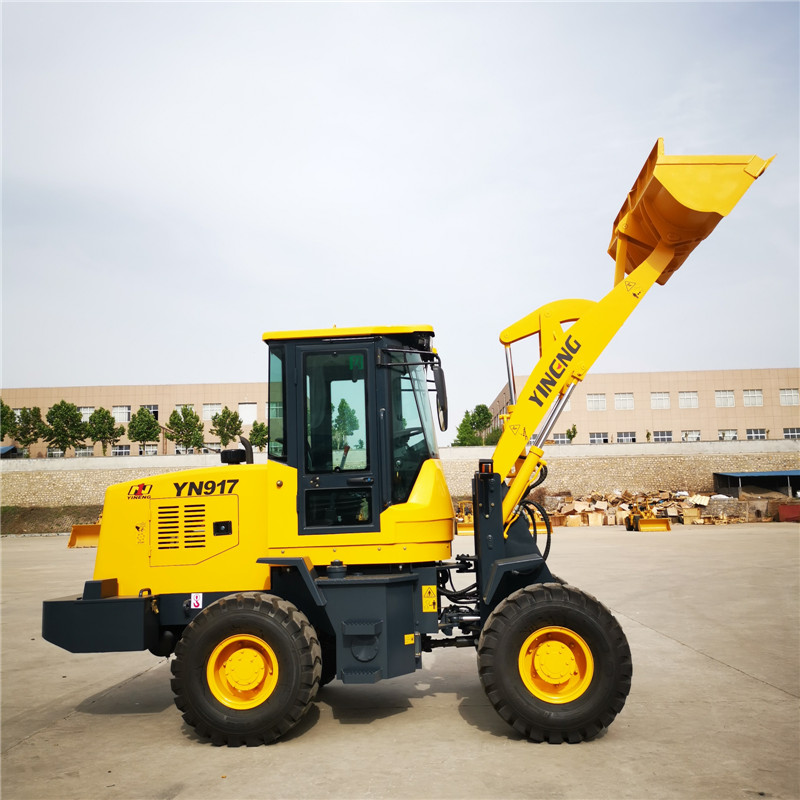

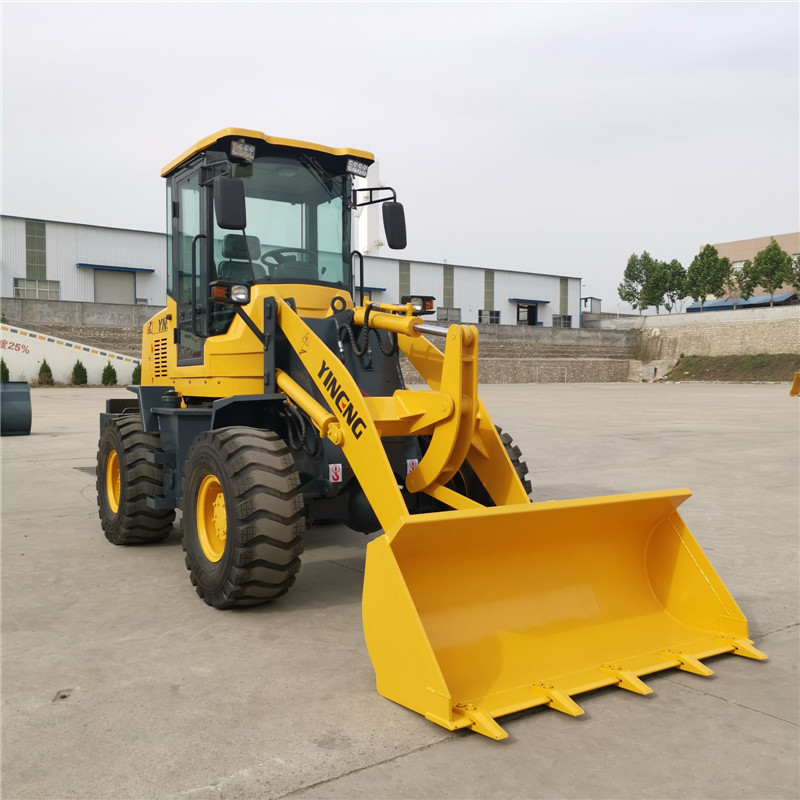

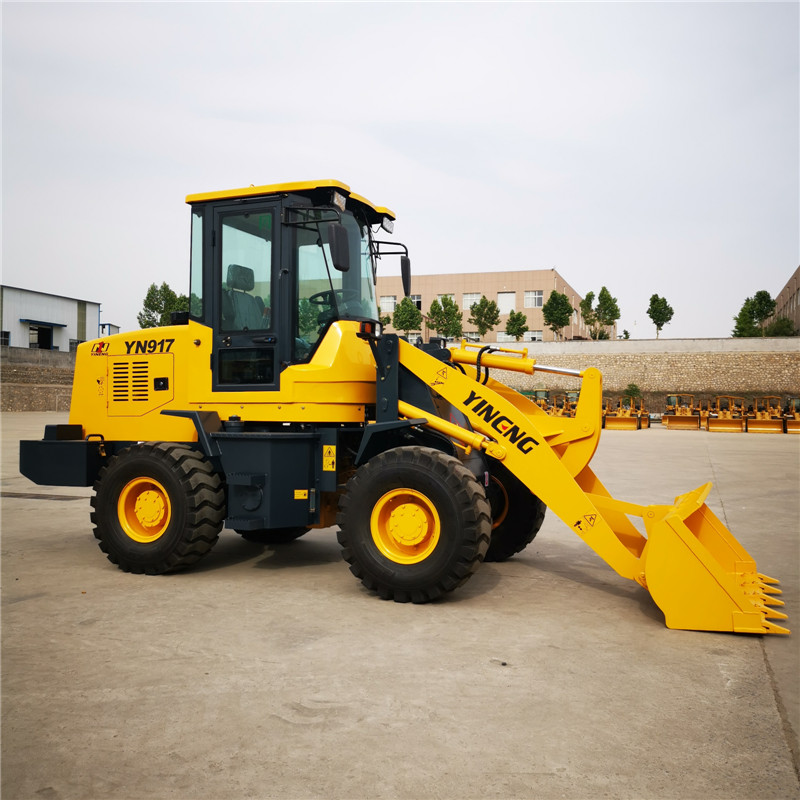

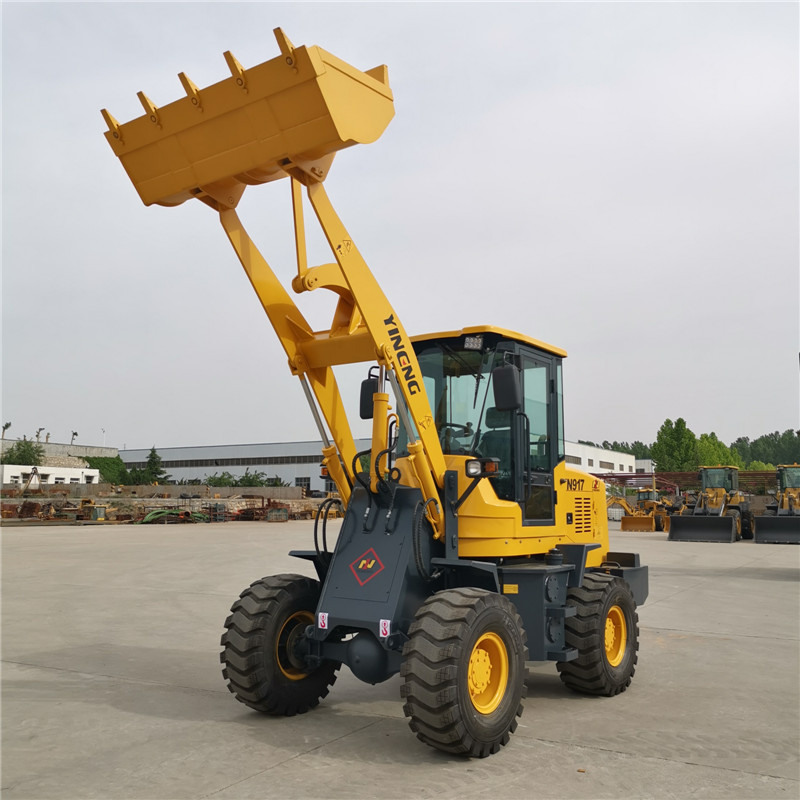

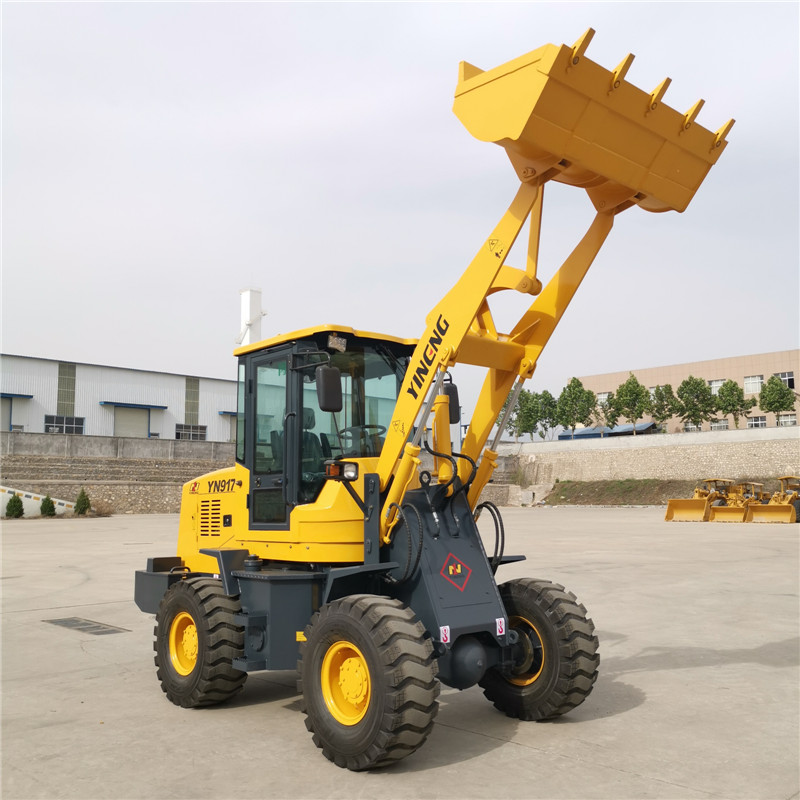

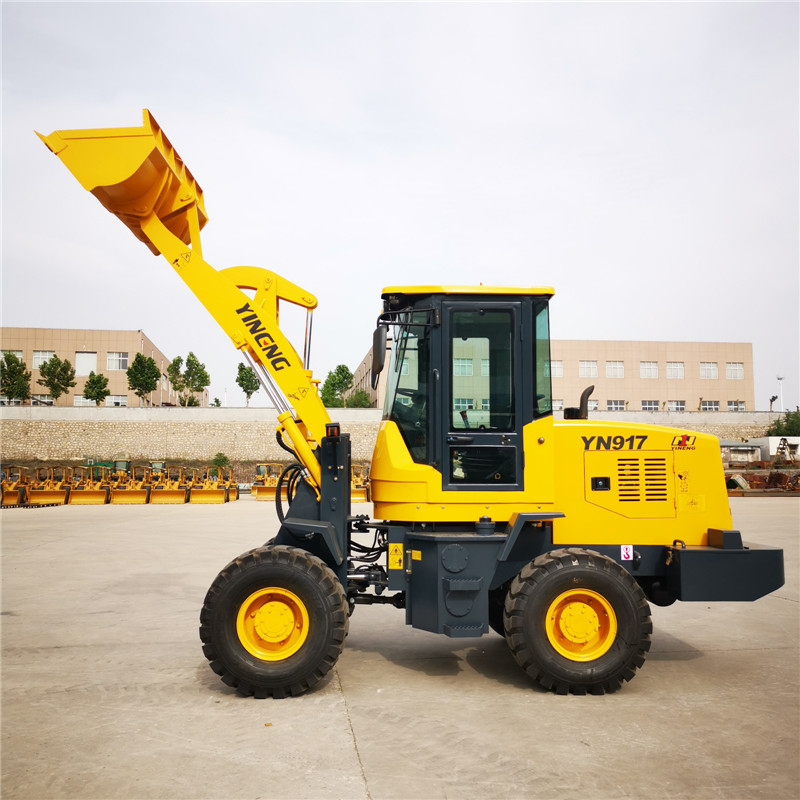

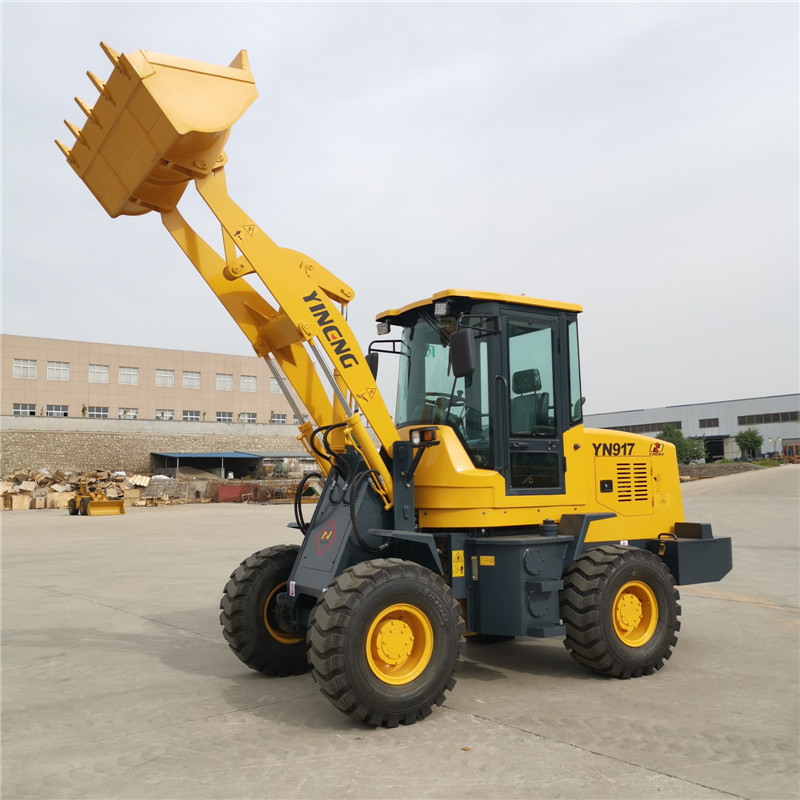

YN917G WHEEL LOADER
1、Adopt Xinchai A495BG Diesel Engine;
2、Controlled by flexible shaft, hydraulic power shift gearbox with 2 forward and 2 reverse gears makes operate easy;
3、Single pump, split flow working hydraulic system makes lower consumption and excellent performance;
4、Double sealed hydraulic pipeline joints with 24°awl and O ring of international standard, avoiding oil leakage;
5、Load sensing fully hydraulic steering system, easy and flexible operation;
6、Air over hydraulic brake system; Caliper disc brakes;
7、Working device with automatically leveling ability at high position;
8、Bucket articulated points take sealed, lubricated, dust-proof layers, which owns good durability;
9、Integral, luxury instrument board;
10、New, luxury cabin.
ItemSpecificationsItemSpecificationsBucket capacity0.5 m3Max. grade ability35°Rated load1000 kgRated power36.8kW/2400rpmDumping height2660 mmTyre12-16.5Max. breakout force34 KNOverall dimensions5290×1680×2680mmMax. drawing force30 KNOperating weight4300kgFrom the supplier
YN917G WHEEL LOADER
1、Adopt Xinchai A495BG Diesel Engine;
2、Controlled by flexible shaft, hydraulic power shift gearbox with 2 forward and 2 reverse gears makes operate easy;
3、Single pump, split flow working hydraulic system makes lower consumption and excellent performance;
4、Double sealed hydraulic pipeline joints with 24°awl and O ring of international standard, avoiding oil leakage;
5、Load sensing fully hydraulic steering system, easy and flexible operation;
6、Air over hydraulic brake system; Caliper disc brakes;
7、Working device with automatically leveling ability at high position;
8、Bucket articulated points take sealed, lubricated, dust-proof layers, which owns good durability;
9、Integral, luxury instrument board;
10、New, luxury cabin.
ItemSpecificationsItemSpecificationsBucket capacity0.5 m3Max. grade ability35°Rated load1000 kgRated power36.8kW/2400rpmDumping height2660 mmTyre12-16.5Max. breakout force34 KNOverall dimensions5290×1680×2680mmMax. drawing force30 KNOperating weight4300kgAbout the supplier
