YJLV 0.6/1kV 3×25+2×16 Aluminum XLPE Insulated PVC Sheathed Power Cable
Huake Zhonglan Cable Co., Ltd.1/10 fairsIndustry and Trade Company
Price on request
The supplier hasn’t listed a price. We can get their current prices and MOQ.
Verify from $29 · written report in 3 business days · 100% refund if not satisfied
YJLV 0.6/1kV 3×25+2×16 Aluminum XLPE Insulated PVC Sheathed Power Cable
Huake Zhonglan Cable Co., Ltd.1/10 fairsIndustry and Trade Company
Price on request
The supplier hasn’t listed a price. We can get their current prices and MOQ.
Verify from $29 · written report in 3 business days · 100% refund if not satisfied
About this product
- Size: 3×25+2×16
- Color: black，red，green，yellow，blue
- Sheath material: PVC
- Insulation material: XLPE
- Material shape: Other
- Conductor type: Other
- Exports to: Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries
- Made in: Shannxi, China
About this product
- Size: 3×25+2×16
- Color: black，red，green，yellow，blue
- Sheath material: PVC
- Insulation material: XLPE
- Material shape: Other
- Conductor type: Other
- Exports to: Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries
- Made in: Shannxi, China
Product details
| Size | 3×25+2×16 |
|---|---|
| Color | black，red，green，yellow，blue |
| Sheath material | PVC |
| Insulation material | XLPE |
| Material shape | Other |
| Conductor type | Other |
| Brand | Other |
| Rangeof application | Other |
| Application | Other |
| Certification | ISO9001 |
| Conductor material | Other |
Product details
| Size | 3×25+2×16 |
|---|---|
| Color | black，red，green，yellow，blue |
| Sheath material | PVC |
| Insulation material | XLPE |
| Material shape | Other |
| Conductor type | Other |
| Brand | Other |
| Rangeof application | Other |
| Application | Other |
| Certification | ISO9001 |
| Conductor material | Other |
From the supplier
Product Name
YJLV 0.6/1kV 3×25+2×16 Aluminum XLPE Insulated PVC Sheathed Power Cable
Product Description

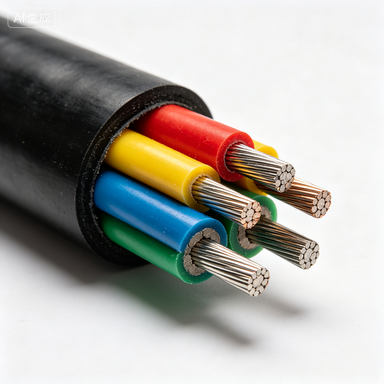

This is a low-voltage 5-core aluminum power cable with rated voltage 0.6/1kV, structured with 3 cores of 25mm² and 2 cores of 16mm² for neutral and ground use.
It adopts high-quality stranded aluminum conductor, which is lightweight and cost-effective, suitable for medium and short-distance fixed laying in indoor and outdoor places, workshops, residential areas, construction site branch lines, etc.
XLPE insulation ensures stable electrical performance, heat resistance and aging resistance with a maximum continuous operating temperature of 90℃. The PVC outer sheath provides good waterproofing, moisture resistance, weatherability and mechanical protection.
The cable can be installed overhead, in conduit, trunking or directly buried. It complies with GB/T 12706 and IEC standards, widely used in building power distribution, industrial power supply, municipal branches and rural power network reconstruction.
Technical Specifications
-
-
- Model: YJLV 3×25+2×16
- Rated Voltage: 0.6/1kV
- Core Configuration: 3+2 cores (5 cores)
- Conductor: Stranded Aluminum
- Insulation: XLPE
- Sheath: PVC
- Max Operating Temperature: 90℃
- Application: Overhead, conduit, cable tray, direct burial
-
From the supplier
Product Name
YJLV 0.6/1kV 3×25+2×16 Aluminum XLPE Insulated PVC Sheathed Power Cable
Product Description
This is a low-voltage 5-core aluminum power cable with rated voltage 0.6/1kV, structured with 3 cores of 25mm² and 2 cores of 16mm² for neutral and ground use.
It adopts high-quality stranded aluminum conductor, which is lightweight and cost-effective, suitable for medium and short-distance fixed laying in indoor and outdoor places, workshops, residential areas, construction site branch lines, etc.
XLPE insulation ensures stable electrical performance, heat resistance and aging resistance with a maximum continuous operating temperature of 90℃. The PVC outer sheath provides good waterproofing, moisture resistance, weatherability and mechanical protection.
The cable can be installed overhead, in conduit, trunking or directly buried. It complies with GB/T 12706 and IEC standards, widely used in building power distribution, industrial power supply, municipal branches and rural power network reconstruction.
Technical Specifications
-
-
- Model: YJLV 3×25+2×16
- Rated Voltage: 0.6/1kV
- Core Configuration: 3+2 cores (5 cores)
- Conductor: Stranded Aluminum
- Insulation: XLPE
- Sheath: PVC
- Max Operating Temperature: 90℃
- Application: Overhead, conduit, cable tray, direct burial
-
