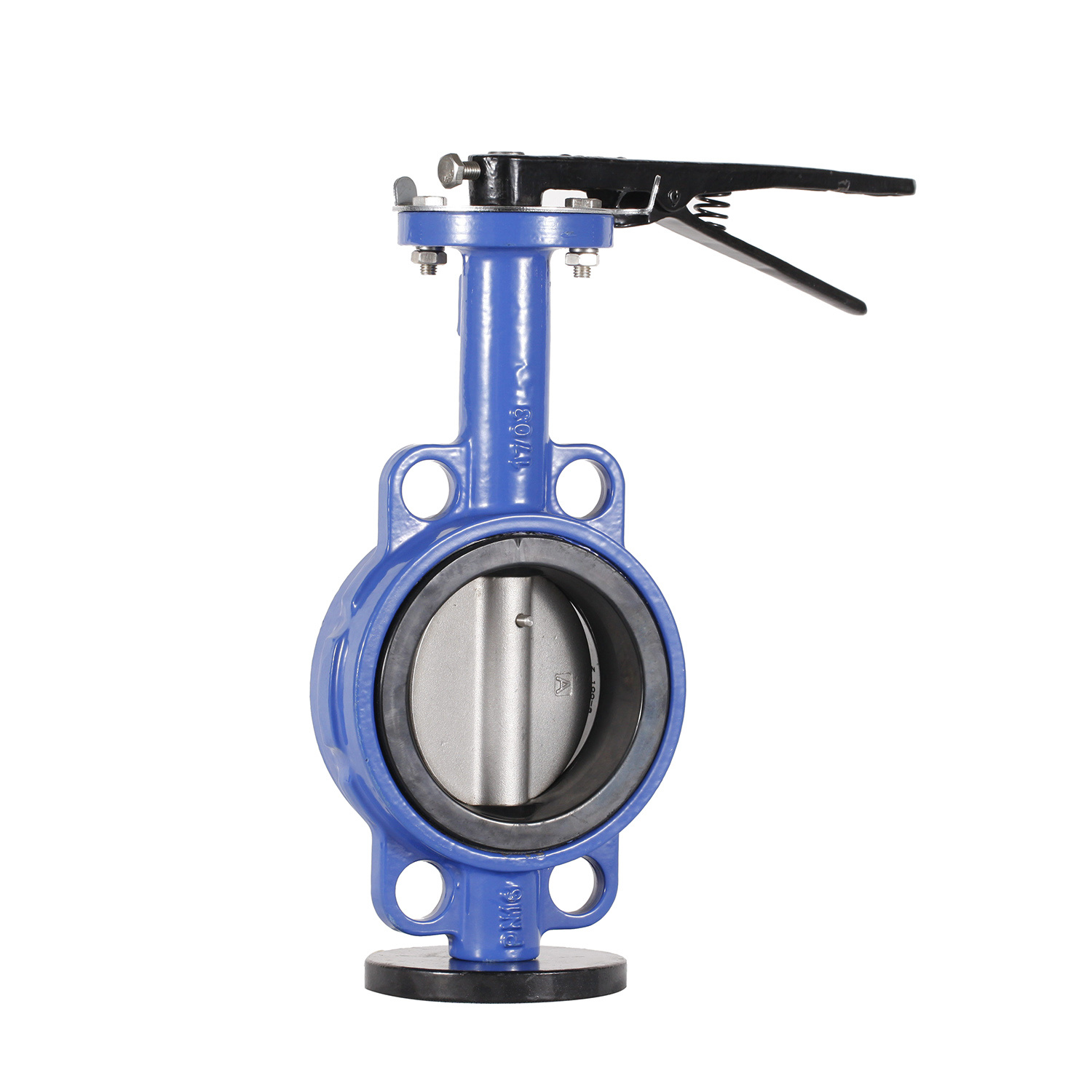

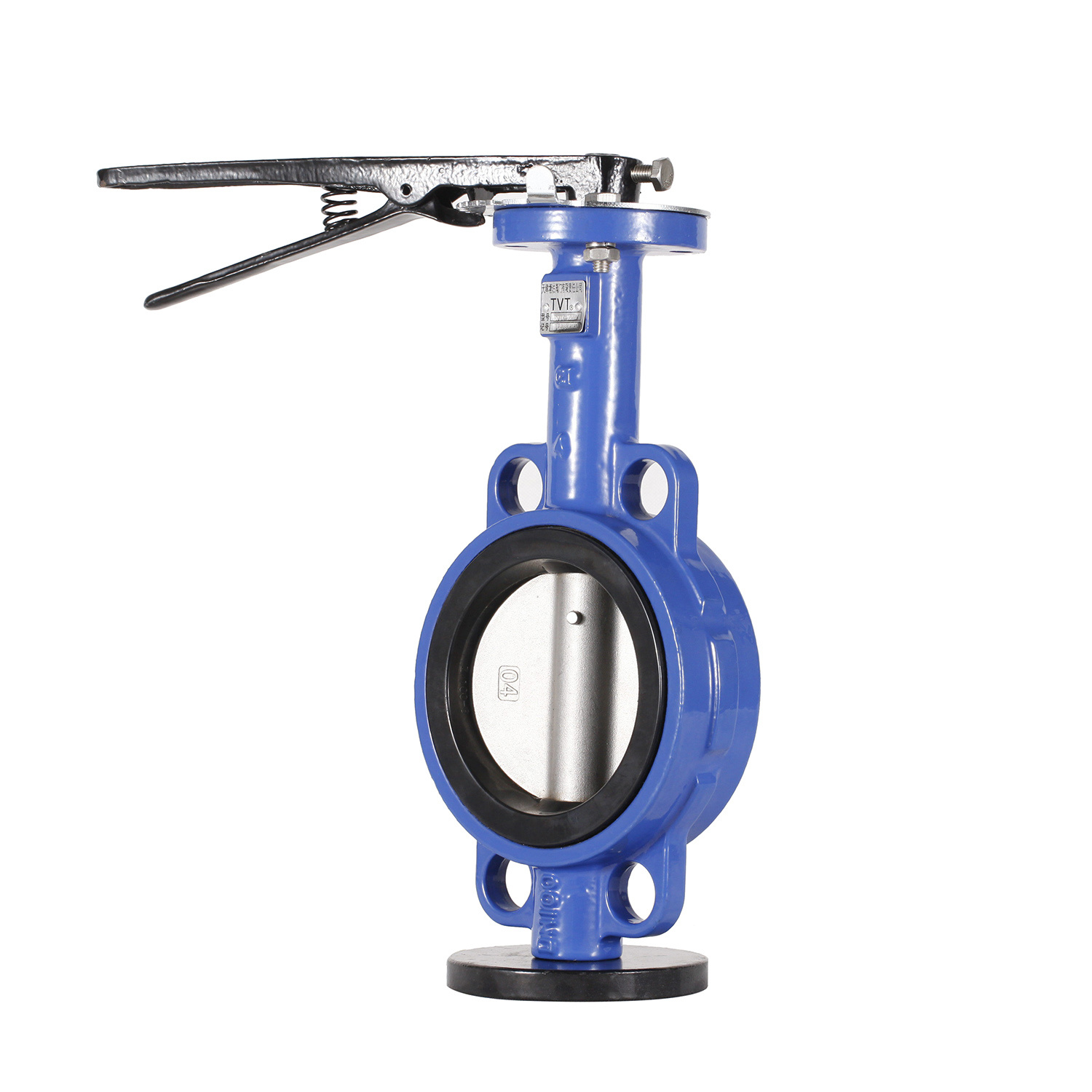

Wafer butterfly valve
The supplier hasn’t listed a price. We can get their current prices and MOQ.
- Service
- From $29 per supplier (Verify)
- You get
- Phone and video verification, a quote sheet and a written report
- Turnaround
- 3 business days
- Contact details
- Sent to you once your request is confirmed
If we can't reach the supplier within 3 business days, we refund the fee.
Wafer butterfly valve
The supplier hasn’t listed a price. We can get their current prices and MOQ.
- Service
- From $29 per supplier (Verify)
- You get
- Phone and video verification, a quote sheet and a written report
- Turnaround
- 3 business days
- Contact details
- Sent to you once your request is confirmed
If we can't reach the supplier within 3 business days, we refund the fee.
About this product
- Materials: cast iron
- Size: DN100
- Color: bule
- Exports to: Africa, Middle East, Southeast Asia, South Asia, Central Asia, Latin America, Russia, Other European Countries, Hong Kong China, Macao China and Taiwan China
- Made in: Tianjin, China
About this product
- Materials: cast iron
- Size: DN100
- Color: bule
- Exports to: Africa, Middle East, Southeast Asia, South Asia, Central Asia, Latin America, Russia, Other European Countries, Hong Kong China, Macao China and Taiwan China
- Made in: Tianjin, China
Product details
| Materials | cast iron |
|---|---|
| Size | DN100 |
| Color | bule |
From the supplier
Specifications:
Size
DN50-DN1000
Nominal Pressure
PN10/16, 150-300LB
Working Temperature
-30。c - 135。C
Suitable Media
Chemicals, air, water, steam, oil, acids, salts ect
Standards:
Design standard
API609, ANSI16.34, JISB2064, GB T12238
Face to Face
API609, DIN3202, ISO5752, BS5155
Flange drilling
DIN2501 PN10/16, ANSI 125/150/300, BS4504, JIS10K
Top Flange
ISO5211
Test Inspection
API598
aterial:
Body
Cast Iron, Ductile Iron, Carbon Steel, Stainless Steel
Disc
Ductile Iron, Carbon Steel, Stainless Steel
Stem
Stainless Steel
Seat
EPDM, NBR, PTFE, VITON, HYPALON
O ring
EPDM, NBR
