About this product
- Materials: plastic
- Size: 225mm*190mm*100mm
- Color: White/Black
- Exports to: Africa, Middle East, Central Asia, USA and Canada, Russia, EU, Others
- Made in: Zhejiang, China
About this product
- Materials: plastic
- Size: 225mm*190mm*100mm
- Color: White/Black
- Exports to: Africa, Middle East, Central Asia, USA and Canada, Russia, EU, Others
- Made in: Zhejiang, China
Product details
| Materials | plastic |
|---|---|
| Size | 225mm*190mm*100mm |
| Color | White/Black |
Product details
| Materials | plastic |
|---|---|
| Size | 225mm*190mm*100mm |
| Color | White/Black |
From the supplier
Advantages of our products
1. High technology: Programmed control computerized
2. Unique design: LED display which can show all protection functions.

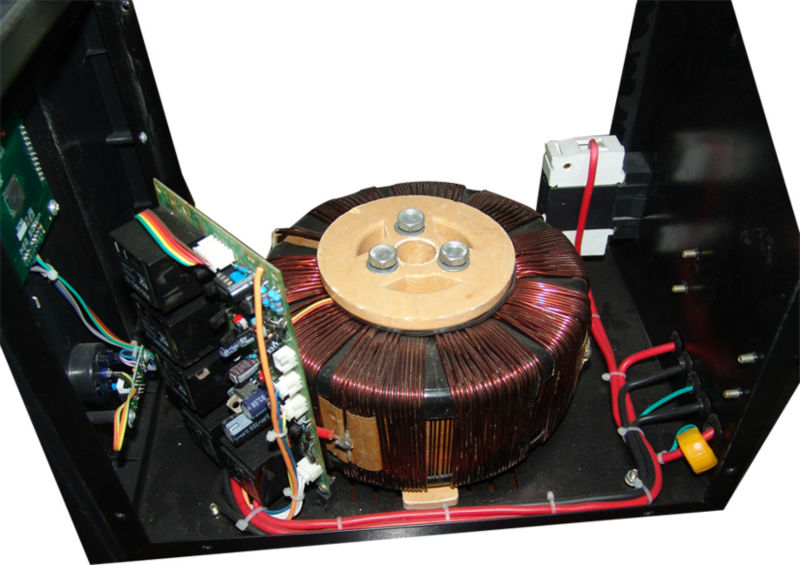

3. Quality ensurance: Every spareparts is made by ourself, for example, transforma, PCB.
4. Perfect protection function: Over/low voltage protection, over-heat, over-load protection
5. High efficiency: More than 90%
6. Experienced manufactory: More than 20 years
MODEL
PC-TZN500VA
PC-TZN1000VA
PC- TZN1500VA
PC- TZN2000VA
TECHNOLOGY
RELAY CONTROL SYSTERM+MICRO COMPUTER PROGRAMED CONTROL
LED DISPLAY
INFORMATION
INPUT VOLTAGE/OUTPUT VOLTAGE/LOAD USAGE/TIME DELAY/NORMAL WORKING/PROTECTION
PROTECTION
Over Voltage
Output Voltage≥243±4v
Low Voltage
Output Voltage≤188v±4v
Over Loading
More Than 120%
Over Temperture
120℃±10℃
Delay Time
Long time(255 seconds)/Short time(5 seconds)
Creepage
Language
English/Russia/Chinese
Input Voltage
AC150-270V(A TYPE);AC135-AC270V(B TYPE)
AC105-AC270(C TYPE);AC80V-AC270V(DTYPE)
Output Voltage
220+/-10% adjustable
Frequency
50Hz/60Hz
Phase
Single phase
Efficency
≥90%
Ambient Temperature
-15℃-45℃
Relative humidity
Waveform distortion
No additional wave from distortion
Insulation resistance
Normally more than 2MΩ
Power
500VA
800VA
1000VA
1500VA
2000VA
Packing size(cm)
47.5*28.5*41.5
47.5*28.5*41.5
47.5*28.5*41.5
47.5*28.5*41.5
47.5*28.5*41.5
Packing (pcs)
6
6
6
6
6
G.M(KGS)
17.00
18.66
20.56
21.85
27.35
Our Services
Service for sample:
We can provide sample for your testing
Service for Customization:
We can do as your requirement, we accept OEM.
After-sale service
Policy:1.sent the spareparts, 2 years warranty.
2.sent you the documents of technical skills for repairing the cargo
we will sent the sparepartsfor example,LED display,PCB,carbon brush in case of demage.It will be sent together with the cargos.
PCTZN.pdf
