Visit the ZHEJIANG TTN ELECTRIC CO.,LTD store

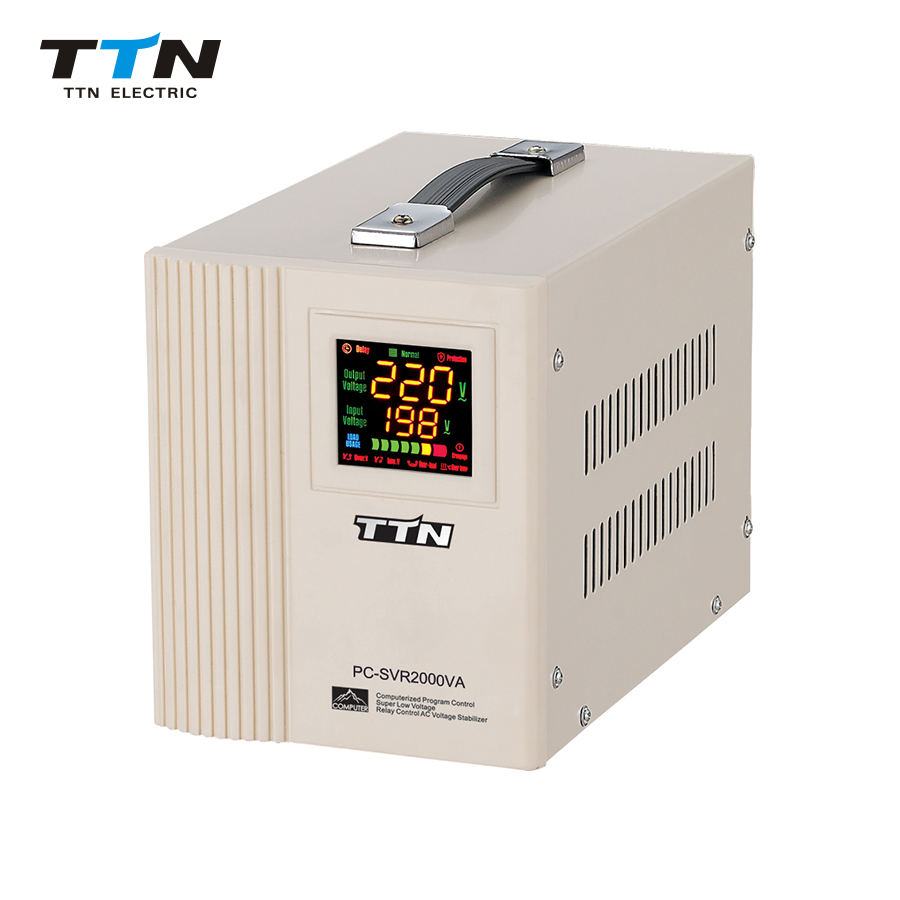

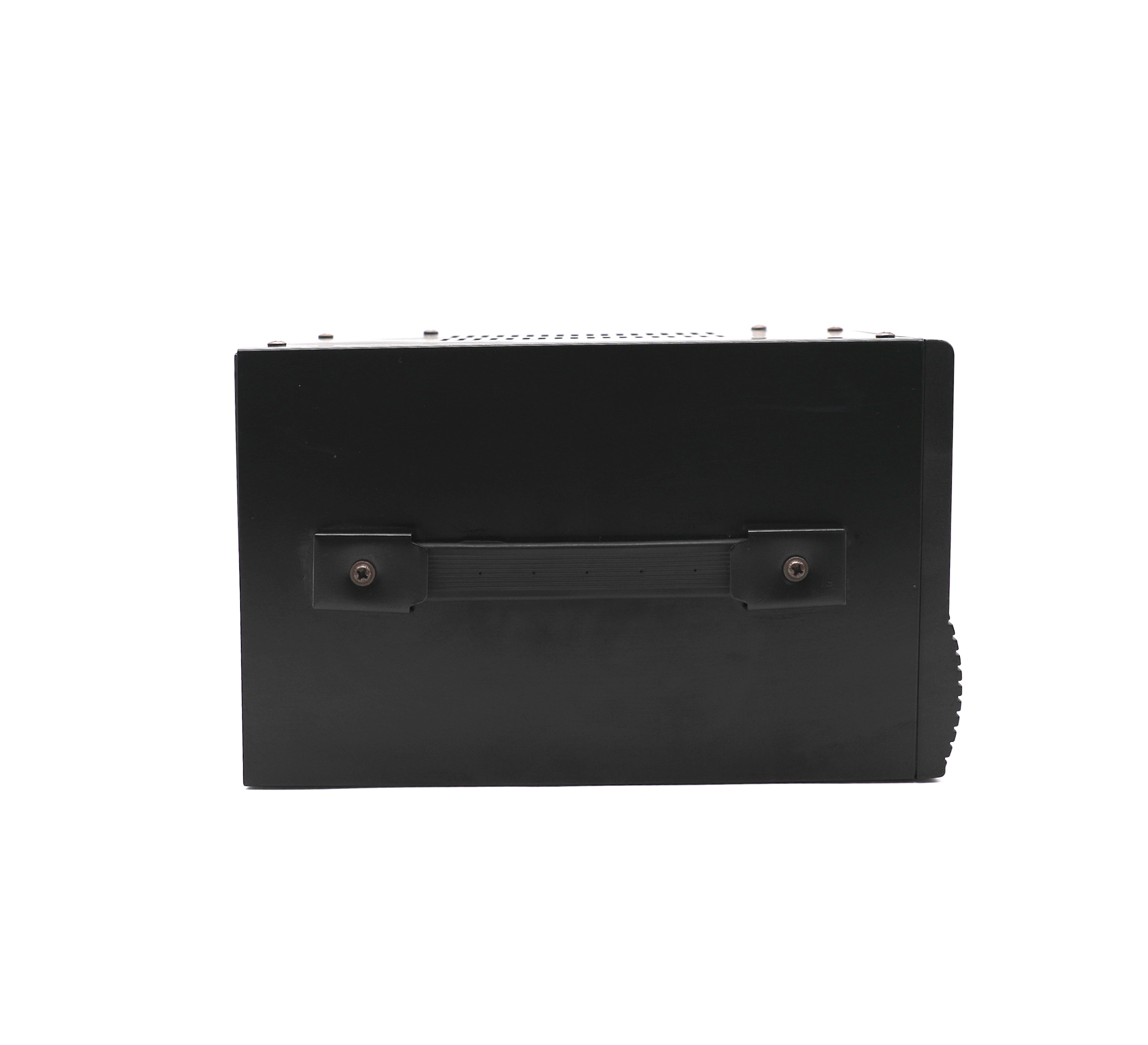

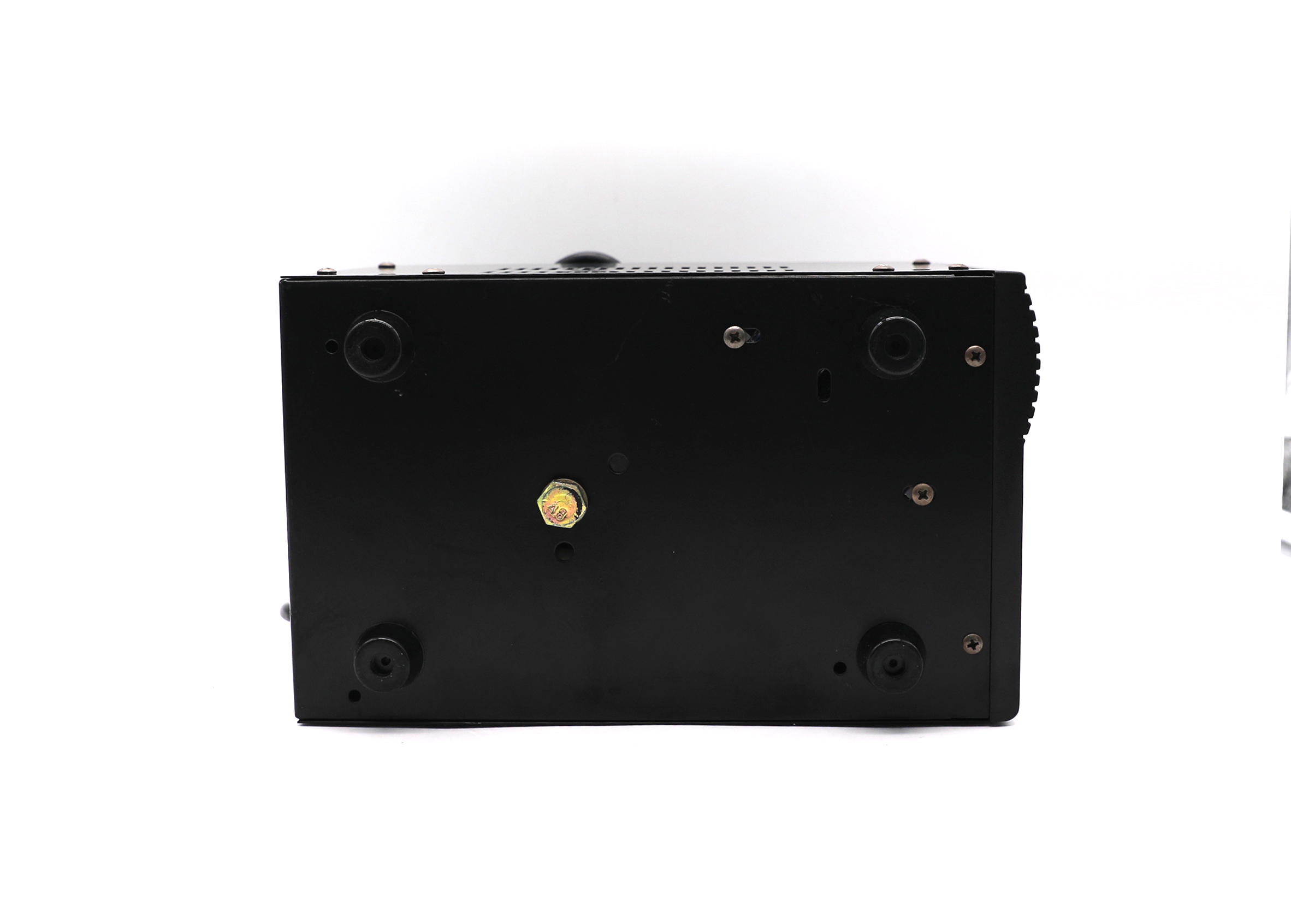

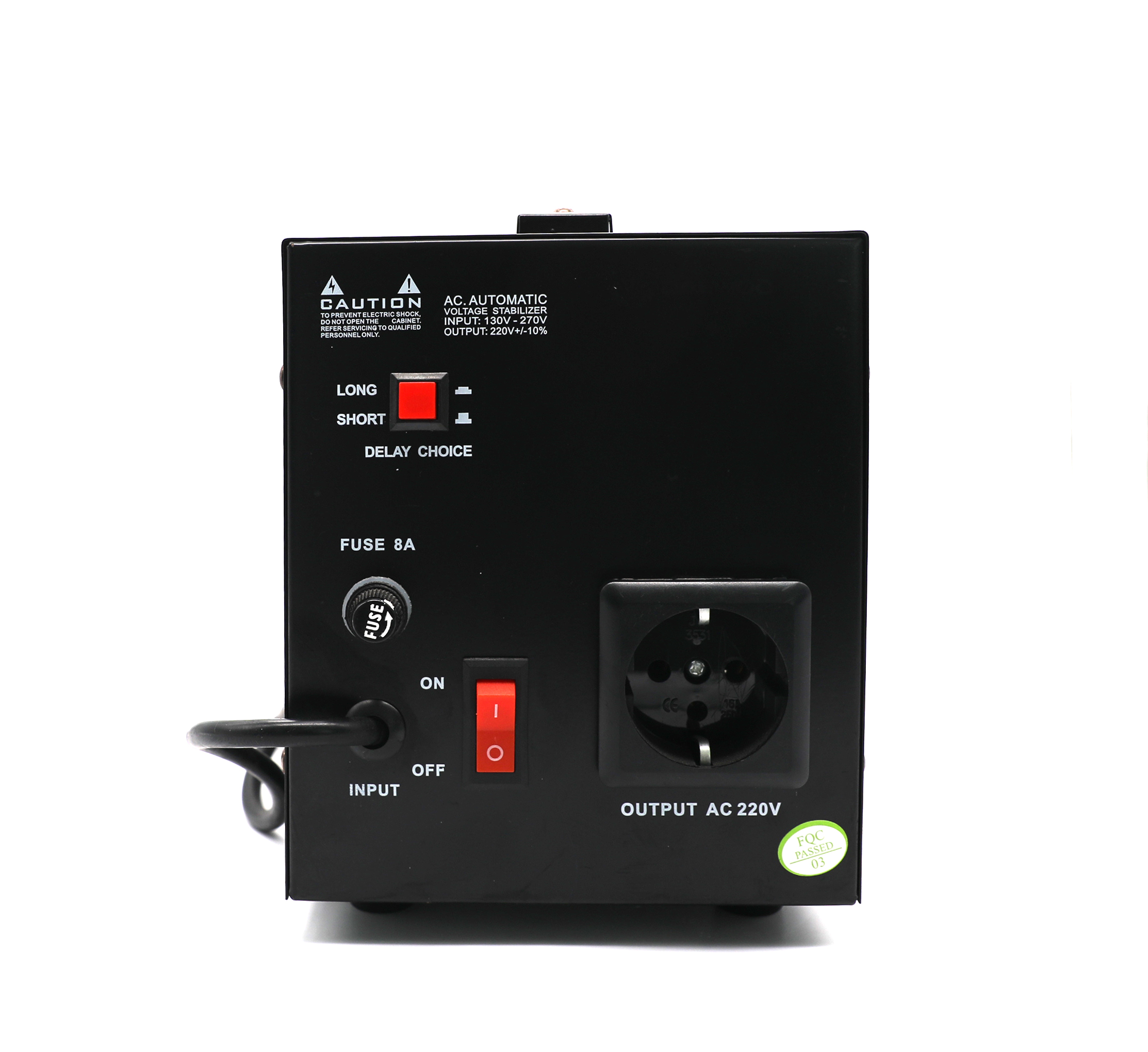

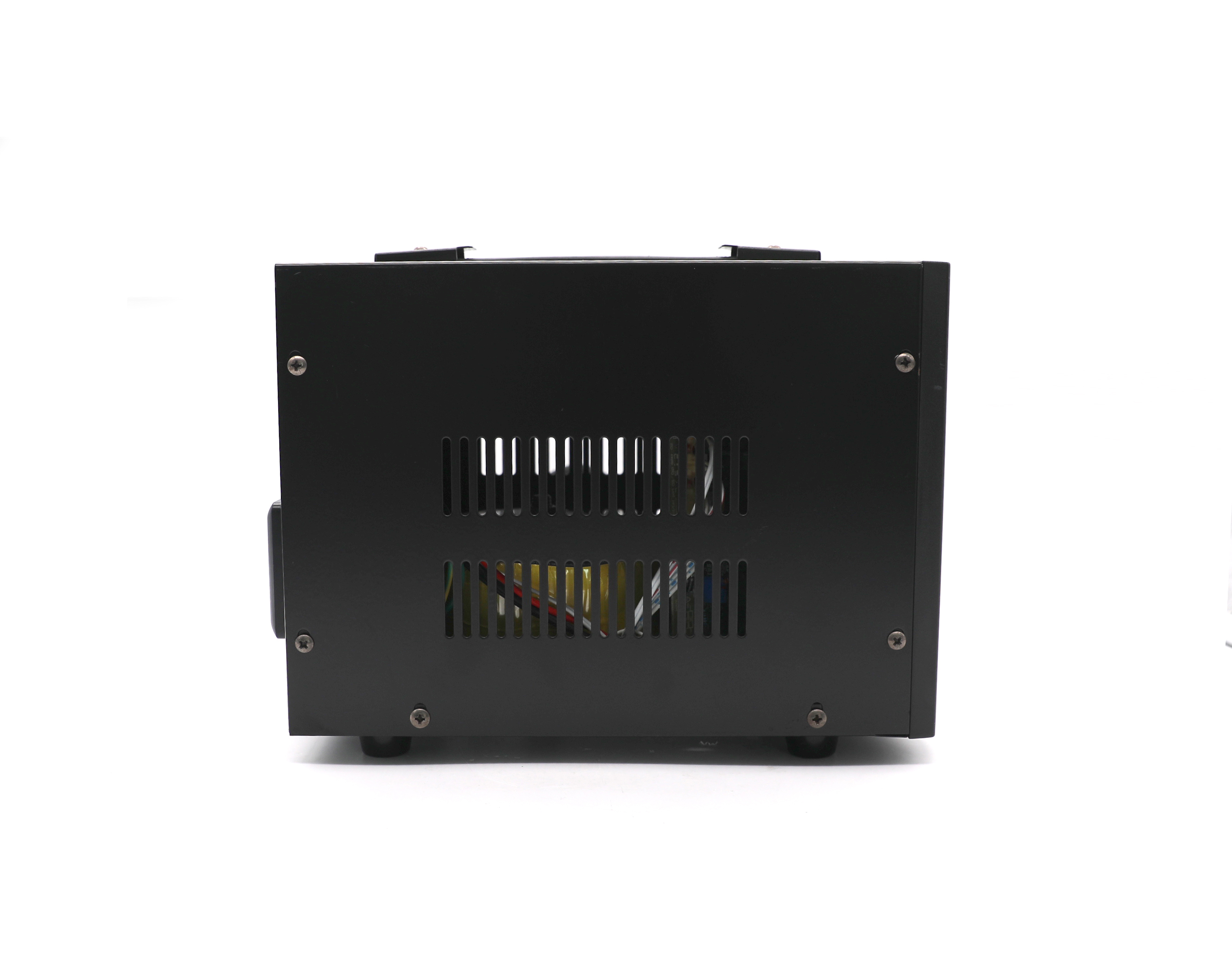

Voltage Regulator

ZHEJIANG TTN ELECTRIC CO.,LTD

10/10 fairsManufacturerModel PC-SVR500VA-12000VA

$1300–$9600/ unit FOB

Unit not stated by the supplier (piece, set, box); we confirm it when we get the quote.

MOQ 100 unit

Estimated landed cost

$78 / unit

range $25–$131 · total ≈ $7,819

Quantity

See what’s included

FOB goods (100): $5,450
Ocean freight + handling (0.30 CBM): $820
US duty (2.7%): $147
Section 301 tariff (25.0%): $1,363
Customs fees (MPF/HMF): $40

Estimate in USD to a US port using category averages (HTS 8536/8504/8507), rates as of 2026-09. Other countries on request. A quote from our desk uses real carton sizes, freight and the exact tariff line.

FOB goods (100): $5,450
Ocean freight + handling (0.30 CBM): $820
US duty (2.7%): $147
Section 301 tariff (25.0%): $1,363
Customs fees (MPF/HMF): $40

Hire sourcing agent for this supplier See all sourcing services

Verify from $29 · written report in 3 business days · 100% refund if not satisfied

Service: From $29 per supplier (Verify)
You get: Phone and video verification, a quote sheet and a written report
Turnaround: 3 business days
Contact details: Sent to you once your request is confirmed

100% refund if not satisfied. The supplier pays us no commission on your order.

Visit the ZHEJIANG TTN ELECTRIC CO.,LTD store

Voltage Regulator

ZHEJIANG TTN ELECTRIC CO.,LTD

10/10 fairsManufacturerModel PC-SVR500VA-12000VA

$1300–$9600/ unit FOB

Unit not stated by the supplier (piece, set, box); we confirm it when we get the quote.

MOQ 100 unit

Estimated landed cost

$78 / unit

range $25–$131 · total ≈ $7,819

Quantity

See what’s included

FOB goods (100): $5,450
Ocean freight + handling (0.30 CBM): $820
US duty (2.7%): $147
Section 301 tariff (25.0%): $1,363
Customs fees (MPF/HMF): $40

FOB goods (100): $5,450
Ocean freight + handling (0.30 CBM): $820
US duty (2.7%): $147
Section 301 tariff (25.0%): $1,363
Customs fees (MPF/HMF): $40

Hire sourcing agent for this supplier See all sourcing services

Verify from $29 · written report in 3 business days · 100% refund if not satisfied

Service: From $29 per supplier (Verify)
You get: Phone and video verification, a quote sheet and a written report
Turnaround: 3 business days
Contact details: Sent to you once your request is confirmed

100% refund if not satisfied. The supplier pays us no commission on your order.

About this product

Materials: Steel , Iron
Size: 400mm*200mm*1200mm
Color: White, Black
Exports to: Africa, USA and Canada, EU, Others
Made in: Zhejiang, China

$1300–$9600/ unit FOB

Unit not stated by the supplier (piece, set, box); we confirm it when we get the quote.

MOQ 100 unit

Estimated landed cost

$78 / unit

range $25–$131 · total ≈ $7,819

Quantity

See what’s included

FOB goods (100): $5,450
Ocean freight + handling (0.30 CBM): $820
US duty (2.7%): $147
Section 301 tariff (25.0%): $1,363
Customs fees (MPF/HMF): $40

FOB goods (100): $5,450
Ocean freight + handling (0.30 CBM): $820
US duty (2.7%): $147
Section 301 tariff (25.0%): $1,363
Customs fees (MPF/HMF): $40

Hire sourcing agent for this supplier See all sourcing services

Verify from $29 · written report in 3 business days · 100% refund if not satisfied

Service: From $29 per supplier (Verify)
You get: Phone and video verification, a quote sheet and a written report
Turnaround: 3 business days
Contact details: Sent to you once your request is confirmed

100% refund if not satisfied. The supplier pays us no commission on your order.

About this product

Materials: Steel , Iron
Size: 400mm*200mm*1200mm
Color: White, Black
Exports to: Africa, USA and Canada, EU, Others
Made in: Zhejiang, China

Product details

Materials	Steel , Iron
Size	400mm200mm1200mm
Color	White, Black

Product details

Materials	Steel , Iron
Size	400mm200mm1200mm
Color	White, Black

From the supplier

MODEL

PC-SVR500VA

PC-SVR800VA

PC-SVR1000VA

PC-SVR1500VA

PC-SVR2000VA

PC-SVR3000VA

PC-SVR5000VA

PC-SVR8000VA

PC-SVR10000VA

PC-SVR12000VA

TECHNOLOGY

RELAY CONTROL SYSTERM+MICRO COMPUTER PROGRAMED CONTROL

LED DISPLAY

INFORMATION

INPUT VOLTAGE/OUTPUT VOLTAGE/LOAD USAGE/TIME DELAY/NORMAL WORKING/PROTECTION

PROTECTION

Over Voltage

Output Voltage≥243±4v

Low Voltage

Output Voltage≤188v±4v

Over Loading

More Than 120%

Over Temperture

120℃±10℃

Delay Time

Long time(255 seconds)/Short time(5 seconds)

Creepage

Language

English/Russia/Chinese

Input Voltage

AC150-270V(A TYPE);AC135-AC270V(B TYPE)

AC105-AC270(C TYPE);AC80V-AC270V(DTYPE)

Output Voltage

220+/-10% adjustable

Frequency

50Hz/60Hz

Phase

Single phase

Efficency

≥90%

Ambient Temperature

-15℃-45℃

Relative humidity

Waveform distortion

No additional wave from distortion

Insulation resistance

Normally more than 2MΩ

Power

500VA

800VA

1000VA

1500VA

2000VA

Packing size(cm)

35.8*30.3*42.3

39.6*35.3*46.7

Packing (pcs)

G.M(KGS)

12.33

13.25

14.51

15.27

24.66

Power

3000VA

5000VA

8000VA

10000VA

12000VA

Packing size(cm)

38.6*27.7*29.8

43.3*27.7*29.8

44.2*30.4*37.1

Packing (pcs)

PCSVR.pdf

From the supplier

MODEL

PC-SVR500VA

PC-SVR800VA

PC-SVR1000VA

PC-SVR1500VA

PC-SVR2000VA

PC-SVR3000VA

PC-SVR5000VA

PC-SVR8000VA

PC-SVR10000VA

PC-SVR12000VA

TECHNOLOGY

RELAY CONTROL SYSTERM+MICRO COMPUTER PROGRAMED CONTROL

LED DISPLAY

INFORMATION

INPUT VOLTAGE/OUTPUT VOLTAGE/LOAD USAGE/TIME DELAY/NORMAL WORKING/PROTECTION

PROTECTION

Over Voltage

Output Voltage≥243±4v

Low Voltage

Output Voltage≤188v±4v

Over Loading

More Than 120%

Over Temperture

120℃±10℃

Delay Time

Long time(255 seconds)/Short time(5 seconds)

Creepage

Language

English/Russia/Chinese

Input Voltage

AC150-270V(A TYPE);AC135-AC270V(B TYPE)

AC105-AC270(C TYPE);AC80V-AC270V(DTYPE)

Output Voltage

220+/-10% adjustable

Frequency

50Hz/60Hz

Phase

Single phase

Efficency

≥90%

Ambient Temperature

-15℃-45℃

Relative humidity

Waveform distortion

No additional wave from distortion

Insulation resistance

Normally more than 2MΩ

Power

500VA

800VA

1000VA

1500VA

2000VA

Packing size(cm)

35.8*30.3*42.3

39.6*35.3*46.7

Packing (pcs)

G.M(KGS)

12.33

13.25

14.51

15.27

24.66

Power

3000VA

5000VA

8000VA

10000VA

12000VA

Packing size(cm)

38.6*27.7*29.8

43.3*27.7*29.8

44.2*30.4*37.1

Packing (pcs)

PCSVR.pdf

About the supplier

ZHEJIANG TTN ELECTRIC CO.,LTD

Main products: Ac. automatic voltage regulators/stabilizers,Electric voltage stabilizer,Household voltage stabilizer,Other stabilizers,Solar inverter,Pure sine inverter,Inverter,Solar Cell and Module,Inverter,Installation System,Transverter,Controller
