VHE-12 Indoor High-Voltage Vacuum Circuit Breaker (Insulating Tube Structure)
VHE-12 indoor high voltage vacuum circuit breaker (Insulating cylinder structure)

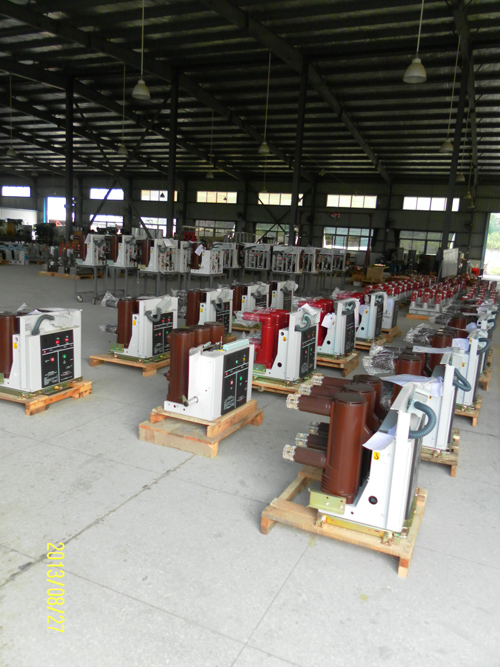

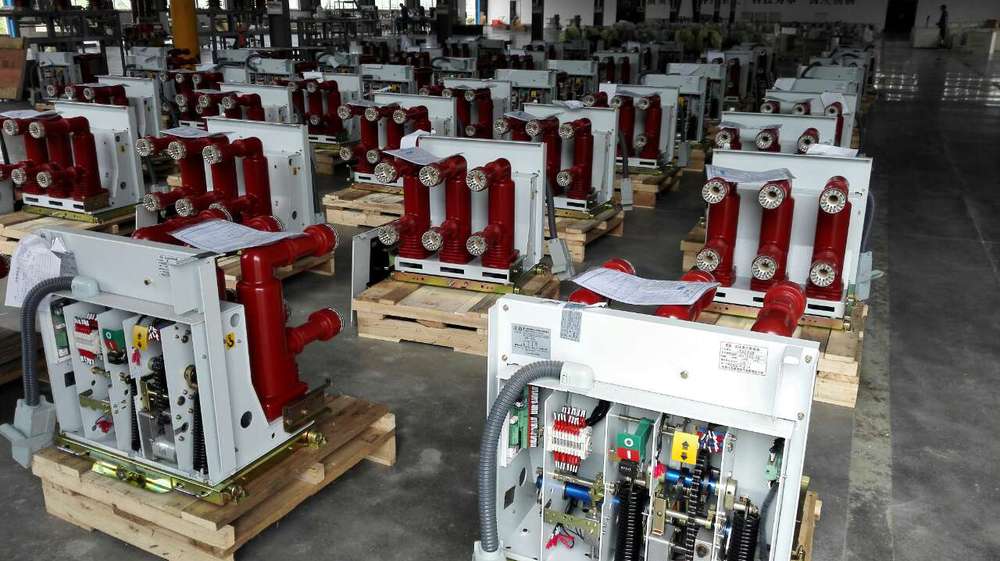

■ OverviewOverview
VHE-12 Vacuum Circuit BreakerRated Voltage 12kV, Indoor distribution in 50Hz three-phase AC systemIs an independently developed new product by the company, owns independent intellectual property, fully compatible with VS1, VD4 and other productsSuitable for mining, power plants, substations as protection and control for electrical equipment, particularly for oil-free, low-maintenance and frequent-operation applications, can be configured in medium-voltage cabinets, double-layer cabinets, fixed cabinets for high-voltage electrical equipment control and protection. Product complies with GB1984-2003、DL/T403-1999As specified in IEC Standards 56 and 694 publications and other standards.
Main Features:
1. Circuit breaker adopts integrated design of operating mechanism and breaker main body, reasonable overall layout, beautiful, simple
2, Circuit BreakerVertical Insulation Sleeves Protect Against Various Environmental Impacts. Circuit Breaker Suitable for Various Special Environmental Conditions；
Two Installation Types: Fixed and Portable
4、Low maintenance, typically minor cleaning or lubrication of actuating mechanisms.
VHE-12 vacuum circuit breaker with 12KV rated voltage，Indoor distribution device of three-phase ac 50HZ， Is a new product that developed by our company independently. We have the intellectual property rights， The product can be compatible with the VS1.VD4 and so on. Available for industrial and mining enterprises，Power plant and substation in electric equipment protection and control，Especially suitable for the fields of free oil， less maintenance and frequent operation. It can be configured in the centrally installed switchgear，Double switchgear，Fixed switchdaer for control and protection of the high voltage electrical equipment. It meets the standard of GB1984-2003, DL/T403-1999, IEC56, 694 publication. The main characteristics of the product are：
- ① Circuit breaker operating mechanism and circuit breaker ontology integration design，The overall layout is reasonable, beautiful and concise；
- ② Circuit breaker can defense all kinds of environmental impact because of its used vertical insulation sleeve，Therefore circuit breaker can be applied to all kinds of special environmental conditions；
- ③ Fixed and handcart types can satisfy different equipped requirements for cabinet and circuit breaker；
④ Few maintenance，Usually the operating mechanism only need doing a bit of cleaning or lubrication.
■ Model Name and DescriptionThe model name and meaning
V H E–12 / □ – □
Rated Short-Circuit Breaking Current (KA)
Rated Current (A)
Rated Voltage (kV)
Product Design Number
Hanguang Senyuan
Vacuum Circuit Breaker
V H E – 12 / □ – □
Rated short circuit breaking current（KA）
Rated current（A）
Rated voltage（KV）
Product series No.
Hanguang Senyuan brand
Vacuum circuit breaker
■ Operating Environment ConditionsThe normal conditions
- u Environmental Temperature: ≤+40℃, ≥-15℃ (Storage/Transport at -30℃ Allowed)
- u Ambient temperature: max +40°C min -15℃(conveyance under -30℃ is allowed)；
- u Altitude Not Exceeding 1000m;
- u Altitude: ≤1000m；
- u Relative humidity: daily average not exceeding 95%, monthly average not exceeding 90%, saturation vapor pressure daily average not exceeding 2.2x10-3MPa, Monthly Average No More Than 1.8x10-3MPa；
- u Relative humidity: daily average relative humidity: ≤95%; monthly average relative humidity:≤90%; daily average saturated vapor pressure: ≤2.2*10-3 MPa; monthly average value :≤1.8*10-3 MPa；
- u Earthquake Intensity Not Exceeding 8 Degrees;
- u Earthquake intensity: ≤8 degree；
- u No Fire, Explosion Hazard, Serious Filth, Chemical Corrosion and Intense Vibration Locations;
- u The installation site should be no explosion，severe vibration， chemical corrosion and serious pollution.
■ Main Technical ParametersMain Technical Data
Serial Number
No.
Item
Item
Unit
Unit
value
Value
1
Rated VoltageRated voltage
KV
12
2
Rated Insulation Level
Rated insulation level
Rated Lightning Impulse Withstand Voltage Peak Value
Rated lighting impulse withstand voltage (peak)
KV
Phase-to-Phase, Phase-to-Ground75，breaking point80
1min Industrial Frequency Voltage Withstand
Short-time power frequency withstand voltage(1min)
KV
Phase-to-Phase, Phase-to-Ground42，breaking point48
3
Rated Short-Circuit Breaking Current
Rated short circuit breaking current
KA
20
25
31.5
40
4
Rated Current
Rated current
A
630
1250
630 1250
1600 2000
2500 3150
1250 1600
2000 2500
3150 4000
5
Rated Thermal Stable Current (Effective Value)
Rated thermo stability current(valid)
KA
20
25
31.5
40
6
Rated Dynamic Stable Current (Peak)
Rated dynamic stability current(peak)
KA
50
63
80
100
7
Rated Short-Circuit Closing Current (Peak Value)
Rated short-circuit making current(peak)
KA
50
63
80
100
8
Rated Short-Circuit Breaking Times
Rated operations of short-circuit breaking current interruption
Secondary
50 (40KA is 30)
9
Secondary Circuit Power Frequency Withstand Voltage (1 min)
Power frequency withstand voltage of secondary circuit(1 min)
V
2000
10
Rated Operating Sequence
Rated operating sequence
Open-0.3S-Close Open-180S-Close/Open-180S-Close Open-180S-Close (40KA)
Opening-0.3S-closingopening-180S-closing opening/opening-180S-closing opening-180S-closing opening(40KA)
11
Rated Thermal Stability TimeRated thermo stability time
S
4
12
Rated Single/Back-to-Back Capacitor Group Breaking Current
Rated breaking current(a capacitor/back to back capacitor)
A
630/400 800/400(40KA)
13
Mechanical LifeMechanical life
Secondary
30000
Requires forced air cooling at 4000A rated current
Note：When the rated current reached 4000A, You need enforce air cooling.
■ Mechanical Characteristic Adjustment ParametersMechanical characteristics of circuit breaker assembly after adjustment
Serial Number
No.
Item
Item
Unit
Unit
value
Value
1
Contact GapContact distance
mm
10±1
2
Contact OvertravelContact over travel
mm
3.5±0.5
3
Opening SpeedOpening speed
m/s
1.0±0.2
4
Closing SpeedClosing speed
m/s
0.6±0.2
5
Contact Closing Bounce Time
Contact bouncing duration at closing operation
ms
≤2
6
Phase SpacingDistance
mm
210±1.5 / 275±1.5
7
Three-Phase Switch AsynchronizationThree-pole simultaneity
ms
≤2
8
Each Phase Conductive Circuit Resistance
Conductive circuit resistance of each phases
μΩ
≤60(630A)、≤50(1250A)
≤35 (1600-2000A), ≤25 (2500A and Above)
9
Closing TimeClosing time
ms
35～70
10
DivisionGate TimeOpening time
ms
15～50
■ Outline Dimension DrawingDimensions
VHE-12 Fixed (210 Phase Spacing) Outline
Pic 1 VHE-12 fixd type (210mm phase spacing）dimensions
Figure 2 VHE-12 Fixed Type (275 Phase Spacing Small Insulating Cylinder) Outline Dimensions
Pic 2 VHE-12 fixd type (275mm phase spacing small insulation tube）dimensions
Figure 3 VHE-12 Fixed Type (275 Phase Spacing Large Insulating Cylinder) Outline Dimensions
Pic 3 VHE-12 fixd type (275mm phase spacing big insulation tube）dimensions
VHE-12 Hand Car (210 Phase Spacing) Outline
Pic4 VHE-12 handcart type (210mm phase spacing）dimensions
Figure 5 VHE-12 Hand Truck Type (275 Phase Spacing Small Insulating Cylinder) Outline Dimensions
Pic 5 VHE-12 handcart type (275mm phase spacing small insulation tube）dimensions
Figure 6 VHE-12 Hand Truck Type (275 Phase Spacing Large Insulating Cylinder) Outline Dimensions
Pic 6 VHE-12 handcart type (275mm phase spacing big insulation tube）dimensions
■ Order InformationOrder guidelines
- l Product Name, Model, Specification and Order Quantity;
- l Rated Current, Rated Voltage;
- l Rated Short-Circuit Breaking Current, Secondary Circuit Operating Voltage;
- l Spare Parts Name and Quantity;
- l Other Circuit Breaker Requirements by Agreement
- l Product name、Model、Specification and order quantity；
- l Rated voltage a、Rated current；
- l Rated short-circuit breaking current、Secondary loop voltage operation；
- l Other spare parts name and quantity；
- l Please contact with manufacturer if you have other special requirements.
