CTB Spring Operating Mechanism VCB Parts
WENZHOU SINO-AMIGO IMPORT&EXPORT CORP
The supplier hasn’t listed a price. We can get their current prices and MOQ.
Verify from $29 · written report in 3 business days · 100% refund if unreachable
CTB Spring Operating Mechanism VCB Parts
WENZHOU SINO-AMIGO IMPORT&EXPORT CORPThe supplier hasn’t listed a price. We can get their current prices and MOQ.
Verify from $29 · written report in 3 business days · 100% refund if unreachable
About this product
- Materials: CTB Spring Operating Mechanism VCB Parts
- Size: 433*140*186（W*D*H）
- Color: RAL 7035
- Exports to: Africa, Middle East, Southeast Asia, South Asia, Central Asia, Latin America
- Made in: Zhejiang, China
About this product
- Materials: CTB Spring Operating Mechanism VCB Parts
- Size: 433*140*186（W*D*H）
- Color: RAL 7035
- Exports to: Africa, Middle East, Southeast Asia, South Asia, Central Asia, Latin America
- Made in: Zhejiang, China
Product details
| Materials | CTB Spring Operating Mechanism VCB Parts |
|---|---|
| Size | 433*140*186（W*D*H） |
| Color | RAL 7035 |
Product details
| Materials | CTB Spring Operating Mechanism VCB Parts |
|---|---|
| Size | 433*140*186（W*D*H） |
| Color | RAL 7035 |
From the supplier
Product Description:
Energy storage motor adopts unidirectional permanent DC motor, technical parameter as Table:
Item
ZYJ220-53-216 ZYJ110-53-216 ZYJ48-53-216 ZYJ24-53-216Rated operate voltage (V)
DC220 DC110 DC48 DC24Rated power (W)
40 40 40 40Normal operating voltage range
85%-110% 85%-110% 85%-110% 85%-110%Rated operating current(A)
0.5 1.0 1.8 4.6Motor energy storage time (S)
≤8 ≤8 ≤8 ≤8
Closing/Opening electromagnet adopt solenoid electromagnet, technical parameter as Table:
Rated operate voltage (V)
AC220 AC110 DC200 DC110 DC48 DC24Rated operating current(A)
1.36 3.6 2 5.3 10 20Rated power (W)
<300 <396 <440 <583 <480 <480Coil resistance at 20°C (Ω）
54 10.3 106 20.5 4.8 1.2Normal operating voltage range
Open at 65%~120% rated operate voltage; do not open when less than 30% rated operate voltage
Close at 85%~110% rated operate voltage; do not close when less than 30% rated operate voltage

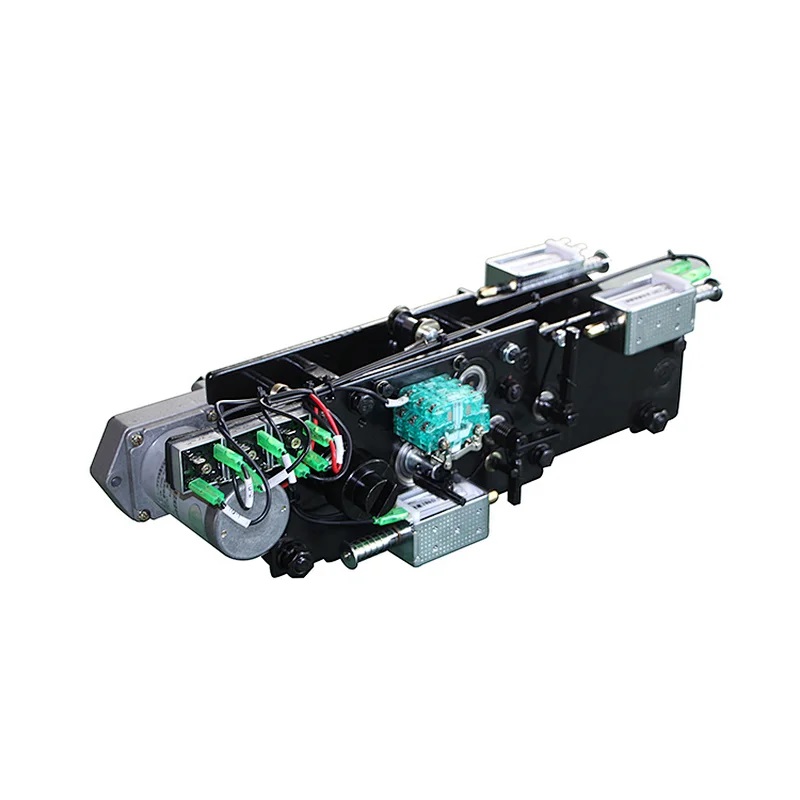

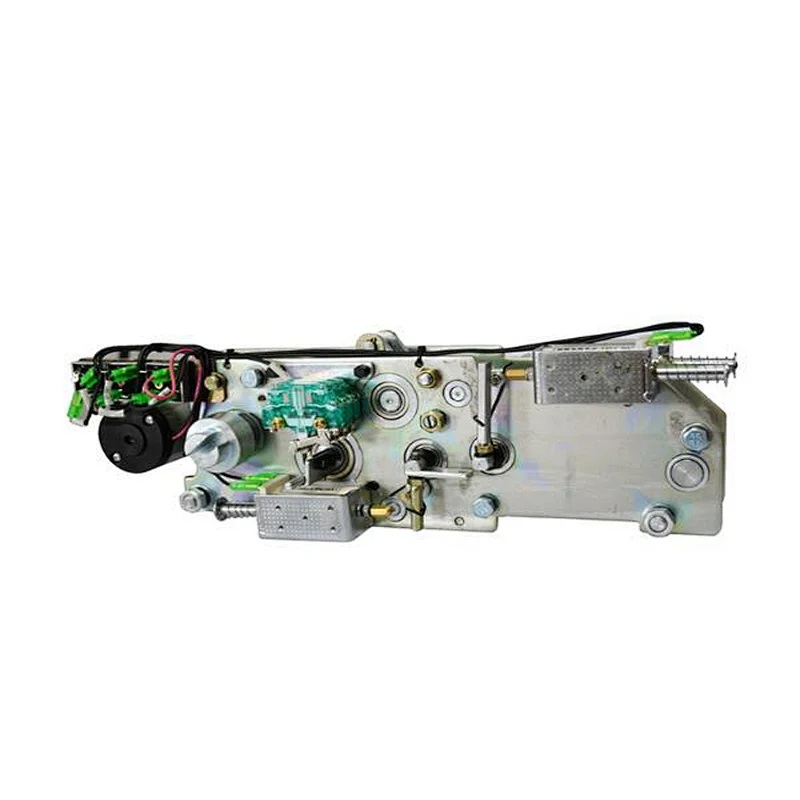

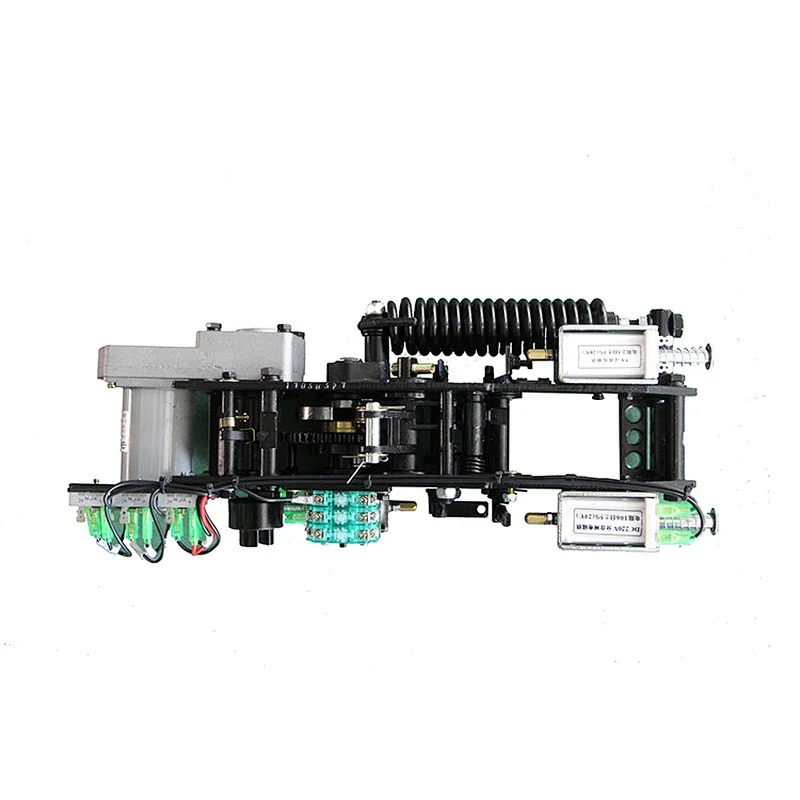

Manual energy storage is operated by the handle allocated with the mechanism, the operating force less than 100 (N.m) Mechanism output angle 40 degrees. CTB spring operating mechanism will be used in ZW32-12 outdoor high voltage vacuum circuit breaker (designed by Beijing Electrical Science Academy) and outdoor or indoor vacuum circuit breaker with equivalent closing power, its performances can meet the requirements of GB1984 AC High Voltage Circuit Breaker and the product's Technical Conditions; CTB-S manual operating mechanism holds functions of manual energy-storage; manual closing/opening; overcurrent protection. CTB-D motor operating mechanism functions include motor or manual energy-storage; electromagnet or manual closing/opening; overcurrent protection. To realize overcurrent protection, the controller holds functions of surge current, time delay, and fast breaking.
From the supplier
Product Description:
Energy storage motor adopts unidirectional permanent DC motor, technical parameter as Table:
Item
ZYJ220-53-216 ZYJ110-53-216 ZYJ48-53-216 ZYJ24-53-216Rated operate voltage (V)
DC220 DC110 DC48 DC24Rated power (W)
40 40 40 40Normal operating voltage range
85%-110% 85%-110% 85%-110% 85%-110%Rated operating current(A)
0.5 1.0 1.8 4.6Motor energy storage time (S)
≤8 ≤8 ≤8 ≤8
Closing/Opening electromagnet adopt solenoid electromagnet, technical parameter as Table:
Rated operate voltage (V)
AC220 AC110 DC200 DC110 DC48 DC24Rated operating current(A)
1.36 3.6 2 5.3 10 20Rated power (W)
<300 <396 <440 <583 <480 <480Coil resistance at 20°C (Ω）
54 10.3 106 20.5 4.8 1.2Normal operating voltage range
Open at 65%~120% rated operate voltage; do not open when less than 30% rated operate voltage
Close at 85%~110% rated operate voltage; do not close when less than 30% rated operate voltage
Manual energy storage is operated by the handle allocated with the mechanism, the operating force less than 100 (N.m) Mechanism output angle 40 degrees. CTB spring operating mechanism will be used in ZW32-12 outdoor high voltage vacuum circuit breaker (designed by Beijing Electrical Science Academy) and outdoor or indoor vacuum circuit breaker with equivalent closing power, its performances can meet the requirements of GB1984 AC High Voltage Circuit Breaker and the product's Technical Conditions; CTB-S manual operating mechanism holds functions of manual energy-storage; manual closing/opening; overcurrent protection. CTB-D motor operating mechanism functions include motor or manual energy-storage; electromagnet or manual closing/opening; overcurrent protection. To realize overcurrent protection, the controller holds functions of surge current, time delay, and fast breaking.
