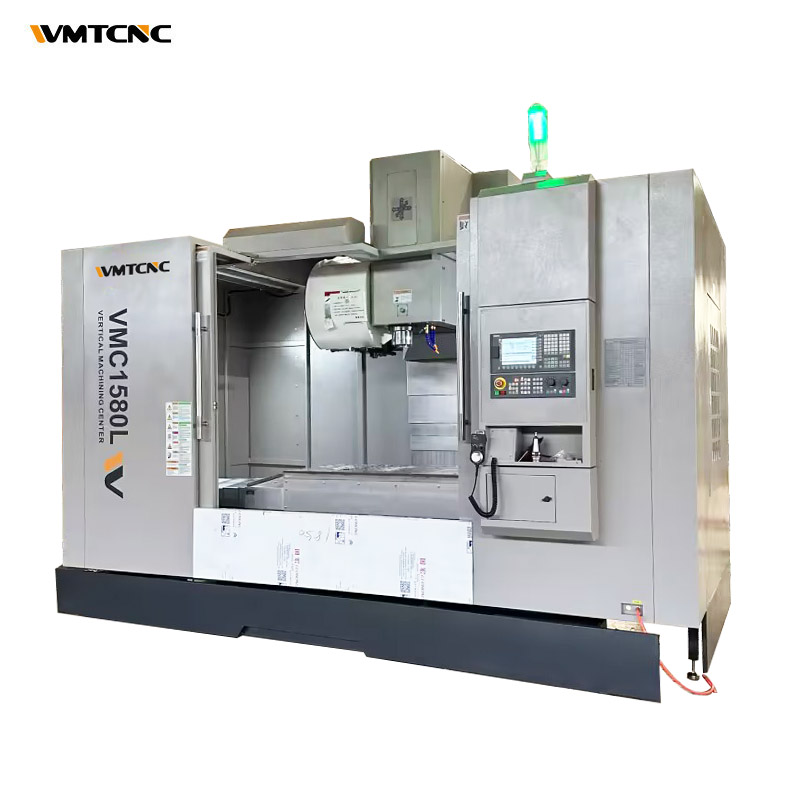

Vertical Machining Center VMC1580L
The supplier hasn’t listed a price. We can get their current prices and MOQ.
- Service
- From $29 per supplier (Verify)
- You get
- Phone and video verification, a quote sheet and a written report
- Turnaround
- 3 business days
- Contact details
- Sent to you once your request is confirmed
If we can't reach the supplier within 3 business days, we refund the fee.
Vertical Machining Center VMC1580L
The supplier hasn’t listed a price. We can get their current prices and MOQ.
- Service
- From $29 per supplier (Verify)
- You get
- Phone and video verification, a quote sheet and a written report
- Turnaround
- 3 business days
- Contact details
- Sent to you once your request is confirmed
If we can't reach the supplier within 3 business days, we refund the fee.
About this product
- Materials: metal
- Size: 3800×2720×3610mm
- Color: black,grey
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Japan and South Korea, Hong Kong China, Macao China and Taiwan China
- Made in: Anhui, China
About this product
- Materials: metal
- Size: 3800×2720×3610mm
- Color: black,grey
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Japan and South Korea, Hong Kong China, Macao China and Taiwan China
- Made in: Anhui, China
Product details
| Materials | metal |
|---|---|
| Size | 3800×2720×3610mm |
| Color | black,grey |
From the supplier
4 axis cnc machining center VMC1580L with advanced international standard of designing, modern structure, high-quality components and spare parts introduced to this machine tool, no matter precise elements machining or mould processing, WMTCNC BRAND 4 axis cnc machining center VMC1580L will offer you perfect service by excellent performance, strong rigidity, long-term stability and higher accuracy.
Specification Specification VMC1580L Worktable Worktable size (L×W) 1600×800mm T-slots size (N×W×D) 5-22x135mm Travel X/Y/Z axis travel 1500/800/700mm Machining range Distance from spindle center to column 855mm Distance from spindle nose to worktable surface 190-890mm Spindle Spindle taper BT40/BT50 Spindle power 11/15kw Max. spindle speed 8000/6000rpm Feed Max. feed speed 10m/min Rapid feed speed (X/Y/Z) 24/24/20m/min Ball screw (diameter+lead) X/Y/Z axis ball screw 5012 Tool magazine Tool magazine capacity 24T Max. length of tool 300mm Tool change time 1.5s Positioning accuracy (National standard) Positioning accuracy (X/Y/Z) 0.01mm Re-positioning accuracy(X/Y/Z) ±0.008mm Machine dimension L×W×H 3800×2720×3610mm Machine weight Max. loading of worktable 1500kg Machine weight 13000kgMachine Details
About the supplier
Main products: Lathe,Miller,Press brake,Grinding machine,CNC Machining center,Drilling machine,Planing Machine/Slotting Machine,Drilling and Milling Machine,Milling Lathe
- ✓Exhibited at 10 of the last 10 Canton Fairs
- ✓Foreign Trade Company
- ✓Founded 2014
- ✓1 certificate on file
- Exhibited at 10 of the last 10 Canton Fairs
- Foreign Trade Company
- Founded 2014
- 1 certificate on file
