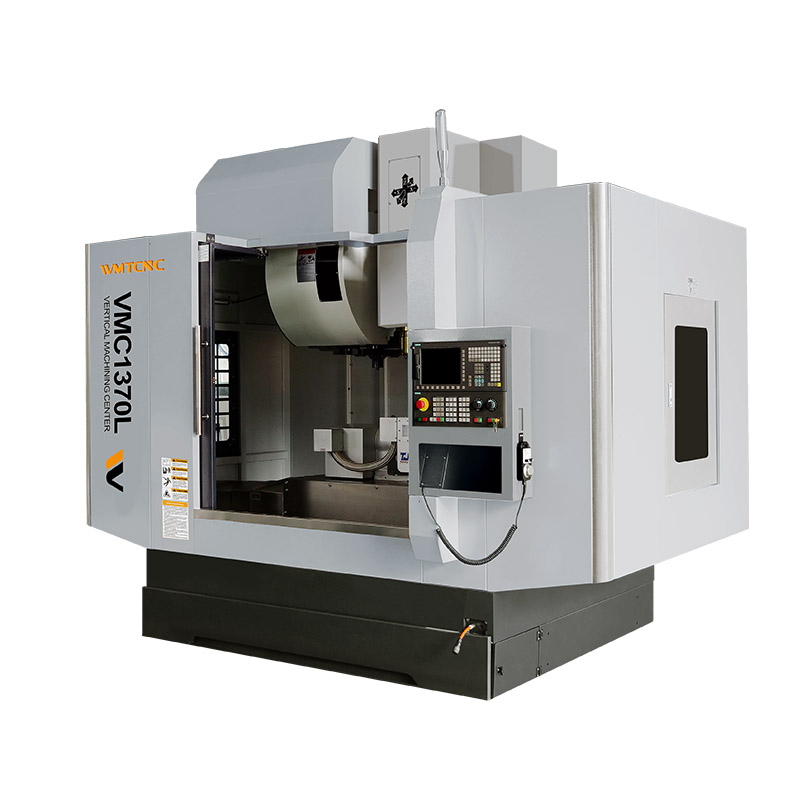

Vertical Machining Center VMC1370L
The supplier hasn’t listed a price. We can get their current prices and MOQ.
Verify from $29 · written report in 3 business days · 100% refund if unreachable
Vertical Machining Center VMC1370L
The supplier hasn’t listed a price. We can get their current prices and MOQ.
Verify from $29 · written report in 3 business days · 100% refund if unreachable
About this product
- Materials: metal
- Size: 3200×2540×2600mm
- Color: black and grey
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Japan and South Korea, Hong Kong China, Macao China and Taiwan China
- Made in: Anhui, China
About this product
- Materials: metal
- Size: 3200×2540×2600mm
- Color: black and grey
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Japan and South Korea, Hong Kong China, Macao China and Taiwan China
- Made in: Anhui, China
Product details
| Materials | metal |
|---|---|
| Size | 3200×2540×2600mm |
| Color | black and grey |
Product details
| Materials | metal |
|---|---|
| Size | 3200×2540×2600mm |
| Color | black and grey |
From the supplier
Introducing the WMTCNC 5 Axis CNC VMC1370L Vertical Machining Center, a cutting-edge precision machine designed to deliver exceptional performance and unparalleled results. With its BT40 spindle and a rapid speed of 8000 RPM, this versatile machining center is built to tackle a wide range of machining tasks with ease.
Equipped with the capability to accommodate a fourth or fifth axis, the 5 axis cnc vertical machining center VMC1370L offers enhanced flexibility, allowing you to expand your machining capabilities and tackle complex projects with precision and efficiency.
WMTCNC brand is known for its commitment to excellence, and the 5 Axis CNC VMC1370L is no exception. This vertical five-axis CNC machining center is built with robust rigidity, ensuring optimal stability and long-term reliability. Whether you’re working on small-scale projects or large-scale production, this machine is designed to provide consistent and accurate performance, delivering impeccable results every time.
Experience the perfect blend of power, precision, and stability with the WMTCNC VMC1370L Vertical Machining Center. Unleash your creativity and unlock new possibilities in machining with this exceptional machine.
Specification Specification VMC1370L Worktable Worktable size (L×W) 1400×700mm T-slots size (N×W×D) 5-18x110mm Travel X/Y/Z axis travel 1300/700/700mm Machining range Distance from spindle center to column 750mm Distance from spindle nose to worktable surface 110-810mm Spindle Spindle taper BT40 Spindle power 11kw Max. spindle speed 8000rpm Feed Max. feed speed 10m/min Rapid feed speed (X/Y/Z) 24/24/20m/min Ball screw (diameter+lead) X/Y/Z axis ball screw 4512 Tool magazine Tool magazine capacity 24T Max. length of tool 300mm Tool change time 1.5s Positioning accuracy (National standard) Positioning accuracy (X/Y/Z) ±0.008mm Re-positioning accuracy(X/Y/Z) ±0.003mm Machine dimension L×W×H 3200×2540×2600mm Machine weight Max. loading of worktable 1000kgMachine Details
From the supplier
Introducing the WMTCNC 5 Axis CNC VMC1370L Vertical Machining Center, a cutting-edge precision machine designed to deliver exceptional performance and unparalleled results. With its BT40 spindle and a rapid speed of 8000 RPM, this versatile machining center is built to tackle a wide range of machining tasks with ease.
Equipped with the capability to accommodate a fourth or fifth axis, the 5 axis cnc vertical machining center VMC1370L offers enhanced flexibility, allowing you to expand your machining capabilities and tackle complex projects with precision and efficiency.
WMTCNC brand is known for its commitment to excellence, and the 5 Axis CNC VMC1370L is no exception. This vertical five-axis CNC machining center is built with robust rigidity, ensuring optimal stability and long-term reliability. Whether you’re working on small-scale projects or large-scale production, this machine is designed to provide consistent and accurate performance, delivering impeccable results every time.
Experience the perfect blend of power, precision, and stability with the WMTCNC VMC1370L Vertical Machining Center. Unleash your creativity and unlock new possibilities in machining with this exceptional machine.
Specification Specification VMC1370L Worktable Worktable size (L×W) 1400×700mm T-slots size (N×W×D) 5-18x110mm Travel X/Y/Z axis travel 1300/700/700mm Machining range Distance from spindle center to column 750mm Distance from spindle nose to worktable surface 110-810mm Spindle Spindle taper BT40 Spindle power 11kw Max. spindle speed 8000rpm Feed Max. feed speed 10m/min Rapid feed speed (X/Y/Z) 24/24/20m/min Ball screw (diameter+lead) X/Y/Z axis ball screw 4512 Tool magazine Tool magazine capacity 24T Max. length of tool 300mm Tool change time 1.5s Positioning accuracy (National standard) Positioning accuracy (X/Y/Z) ±0.008mm Re-positioning accuracy(X/Y/Z) ±0.003mm Machine dimension L×W×H 3200×2540×2600mm Machine weight Max. loading of worktable 1000kgMachine Details
About the supplier
Main products: Lathe,Miller,Press brake,Grinding machine,CNC Machining center,Drilling machine,Planing Machine/Slotting Machine,Drilling and Milling Machine,Milling Lathe
- ✓Exhibited at 10 of the last 10 Canton Fairs
- ✓Foreign Trade Company
- ✓Founded 2014
- ✓1 certificate on file
- Exhibited at 10 of the last 10 Canton Fairs
- Foreign Trade Company
- Founded 2014
- 1 certificate on file
