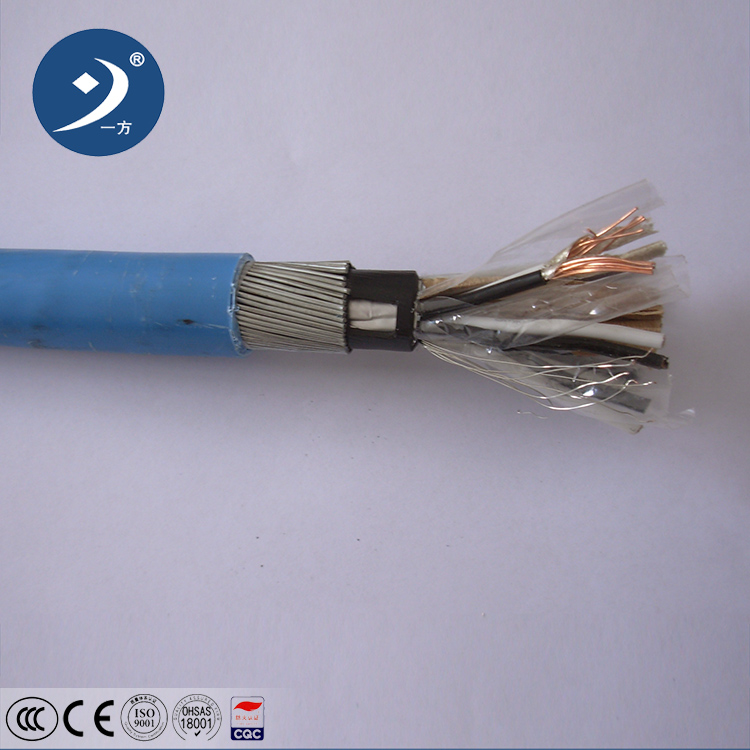

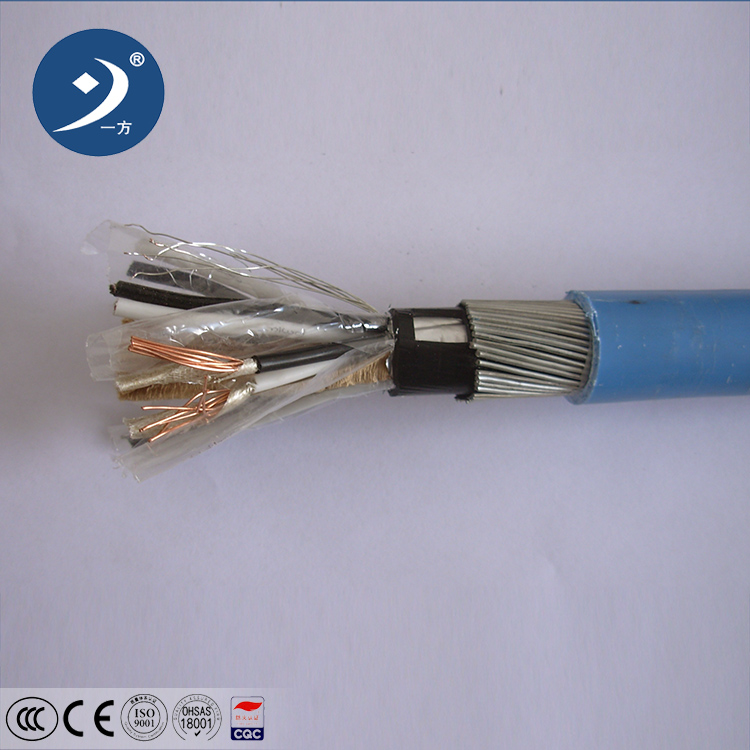

Up to 600/1000V PVC Insulation Instrumentation Cable
YIFANG ELECTRIC GROUP INC.
The supplier hasn’t listed a price. We can get their current prices and MOQ.
Verify from $29 · written report in 3 business days · 100% refund if not satisfied
Up to 600/1000V PVC Insulation Instrumentation Cable
YIFANG ELECTRIC GROUP INC.The supplier hasn’t listed a price. We can get their current prices and MOQ.
Verify from $29 · written report in 3 business days · 100% refund if not satisfied
About this product
- Materials: PVC / PE / XLPE + steel tape / wire + copper
- Size: 50mm*50mm
- Color: blue，accept customized
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Japan and South Korea, Hong Kong China, Macao China and Taiwan China, Others
- Made in: Henan, China
About this product
- Materials: PVC / PE / XLPE + steel tape / wire + copper
- Size: 50mm*50mm
- Color: blue，accept customized
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Japan and South Korea, Hong Kong China, Macao China and Taiwan China, Others
- Made in: Henan, China
Product details
| Materials | PVC / PE / XLPE + steel tape / wire + copper |
|---|---|
| Size | 50mm*50mm |
| Color | blue，accept customized |
Product details
| Materials | PVC / PE / XLPE + steel tape / wire + copper |
|---|---|
| Size | 50mm*50mm |
| Color | blue，accept customized |
From the supplier
1. Application
For reducing interference in computers, control systems, transmission of analogue signal
and other measuring devices.
2. Construction:
Conductor type:
IEC 60228-2004 class 1 or class 2.
Nominal Cross-section area: 0.5～2.5mm2
We can according to our client’s need and also provide technical data.
3. Characteristic:
Rated Voltage:
300/500V
600/1000V special and Customer designated
Test Voltage:
AC 1000V/1Min for 300/500V , AC 3500V/1Min for 600/1000V.
Maximum conductor operating temperature:90℃
Insulation resistance:≥5000Mohm.km
Core’s color:
One pair: Black/white pair
Two pairs and above: Black/white pairs with numbers 1,2…n or color
Color of sheath : Black or blue and customer designated.
Notes
1、Ambient temperature for insulation shall not be lower than 0℃.
2、Anti-termite、anti-rodent and ultra-violet（UV）stabilizer additives are available upon request.
3、Special size and sheath color also available upon request.
4、Flame/Fire resistant wire conform to IEC 60331/IEC 60332-2009.
5、Blue sheath will be used for intrinsically safe circuit.
4.Standard
BS 5308-1978, IEC 60331-2009,IEC 60332-2009
From the supplier
1. Application
For reducing interference in computers, control systems, transmission of analogue signal
and other measuring devices.
2. Construction:
Conductor type:
IEC 60228-2004 class 1 or class 2.
Nominal Cross-section area: 0.5～2.5mm2
We can according to our client’s need and also provide technical data.
3. Characteristic:
Rated Voltage:
300/500V
600/1000V special and Customer designated
Test Voltage:
AC 1000V/1Min for 300/500V , AC 3500V/1Min for 600/1000V.
Maximum conductor operating temperature:90℃
Insulation resistance:≥5000Mohm.km
Core’s color:
One pair: Black/white pair
Two pairs and above: Black/white pairs with numbers 1,2…n or color
Color of sheath : Black or blue and customer designated.
Notes
1、Ambient temperature for insulation shall not be lower than 0℃.
2、Anti-termite、anti-rodent and ultra-violet（UV）stabilizer additives are available upon request.
3、Special size and sheath color also available upon request.
4、Flame/Fire resistant wire conform to IEC 60331/IEC 60332-2009.
5、Blue sheath will be used for intrinsically safe circuit.
4.Standard
BS 5308-1978, IEC 60331-2009,IEC 60332-2009
