Two three layers PC ABS sheet machine for making suitcases/cabin bags/luggages

GOOD PRICE

We provide you high quality Hard Luggage Thermoforming Machine with good price, help you to get a great start of your luggage case, trolley case business. Machine price is also negotiable to reach your budget.

MANY YEARS OF EXPERIENCE

In 1998, YAOAN (ANFU) started working on manufacture of PC ABS sheet extrusion machine. So far, over 300 lines have been installed all over the world. In China market, 80% luggage case manufacturer is using our company luggage case machines and Hard Luggage Thermoforming Machine.

QUALITY SERVICE

We match your needs and help you execute your individual production process with as few unexpected interruptions as possible.

20+ GLOBAL MARKETS

YAOAN (ANFU) nonwoven machines have already been provided to over 20 countries and regions.

300+ LINES RUNNING

So far, over 300 sets of PC ABS Hard Luggage Thermoforming Machine have been installed all over the world.

YAOAN is a leading manufacturer of high performance PC co-extrusion sheet line. and we have exported tens of the lines to the other countries worldwidely. PC co-extrusion sheet is widely used in producing luggage bags, travelling case. YAOAN equipment with it's own know-how, especially on the extrusion technology and product extrusion design.

Machine features of the Hard Luggage Thermoforming Machine:

Screw with special mixing and plasticization function;

Clothes hanger type die with two throttle designs which enable to regulate the sheet thickness accurately; ±1 temperature control make the plasticizing process and sheet thickness control more accurate;

Horinzontal and vertical incline type three rollers calenders may be lifted freely;

Sheet thickness shall be regulated by screw and pressing roller;

Separate roller temperature control system to control the temperature of pressing roller to gain even sheet thickness; Exact slicing machine, board length and quantity;

Winder with big torque motor, and its speed and tension force adjustable;

Automatic metering to set the length of product

PC ABS luggage case sheet structures:

Sheet layers

extruder size

sheet structure

sheet width

thickness

Machine output

Single layer

AF-120

A

800mm-1000mm

1-4mm

300-400kgs/hr

Two layers

AF-100&AF-80

AB

800mm-1000mm

1-4mm

300-400kgs/hr

Three layers

AF-120&AF-80&AF-50

ABC

800mm-1000mm

1-4mm

300-400kgs/hr

Five layers

AF-120&AF-80&AF-80

ABCBA

800mm-1000mm

1-4mm

300-400kgs/hr

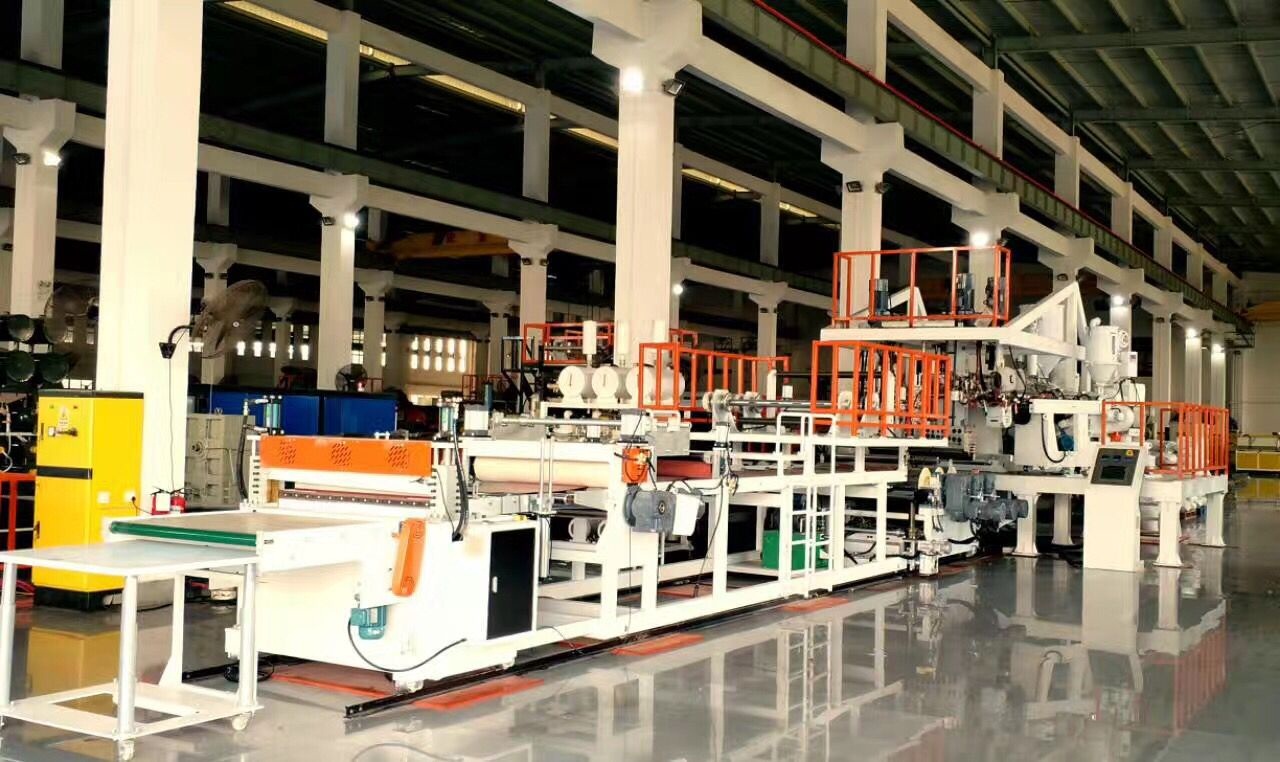

PC ABS three layers Hard Luggage Thermoforming Machine detail photos:

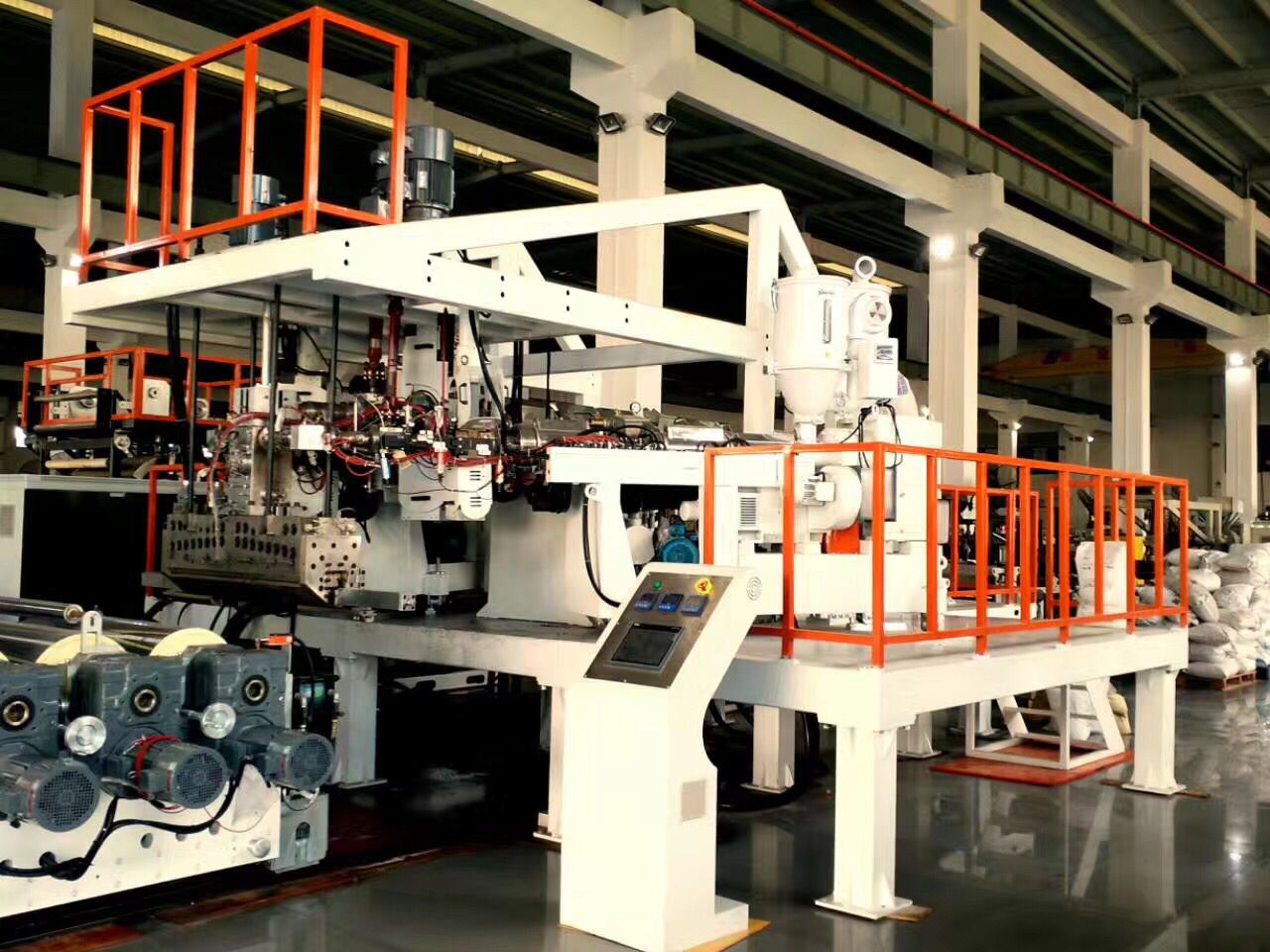

Three layers co extruders:

Vertical calender:

Sheet thermoforming machine:

Hard Luggage Thermoforming Machine shipment:

Packaging and shipping
