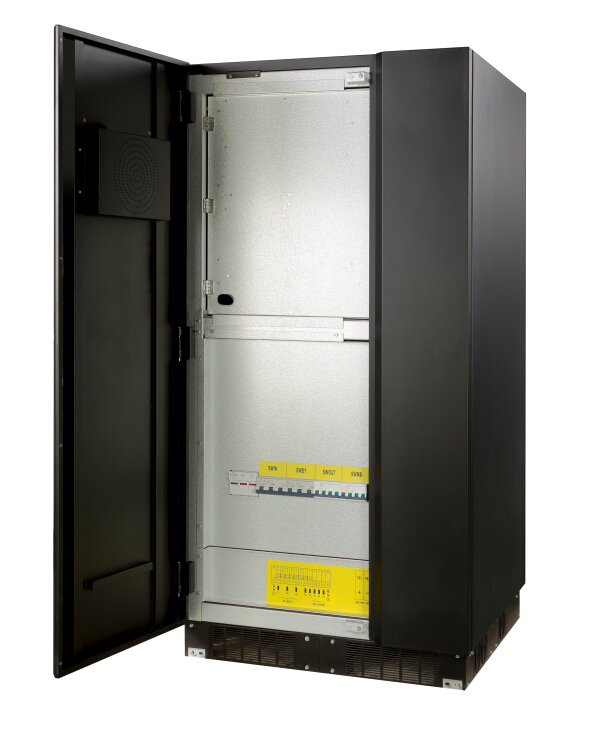

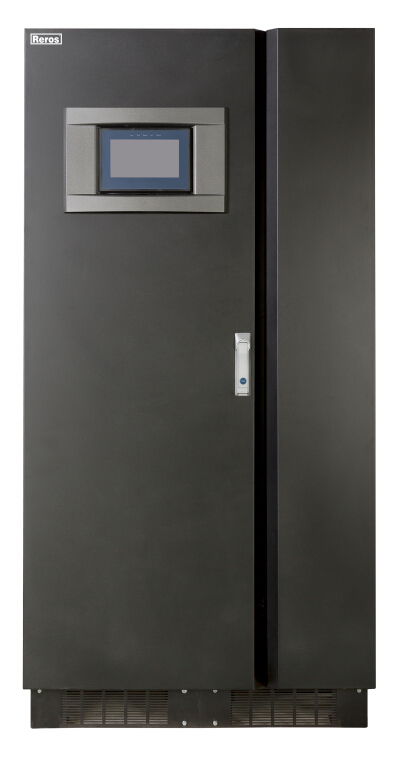

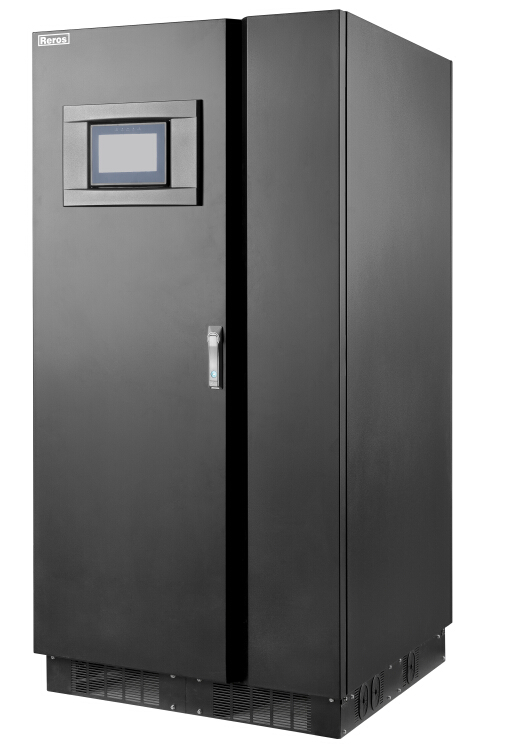

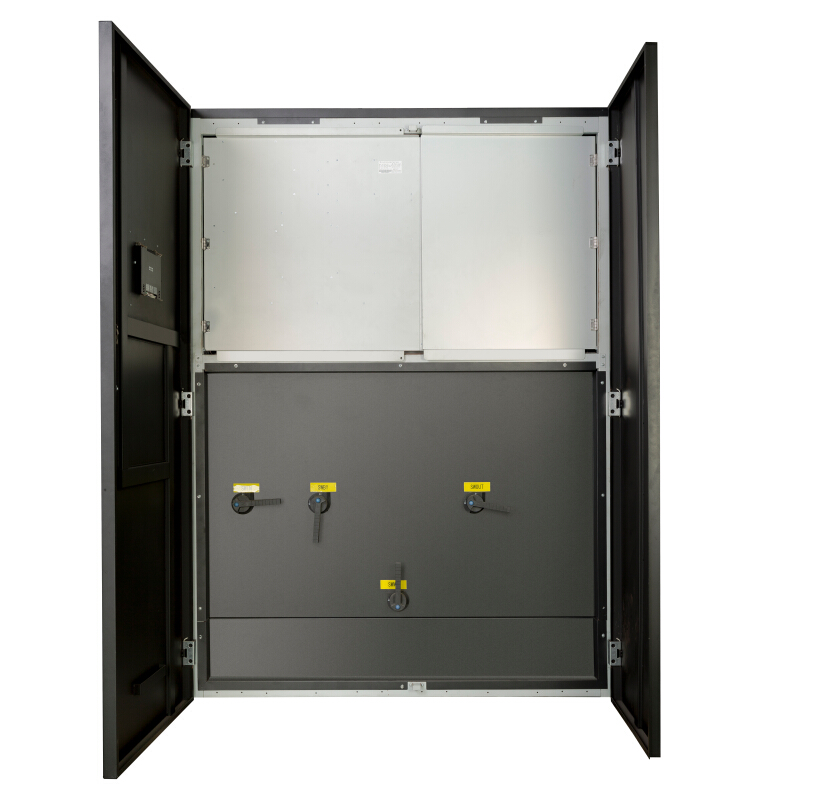

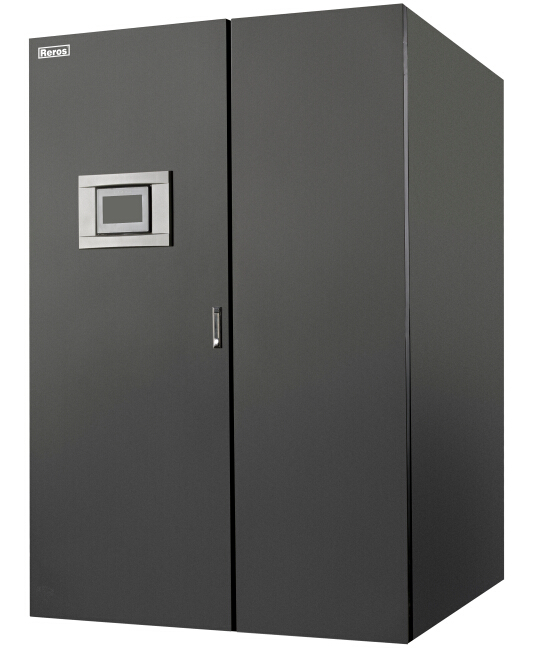

Product introduction

  3B3GX 60K-400K is based on double conversion on-line intelligent UPS. It contains a number of advanced technology in the UPS field, with 12 pulse rectifier technology. now can be 8 sets of UPS in parallel directly, different capacity can be in parallel, parallel system can share battery pack, annular communication line parallel is our unique feature. Parallel is simple and convenient, has strong flexibility. It is designed for industrial manufacture environment. Key components in redundancy design adopt advanced industrial power device, superior performance of SPWM inverter and the international advanced technology such as intelligent multi-mode battery management technology, and plenty of power management software, has been widely used in metallurgy, chemical industry, building material, glass, electronics, automobile and other fields.

AC power supply of precise instrument

Network, Communication system, AC power supply in automatic control system

Suitable for industrial control systems, industrial automation, intelligent precision equipment and manufacturing process

Enterprise, Branch of major enterprise, bank

Efficiency and Reliable

•Double DSP full digital control and high precision, faster operation

•Standard output isolation transformer, with low frequency design, have more ability to resist impact load and provide short circuit protection .

•Meet the national standards of EMC, reduce and avoid all kinds of interference, ensure the pure power.

Intelligent Management

•SNMP/MODBUS/DRY CONTACT/USB and other communication mode are optional

• With function of self-diagnosis when power on, find and prevent fault in time

• Alarm from Mobile APP, We-Chat remote management, SMS and others.

Flexible and easy to use

• LCD display, friendly human-computer interface, real-time monitoring, convenient to operate

• support up to 8pcs in parallel, different capacity UPS in parallel, can share the battery pack, has strong flexibility

• Perfect network monitor program, with feature of real-time monitor and self diagnosis, intelligent inquiry, auto-alarm and auto-record

Model

3B3

GX

60K

3B3

GX

80K

3B3

GX

100K

3B3

GX

120K

3B3

GX

160K

3B3

GX

200K

3B3

GX

250K

3B3

GX

300K

3B3

GX

400K

Capacity

60

kVA

80

kVA

100

kVA

120

kVA

160

kVA

200

kVA

250

kVA

300

kVA

400

kVA

Input features

Pulse rectifier

6

6/12

Voltage range（Vac）

380/400/415VAC±15%（±25%）

Frequency range（HZ）

40—70Hz Automatically select synchronization range according to grid frequency

Bypass synchronous range (Hz)

50±5%(±10% for optional)

Phase

3φ4W+PE

Battery voltage（VDC）

384

Battery Quantity（PCS）

30-34 can be adjusted

Output features

Power Factor

0.8/0.9

Voltage(V)

L－N：220±1％ L—L：380±1％

100% three-phase load unbalanced voltage stability

≤2%，allow 100％ unbalanced

Frequency(HZ)

Mains normal, track mains frequency ,Mains abnormal，50±0.2%

Transfer time（ms）

0

Parallel operation mode(parallel)

4 sets in parallel

Waveform

Linear Load THD

Overload

125% load keep 10 min，150% load keep1min

Peak Factor

>3:1

Others

Manual maintenance bypass

with no transfer time bypass maintenance switch

Communication function

14 contact signal for selecting,output 12Vdc 80mA ,RS232 / RS485 interface, SNMP can be chosen for assembly to achieve UPS intelligent supervisory control.

Display

7 inches touchable LCD

Noise (dB)

Alarm

Battery low-voltage, mains abnormal, overload, UPS fault, over temperature protection

Protection

Input over-voltage protection, battery under-voltage protection, overload protection, short circuit protection, over temperature protection

Cooling way

Forced cooling

Working Temperature（℃）

0～40

Humidity

0～95%，No Condensing

EMC

GB7260.2

Size(D×W×H) (mm)

800*800*1600

1100*800*1800

1405*1113*2005

1605*1113*2005

Weight(T)

0.48

0.56

0.89

1.08

1.28

1.38

1.68

1.98

2.48
