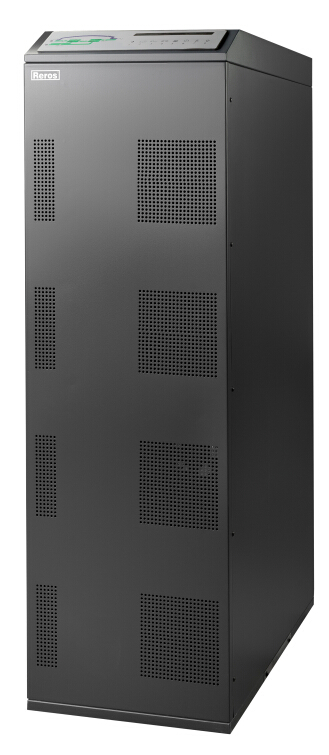

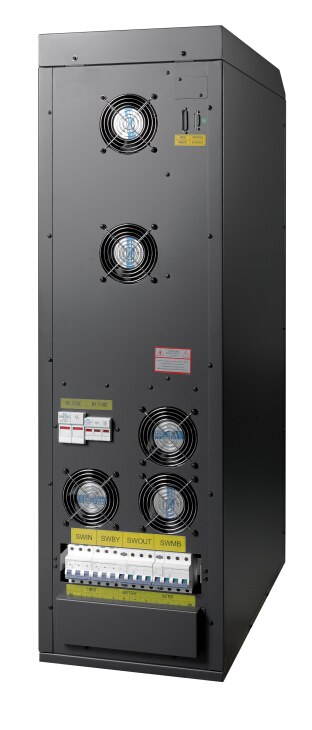

6-50kVA Low Frequency Three Phase Online UPS Power Supply
The supplier hasn’t listed a price. We can get their current prices and MOQ.
- Service
- From $29 per supplier (Verify)
- You get
- Phone and video verification, a quote sheet and a written report
- Turnaround
- 3 business days
- Contact details
- Sent to you once your request is confirmed
If we can't reach the supplier within 3 business days, we refund the fee.
6-50kVA Low Frequency Three Phase Online UPS Power Supply
The supplier hasn’t listed a price. We can get their current prices and MOQ.
- Service
- From $29 per supplier (Verify)
- You get
- Phone and video verification, a quote sheet and a written report
- Turnaround
- 3 business days
- Contact details
- Sent to you once your request is confirmed
If we can't reach the supplier within 3 business days, we refund the fee.
About this product
- Materials: Plastic panel, iron spray frame
- Size: 1040*560*1410
- Color: Black
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, Other European Countries, Japan and South Korea, Hong Kong China, Macao China and Taiwan China, Others
- Made in: Jiangsu, China
About this product
- Materials: Plastic panel, iron spray frame
- Size: 1040*560*1410
- Color: Black
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, Other European Countries, Japan and South Korea, Hong Kong China, Macao China and Taiwan China, Others
- Made in: Jiangsu, China
Product details
| Materials | Plastic panel, iron spray frame |
|---|---|
| Size | 1040*560*1410 |
| Color | Black |
From the supplier
Main feature
1.IGBT inverter and output isolation transformer
2.Online double conversion
3.Wide input voltage range
4.RS232/RS485 communication port
5.SNMP adapter/dry contact(optional)
6.High reliability and performance
7.External battery pack (optional)
8.Maintenance switch
Application
1.Data center
2.Industry
3.Commercial facility
4.Telecom system
5.Medical/bank system
6.Precision instrument
Specification
Model
3B6K
3B10K
15kVA
3B20K
3B30K
3B40K
3B 50K
Capacity
6kVA
10kVA
15kVA
20kVA
30kVA
40kVA
50kVA
Input features
Input voltage（Vac）
380±25%
Frequency（HZ）
45～66 Automatically select synchronization range according to grid frequency
Phase
3φ4W+PE
Battery voltage（Vdc）
192
192/384
384
Output features
Power factor
0.8/0.9
Voltage(V)
220/230/240±1％，Isolation transformer output
Frequency(HZ)
50/60±0.5%(Free oscillation)
Transfer Time（ms）
0
Waveform
Sine Wave，THD<3%
Overload
125% load keep 10min，150% load keep 60s
Crest factor
>3:1
Others
Output ways
Terminal Block
Parallel function
Yes(optional)
No
Manual maintenance bypass
with no transfer time bypass maintenance switch
Backup time
Battery supply life can be configured freely
Battery management
Automatic timing/floating conversion, has battery self-testing function, automatic alarm and judge when battery abnormal
Efficiency(AC mode @ full loads)
≥90%
Communication function
RS232 / RS485 interface, support for power monitor software
SNMP（optional）
Can be network monitored by SNMP adapter
Noise (dB)
<60(within 1 meter)
Alarm
Battery low-voltage, mains abnormal, overload, UPS fault, over temperature protection
Protection
Input over-voltage protection, battery under-voltage protection, overload protection, short circuit protection, over temperature protection
Working Temperature（℃）
0～40
Humidity
0～95%，No Condensing
Size(D×W×H) (mm)
596*305*890
700*405*955
(20K:192Vdc)/
740*560*1200
1040*560*1410
Weight(KG)
130kg
160kg
200kg
220kg
280kg
340kg
520kg
Note：
1, Because the products are continuously improved, please contact the company or dealer to inquiry the latest specification.
