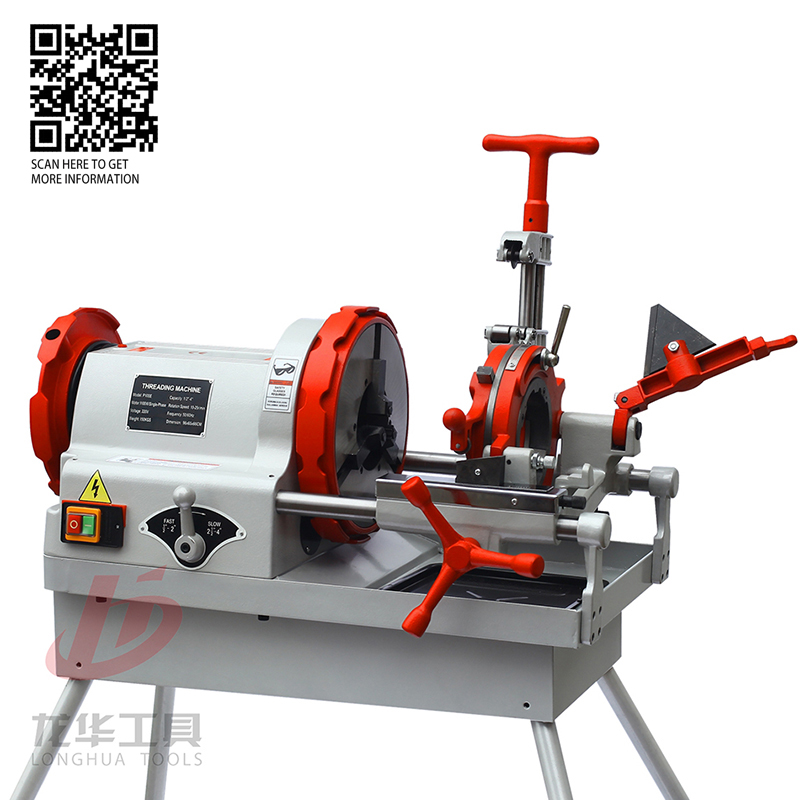

Suitable for right 1/2”-4” pipe threading, BSPT or NPT can be changed as requirements.

1100W induction motor, 110V/220V, 50/60 Hz, 25 rpm (1/2”-2”), and 10 rpm (2.1/2”-4”)

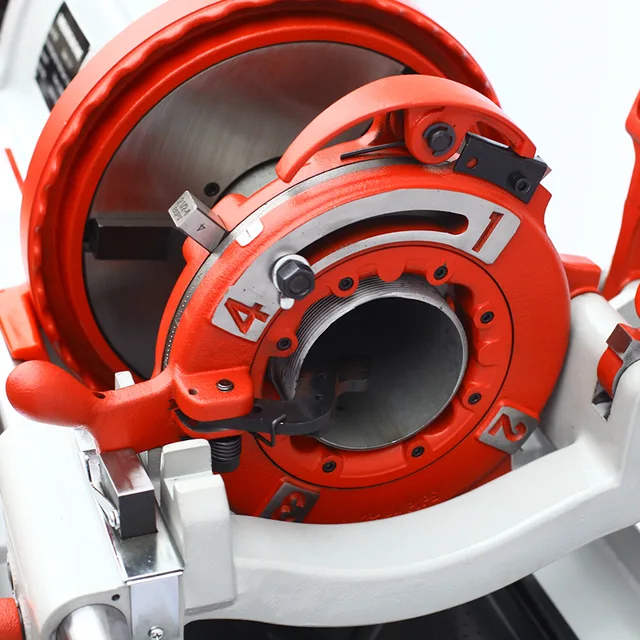

Self-centering, full-floating Cutter and Reamer.

Efficient 2-speed transmission speeds up work.

Adjustable oil flow through the head directly on the Dies. Oil pump for the mechanical system (gear box) with oil flow rate selector according to size.

G.W./N.W.: 170/145Kg

MEAS: 96×65×66cm

Standard Equipment:

Supplied with 2 Self-opening Die Heads, right Dies sets (1/2”-3/4”), (1”-2”) and (2.1/2”-4”), 4 legs, 1 cutting oil, and one set of mounting tools.

Alloy Steel Dies sets can be changed as HSS Dies sets.



Code

Voltage

Power

Dies Type

Remarks

94E20

220V 50/60Hz

1100W

BSPT



94E25

220V 50/60Hz

1100W

NPT



94E10

110V 50/60Hz

1100W

NPT



"}
