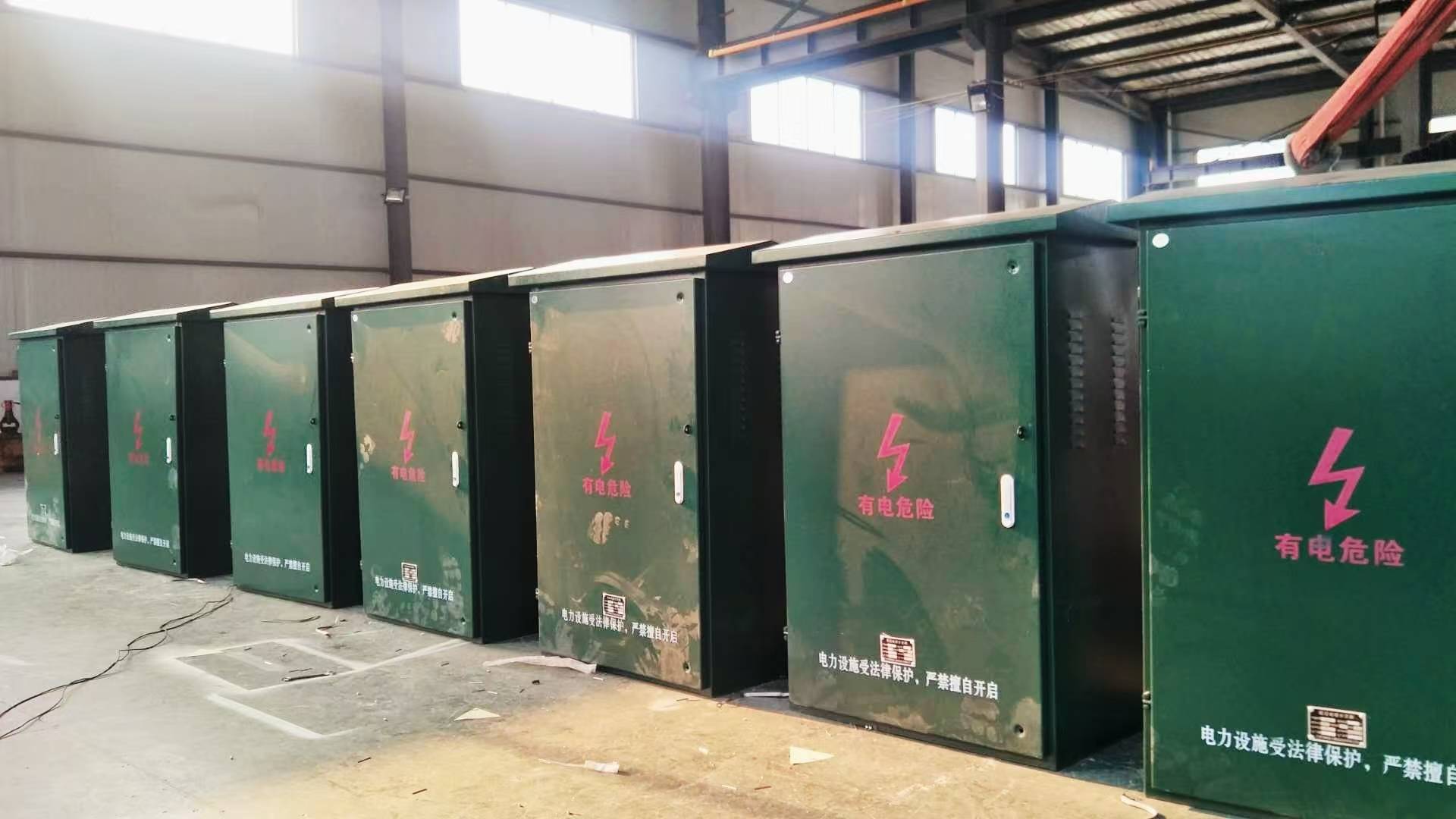

1. Product overview

The low-voltage cable tapping box can be made of SMC composite material or stainless steel material box, which has good impact resistance, bending strength, aging resistance, high friction resistance, corrosion resistance, appearance and durability, convenient installation, high insulation strength, arc resistance, high flame retardant and other advantages. It can meet the needs of various harsh environments and places in outdoor engineering projects. It is suitable for power transmission and distribution in public places such as urban and rural power grid renovation, municipal projects, residential areas and high-rise buildings, and is used for the control and protection of dry wiring and branch lines of cables. The color of the box is generally * green and gray, and can also be selected according to user requirements.

2. Technical parameters

1. Rated working voltage: AC400V

2. Rated operating frequency: 50Hz

3. Rated insulation voltage: AC690V

4. Rated working current: 100A, 200A, 400A, 630A

5. Rated short circuit strength 15KA

6. Shell protection level: 1P44

7. The bus bar in the box is made of steel bars, and the insulation is made of special branch channels pressed by high-quality resin.

8. The tapping box adopts copper bars and supporting insulating brackets, and the specifications are as follows:

200A

Copper bar TMY-30*3

Equipped with special insulating bracket

400A

Copper bar TMY-40*4

With special insulation support

630A

Copper bar TMY-50*5

With special insulation support

3. Product characteristics

1. The overall structure of the box is designed to be compact and compact design that can fill the distribution room. It is exquisite and beautiful, small in size, light in weight and easy to install.

2. The box has high insulation resistance and high power frequency dielectric strength. As a shell for electrical equipment, it has a high safety factor and is the preferred product for power grid transformation.

3. It has good corrosion resistance and can resist the corrosion of dilute concentrations of acids, bases and salts. It has strong resistance to a variety of oils and organic solutions, and seawater.

4. It has good anti-aging properties and has a service life of more than 30 years.

5. It has good impact resistance and machining properties, and is not easy to damage.

6. The box insulation does not need to be grounded, making it easy to install, saving a lot of manpower and material resources.

7. The box is equipped with a special insulating bracket, and the box door is equipped with a special lock (equipped with a second padlock).

4. Use environment

1. The ambient temperature shall not be higher than +45℃ or less than-35 ℃, and the average temperature difference for 24 hours shall not be greater than 35℃.

2. The altitude of the place of use shall not exceed 2000 M.

3. The relative humidity of the surrounding air shall not exceed 50% when the maximum temperature is +45℃. When used at lower temperatures, a higher relative humidity is allowed (80% at +22℃). It should be considered that due to temperature changes may occur accidentally. condensation effect.

4. The equipment should be installed in places without severe vibration and impact, and places where electrical components are insufficient to corrode.

5. Use under special environmental conditions should be resolved through consultation between the user and our company.
