About this product
- Materials: 45#Steel with chrome treatment
- Size: 14000*1700*1600
- Color: Blue & Yellow
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Hong Kong China, Macao China and Taiwan China, Others
- Made in: Zhejiang, China
About this product
- Materials: 45#Steel with chrome treatment
- Size: 14000*1700*1600
- Color: Blue & Yellow
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Hong Kong China, Macao China and Taiwan China, Others
- Made in: Zhejiang, China
Product details
| Materials | 45#Steel with chrome treatment |
|---|---|
| Size | 14000*1700*1600 |
| Color | Blue & Yellow |
Product details
| Materials | 45#Steel with chrome treatment |
|---|---|
| Size | 14000*1700*1600 |
| Color | Blue & Yellow |
From the supplier
Product Name:
Steel Floor Deck Roll Forming Machine
Introduction:

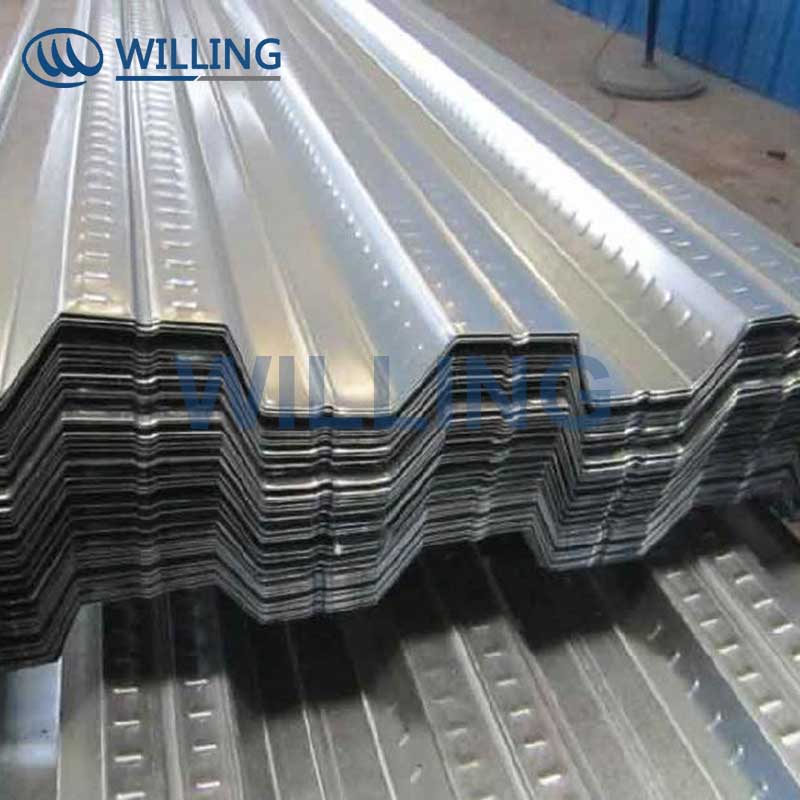

Steel floor deck sheet is rolled by WLFD series steel floor decking roll forming machine, the finished products are of many features, such as simple shape, large wave height, high intensity and good adhesiveness when pouring the concrete together with the welded steel wire net on-site. In the high-rise building, it not only can save steel mould board, but also reduce the bearing of the floor; on basis of equal capacity, it reduces the steel amount of engineering useage, so that it saves cost of investment.

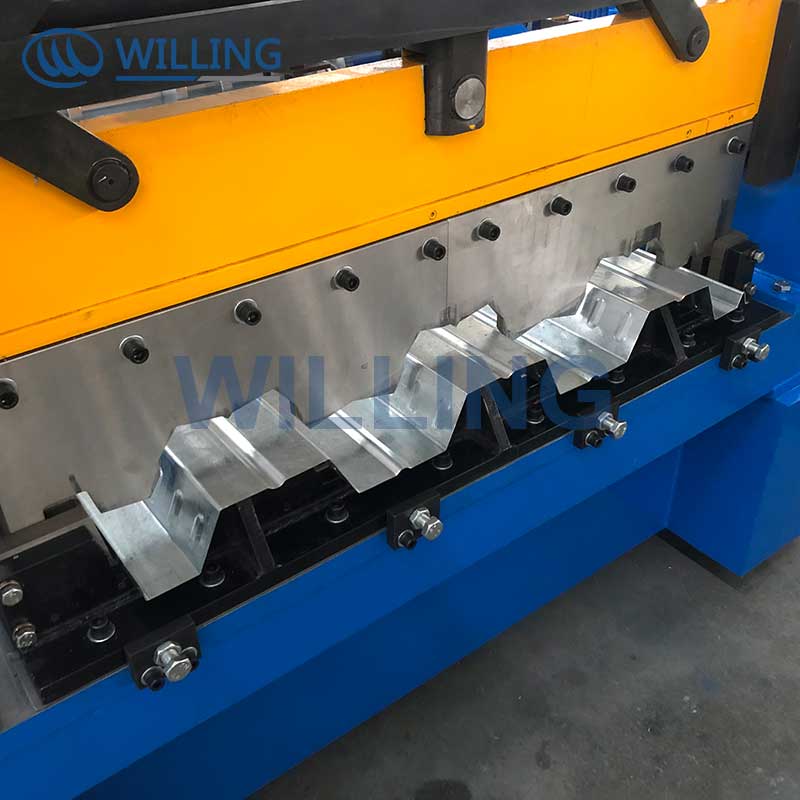

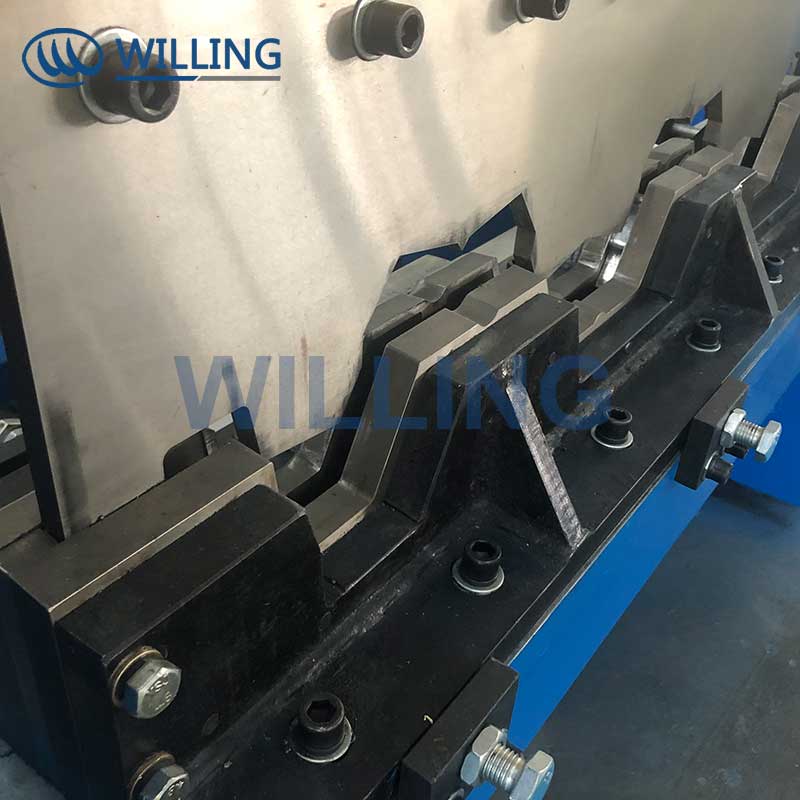

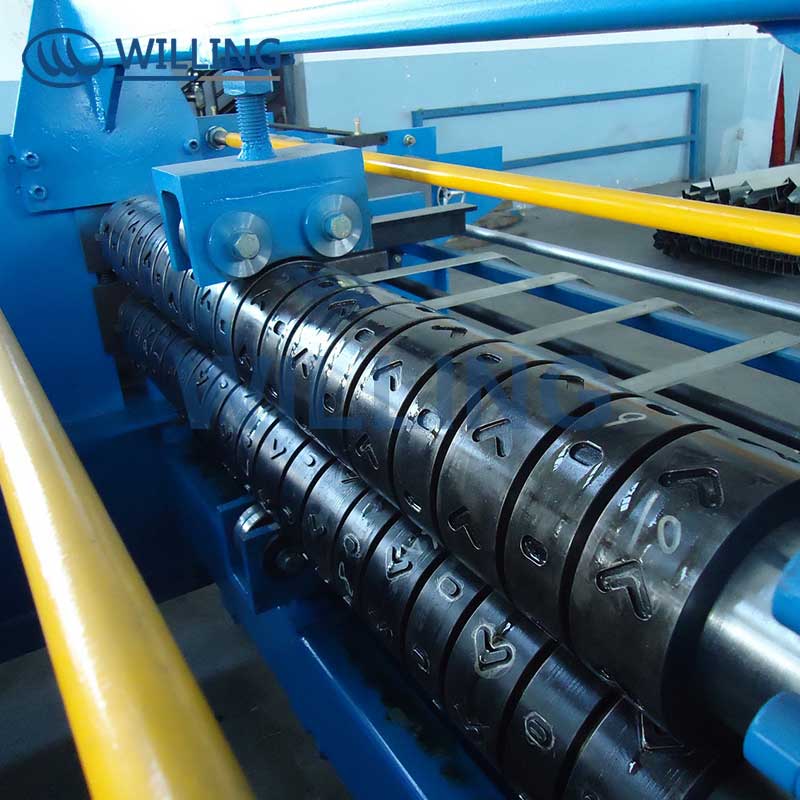

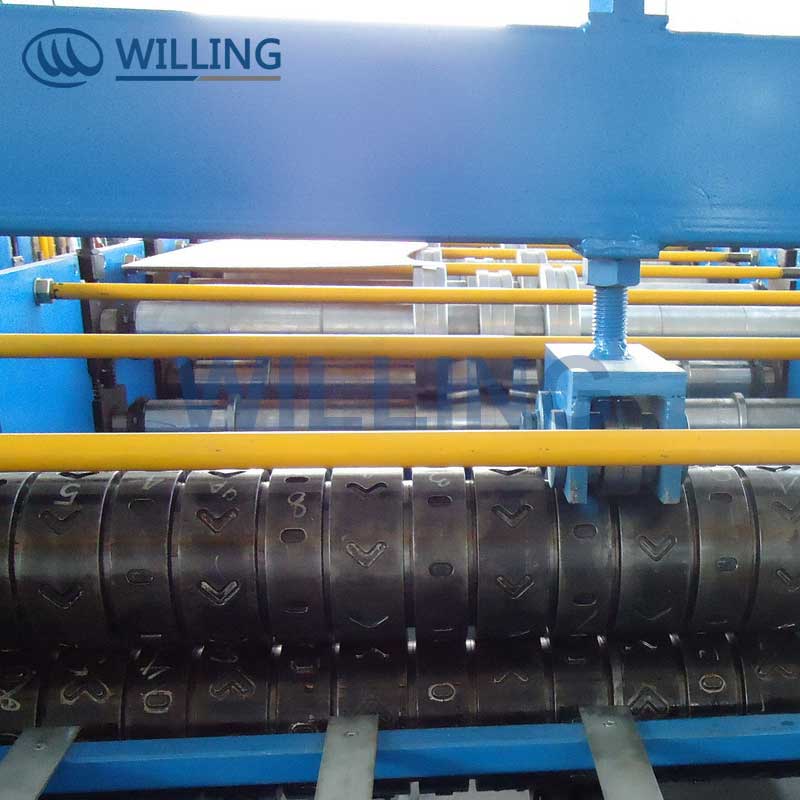

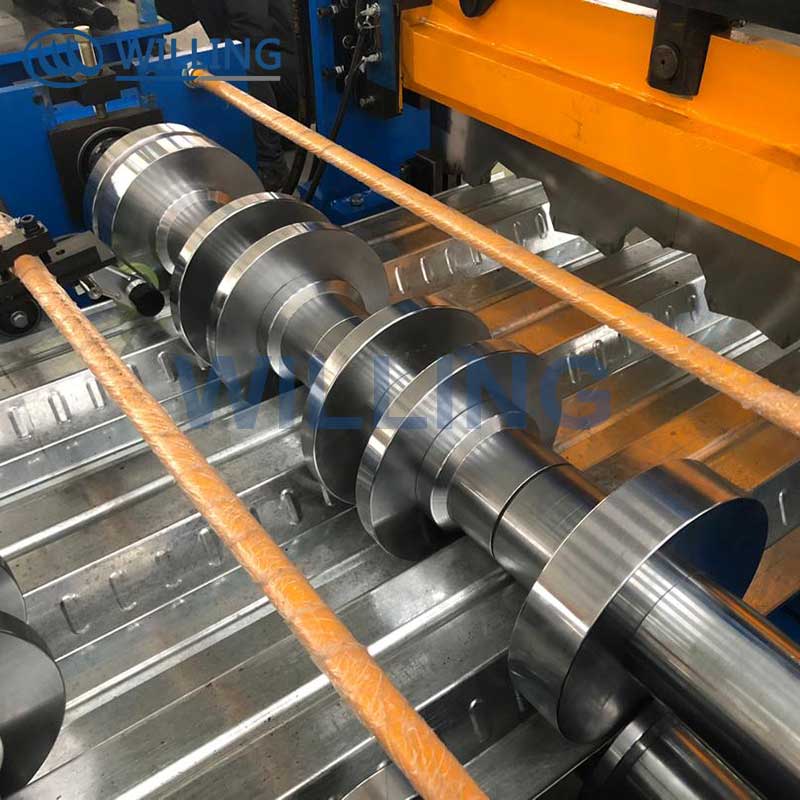

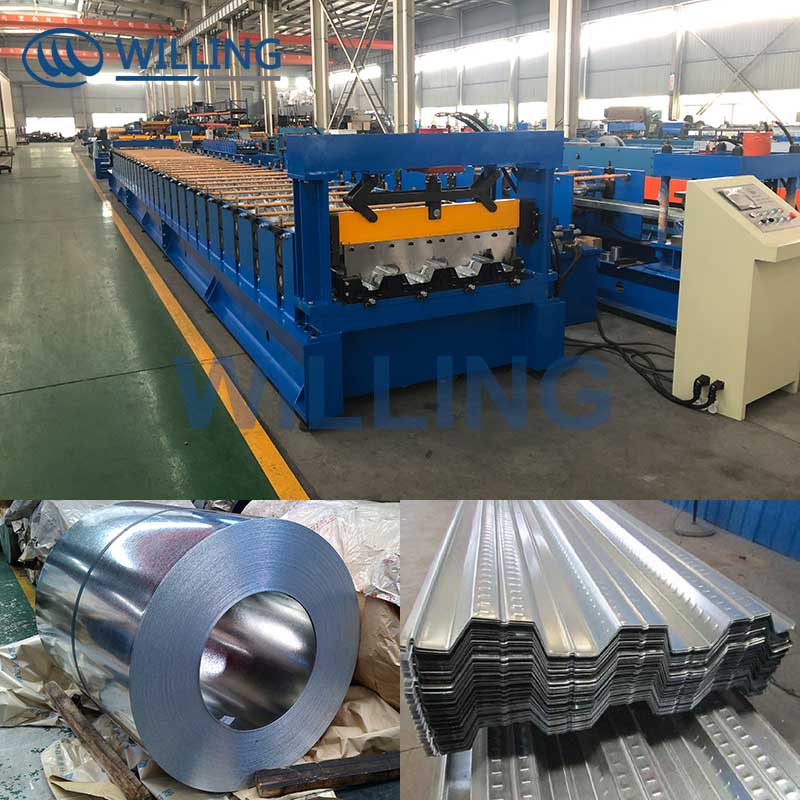

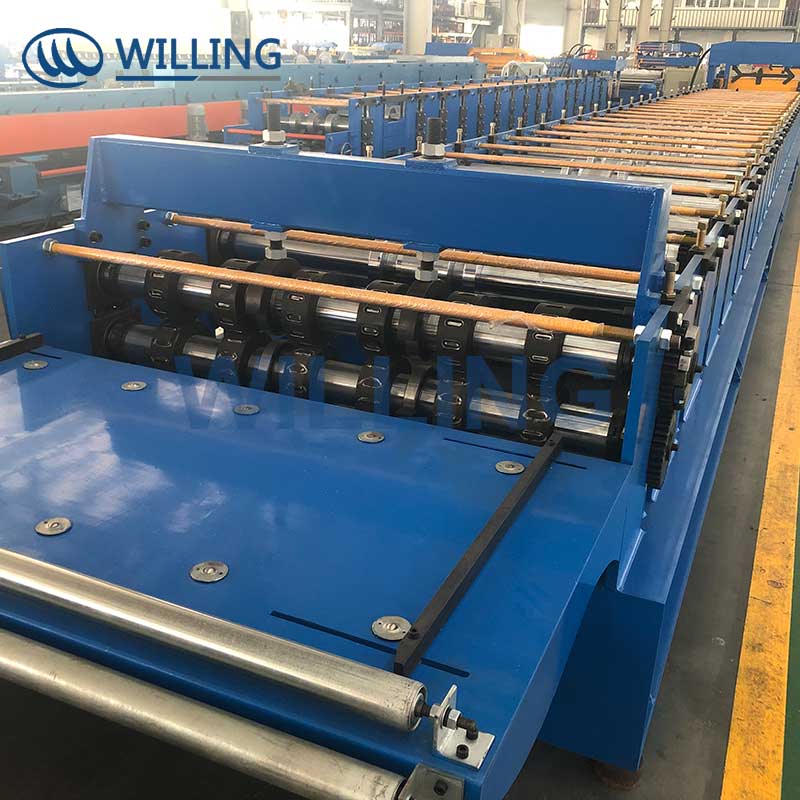

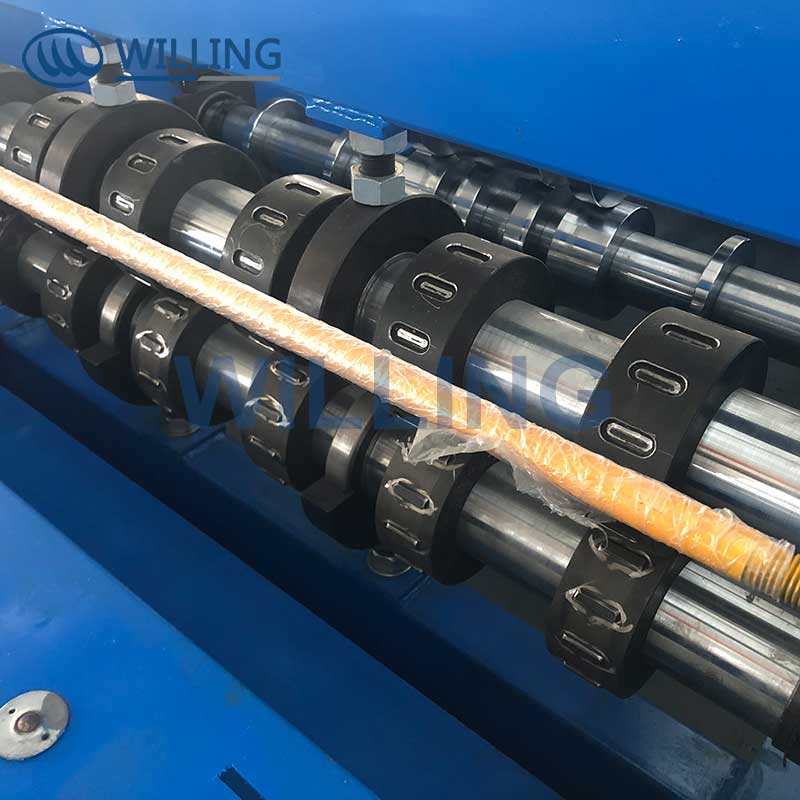

WLFD series steel floor deck roll forming machine consists of uncoiler and its base, infeed guides, fixed position driven forming stations, shearing device, hydraulic station, PLC control console and so on. Our company has dozens of profile models for this series roll forming machine, such as WLFD66-225-675, WLFD76-344-688, and etc. We can design different kinds of profile and fittings for downpipe machine, as per customers' requirements.
Working Flow:
Uncoiling→Sheet Guiding→Roll Forming→Measuring Length &Shearing→Sheet to Support Table.
Main Technical Parameters:
Model
WLFD38-153.3-920
Material
Type
Galvanized Steel
Aluminum Steel
Thickness（mm）
0.6-1.0
0.8-1.2
Yield stress（Mpa）
300-350
230-300
Max. Forming speed（m/min）
0-12
Roller material
#45 with hard chrome treatment
Roller driven type
Chain transmission
Controller
PLC
Operation
Touch screen and button
Hydraulic system pressure（Mpa）
12
Hydraulic station motor power（KW）
5.5
Main motor power（KW）
22~30
18.5
Total power（KW）
27.5~35.5
24
Total weight（Kg）
About 18000
About 18000
From the supplier
Product Name:
Steel Floor Deck Roll Forming Machine
Introduction:
Steel floor deck sheet is rolled by WLFD series steel floor decking roll forming machine, the finished products are of many features, such as simple shape, large wave height, high intensity and good adhesiveness when pouring the concrete together with the welded steel wire net on-site. In the high-rise building, it not only can save steel mould board, but also reduce the bearing of the floor; on basis of equal capacity, it reduces the steel amount of engineering useage, so that it saves cost of investment.
WLFD series steel floor deck roll forming machine consists of uncoiler and its base, infeed guides, fixed position driven forming stations, shearing device, hydraulic station, PLC control console and so on. Our company has dozens of profile models for this series roll forming machine, such as WLFD66-225-675, WLFD76-344-688, and etc. We can design different kinds of profile and fittings for downpipe machine, as per customers' requirements.
Working Flow:
Uncoiling→Sheet Guiding→Roll Forming→Measuring Length &Shearing→Sheet to Support Table.
Main Technical Parameters:
Model
WLFD38-153.3-920
Material
Type
Galvanized Steel
Aluminum Steel
Thickness（mm）
0.6-1.0
0.8-1.2
Yield stress（Mpa）
300-350
230-300
Max. Forming speed（m/min）
0-12
Roller material
#45 with hard chrome treatment
Roller driven type
Chain transmission
Controller
PLC
Operation
Touch screen and button
Hydraulic system pressure（Mpa）
12
Hydraulic station motor power（KW）
5.5
Main motor power（KW）
22~30
18.5
Total power（KW）
27.5~35.5
24
Total weight（Kg）
About 18000
About 18000
