About this product
- Materials: steel
- Size: 4500*800*1200
- Color: Blue
- Made in: Hebei, China
About this product
- Materials: steel
- Size: 4500*800*1200
- Color: Blue
- Made in: Hebei, China
Product details
| Materials | steel |
|---|---|
| Size | 4500*800*1200 |
| Color | Blue |
Product details
| Materials | steel |
|---|---|
| Size | 4500*800*1200 |
| Color | Blue |
From the supplier
Angle mesh bead roll forming machine
Properties of processed material：
Material： galvanized steel or iron sheet
Material thickness：0.25 -1mm
Yield strength: Below 550mpa
Profile drawing

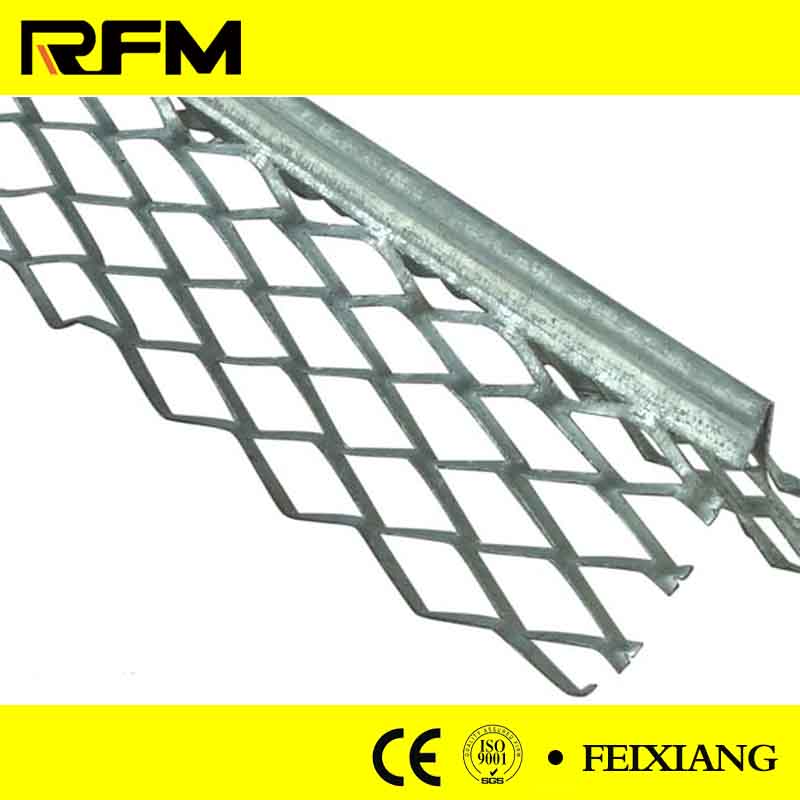

Products after roll forming
Machine details
Brand: Feixiang
Model number: FX47
Machine size: 12000*800*1300mm
Weight: 4T
Voltage requirement: 380v50hz3p
Working speed：6-10 m/min
Electric support wires: 6m²
Labor request:2-3 workers
Whole line components
No.
Item
Qty
1.
Deciler
1set
2.
Punching machine
1set
3.
Main forming machine
1set
4.
Control panel
1pcs
5.
Hydraulic pump
1pcs
6.

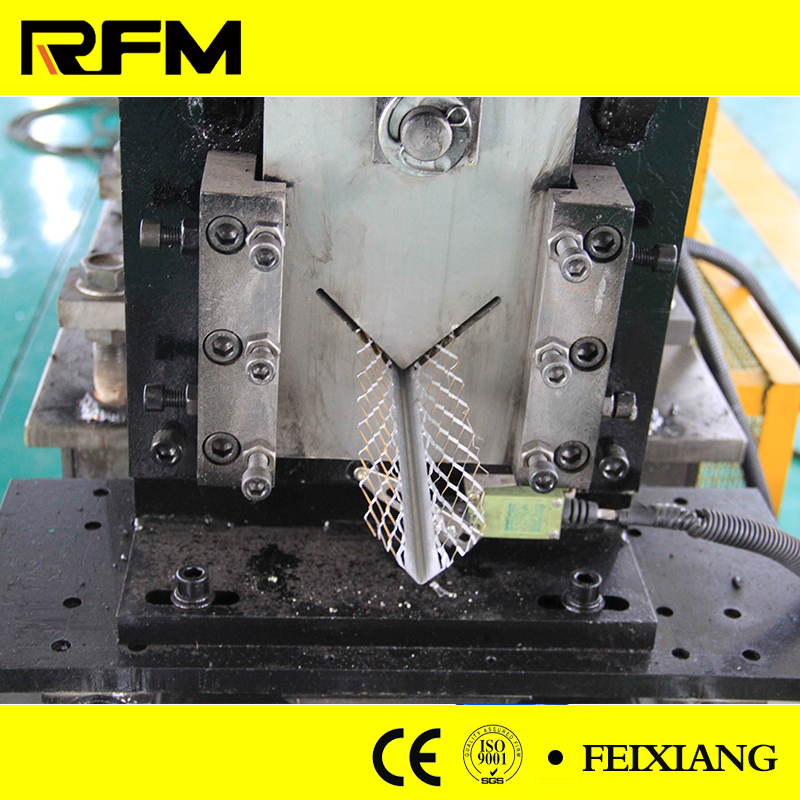

Cutting device
1pcs
7.
Manual holder
1pcs
Technical parameters
Machine base: 350H steel plate welded
Frame: 25mm column plate
Forming stations: 7steps
Roller: Cr12 with quenching
Shaft: 45#steel
Transportation: Gear
Motor:4 kw
Pump: 3kw
Servo motor:1.5kw
Punching machine:16T
Press mold:Cr12
Cutter: Cr12

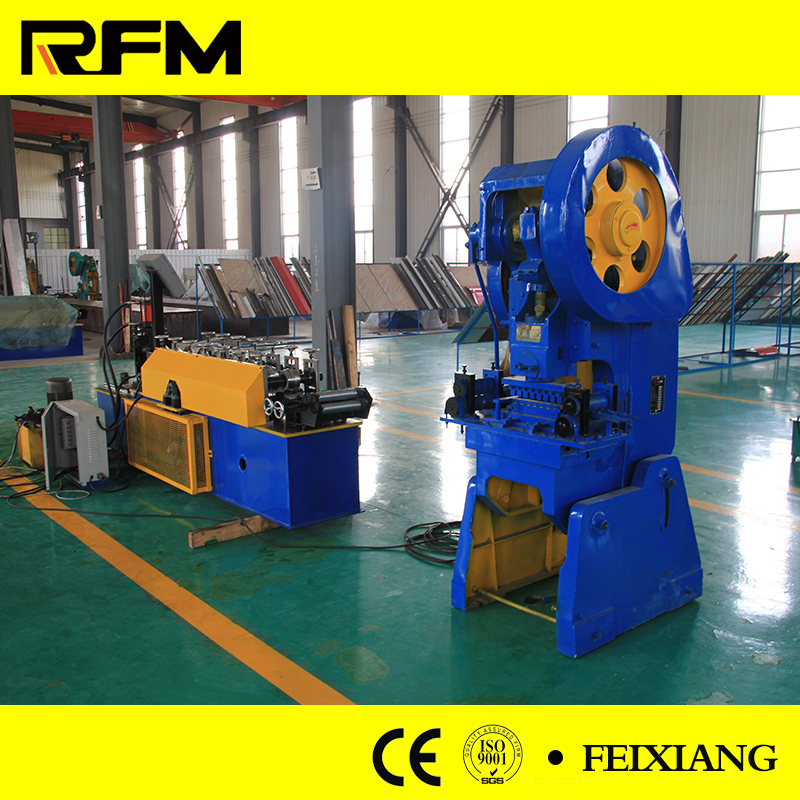

Machine quick view
Decoiler：Loading capacity 1.5T,material width 550mm

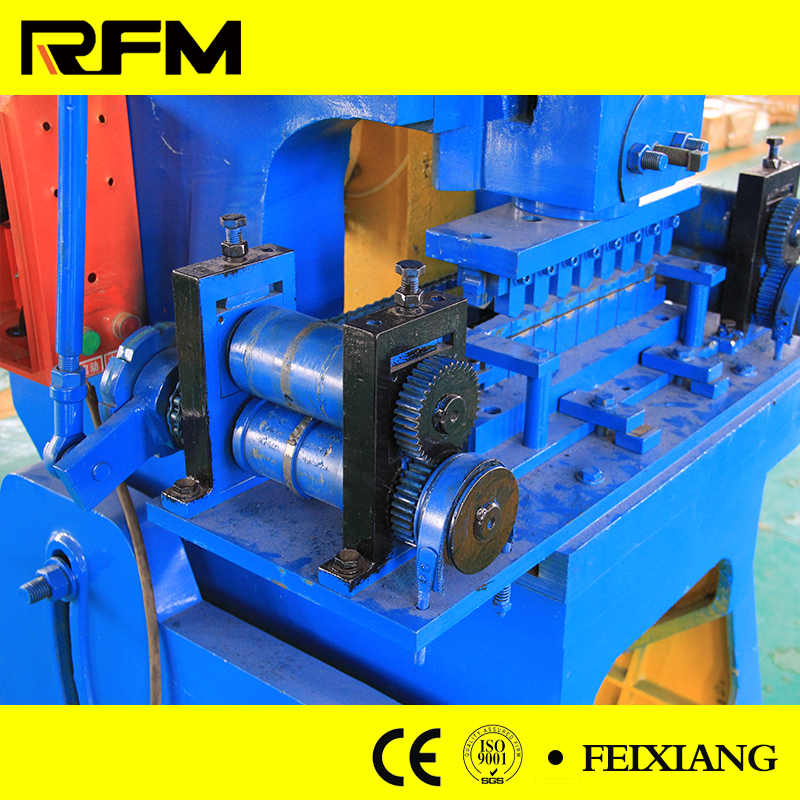

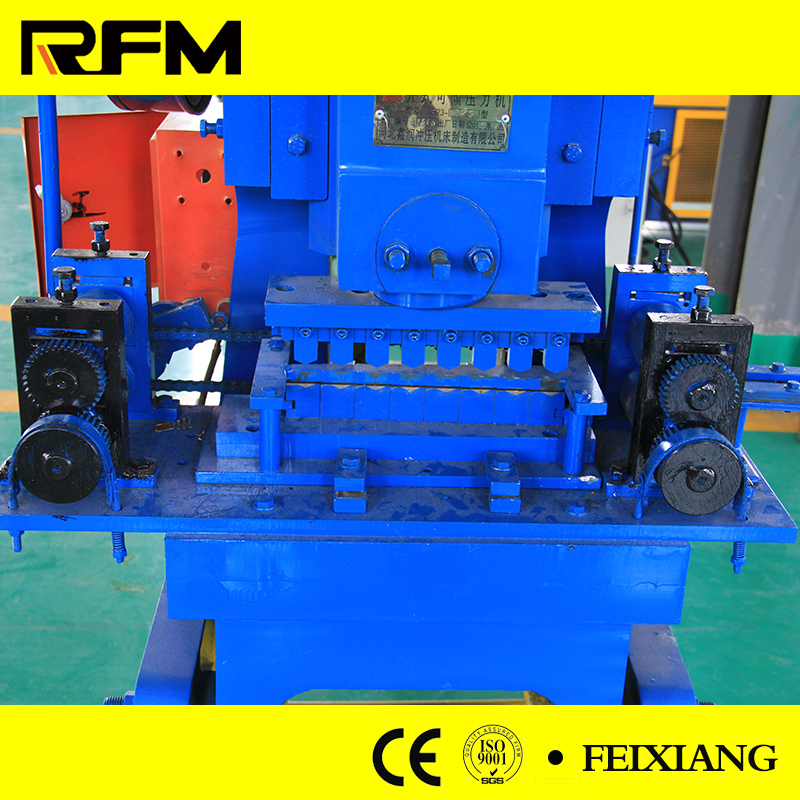

Punching machine:
Mold:
Main forming machine：

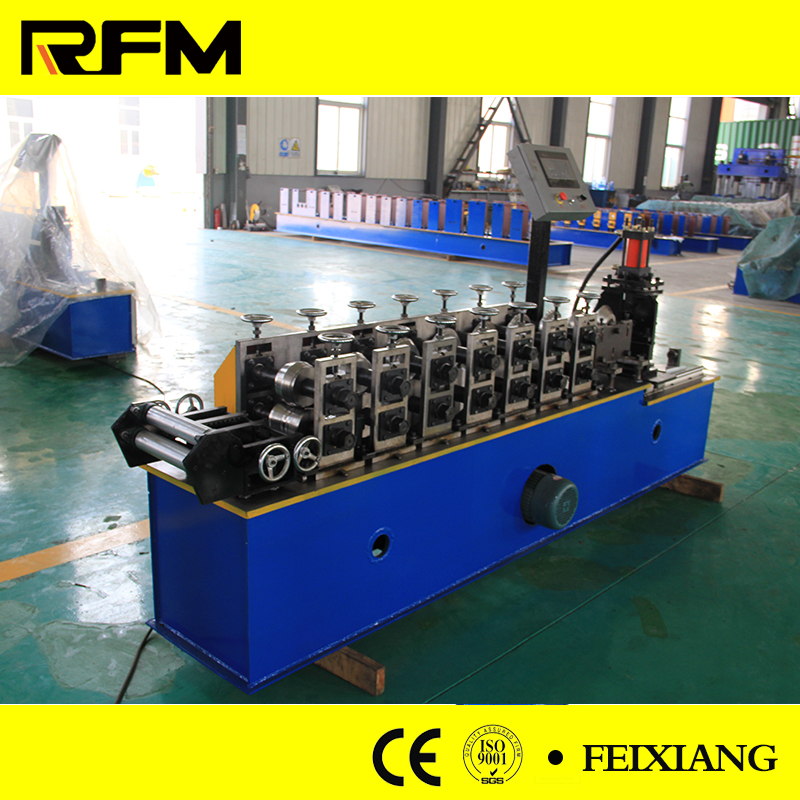

Front View，

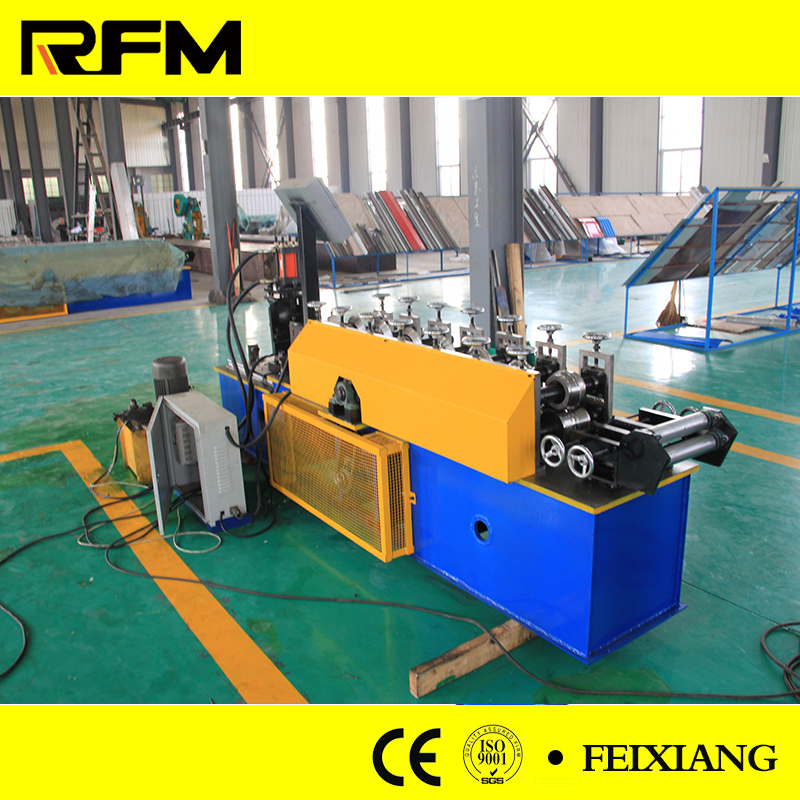

Side view,
Back view，
Hydraulic pump：
Manual holder：
CE and Letters patent
Duration and Service
Delivery time : 45 days after the receipt of deposit.
Warranty: 2 years
After-sales service: 24h*7days*1year’s on line and
engineer service overseas
Machine adjusting in customer’s factory
Client evaluation：
Contact information
Email：info@fxywj.com
WhatsApp：+86-18233733225
