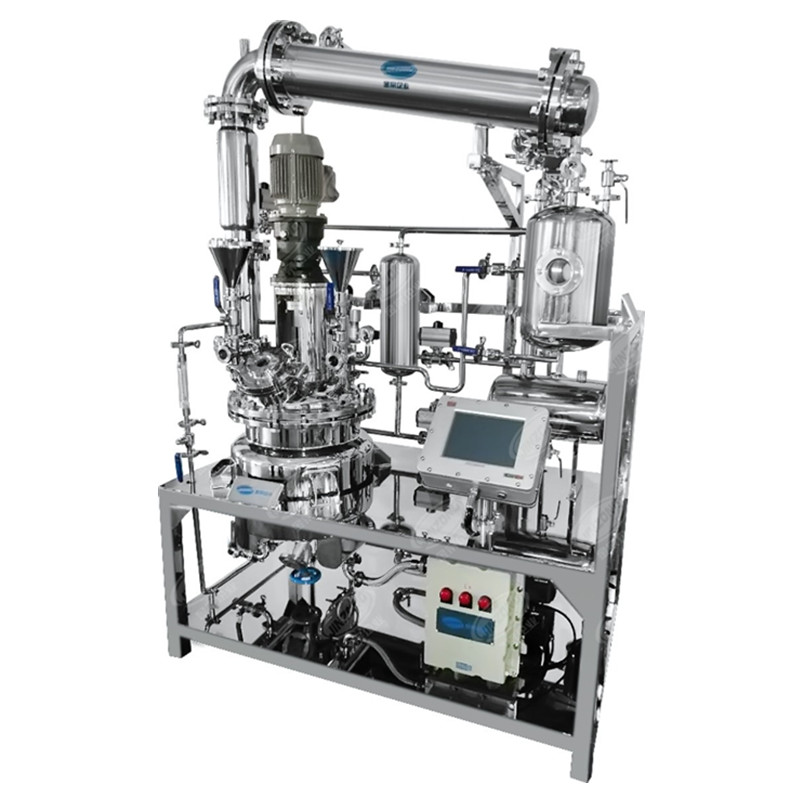

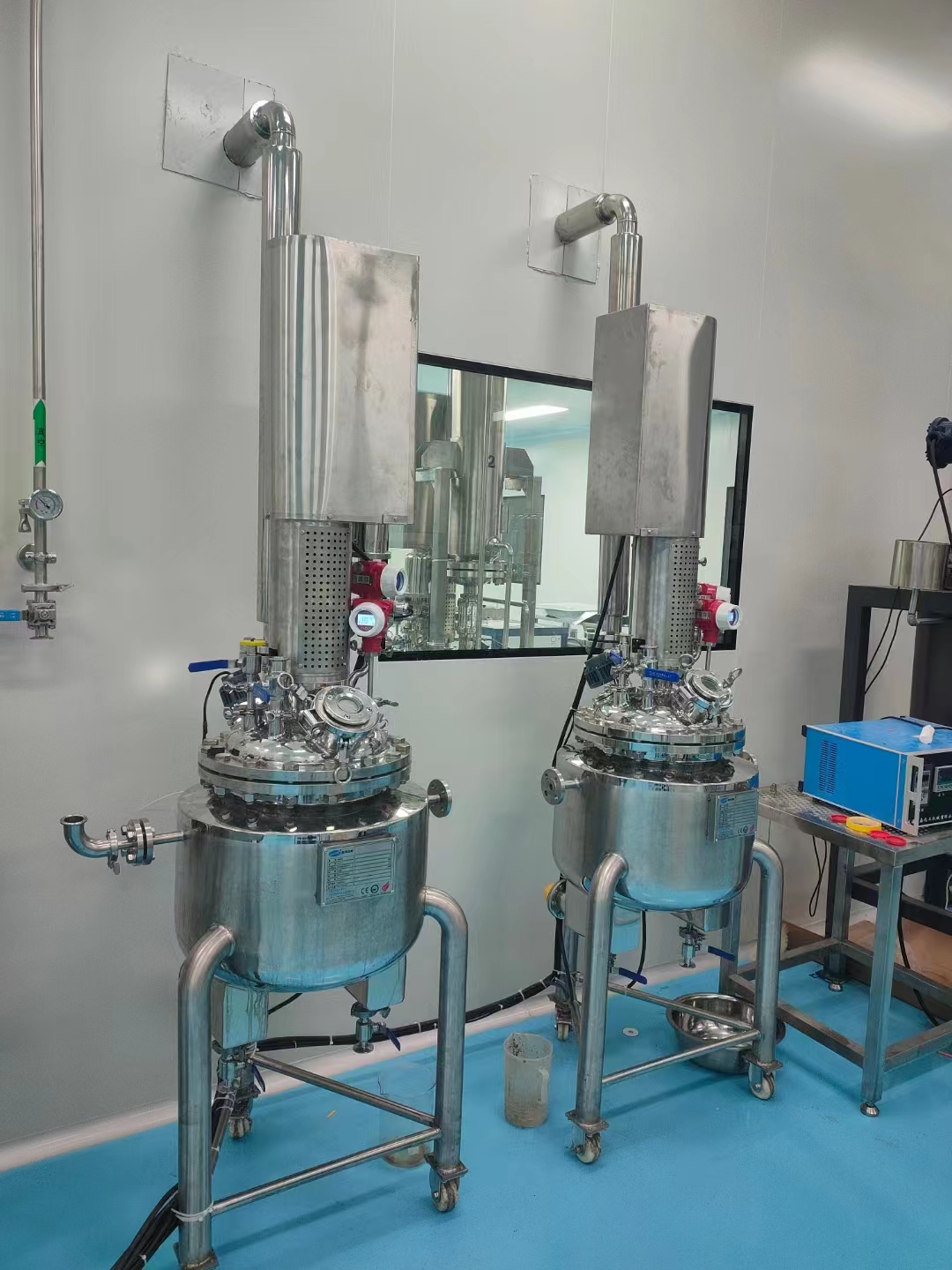

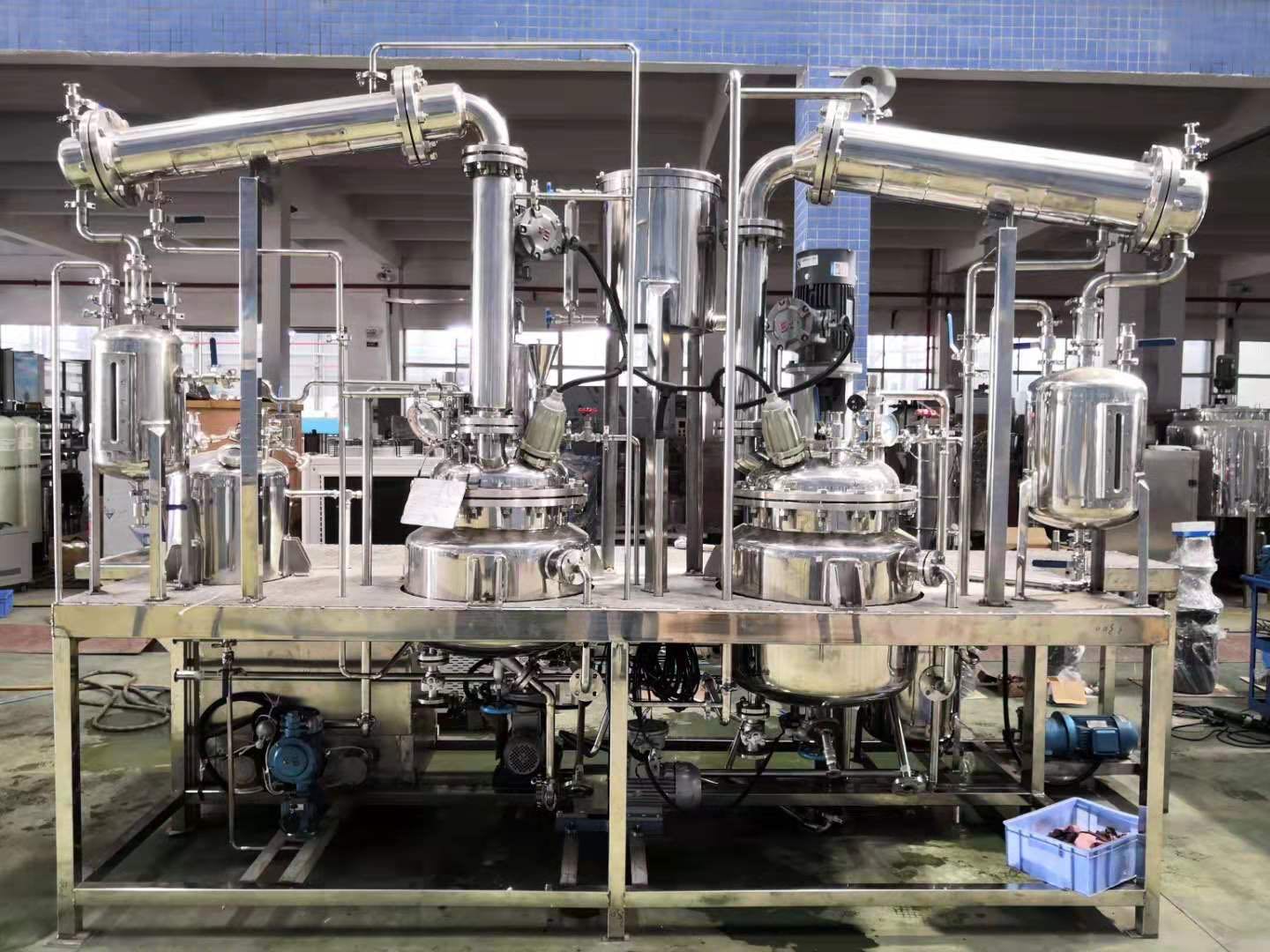

A pilot reactor is an equipment used for small-scale chemical reactions in pilot manufacturing line.

JINZONG MACHINERY designs and builds custom pressure vessels and reactors to meet our customer’s application requirements. Because these vessels are used by practically every industry, we offer a wide variety of options to meet customer needs such as:
Vessels built in the shop or on-site
Stainless steel and other nickel based alloys
Various material and weld finishes for tank interior and exterio

Model selection reference of reaction kettle

Composition

Instructions

Specification (L)

5-200

Design Pressure (Mpa)

Atmospheric Pressure or under pressure

Material

Carbon steel, stainless steel, enamel, graphite

Heating Forms

Electrical heating with medium in jacket, external half coil steam heating, external half conduction oil heating, hot water infrared heating etc.

Cooling Forms

Refrigeration medium in the internal pipe jacket

Blending Power

Model selection is made according to material viscosity, liquid-solid ratio, liquid specific gravity, solid specific gravity, solid granularity, rotation speed, paddle type, with or without baffle or internal coil.

Stirring blade Forms

Anchor type, frame type, flat paddle type, pitched paddle type, ribbon type, turbo type, pusher type and multiple compound type

Seal

Mechanical seal or stuff packing seal

Inner Surface Treatment

Polished or no polished

Discharge Valve

Flanged ball valve, open downward discharge valve and others

Technological Pipe Hole

Manhole, sight glass, distillation mouth, imported materials, pressure gauge port, temperature, m

Choosing Jinzong Machinery is choosing professional technical support and good after-sales service.
