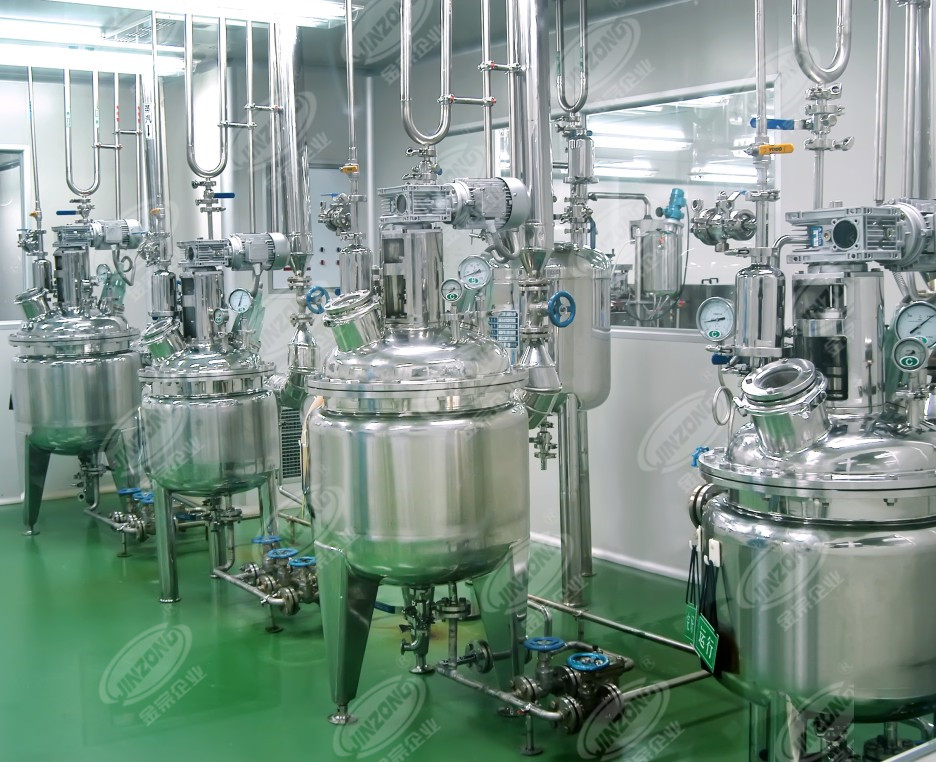

Description：Solution preparation system consists of liquid premixing vesssel, manufacturing vessel, storage vessel, filter, online homogenizer, transfering pumps and working platform.

▋ Specification

Capacity: 50L-5000Liters .

Power Supply : 380V, 50/60Hz (Can be customized)

In Strict accordance with the GMP requirements of production.

▋ Technical Specification

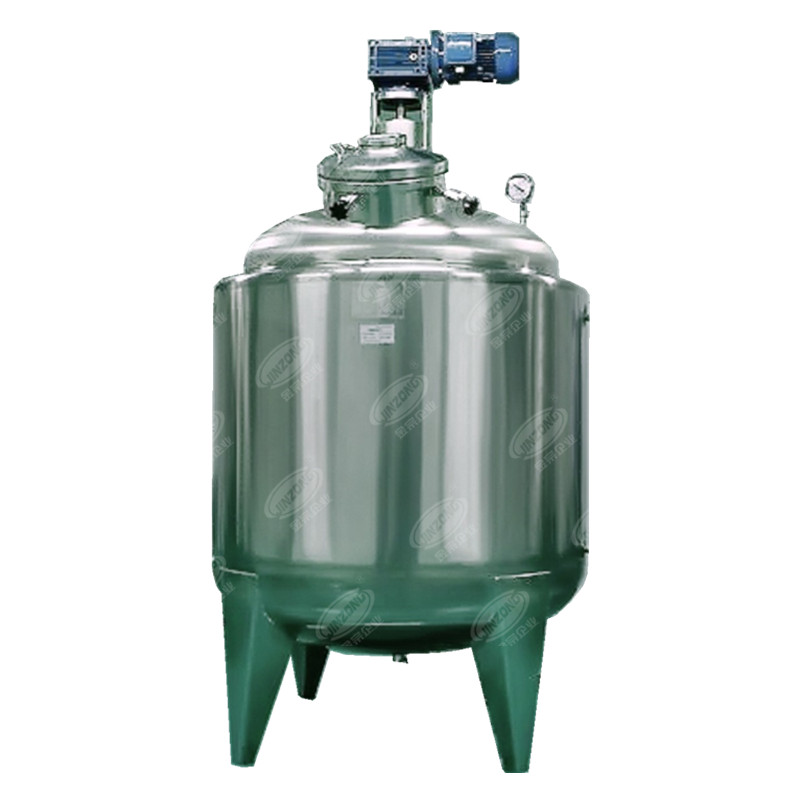

Liquid mixing vessel

Model

Volume of Main Pot

Mixing motor

(L*W*H)mm Dimension

Weight (kg)

Power (kw)

Speed (rpm)

JY-200

260

2.2

0-74

2000*2000*2650

1600

JY-300

375

3

0-74

2100*2100*2750

1900

JY-500

620

4

0-63

2250*2250*3050

2500

JY-1000

1250

5.5

0-50

2600*2600*3500

4000

JY-2000

2600

7.5

0-42

2800*2800*4000

6000

JY-3000

3800

11

0-42

3000*3000*4200

9000

JY-5000

6500

15

0-42

3300*3500*4800

JY-10000

12500

22

0-30

Automatic liquid filling packing production line

6 head piston filling machine technical parameters: 4Nozzle for 500ml

1. Filling nozzle: 6/4
2. Filling volume:10-100ml /100ml-1L
3. Filling speed: 30-40BPM based on 50ml bottle
4. Filling precision: ±1%
5. Frame material: 304 SUS
6. Program control: PLC+ touch screen
7. Filling nozzle, tank, parts connected with liquid: 316#, silica gel, POM
8. Air pressure: 0.6-0.8Mpa
9. Conveyor: 82mm POM chain belt, 0-15m/min, H: 800±25mm
10. Conveyor motor: 750W frequency speed governing motor
11. Power: 2.2KW, 380V, three phase five wire
12. Tank: 150L, with liquid level, the input pipe installed into the bottom to prevent foam

4 wheel screw capping machine technical parameters:

13. Suitable bottles: According to customer samples
14. Cap distributor: Vibration shaking plate
15. Capping way: Electric screw capping
16. Capping speed: 40-50BPM
17. Conveyor: Share with filling machine
18. PLC + touch screen: Share with filling machine
19. 7. Power: 200W, 220V

Labeling machine technical parameters:

20. Suitable bottles: According to customer samples
21. Suitable label: Sticker roll label, not transparent
22. Capacity: >50BPM
23. Labeling precision: ±1mm
24. Conveyor: 82mm POM chain belt, 0-15m/min, H: 800±25mm
25. Power: 220V, 600W
26. Program control: PLC + touch screen
27. Roll label inner diameter: 76mm, Max outer diameter: 300mm

▋ Main Configuration

1. Frame, under-chassis, guard rail: 304 SUS
2. Filling nozzle, tank, parts connected with liquid: 316#, silica gel, POM
3. Pneumatic component: Taiwan AIRTAC
4. PLC + touch screen: Siemens
5. Sensor: German LEUZE
6. Converter: Schneider
7. Conveyor: 82mm chain belt, AC motor
8. Exposed parts: stainless steel, anodized aluminum alloy, electroplated 45 # steel, plastics.

▋ Packing And Delivery

Option 1: When Delivered by LCL (Less Container Loading), the tank will be covered by PE film, then Packed in Plywood case.

Option 2: When Loaded in Whole Container, The tank will be covered by PE film, Lay down & fixed on a Iron frame, finally the whole tank will be fixed in the container.

Port: Guangzhou port/ Huangpu port

▋ Feature

Continuous production, no need to regenerate, reduce labor intensity;

High efficiency, fully automatic operation, easy to operate and maintain;

PLC based panel with touch screen HMI and menu options for the panel.

▋ Advantage

• Minimum man handling.
• Negligible vacuum drop during mixing & blending.

▋ Benefits

Needless to say, it also provides the benefits of the effective manpower utilization.

▋ Application

Pharmaceutical Industry

Confectionery industry

▋ More Applications Case

1) Food industry: soy sauce, condiment, mayonnaise, cottage cheese, fast food, baby food, jam, pet food, starch solution, west point sauce, salad dressing.

2) Cosmetics industry: emulsion, sunscreen products, perfume, decorative cosmetics, shampoo, hair dye, hand soap, liquid soap, toothpaste, collagen suspension emulsion carbon emulsion.

3) Chemical industry: detergent, polishing agent, lubricant, pigment, paint, preservative, solvent, wax emulsion, polymer emulsification, silicon emulsion, peptizer, catalyst suspension, titanium dioxide suspension emulsion, penetrant, insecticide, fungicides.

4) Pharmaceuticals industry: ointment, gel, eye drops, cough syrup, injection solution, sugar/salt solution, suppositories, sugar coating, shampoo(oil-in-water or water-in-oil), paraffin emulsion, fat emulsion, decomposition of vegetable ingredients, preservative, serum, vaccine.

5) Drink: fruit juice, vegetable juice, milk mixed drink, protein drink, spices, liqueur, alginate.
