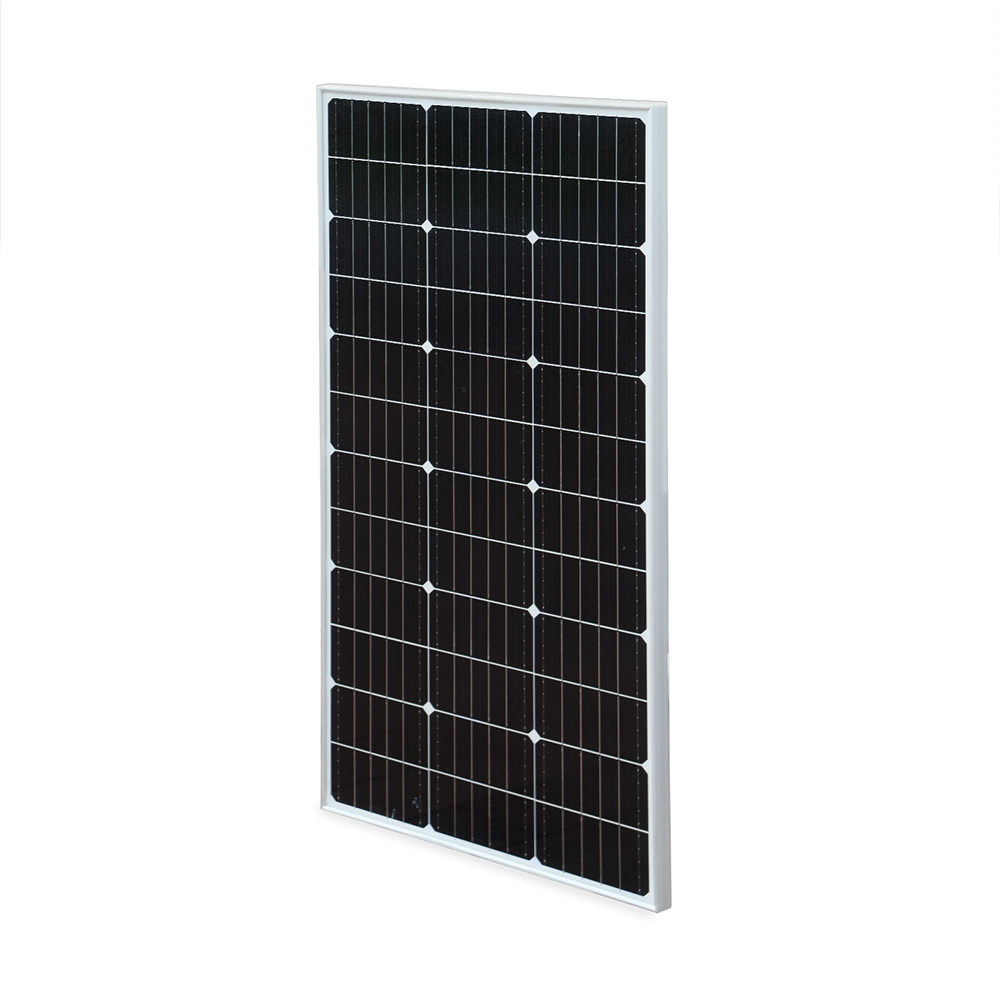

Solarparts Mono glass solar panel 100W 19.8V 1050*530*25mm with junction box and 0.9M cable
Shenzhen Solarparts Co.,Ltd
The supplier hasn’t listed a price. We can get their current prices and MOQ.
Verify from $29 · written report in 3 business days · 100% refund if not satisfied
Solarparts Mono glass solar panel 100W 19.8V 1050*530*25mm with junction box and 0.9M cable
Shenzhen Solarparts Co.,LtdThe supplier hasn’t listed a price. We can get their current prices and MOQ.
Verify from $29 · written report in 3 business days · 100% refund if not satisfied
About this product
- Color: black
- Structure: Other
- Application: Other
- Power: Other
- Industry: Other
- Max.capacity: Other
- Exports to: South Asia, USA and Canada, Russia, EU, Other European Countries, Japan and South Korea, Hong Kong China, Macao China and Taiwan China
About this product
- Color: black
- Structure: Other
- Application: Other
- Power: Other
- Industry: Other
- Max.capacity: Other
- Exports to: South Asia, USA and Canada, Russia, EU, Other European Countries, Japan and South Korea, Hong Kong China, Macao China and Taiwan China
Product details
| Color | black |
|---|---|
| Structure | Other |
| Application | Other |
| Power | Other |
| Industry | Other |
| Max.capacity | Other |
| Driving type | Other |
| Start up | Other |
| Media | Other |
| Theory | Other |
| Performance | Other |
| Assembly | Other |
Product details
| Color | black |
|---|---|
| Structure | Other |
| Application | Other |
| Power | Other |
| Industry | Other |
| Max.capacity | Other |
| Driving type | Other |
| Start up | Other |
| Media | Other |
| Theory | Other |
| Performance | Other |
| Assembly | Other |
From the supplier
Feature:
1.Long service life and virtually maintenance-free. Up to more than 25 years.
2.Good performance in low light environment.
3.Rugged design to withstand high winds (2400Pa), hail and snow load (5400Pa).
4.Corrosion-resistant aluminum material can withstand the changing outdoor environment.
5.Bypass diodes reduce power drop caused by shadows and ensure excellent performance in low-light environments.
6.Easy to install with pre-drilled holes on the back of panel for fast mounting and securing. Can be matched with various solar panel brackets.
Product Specification:
Max Power: 100w
Max Power Voltage: 19.8V
Max Power Current: 5.05A
Open-circuit voltage: 23.76V
Short-circuit current: 5.56A
Size: 1050*530*25mm
Product Weight: 6.95kg
Efficiency: ≥21%
Operating temperature: -20 - 85℃
Package size: 10780*565*160mm, 3pcs packed in one carton
Package weight: 9kg
Application:
Supported by a wide range of mounting options including flat surface, pole, and wall installation. Common applications include large photovoltaic power plants, industrial and commercial power plants, small off-grid photovoltaic systems, RVs, campers, SUV, maritime, residential rooftops, remote farms, disaster relief, traffic signs, etc
