Olarparts mono glass solar panel 41.62V/540W 2279*1134*35mm
Shenzhen Solarparts Co.,Ltd
The supplier hasn’t listed a price. We can get their current prices and MOQ.
Verify from $29 · written report in 3 business days · 100% refund if not satisfied
Olarparts mono glass solar panel 41.62V/540W 2279*1134*35mm
Shenzhen Solarparts Co.,LtdThe supplier hasn’t listed a price. We can get their current prices and MOQ.
Verify from $29 · written report in 3 business days · 100% refund if not satisfied
About this product
- Materials: mono cell
- Size: 2279*1134*35mm
- Color: black
- Exports to: USA and Canada, Russia, EU, Other European Countries, Japan and South Korea, Hong Kong China, Macao China and Taiwan China
- Made in: Guangdong, China
About this product
- Materials: mono cell
- Size: 2279*1134*35mm
- Color: black
- Exports to: USA and Canada, Russia, EU, Other European Countries, Japan and South Korea, Hong Kong China, Macao China and Taiwan China
- Made in: Guangdong, China
Product details
| Materials | mono cell |
|---|---|
| Size | 2279*1134*35mm |
| Color | black |
Product details
| Materials | mono cell |
|---|---|
| Size | 2279*1134*35mm |
| Color | black |
From the supplier
Feature:
1.Long service life and virtually maintenance-free. Up to more than 25 years.
2.Good performance in low light environment.
3.Rugged design to withstand high winds (2400Pa), hail and snow load (5400Pa).
4.Corrosion-resistant aluminum material can withstand the changing outdoor environment.
5.Bypass diodes reduce power drop caused by shadows and ensure excellent performance in low-light environments.
6.Easy to install with pre-drilled holes on the back of panel for fast mounting and securing. Can be matched with various solar panel brackets.

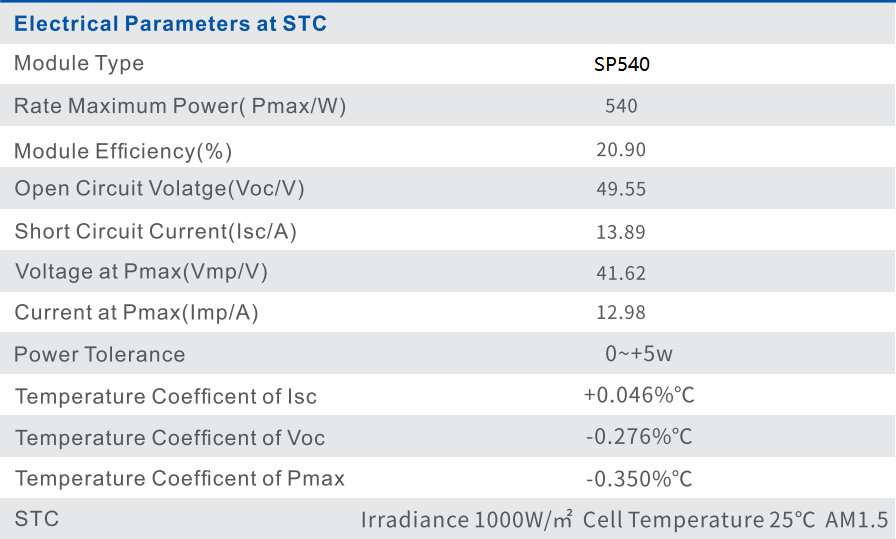

Product Specification :
Model:SP540
Solar cell:Mono silicon
Max Power：540w
Max Power Voltage : 41.62V
Max Power Current: 12.98A
Open-circuit voltage:49.55 V
Short-circuit current: 13.89A

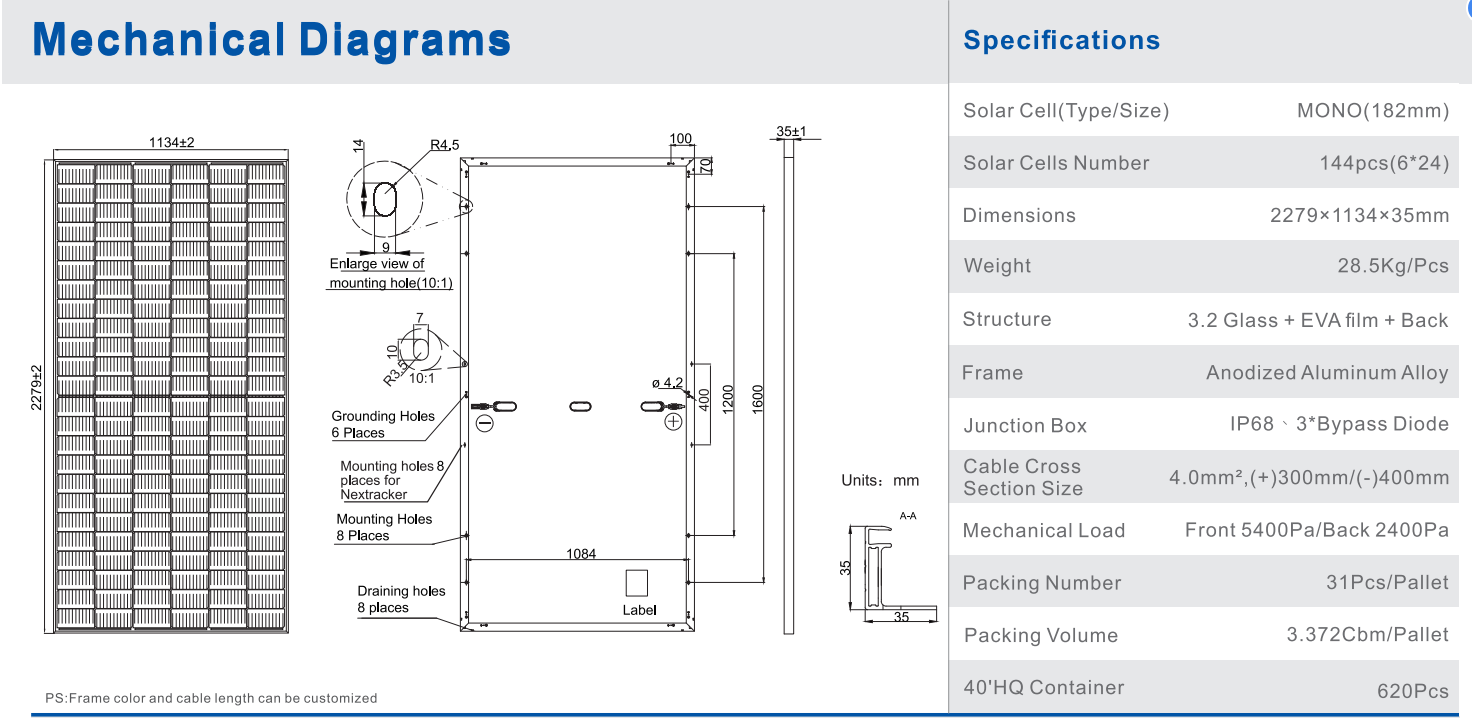

Size:2279*1134*35mm
Product weight:37.8kg
Efficiency:≥20.9%
Operating temper:-20 - 85℃
Package size:2294*1149*50mm packed individually
Application:

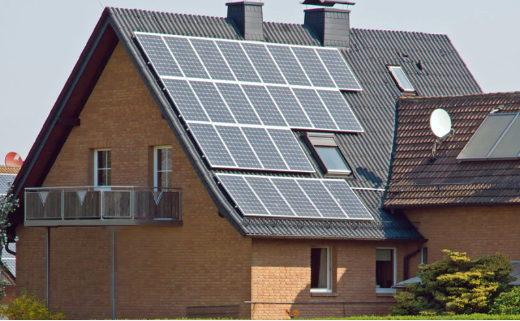

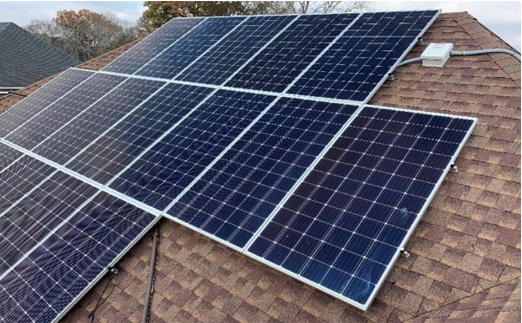

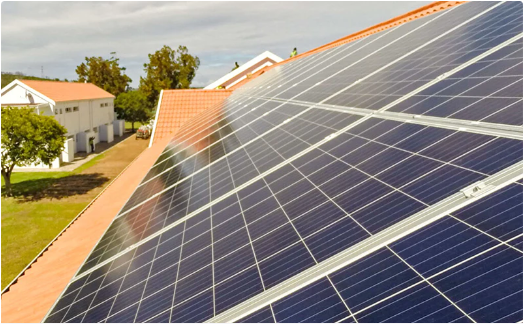

Supported by a wide range of mounting options including flat surface, pole, and wall installation. Common applications include large photovoltaic power plants, industrial and commercial power plants, small off-grid photovoltaic systems, RVs, campers, SUV, maritime, residential rooftops, remote farms, disaster relief, traffic signs, etc
From the supplier
Feature:
1.Long service life and virtually maintenance-free. Up to more than 25 years.
2.Good performance in low light environment.
3.Rugged design to withstand high winds (2400Pa), hail and snow load (5400Pa).
4.Corrosion-resistant aluminum material can withstand the changing outdoor environment.
5.Bypass diodes reduce power drop caused by shadows and ensure excellent performance in low-light environments.
6.Easy to install with pre-drilled holes on the back of panel for fast mounting and securing. Can be matched with various solar panel brackets.
Product Specification :
Model:SP540
Solar cell:Mono silicon
Max Power：540w
Max Power Voltage : 41.62V
Max Power Current: 12.98A
Open-circuit voltage:49.55 V
Short-circuit current: 13.89A
Size:2279*1134*35mm
Product weight:37.8kg
Efficiency:≥20.9%
Operating temper:-20 - 85℃
Package size:2294*1149*50mm packed individually
Application:
Supported by a wide range of mounting options including flat surface, pole, and wall installation. Common applications include large photovoltaic power plants, industrial and commercial power plants, small off-grid photovoltaic systems, RVs, campers, SUV, maritime, residential rooftops, remote farms, disaster relief, traffic signs, etc
About the supplier
Main products: Photovoltaic Application Products, Solar Cell and Module, Crystalline Silicon Photovoltaic Panel, Photovoltaic Engineering and System
- ✓Exhibited at 7 recent Canton Fairs
- ✓Manufacturer
- ✓Founded 2011
- ✓Canton Fair Premium Supplier
- ✓National high-tech enterprise
Light & Electrical exhibitors show in Phase 1 of the Canton Fair, 15 to 19 October 2026.
- Exhibited at 7 recent Canton Fairs
- Manufacturer
- Founded 2011
- Canton Fair Premium Supplier
